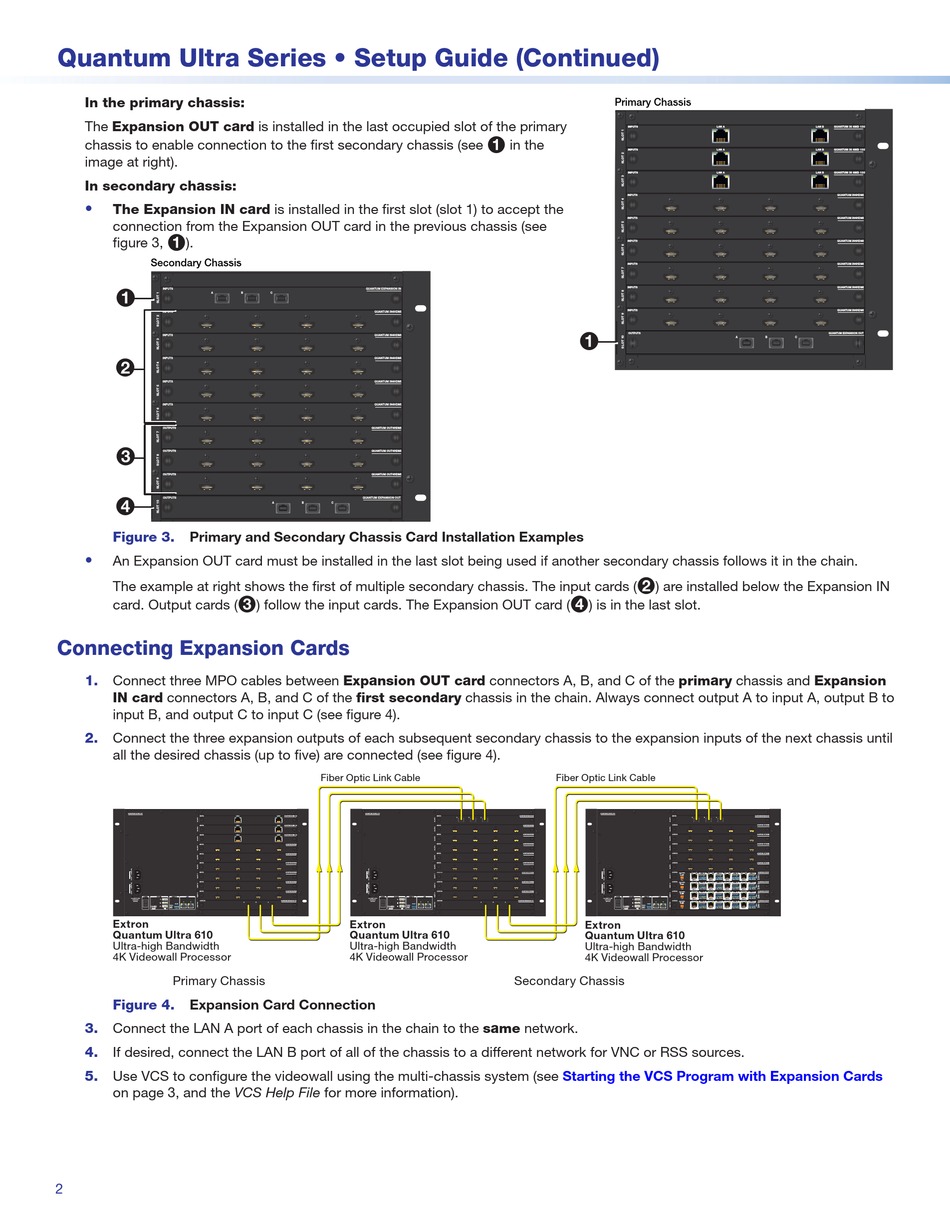

Quantum Ultra Series • Setup Guide (Continued)
In the primary chassis:
The Expansion OUT card is installed in the last occupied slot of the primary
chassis to enable connection to the first secondary chassis (see
image at right).
In secondary chassis:
•
The Expansion IN card is installed in the first slot (slot 1) to accept the
connection from the Expansion OUT card in the previous chassis (see
figure 3,
1
).
Secondary Chassis
INPUTS
1 1
1
A
INPUTS
INPUTS
INPUTS
2 2
2
INPUTS
INPUTS
OUTPUTS
3 3
3
OUTPUTS
OUTPUTS
OUTPUTS
4 4
4
Figure 3.
Primary and Secondary Chassis Card Installation Examples
•
An Expansion OUT card must be installed in the last slot being used if another secondary chassis follows it in the chain.
The example at right shows the first of multiple secondary chassis. The input cards (
card. Output cards (
Connecting Expansion Cards
1.
Connect three MPO cables between Expansion OUT card connectors A, B, and C of the primary chassis and Expansion
IN card connectors A, B, and C of the first secondary chassis in the chain. Always connect output A to input A, output B to
input B, and output C to input C (see figure 4).
2.
Connect the three expansion outputs of each subsequent secondary chassis to the expansion inputs of the next chassis until
all the desired chassis (up to five) are connected (see figure 4).
QUANTUM ULTRA 610
INPUTS
INPUTS
INPUTS
INPUTS
INPUTS
INPUTS
INPUTS
INPUTS
INPUTS
POWER
SYSTEM
REMOTE
LAN
DISCONNECT POWER
CORD BEFORE
OUTPUTS
SERVICING
A
B
RS-232
CONFIG
Tx Rx G
Extron
Quantum Ultra 610
Ultra-high Bandwidth
4K Videowall Processor
Primary Chassis
Figure 4.
Expansion Card Connection
3.
Connect the LAN A port of each chassis in the chain to the same network.
4.
If desired, connect the LAN B port of all of the chassis to a different network for VNC or RSS sources.
Use VCS to configure the videowall using the multi-chassis system (see
5.
on page 3, and the VCS Help File for more information).
2
