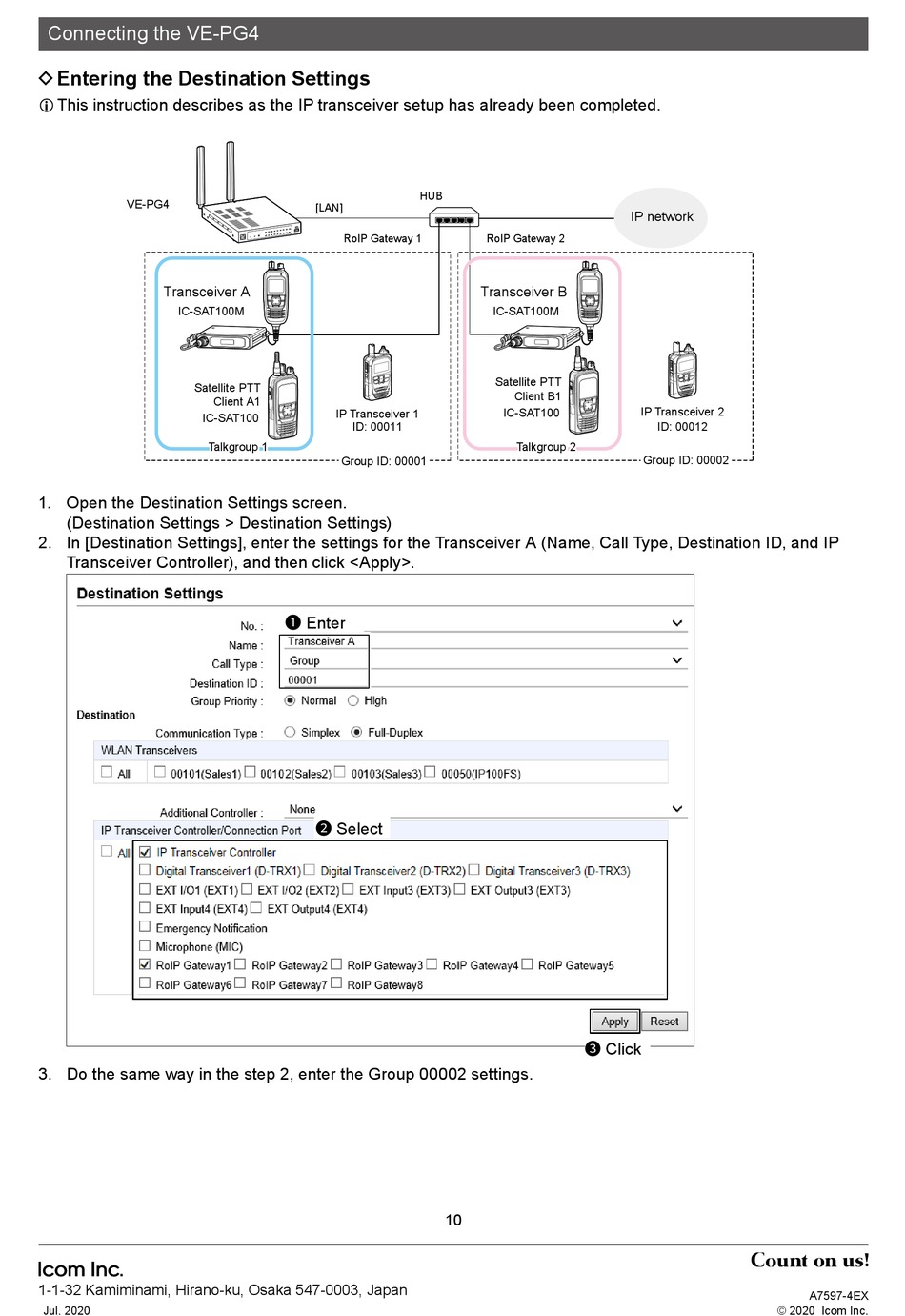

D Entering the Destination Settings

L This instruction describes as the IP transceiver setup has already been completed.
VE-PG4
Transceiver A
IC-SAT100M
Satellite PTT Satellite PTT
IC-SAT100 IC-SAT100
Talkgroup 1 Talkgroup 1
1. Open the Destination Settings screen.
(Destination Settings > Destination Settings)
2. In [Destination Settings], enter the settings for the Transceiver A (Name, Call Type, Destination ID, and IP
Transceiver Controller), and then click <Apply>.
3. Do the same way in the step 2, enter the Group 00002 settings.
