Step 1: Begin
IN THIS SECTION
Meet the MX150 | 1
Install the MX150 | 2
Power On | 4
Meet the MX150
®
The Juniper Networks
suited for lower-bandwidth service provider applications and distributed service architectures, and for enterprise WAN.
With support for an outstanding mix of 10/100/1000BASE-T and 10GbE interfaces, all in a single rack unit (1 U), the
MX150 helps conserve precious space resources and contain costs associated with power and cooling.
MX150 Universal Routing Platform is a compact, high-performance edge router that is ideally
Advertisement
Related Manuals for Juniper Day One+ MX150
Summary of Contents for Juniper Day One+ MX150

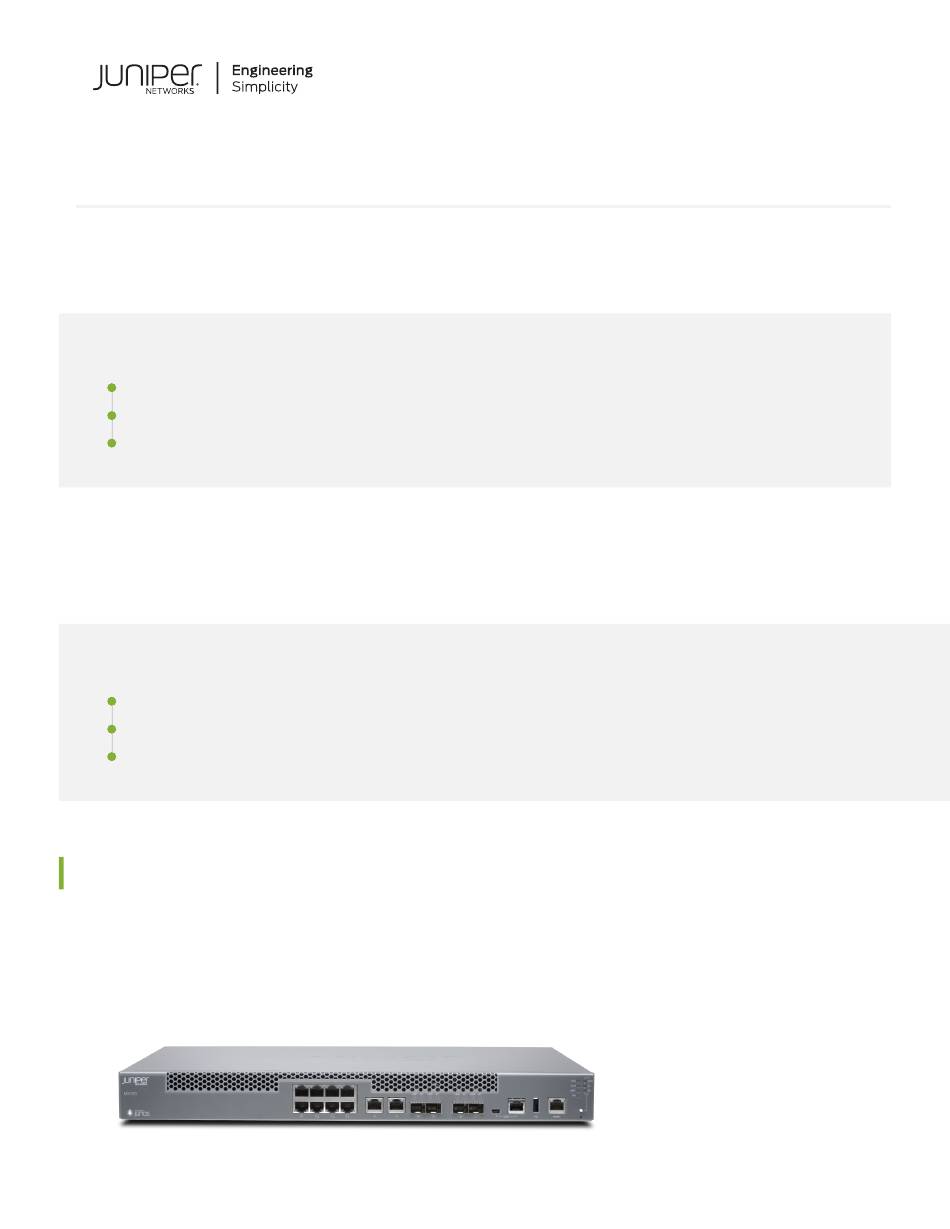

- Page 1 Power On | 4 Meet the MX150 ® The Juniper Networks MX150 Universal Routing Platform is a compact, high-performance edge router that is ideally suited for lower-bandwidth service provider applications and distributed service architectures, and for enterprise WAN. With support for an outstanding mix of 10/100/1000BASE-T and 10GbE interfaces, all in a single rack unit (1 U), the...
- Page 2 The MX150 has eight 1GbE RJ-45 network ports, two 1GbE RJ-45 access or uplink ports, two 1GbE SFP ports, and two 10GbE SFP+ ports. You can manage the router through an 1GbE RJ-45 management port, mini-USB console port, and an RJ-45 console (CON) port.
- Page 3 An electrostatic discharge (ESD) grounding strap Grounding cable (optional) A management host, such as a laptop or PC with a serial port Serial-to-USB adapter (if your laptop or PC doesn’t have a serial port) Install the MX150 on a Desk To install the MX150 on a desk or other flat surface, simply attach the four rubber feet (included in the accessory kit) to the bottom of the chassis.
- Page 4 4. While you’re holding the MX150 in place, have a second person insert and tighten the rack mount screws to secure the mounting brackets to the rack rails. Make sure they tighten the screws in the two bottom holes first, and then tighten the screws in the two top holes.
-
Page 5: Step 2: Up And Running
The MX150 powers on as soon as it receives power. 9. Verify that the power LED on the front panel is steady green. Step 2: Up and Running IN THIS SECTION Connect and Configure | 5 Now that the MX150 is powered on, let’s do some initial configuration to get it up and running on the network. The MX150 already has factory-default settings configured right out of the box. - Page 6 1. Connect the RJ-45 console port (labeled CON on the front panel) to a laptop or PC using the supplied RJ-45 cable and RJ-45 to DB-9 adapter. The CLI displays a login prompt. NOTE: Alternately, you can use a USB cable to connect to the mini-USB console port on the front panel. To use the mini-USB console port, you’ll need to set it as the active console port.
- Page 7 MX150 router Licensing Guide See all documentation available for the MX150 Visit the MX150 Documentation page in the Juniper TechLibrary Find more in-depth information about installing the MX150 See the MX150 Universal Routing Platform Hardware...
- Page 8 Visit the Security Design Center Juniper Networks, the Juniper Networks logo, Juniper, and Junos are registered trademarks of Juniper Networks, Inc. in the United States and other countries. All other trademarks, service marks, registered marks, or registered service marks are the property of their respective owners.
