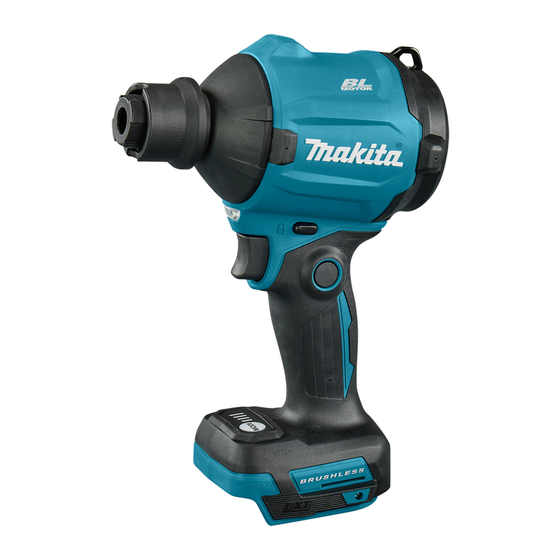

Cordless dust blower
Hide thumbs Also See for DAS180Z:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
Cordless Dust Blower
DAS180
Read before use.

Advertisement

Table of Contents
loading

Related Manuals for Makita DAS180Z

Summary of Contents for Makita DAS180Z

  • Page 1 INSTRUCTION MANUAL Cordless Dust Blower DAS180 Read before use.

  • Page 2: Specifications

    SPECIFICATIONS Model: DAS180 *2 *3 Air speed (average) 163 m/s *2 *3 Air speed (max.) 200 m/s *1 *2 Maximum air volume 1.1 m /min *1 *2 Maximum blowing force 4: Max 2.8 N (0.29 kgf) 3: High 2.3 N (0.23 kgf) 2: Medium 1.7 N (0.17 kgf) 1: Low...
  • Page 3 Applicable nozzles and attachments Optional accessories Nozzles and attachments Applications and purposes Diameters Nozzle 3 Blowing air into confined spaces, corners, and spaces by the walls to ø3.0 mm dust off. Nozzle 7 Dusting off filters. ø7.0 mm Nozzle 13 Using as blower ø13 mm Cleaning work surfaces and blowing dust in general. Anchor hole cleaning with optional long nozzles. Functioning as a joint between long nozzles and blower outlet of the tool.
  • Page 4 Nozzles and attachments Applications and purposes Diameters Long nozzles set A set of nozzles suitable for blowing dust out of anchor holes and narrow ø8.0 mm spots. Nozzle lengths can be changed by attaching and detaching two nozzle heads. * Long nozzles can be installed using nozzle 13 as a joint. Air vent hose complete Deflating inflatable items with appropriate nozzles in operation.

  • Page 5: Safety Warnings

    Symbols WARNING: Wear ear protection. WARNING: The noise emission during actual The followings show the symbols which may be used use of the power tool can differ from the declared for the equipment. Be sure that you understand their value(s) depending on the ways in which the tool is meaning before use.
  • Page 6 Work area safety Do not overreach. Keep proper footing and balance at all times. This enables better control Keep work area clean and well lit. Cluttered or of the power tool in unexpected situations. dark areas invite accidents. Dress properly. Do not wear loose clothing or Do not operate power tools in explosive atmo- jewellery.
  • Page 7 • manufacturer or authorized service providers. blower outlet with dust or dirt when oper- Follow instruction for lubricating and chang- ating in dusty area. ing accessories. Do not use nozzles other than the nozzles • provided by Makita. 7 ENGLISH...
  • Page 8 Use only standard accessories provided by or vibration, immediately switch off the dust Makita. The use of any other accessories or attach- blower to stop it. Remove the battery car- ments might present a risk of injury to persons. tridge from the dust blower and inspect the...
  • Page 9 Avoid storing battery cartridge in a con- causing fires, personal injury and damage. It will tainer with other metal objects such as also void the Makita warranty for the Makita tool and nails, coins, etc. charger. Do not expose battery cartridge to water or rain.
  • Page 10 Removing nozzle Removing and installing dust cap Hold the nozzle end and rotate it in a direction indicated Turn the dust cap on the suction inlet at the rear of by the arrows on the nozzle end to release the lock. Pull the housing counterclockwise to take the dust cap out the nozzle apart from the lock sleeve after it becomes of the housing.
  • Page 11 Place the long nozzle F over the front end of the Installing and removing long long nozzle R. Hand screw the long nozzle F until it is nozzles tightened securely. Optional accessory A set of long nozzles helps clean dust out of small holes and narrow spots.
  • Page 12 Turn the dust cap on the suction inlet at the rear of Installing and removing deflating the housing counterclockwise to take the dust cap out nozzles and attachments of the housing. Two locking tabs on the dust cap can be disengaged by aligning them with the guide grooves on Optional accessory the housing.

  • Page 13: Functional Description

    Installing optional filter NOTICE: An optional high performance filter (Filter C) can be reused many times by cleaning it out. Clean dust off the filter regularly as a clogged Optional accessory filter may block the airflow and cause less effi- An optional high performance filter (Filter C) is available cient operation.

  • Page 14: Overload Protection

    Let the tool and battery(ies) cool down. may have malfunctioned. If no improvement can be found by restoring protection system, then contact your local Makita Service Center. Switch action NOTE: Depending on the conditions of use and the ambient temperature, the indication may differ slightly CAUTION: Before installing the battery car- from the actual capacity.
  • Page 15 Trigger-lock button Lock button To prevent the switch trigger from being accidentally For continuous operation, push in the lock button while pulled, the trigger-lock button is provided. To start the pulling the switch trigger and then release the switch tool, depress the trigger-lock button from the side on trigger.

  • Page 16: Installing Hook

    Use the hanging hole at the top rear of the housing to NOTE: Air volume mode can be changed before hang the tool on a hook of racks and holders. turning the tool on. NOTE: The tool restarts operation in the air volume mode that was last used.

  • Page 17: Operation

    OPERATION CAUTION: Do not point the nozzle at anyone nearby during operation. NOTICE: Do not block suction inlet and/or blower outlet during operation. Blowing in general use Recommended nozzles Fig.27 — Nozzle 13 Clean your work surfaces and floors by blowing off dust, CAUTION: Keep the nozzle away a reasonable dirt, debris, scrap or waste in general.
  • Page 18 Inflate beach toys, pillows, and similar small plastic CAUTION: Use personal protective equip- inflatables with pinch valve nozzle. ment such as a dust mask and eye protection. Inflate garden pools, air mattresses, and similar large plastic inflatables with nozzle 13. NOTE: Point the nozzle at an angle according to the Insert the nozzle into an air inlet on an inflatable item outlines of the filter so the adhered dust can be easily and pull the switch trigger to start inflating. removed. Slowly release the switch trigger to reduce air volume as the inflatable item comes close to fully inflated.
  • Page 19 CAUTION: Use personal protective equip- ment such as a dust mask and eye protection. Blowing in narrow spaces Optional accessory Recommended nozzles — Flexible nozzle 6 Blow dust out of any hard-to-reach spots. Highly effec- tive for engine cleaning, in-car dust removal, computer case dust blowing. Fig.33 Point the nozzle at an angle within touching distance, ► 1 .

  • Page 20: Maintenance

    To maintain product SAFETY and RELIABILITY, With pinch valve nozzle repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.
  • Page 21 Wipe and shake dust off circular sponge filter B by Removing and installing filter hand. Occasionally wash the filter in water, rinse and dry thoroughly in the shade before use. CAUTION: After cleaning filter, be sure to reassemble it in the correct position. Clean the filter at regular intervals since using a clogged filter may result in poor suction performance. Turn the dust cap on the suction inlet at the rear of the housing counterclockwise to take the dust cap out of the housing.

  • Page 22: Troubleshooting

    ► 1 . Dust cap 2. Locking tabs 3. Suction inlet 4. Guide grooves TROUBLESHOOTING Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the man- ual, do not attempt to dismantle the machine. Instead, ask Makita Authorized Service Centers, always using Makita replacement parts for repairs. State of abnormality Probable cause (malfunction) Remedy Motor does not run.

  • Page 23: Optional Accessories

    OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita prod- uct specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center.
  • Page 24 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885A20B225 www.makita.com 20221028...
