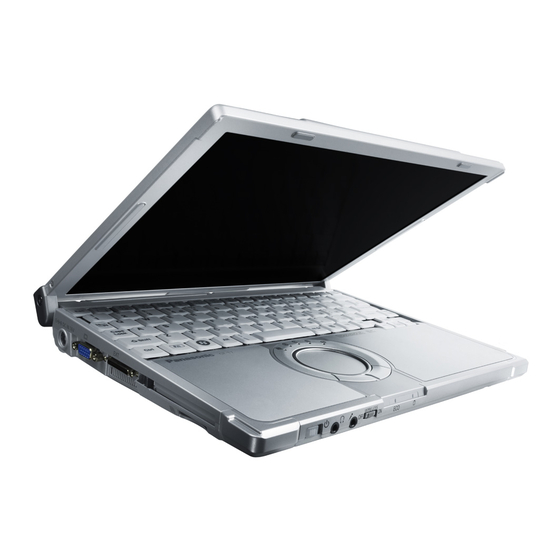

Panasonic Toughbook CF-T7BWATZJM Supplementary Manual

Fingerprint reader

Hide thumbs Also See for Toughbook CF-T7BWATZJM:

Specifications (2 pages)

Supplementary manual (12 pages)

Operating instructions manual (44 pages)

Quick Links

Download this manual

Fingerprint Reader

CF-Y7/CF-T7

Series

Model No.

SUPPLEMENTARY INSTRUCTIONS

Names and Functions of Parts ................... 2

Overview .................................................... 4

Installation .................................................. 5

More Advanced Security ........................... 8

Useful Information ..................................... 9

Troubleshooting ...................................... 13

Specifications .......................................... 19

Summary of Contents for Panasonic Toughbook CF-T7BWATZJM

Page 1: Table Of Contents
Fingerprint Reader CF-Y7/CF-T7 Series Model No. SUPPLEMENTARY INSTRUCTIONS Names and Functions of Parts ... 2 Overview ... 4 Installation ... 5 More Advanced Security ... 8 Useful Information ... 9 Troubleshooting ... 13 Specifications ... 19...
Page 2: Names And Functions Of Parts
Names and Functions of Parts Except the following, refer to the Operating Instructions for the computer. Fingerprint Reader (Appearance may differ, depending on models.)
Page 3: How To Use The Fingerprint Reader
How to Use the Fingerprint Reader This section explains how your fingerprints are enrolled and authenticated. Slide your finger toward yourself. To prevent a reading error. A Set the first joint of your index finger on the sensor as illustrated to the right. B Slide your finger toward yourself while keep- ing it in contact with the fingerprint sensor.
Page 4: Overview
Overview Fingerprint’s Outline The conventional security systems use ID/passwords and token devices such as IC cards to authenticate users. Therefore the passwords and token devices are exposed to the risk of being lost, stolen and hacking. The Fingerprint authentication method uses user’s fingerprints instead of passwords for security authentication.
Page 5: Installation
Installation Step 1 TPM Installation Refer to on-screen manuals (TPM)”. (<Model with Windows XP> Click [start] - [Run], enter “C:\util\drivers\ tpm\README.pdf”, and click [OK]. / <Model with Windows Vista> Click and input “C:\util\drivers\tpm\README.pdf”, and press Enter .) If the TPM is not being used, skip this step. Step 2 Fingerprint Utility Installation Performed by the Computer Administrator.
Page 6 Installation Step 3 TPM Fingerprint Utility Initialization Performed by the Computer Administrator. The “Invalid TPM status” message is displayed by the “Protector Suite QL Icon” the notification area. If the TPM is not being used, skip this step. Click on the “Invalid TPM status” message to start “Advanced Security Initialization Wizard”.
Page 7 · Enrollment to the biometric device All enrolled fingerprints are stored directly in the fingerprint sensor. The user data will be secured by the hardware protection keys obtained by the fingerprint sensor. This mode allows up to 21 fingerprints to be enrolled. ·...
Page 8: More Advanced Security
QL, and have already made Power-on Security effective, after step B, your fingerprint authentication will be necessary. A Turn on or restart the computer. B Press F2 several times while [Panasonic] boot screen is displayed soon after the computer starts the startup procedure. C Select the [Security] menu.
Page 9: Useful Information
Useful Information Backup The file described below is necessary for recovering the Fingerprint authentication data. Back up this file periodically in a safe location such as removable disk to avoid data loss resulting from some accidents. We recommend you to store the file in a removable disk or network drive because the benefit of Fingerprint authentication security can be reduced if you keep the file in the internal hard disk drive.
Page 10 Useful Information Limitations in Use Password Bank* limitations: The following web pages and Windows appli- cations cannot be supported. · Web pages which are created by the following technologies: - Web forms created on the fly using JavaScript. - Web forms which looks as one form (ie login field, password field), but internally created with two independent forms.
Page 11 Deleting (Initializing) Owner’s Data When you dispose of the computer or transfer the ownership, delete (initialize) the owner’s data to avoid unauthorized access. NOTE The data enrolled in the fingerprint sensor is not image data. You cannot restore fingerprint image data from the data enrolled in the fingerprint sensor. Disable Power-on Security Performed by the Computer Administrator.
Page 12 Useful Information Delete Fingerprint Data Performed by each user. A Click [Fingerprints], and click [Delete]. The “Swipe finger” screen will appear. B Swipe user’s finger. · If the authentication is successfully completed, the confirmation mes- sage appears. C Click [Yes]. ·...
Page 13: Troubleshooting
Clean the fingerprint sensor. (For further informa- tion, refer to “Handling & Maintenance” ( page 10)) The fingerprint sensor may be malfunctioning when it continues to perform poorly after the steps described above have been performed. Contact PANASONIC TECHNICAL SUPPORT.
Page 14 Troubleshooting For Application Sensor does not work. User cannot use en- rolled finger. (e.g. in- jury) Exported passport can help you if you need to replace the sensor. · Log on to Windows as an Administrator. You can always access the computer by using your Windows log on password.
Page 15 User cannot use en- rolled finger. (e.g. in- jury) (continued) TPM failure. · If you do not use “Advanced Security”, you can still enter using the Windows password. · If you use “Advanced Security” with backup pass- word, you can enter using the backup password. ·...
Page 16 Troubleshooting Replacing sensor. Lost Advanced Secu- rity backup password. Protector Suite QL re- installation. <Model with Windows XP> Lost “My Safe” backup password. If you need to replace a non-functioning fingerprint reader, follow this procedure: Enrollment to the hard disk: If enrollment to hard disk is used, “Protector Suite QL”...
Page 17 <Model with Windows Vista> Lost “File Safe” backup password. Accessing “My Safe” after Protector Suite QL uninstallation. Accessing “My Safe” after computer crash. Removing data from the reader. : <Model with Windows Vista> “File Safe” It is necessary to change the backup password for “File Safe”, refer to the UPEK Protector Suite QL Help menu.
Page 18 D Make sure your fingerprint sensor is working. · Use the Tutorial wizard to verify that the fingerprint sensor works. If not, reboot and try again. If it still does not work, please contact PANASONIC TECHNICAL SUPPORT. E Restore or create passport.
Page 19: Specifications
Specifications Array Size Image Size Image Resolution 248 x 4 pixels 248 x 360 pixels 508 DPI...
