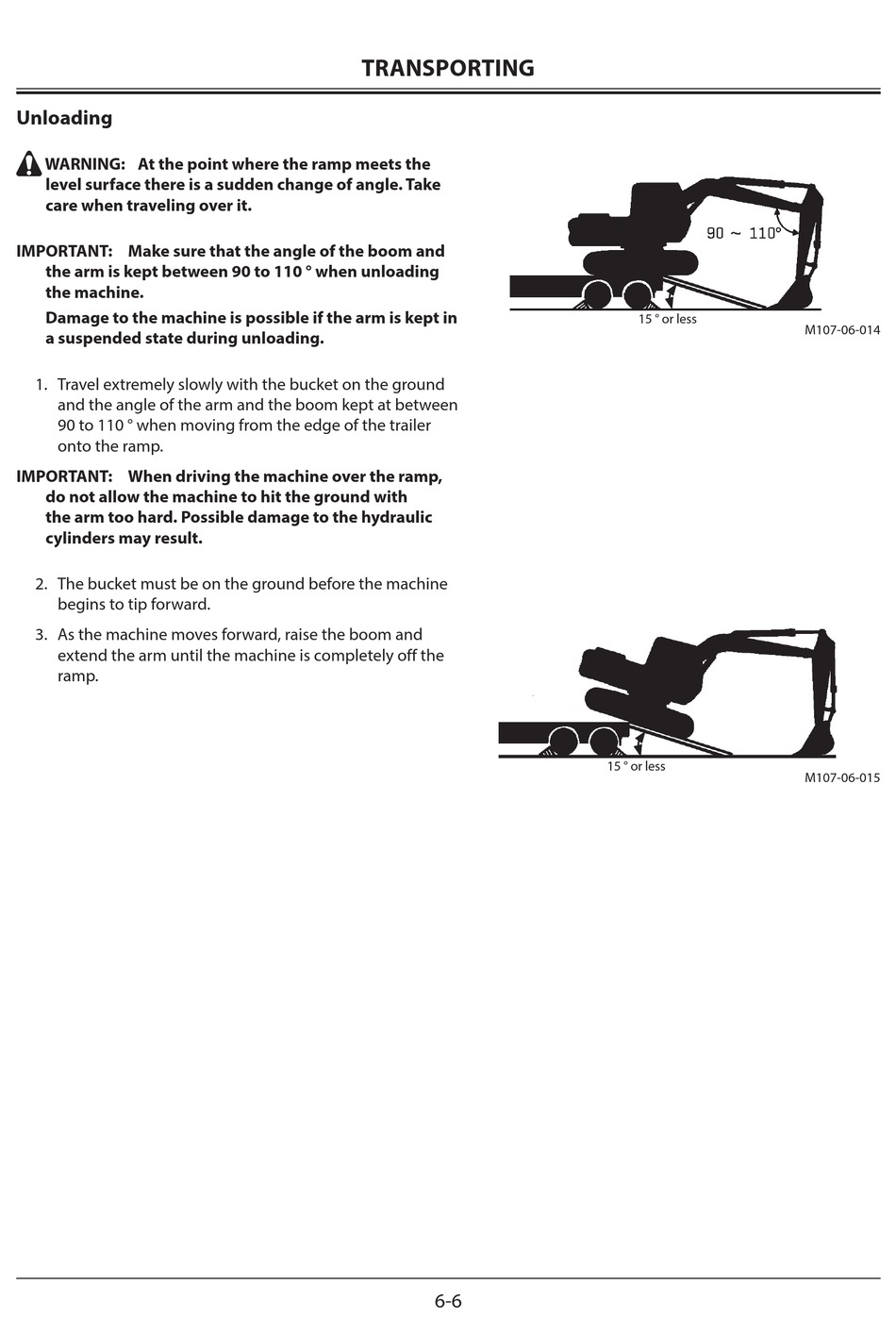

Unloading
d
WARNING: At the point where the ramp meets the
level surface there is a sudden change of angle. Take
care when traveling over it.
IMPORTANT: Make sure that the angle of the boom and
the arm is kept between 90 to 110 ° when unloading
the machine.
Damage to the machine is possible if the arm is kept in
a suspended state during unloading.
1. Travel extremely slowly with the bucket on the ground
and the angle of the arm and the boom kept at between
90 to 110 ° when moving from the edge of the trailer
onto the ramp.
IMPORTANT: When driving the machine over the ramp,
do not allow the machine to hit the ground with
the arm too hard. Possible damage to the hydraulic
cylinders may result.
2. The bucket must be on the ground before the machine
begins to tip forward.
3. As the machine moves forward, raise the boom and
extend the arm until the machine is completely off the
ramp.
TRANSPORTING
6-6
