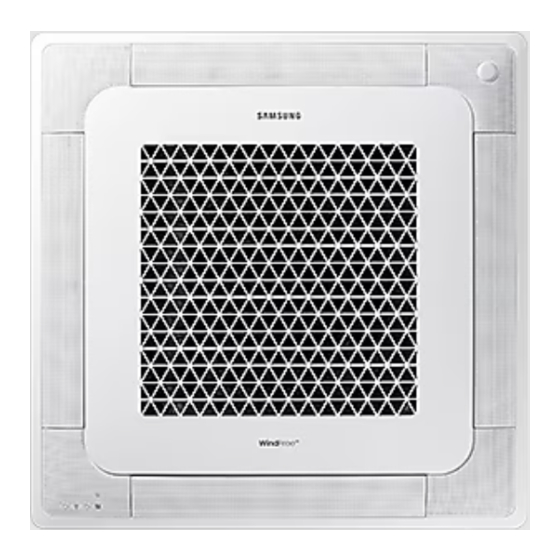

- Page 1 Air conditioner Installation manual PC4NUFDAN Thank you for purchasing this Samsung air conditioner. Before operating this unit, please read this manual carefully and retain it for future reference. DB68-07715A-00...
-
Page 2: Installing The Panel
4 Way Cassette Wind-Free Panel If the Wind-Free function is not visible on the higher- 1 Open the electrical component box cover. level controller after connecting the Wind-Free panel: After untightening the screws, slide the electrical Check if the software of the higher-level controller is component box cover in the direction of the arrow as the latest version. - Page 3 5 Fix the bolt to the panel. indoor unit firmly so that the panel not to fall out. Fix 4 bolts to the panel temporarily. Fix them tightly not to make a gap between the panel and the ceiling. 4 Detach the 4 corners of the panel using both hands. Open both side blade of corner and pull then out using two grooves under the each corner.
- Page 4 4 Way Cassette Wind-Free Panel 6 Connect 4 cables between the indoor unit and the 8 Attach and close the front grille. panel. properly into the grooves on panel ( white terminal before connecting the cables. the panel to close ( Blue Grille 9 Check out that the panel is fixed to the indoor unit.
- Page 5 Memo English...
