Thank you for purchasing an IP Proprietary Telephone (IP-PT).
Please read this manual carefully before using this product and save
this manual for future use.
For more details, please refer to the manuals of the PBX.

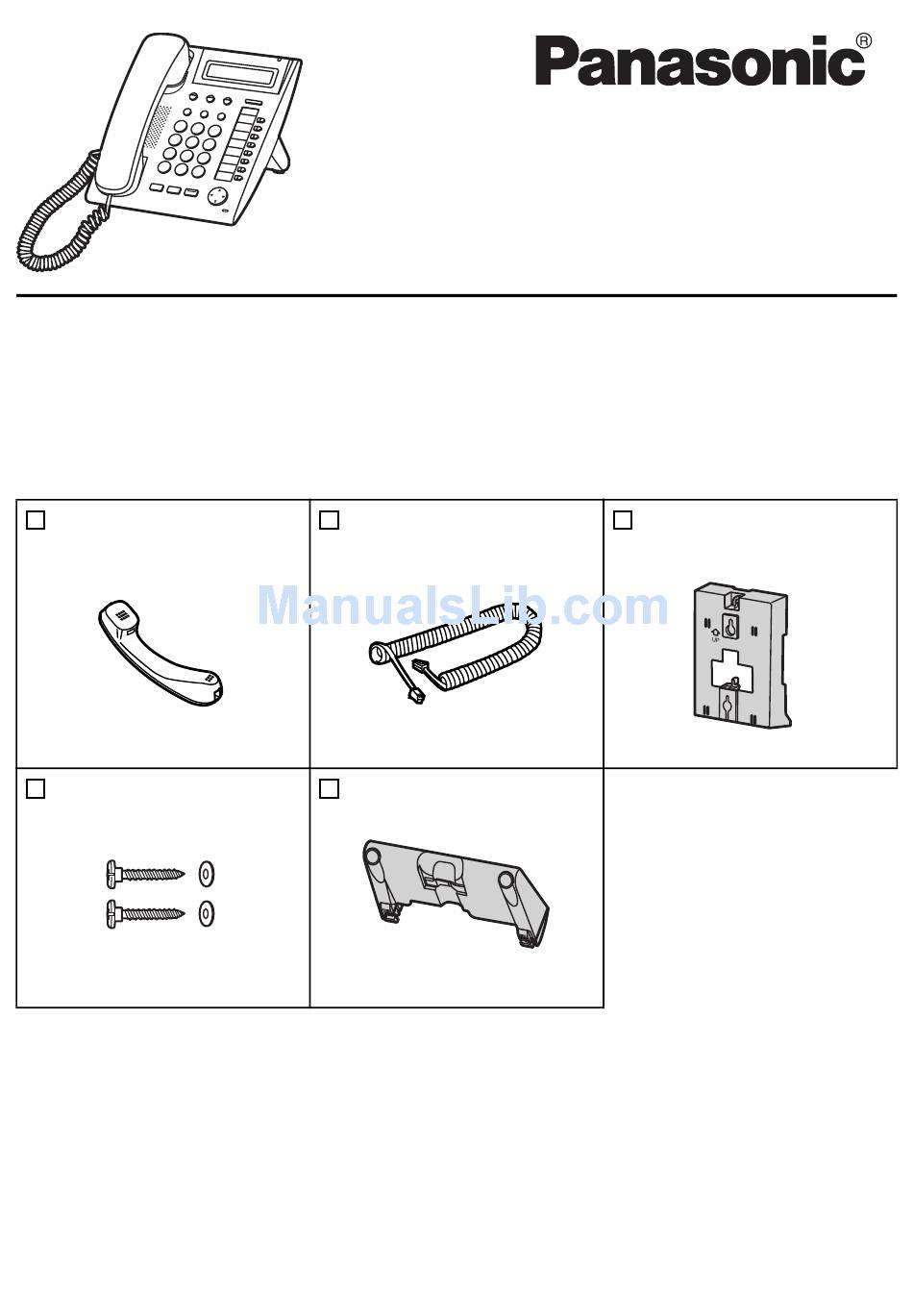

Accessories (included)
Handset
Screws
This model supports the following PBX versions and CODEC types:
KX-TDA50: PSMPR Software File Version 4.0000 or later
KX-TDA100/KX-TDA200: PMPR Software File Version 5.0000 or later
KX-TDA600: PLMPR Software File Version 5.0000 or later
KX-TDE100/KX-TDE200: PMMPR Software File Version 1.0000 or later
CODEC: G.729A, G.711, G.722 *
*1
G.722 is only available for KX-TDE100/KX-TDE200.
Document Version 2008-05
Handset Cord
One
Stand
Two

Quick Reference Guide

IP Proprietary Telephone
One
One
1
KX-NT321
Model No.
Wall Mounting
Adaptor
One

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KX-NT321

Summary of Contents for Panasonic KX-NT321

  • Page 1: Quick Reference Guide

    Thank you for purchasing an IP Proprietary Telephone (IP-PT). Please read this manual carefully before using this product and save this manual for future use. For more details, please refer to the manuals of the PBX. Accessories (included) Handset Screws This model supports the following PBX versions and CODEC types: KX-TDA50: PSMPR Software File Version 4.0000 or later...

  • Page 2: Location Of Controls

    Location of Controls Location of Controls Document Version 2008-05...
  • Page 3 A LCD (Liquid Crystal Display) B AUTO DIAL/STORE: Used for System/Personal Speed Dialing or storing program changes. C AUTO ANS (Auto Answer)/ MUTE: Used to receive an incoming call in hands-free mode or mute the microphone/handset during a conversation. D INTERCOM: Used to make or receive intercom calls.

  • Page 4: Settings

    Settings Settings Speaker volume While in a hands-free conversation Handset/Headset While using the handset or volume headset Ringer volume While on-hook or receiving a call LCD Contrast While on-hook PROGRAM Ring Tone (CO) PROGRAM INTERCOM Press 2 times. LCD Backlight While on-hook PROGRAM AUTO DIAL...

  • Page 5: Icon Meanings

    Features List Icon Meanings = Flexible CO button (CO) = Feature number Making Calls To an extension extension no. REDIAL quick dial no. To store PROGRAM (CO) To dial assigned as a (One-touch One-touch Dialing Dialing) button Document Version 2008-05 = Off-hook = Talk C.

  • Page 6: During A Conversation

    Features List To store To dial AUTO DIAL STORE To dial AUTO DIAL STORE doorphone no. (2 digits) During a Conversation To hold HOLD C. Tone To retrieve an outside call from another extension (CO) TRANSFER C. Tone Personal Speed Dialing personal speed desired no.* (max.

  • Page 7: Multiple Party Conversation

    Conference (Conference) button To leave a conference assigned as a Conference (Conference) button Setting the Telephone According to Your Needs To set 1 time daily C. Tone To cancel Document Version 2008-05 Multiple Party Conversation desired phone no.

  • Page 8: Call Forwarding

    Features List Before Leaving Your Desk All calls Busy No answer Busy/ No answer Cancel Making Use of the Voice Mail Service From your own extension VPS extension no. Mailbox Password* * If you have no password, you can skip the last step.
  • Page 9 VPS extension no. From your own extension Mailbox Password* From someone else’s extension * If you have no password, you can skip the last step. Enter the desired mailbox number (KX-TVA series) (KX-TVS series) To set the delivery time Repeat Voice Guidance Exit •...
  • Page 10 (1/4 in) in diameter or less. AC adaptor • Use a Panasonic AC adaptor KX-A239 (PQLV206). • The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is located near the unit and is easily accessible.
  • Page 11 Stand Usage Attaching the Stand Place the catches (A) of the stand into hooks located in the unit. Gently push the stand in the direction indicated until it locks into place. The stand will be mounted in the high position. Removing the Stand Hold the stand with both hands.
  • Page 12 Stand Usage Adjusting from High to Low Position Hold the stand with both hands as shown and gently push the stand in the direction indicated until it locks into the low position (B). Adjusting from Low to High Position Hold the stand with both hands as shown and gently pull the stand in the direction indicated until it locks into the high position (A).

  • Page 13: Wall Mounting

    Wall Mounting 1. Remove the stand if it is attached. For information on removing the stand, refer to page 11. 2. Attach the wall mounting adaptor as shown. • Make sure the cables are not pinched by the wall mounting adaptor.

  • Page 14: Installation Environment

    Important Information Important Information When using a KX-NT321 IP-PT, keep the following conditions in mind. • If the unit does not operate properly, disconnect the unit from the Ethernet cable and then connect again. • If you are having problems making calls, disconnect the Ethernet cable and connect a known working IP-PT.

  • Page 15: Important Notice

    • If an error message is shown on your display, consult your dealer or the network administrator. • The firmware of the KX-NT321 is protected by copyright laws and international treaty provisions, and all other applicable laws. It cannot be reverse engineered, decompiled or disassembled.

  • Page 16: Important Safety Instructions

    13.Avoid using a telephone (other than a cordless type) during an electrical storm. There is a remote risk of electric shock from lightning. 14.Do not use the telephone in the vicinity of a gas leak to report the leak. SAVE THESE INSTRUCTIONS...

  • Page 17: Fcc Information

    FCC Declaration of Conformity Trade Name: Panasonic Model Number: KX-NT321 Responsible Party: Panasonic Corporation of North America One Panasonic Way Secaucus, NJ 07094 U.S.A. Telephone No.: 1-800-211-PANA (7262) This device complies with Part 15 of the FCC Rules.

  • Page 18: Customer Information

    US: ACJKXNANKX-NT321 If requested, this number must be provided to the telephone company. If trouble is experienced with this equipment KX-NT321, for repair or warranty information, please contact: Panasonic Service and Technology Company-BTS Center 415 Horizon Drive Bldg.

  • Page 19: Wall Mounting Template

    Wall Mounting Template WALL MOUNTING TEMPLATE 1. Drive the screws into the wall as indicated. 2. Hook the unit onto the screw heads. Note: Make sure to set the print size to correspond with the size of this page. If the dimensions of the paper output still deviate slightly from the measurements indicated here, use the measurements indicated here.
  • Page 20 Carolina, Puerto Rico 00985 http://www.panasonic.com/csd Copyright: This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd.

This manual is also suitable for:
