Philips Consumer Lifestyle

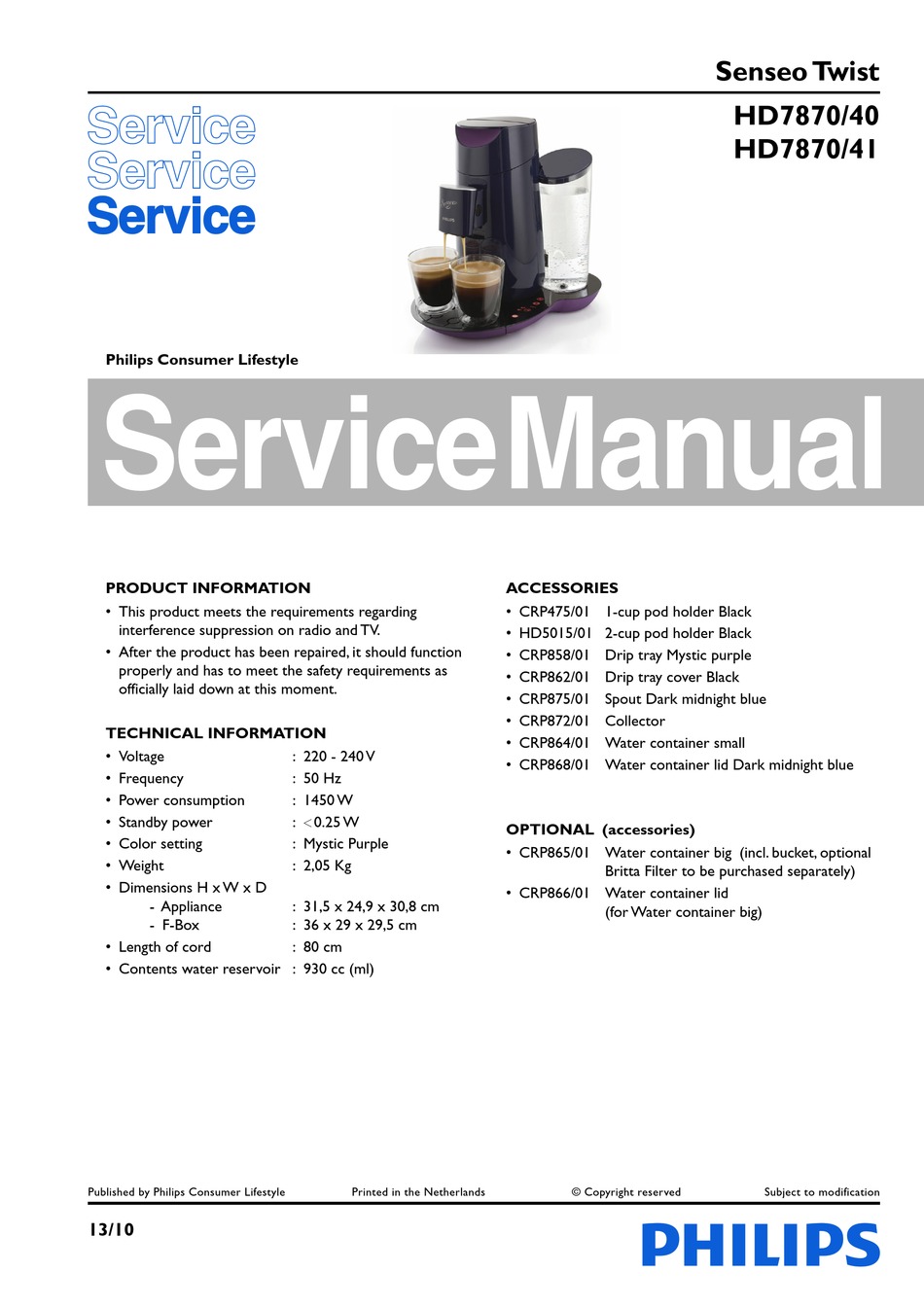

Service Manual
PRODUCT INFORMATION
• This product meets the requirements regarding
interference suppression on radio and TV.
• After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
• Voltage
• Frequency
• Power consumption
• Standby power
• Color setting
• Weight
• Dimensions H x W x D
- Appliance
- F-Box
• Length of cord
• Contents water reservoir : 930 cc (ml)
Published by Philips Consumer Lifestyle
13/10
: 220 - 240 V
: 50 Hz
: 1450 W
: 0.25 W
: Mystic Purple
: 2,05 Kg
: 31,5 x 24,9 x 30,8 cm
: 36 x 29 x 29,5 cm
: 80 cm
Printed in the Netherlands
ACCESSORIES
• CRP475/01 1-cup pod holder Black
• HD5015/01 2-cup pod holder Black
• CRP858/01 Drip tray Mystic purple
• CRP862/01 Drip tray cover Black
• CRP875/01 Spout Dark midnight blue
• CRP872/01 Collector
• CRP864/01 Water container small
• CRP868/01 Water container lid Dark midnight blue
OPTIONAL (accessories)
• CRP865/01 Water container big (incl. bucket, optional
Britta Filter to be purchased separately)
• CRP866/01 Water container lid
(for Water container big)
© Copyright reserved
Senseo Twist
HD7870/40
HD7870/41
Subject to modification
