Philips Senseo Viva Cafe Service Manual

Hide thumbs Also See for Senseo Viva Cafe:
Table of Contents

Advertisement

Quick Links

Service
Manual

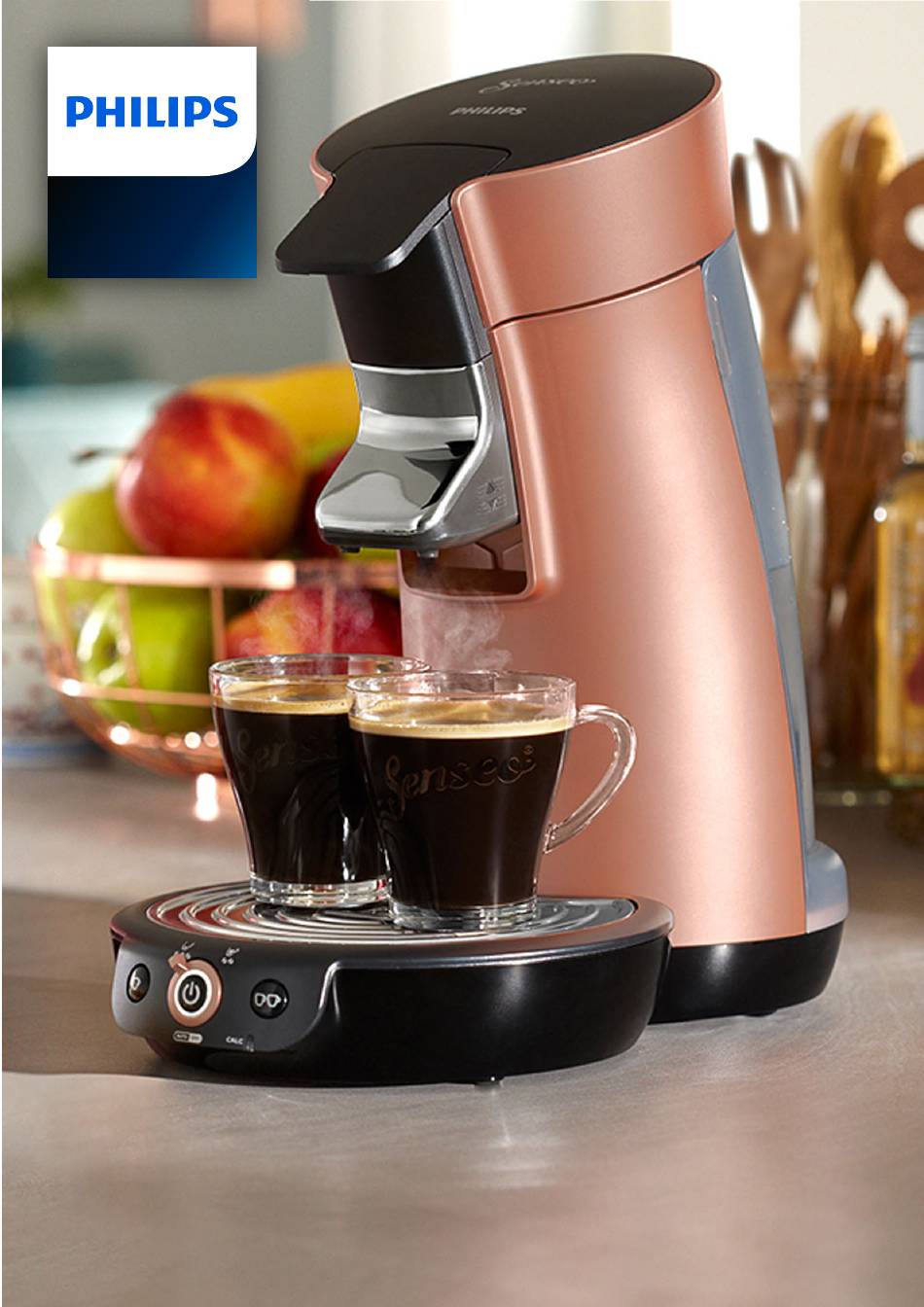

Senseo® Viva Café
HD6566/60
HD6566/61

Advertisement

Table of Contents
loading

Related Manuals for Philips Senseo Viva Cafe

Summary of Contents for Philips Senseo Viva Cafe

  • Page 1 Service Manual Senseo® Viva Café HD6566/60 HD6566/61...

  • Page 2: Table Of Contents

    IEC 62353. • Only use genuine Philips spare parts to replace critical components. • The warranty of your Philips product is void if you do not use genuine Philips spare parts to repair critical components of your appliance.

  • Page 3: General Information

    General information Technical information Consumer Replaceable Parts • Voltage : 220 - 240 V • CRP475/01 1-cup pod holder, Black • Frequency : 50 - 60 Hz • HD5015/01 2-cup pod holder, Black • Power consumption : 1450 W • CRP462/01 Coffee collector •...

  • Page 4: Technical Information

    Technical information General coffee specifications In-cup volume (mL) Coffee 1-cup (ml) 1-cup Strength select (ml) General version French, Spanish version Temperature indication (°C) cup temperature and further cup temperature General version (122 ml) > 74 °C > 76 °C French, Spanish version (100 ml) >...

  • Page 5: Production Date (Or Serial Number)

    Technical information Production date (or serial number) Functional diagram Electrical diagram On/Off “CALC” Water level Temp. 3-way valve Sensor Sensor Boiler Brew Water Fuse head Container Pump M CONTROL Boiler Fuse Pump Push buttons...

  • Page 6: Disassembly- And Reassembly Advice

    Disassembly- and Reassembly advice Before you start dismantling! Disassembly information For your safety be sure the plug is To remove the back cover, follow below steps: disconnected from the mains! • Remove the two Torx screws (T15) (see exploded view). The product is designed for easy access to the •...
  • Page 7 Disassembly- and Reassembly advice • To remove lever from lid cover, take a screwdriver and bend carefully the two lips/ribs in the lid cover outwards and push the lever with force out of the hinge. • To reassemble, follow steps backwards, without using a screwdriver.

  • Page 8: Functions/Features Explanation

    Functions/features explanation Coffee boost technology Get the most out of your coffee pad thanks to the innovative SENSEO® Coffee Boost technology that delivers a fuller, richer flavor through: A new finer distribution of water via 45 aroma nozzles ensuring the hot water is optimally spread across the entire SENSEO®...

  • Page 9: Selecting The Right Pcba Modus

    Functions/features explanation Selecting the right PCBA modus The PCBA is standard delivered with the general version volume settings (122 ml coffee). You can easily toggle between general version & French/Spanish volume settings by applying the following routine: 1. Hold the 1-cup button while applying power to the appliance. 2.
  • Page 10 Functions/features explanation Normal Coffee volume routine adjustment: (General 122 ml / French/Spanish 100 ml version) 1. Unplug the appliance from the mains. 2. Make sure the water tank is filled and placed on the machine. (for adjusting the right parameter, the internal SW will check if the water level sensor is activated yes/no.) 3.

  • Page 11: Duo Select Coffee Volume Routine Adjustment

    Functions/features explanation Duo select coffee volume routine adjustment. 1. Unplug the appliance from the mains. 2. Press the 1-cup, ON/Off button and 2-cup button simultaneously and plug the mains on. 3. When above step succeeded the led will turn on continuously. 4.

  • Page 12: Service Parts

    Service parts Service code Description Remark Online CRP 4222 259 44211 Pad holder assy 1-cup Deep black CRP475/01 4222 259 44221 Pad holder assy 2-cup Deep black HD5015/01 4222 247 42552 Collector CRP462/01 4222 259 45072 Spout cover Metal CRP698/01 3000 014 53421 Spout assy improved crema Black...
  • Page 13 Service parts Service code Description Remark Lever 4222 247 63071 Pushrod 4222 240 01413 Slider spring 3000 021 92291 Brew chamber assy Glacier blue / Louros 4222 247 06814 Brew chamber seal 4222 240 05991 Ejector pin 4222 247 75333 Distribution disk Coffee boost...
  • Page 14 Service parts Service code Description Remark 3000 019 74711 PCB assy Viva Café OPR/IS/Hybrid 230 V 4213 247 05256 Foot 4222 259 59581 3-way valve 4222 259 65482 Boiler assy OPR 230 V 4222 247 06591 Pressure hose 4222 247 05134 O-ring (NTC) 4222 259 47301 NTC assy...
  • Page 15 Service parts Service code Description Remark 4222 247 71141 Valve outlet Black 4222 259 61911 Back cover assy Black 4222 247 05114 Corrugated tube 4222 247 73721 Base plate Star white 3000 021 93721 Housing Glacier blue 3000 021 54391 Front cover printed Fusion black SS 4222 247 62921...
  • Page 16 HD6566/60 /61...

  • Page 17: Version History

    Version history 18/08 Version 1.1 : HD6566/60 / HD6566/61 initial release.
  • Page 18 www.philips.com...

This manual is also suitable for:

Hd6566/60Hd6566/61
