Philips Consumer Lifestyle

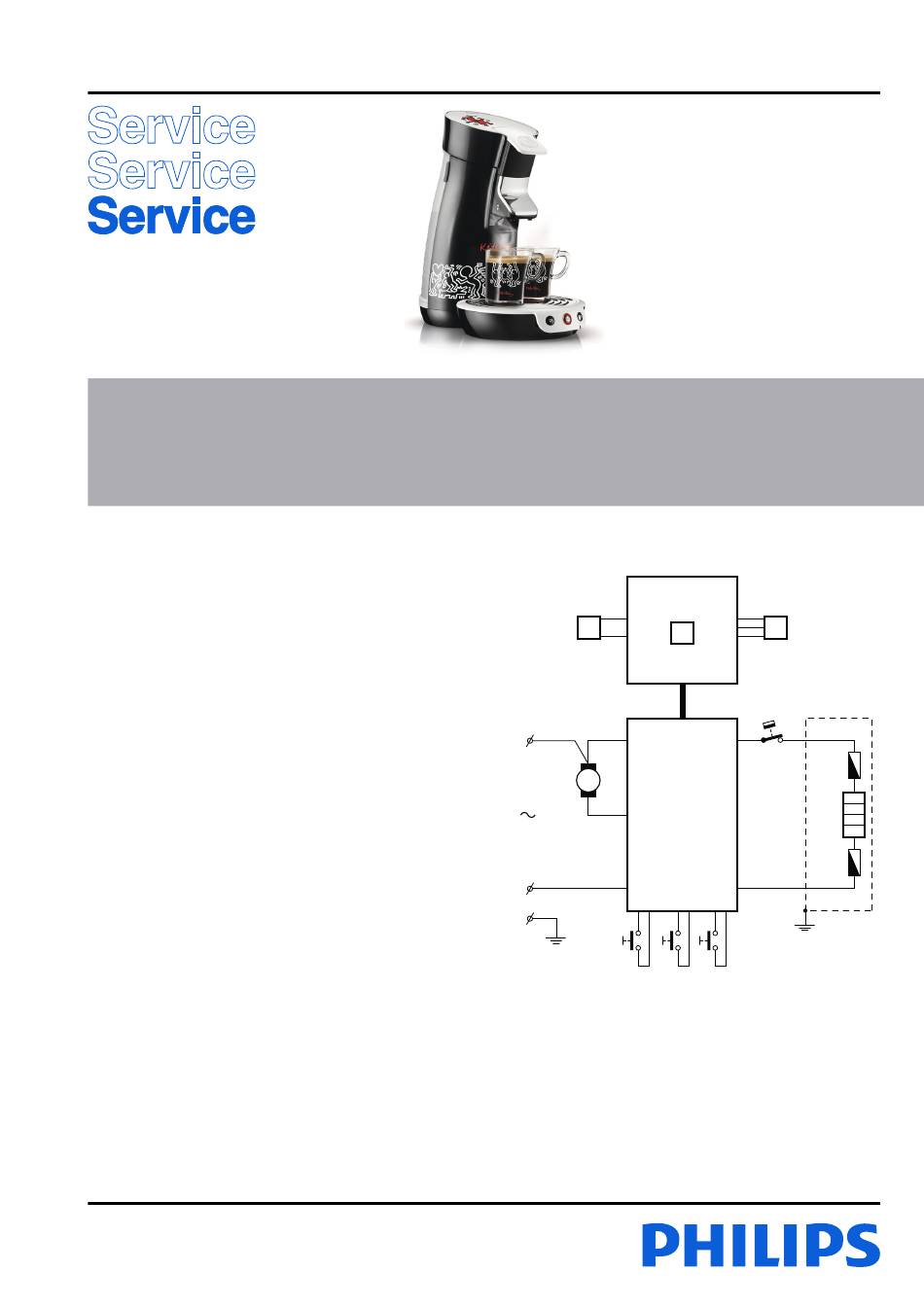

Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Voltage
- Frequency
- Power consumption
- Standby power consumption
- Contents water reservoir
- Colour setting
Published by Philips Consumer Lifestyle
12/02
Coffee maker Senseo "Viva Café"
: 220 - 240 V
: 50 - 60 Hz
: 1450 W
: 0,5 W
: 1200 cc
: Black & White,
Keith Haring
limited edition
Printed in the Netherlands
Interconnect
PCB
Temp.
y
sensor
Water level
sensor
L
Pump M
Control
PCB
N
Push buttons
© Copyright reserved
HD7826/60
HD7826/61
Brewhead
x
detection
sensor
z
TCO
Boiler
Fuse
Fuse
Subject to modification
Advertisement
Related Manuals for Philips HD7826/60
Summary of Contents for Philips HD7826/60
- Page 1 - Standby power consumption Fuse - Contents water reservoir : 1200 cc - Colour setting : Black & White, Keith Haring limited edition Push buttons Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification 12/02...
- Page 2 HD7826/60 / HD7826/61 DISASSEMBLY- AND RE-ASSEMBLY ADVISE Before you start dismantling! To remove the brew chamber head assy, follow below steps: For your safety be sure the plug is disconnected - Remove the back cover. from the mains! - Place the appliance in front of you in such a way that you The product is designed for easy access to the internal are facing the rear side of the appliance.
-
Page 3: Repair Instruction
HD7826/60 / HD7826/61 REPAIR INSTRUCTION Note: Volume adjustment Please note after replacing the boiler the appliance has to be The PCB circuit board makes it possible to adjust the volume restored to factory default. The fi lling procedure (cold fl ush), output by means of pushing the one-cup and two-cup user known from the predecessor Senseo’s is no longer available... - Page 4 HD7826/60 / HD7826/61 REPAIR INSTRUCTION Filling procedure: Please note, the software of the Senseo Viva Café has changed, compared to predecessor Senseo’s! The fi lling procedure known from predecessor Senseo’s is no longer available. The command originally used to initiate the fi lling procedure (cold fl...
-
Page 5: Parts List
HD7826/60 / HD7826/61 PARTS LIST Service code Description Remark 4222 259 44211 Padholder assy 1-cup 4222 259 44221 Padholder assy 2-cup 4222 247 42552 Collector 4222 259 45072 Spout cover 4222 259 48241 Spout assy 4222 240 00522 Driptray cover... -
Page 6: Exploded View
HD7826/60 / HD7826/61 EXPLODED VIEW... - Page 7 HD7826/60 / HD7826/61 EXPLODED VIEW...
- Page 8 HD7826/60 / HD7826/61 EXPLODED VIEW...
