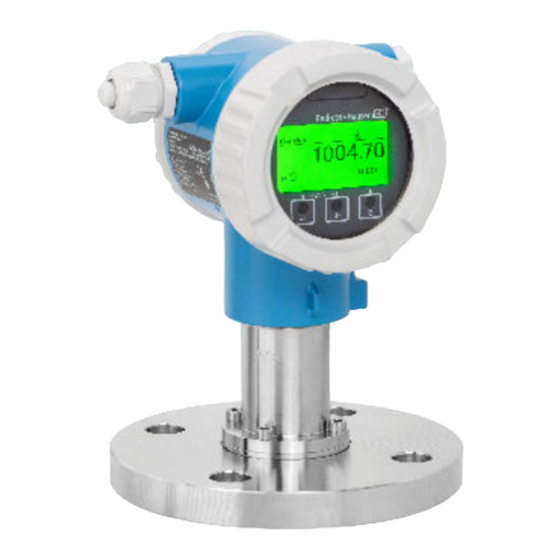

Endress+Hauser Cerabar PMC71B Operating Instructions Manual
Process pressure measurement profinet with ethernet-apl
Hide thumbs
Also See for Cerabar PMC71B:
- Brief operating instructions (29 pages) ,
- Brief operating instructions (40 pages)
Table of Contents
Related Manuals for Endress+Hauser Cerabar PMC71B
Summary of Contents for Endress+Hauser Cerabar PMC71B
- Page 1 Products Solutions Services BA02227P/00/EN/02.23-00 71605805 2023-02-22 Valid as of version 01.00.zz (Device firmware) Operating Instructions Cerabar PMC71B Process pressure measurement PROFINET with Ethernet-APL advanced physical layer...
- Page 2 The manufacturer reserves the right to modify technical data without prior notice. The Endress+Hauser sales organization will supply you with current information and updates to these instructions. Endress+Hauser...
-
Page 3: Table Of Contents
Cerabar PMC71B PROFINET with Ethernet-APL Table of contents Table of contents Device master file (GSD) ....37 About this document ....5 Cyclic data transmission . - Page 4 Table of contents Cerabar PMC71B PROFINET with Ethernet-APL Index ........79...
-
Page 5: About This Document
Cerabar PMC71B PROFINET with Ethernet-APL About this document About this document Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal. - Page 6 About this document Cerabar PMC71B PROFINET with Ethernet-APL Additional information: Reference to documentation: Reference to page: Series of steps: Result of an individual step: 1.2.4 Symbols in graphics Item numbers: 1, 2, 3 ... Series of steps: Views: A, B, C, ...
-
Page 7: List Of Abbreviations
Cerabar PMC71B PROFINET with Ethernet-APL About this document List of abbreviations A0029505 OPL: The OPL (overpressure limit = measuring cell overload limit) for the device depends on the lowest-rated element, with regard to pressure, of the selected components, i.e. the process connection has to be taken into consideration in addition to the measuring cell. -
Page 8: Basic Safety Instructions
The manufacturer is not liable for damage caused by improper or non-intended use. Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability. -
Page 9: Product Safety
CE mark to the device. IT security Endress+Hauser can only provide a warranty if the device is installed and used as described in the Operating Instructions. The device is equipped with security mechanisms to protect it against any inadvertent changes to the device settings. IT security measures in line with operators' security standards and designed to provide additional protection for the device and device data transfer must be implemented by the operators themselves. - Page 10 Basic safety instructions Cerabar PMC71B PROFINET with Ethernet-APL User-specific access code Write access to the parameters of the device via the local display, web browser or operating tool (e.g. FieldCare, DeviceCare) can be protected using the editable, user- specific access code.
-
Page 11: Product Description
Cerabar PMC71B PROFINET with Ethernet-APL Product description Product description Product design 3.1.1 Ceramic membrane (Ceraphire ® A0043088 Atmospheric pressure (gauge pressure measuring cells) Ceramic meter body Electrodes Ceramic membrane Seal Pressure The ceramic measuring cell is an oil-free measuring cell. The pressure acts directly on the robust ceramic membrane, causing it to deflect. - Page 12 Product description Cerabar PMC71B PROFINET with Ethernet-APL Advantages: • Volume and mass measurements in any vessel shape with a freely programmable characteristic curve • Has a wide range of uses, e.g. • For foam formation • In vessels with agitators or screen fittings •...
-
Page 13: Incoming Acceptance And Product
• Do the data on the nameplate correspond to the order specifications and the delivery note? • Is the documentation available? • If required (see nameplate): are the Safety Instructions (XA) provided? If you can answer "no" to any of these questions, please contact Endress+Hauser. 4.1.1 Scope of delivery The scope of delivery comprises: •... -
Page 14: Storage And Transport
Incoming acceptance and product identification Cerabar PMC71B PROFINET with Ethernet-APL 4.2.2 Nameplate Different nameplates are used depending on the device version. The nameplates contain the following information: • Manufacturer name and device name • Address of the certificate holder and country of manufacture •... -
Page 15: Mounting
• To ensure optimal readability of the local display, adjust the housing and local display • Endress+Hauser offers a mounting bracket to mount the device on pipes or walls • Use flushing rings for flanges if there is a risk of medium buildup or clogging at the process connection •... - Page 16 Mounting Cerabar PMC71B PROFINET with Ethernet-APL Mounting devices with PVDF thread WARNING Risk of damage to process connection! Risk of injury! ‣ Devices with a PVDF thread must be installed with the mounting bracket provided! ‣ PVDF is only intended for metal-free applications!
-
Page 17: Mounting The Device
Cerabar PMC71B PROFINET with Ethernet-APL Mounting Mounting the device 5.2.1 Pressure measurement in gases A0038730 Device Shutoff device Mount the device with the shutoff device above the tapping point so that any condensate can flow into the process. 5.2.2 Pressure measurement in steam... - Page 18 Mounting Cerabar PMC71B PROFINET with Ethernet-APL 5.2.3 Pressure measurement in liquids A0038732 Device Shutoff device Mount the device with the shutoff device below or at the same level as the tapping point. 5.2.4 Level measurement A0038733 • Always mount the device below the lowest measuring point •...
- Page 19 Cerabar PMC71B PROFINET with Ethernet-APL Mounting Devices with measuring cells, nominal value < 10 bar (150 psi) • p : overpressure limit (OPL) of the measuring cell and depending on the process connection used • Devices with PVDF threads: • Only mount with the enclosed mounting bracket! •...
- Page 20 Mounting Cerabar PMC71B PROFINET with Ethernet-APL Ordering information: • Can be ordered via the Product Configurator • Can be ordered as a separate accessory, part number 71102216 The mounting bracket is included in the delivery if you order the device with a separate housing.
- Page 21 Cerabar PMC71B PROFINET with Ethernet-APL Mounting 5.2.9 Turning the display module 4 0.7 Nm A0038224 WARNING Supply voltage switched on! Risk of electric shock and/or explosion! ‣ Switch off the supply voltage before opening the device. CAUTION Dual compartment housing: when opening the terminal compartment cover, your fingers can get caught between the cover and pressure compensation filter.
-
Page 22: Post-Mounting Check
Mounting Cerabar PMC71B PROFINET with Ethernet-APL A0043807 Locking screw NOTICE The housing cannot be unscrewed fully. ‣ Loosen the external locking screw by a maximum of 1.5 turns. If the screw is unscrewed too much or completely (beyond the screw anchor point), small parts (counter disk) can become loose and fall out. -
Page 23: Electrical Connection
Cerabar PMC71B PROFINET with Ethernet-APL Electrical connection Electrical connection Connecting requirements 6.1.1 Potential equalization The protective ground on the device must not be connected. If necessary, the potential matching line can be connected to the outer ground terminal of the device before the device is connected. - Page 24 Overvoltage protection Devices without optional overvoltage protection Equipment from Endress+Hauser fulfills the requirements of the product standard IEC / DIN EN 61326-1 (Table 2 Industrial Environment). Depending on the type of port (DC power supply, input/output port) different testing levels...
- Page 25 Cerabar PMC71B PROFINET with Ethernet-APL Electrical connection 6.2.5 Wiring WARNING Supply voltage might be connected! Risk of electric shock and/or explosion! ‣ If the device is used in hazardous areas, comply with national standards and the specifications in the Safety Instructions (XAs). Use the specified cable gland.
- Page 26 Electrical connection Cerabar PMC71B PROFINET with Ethernet-APL Dual compartment housing A0042803 2 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal 6.2.7 Cable entries A0045414 Cable entry Dummy plug The type of cable entry depends on the device version ordered.
-
Page 27: Ensuring The Degree Of Protection
Cerabar PMC71B PROFINET with Ethernet-APL Electrical connection Devices with M12 plug A0011175 APL signal – APL signal + Shielding Not assigned Ensuring the degree of protection 6.3.1 Cable entries • Gland M20, plastic, IP66/68 TYPE 4X/6P • Gland M20, brass nickel plated, IP66/68 TYPE 4X/6P •... -
Page 28: Operation Options
Structure and function of the operating menu The differences between the structure of the operating menus of the local display and the Endress+Hauser FieldCare or DeviceCare operating tools can be summarized as follows: The local display is suitable for configuring simple applications. -
Page 29: Local Display
Cerabar PMC71B PROFINET with Ethernet-APL Operation options local display 7.4.1 Device display (optional) Functions: • Display of measured values and fault and notice messages • Background lighting, which switches from green to red in the event of an error • The device display can be removed for easier operation The device displays are available with the additional option of Bluetooth®... - Page 30 Prerequisite • Device with Bluetooth display • Smartphone or tablet with Endress+Hauser SmartBlue app or PC with DeviceCare from version 1.07.00 or FieldXpert SMT70 The connection has a range of up to 25 m (82 ft). The range can vary depending on environmental conditions such as attachments, walls or ceilings.
-
Page 31: Access To Operating Menu Via Web Browser
Cerabar PMC71B PROFINET with Ethernet-APL Operation options Initial password The serial number of the device serves as the initial password when the connection is established for the first time. Note the following if the Bluetooth module is removed from one device and installed in another device: the password that is changed by the user is only saved in the Bluetooth module and not in the device itself. - Page 32 Operation options Cerabar PMC71B PROFINET with Ethernet-APL 7.5.3 Establishing the connection Via PROFINET with Ethernet-APL network A0046097 5 Options for remote operation via PROFINET with Ethernet-APL network: star topology Automation system, e.g. Simatic S7 (Siemens) Ethernet switch Computer with web browser (e.g. Microsoft Edge) for accessing the integrated device web server or computer with operating tool (e.g.
- Page 33 Cerabar PMC71B PROFINET with Ethernet-APL Operation options A0046626 Device tag Device name Status signal Locking status Current measured values Select language Enter the "Password" parameter Login 1. Select the preferred Language parameter for the web browser. 2. Enter the Password parameter.
- Page 34 Operation options Cerabar PMC71B PROFINET with Ethernet-APL Navigation area If a function is selected in the function bar, the submenus of the function open in the navigation area. The user can now navigate within the menu structure. Working area Depending on the selected function and the related submenus, various actions can be performed in this area: •...
-
Page 35: Access To The Operating Menu Via The Operating Tool
Cerabar PMC71B PROFINET with Ethernet-APL Operation options Access to the operating menu via the operating tool The structure of the operating menu in the operating tools is the same as for operation via the local display. The range of functions is different however. -
Page 36: Historom
Cerabar PMC71B PROFINET with Ethernet-APL Service interface A0039148 Computer with FieldCare/DeviceCare operating tool Commubox FXA291 Service interface (CDI) of the device (= Endress+Hauser Common Data Interface) To update (flash) the device firmware, the device must be powered via the power supply terminals. 7.6.2 FieldCare Function scope FDT-based plant asset management tool from Endress+Hauser. -
Page 37: System Integration
Cerabar PMC71B PROFINET with Ethernet-APL System integration System integration Overview of device description files 8.1.1 Current version data for the device Firmware version 01.01.zz • On the title page of the Operating Instructions • On the transmitter nameplate • Firmware version System →... - Page 38 System integration Cerabar PMC71B PROFINET with Ethernet-APL 8.2.1 File name of the device master file (GSD) Example of the name of a device master file: GSDML-V2.42-EH_PMXXXB_APL_CERABAR-20220214.xml GSDML Description language V2.42 Version of the PROFINET specification Endress+Hauser -PMXXXB_APL_CERABAR Instrument family 20220214 Date of issue (year, month, day) .xml...
-
Page 39: Cyclic Data Transmission
Cerabar PMC71B PROFINET with Ethernet-APL System integration Cyclic data transmission 8.3.1 Overview of the modules The following graphic shows which modules are available to the device for cyclic data exchange. Cyclic data exchange is performed with an automation system. Device... - Page 40 System integration Cerabar PMC71B PROFINET with Ethernet-APL Binary Output module The Binary Output module can cyclically receive discrete output values from the automation system. The device implements an 8-bit type as described in PA PROFILE 4.0x. Of this, 1 bit is used to signal to the device that Heartbeat Verification should be started.
-
Page 41: System Redundancy S2
Cerabar PMC71B PROFINET with Ethernet-APL System integration Status Coding (hex) Meaning GOOD - Maintenance demanded 0xA8 The measured value is valid. It is highly advisable to service the device in the near future. GOOD - Function check 0xBC The measured value is valid. -
Page 42: Commissioning
Commissioning Cerabar PMC71B PROFINET with Ethernet-APL Commissioning Preliminaries The measuring range and the unit in which the measured value is transmitted correspond to the data on the nameplate. WARNING Process pressure above or below permitted maximum/minimum! Risk of injury if parts burst! Warnings are displayed if the pressure is too high. -
Page 43: Hardware Settings
FieldCare/DeviceCare via service interface (CDI) A0039148 Computer with FieldCare/DeviceCare operating tool Commubox FXA291 Service interface (CDI) of the device (= Endress+Hauser Common Data Interface) Hardware settings 9.4.1 Setting the device name A measuring point can be quickly identified within a plant on the basis of the Device tag parameter and PROFINET device name parameter. -
Page 44: Setting The Operating Language
Commissioning Cerabar PMC71B PROFINET with Ethernet-APL Menu path: System → Connectivity → Ethernet Setting the operating language 9.6.1 Local display Setting the operating language To set the operating language, the display first needs to be unlocked: 1. Press the key for at least 2 s. -
Page 45: Configuring The Device
Cerabar PMC71B PROFINET with Ethernet-APL Commissioning Configuring the device 9.7.1 Commissioning with keys on the electronic insert The following functions are possible via the keys on the electronic insert: • Position adjustment (zero point correction) The orientation of the device may cause a pressure shift This pressure shift can be corrected by a position adjustment •... - Page 46 Commissioning Cerabar PMC71B PROFINET with Ethernet-APL 9.7.2 Commissioning with the commissioning wizard In the Web server, SmartBlue and on the display, the Commissioning wizard is available to guide the user through the initial commissioning steps. 1. Connect the device to the Web server.
- Page 47 Cerabar PMC71B PROFINET with Ethernet-APL Commissioning Example: Outputting of the pressure value at the current output Pressure and temperature units are converted automatically. Other units are not converted. In the following example, the pressure value should be measured in a tank and output on the current output.
-
Page 48: Simulation" Submenu
Commissioning Cerabar PMC71B PROFINET with Ethernet-APL 9.7.3 Linearization In the following example, the volume in a tank with a conical outlet should be measured in Prerequisites: • Points for linearization table are known • Level calibration is performed • Linearization characteristic must continually increase or decrease... -
Page 49: Protecting Settings From Unauthorized Access
Cerabar PMC71B PROFINET with Ethernet-APL Commissioning Protecting settings from unauthorized access 9.9.1 Hardware locking or unlocking Display A0047196 DIP switch for locking and unlocking the device DIP switch 1 on the electronic insert is used to lock or unlock operation. - Page 50 Commissioning Cerabar PMC71B PROFINET with Ethernet-APL 9.9.3 Software locking or unlocking If operation is locked by means of the DIP switch, you can only unlock operation again by means of the DIP switch. Locking via password in display / FieldCare / DeviceCare / SmartBlue / web server Access to the device configuration can be locked by assigning a password.
-
Page 51: Operation
Cerabar PMC71B PROFINET with Ethernet-APL Operation Operation 10.1 Reading off the device locking status Displaying active write protection: • In the Locking status parameter Menu path of local display: at the top operating level Menu path of operating tool: System → Device management •... - Page 52 Operation Cerabar PMC71B PROFINET with Ethernet-APL 10.3.1 Sensor calibration In the course of their life cycle, pressure sensors can deviate, or drift, from the original pressure characteristic curve. This deviation depends on the operating conditions and can be corrected in the Sensor calibration submenu.
-
Page 53: Diagnostics And Troubleshooting
Cerabar PMC71B PROFINET with Ethernet-APL Diagnostics and troubleshooting Diagnostics and troubleshooting 11.1 General troubleshooting 11.1.1 General errors Device not responding • Possible cause: Supply voltage does not match the specification on the nameplate Remedial action: Apply the correct voltage • Possible cause: The polarity of the supply voltage is wrong Remedial action: Correct the polarity •... - Page 54 Diagnostics and troubleshooting Cerabar PMC71B PROFINET with Ethernet-APL 11.1.2 Additional tests If no clear cause of the error can be identified or the source of the problem can be both the device and the application, the following additional tests can be performed: 1.
-
Page 55: Diagnostics Information Via Led
Cerabar PMC71B PROFINET with Ethernet-APL Diagnostics and troubleshooting 11.2 Diagnostics information via LED 2 3 4 Zero Display A0046179 Item LED Meaning No power LED flashes green • Device commissioning until measured value available • Device reset across all customer interfaces... -
Page 56: Diagnostic Information On Local Display
Diagnostics and troubleshooting Cerabar PMC71B PROFINET with Ethernet-APL 11.3 Diagnostic information on local display 11.3.1 Diagnostic message Measured value display and diagnostic message in alarm condition Faults detected by the device' s self-monitoring system are displayed as a diagnostic message in alternation with the unit. -
Page 57: Diagnostic Information In The Web Browser
Cerabar PMC71B PROFINET with Ethernet-APL Diagnostics and troubleshooting Diagnostic event and event text The fault can be identified by means of the diagnostic event. The event text helps you by providing information about the fault. In addition, the corresponding status symbol is displayed in front of the diagnostic event. -
Page 58: Diagnostic List
Diagnostics and troubleshooting Cerabar PMC71B PROFINET with Ethernet-APL Symbol Meaning Out of specification Device is being operated outside its technical specification limits (e.g. outside the process temperature range) Maintenance required Maintenance is required The measured value remains valid The status signals are categorized in accordance with VDI/VDE 2650 and NAMUR Recommendation NE 107. - Page 59 Cerabar PMC71B PROFINET with Ethernet-APL Diagnostics and troubleshooting 11.5.1 List of diagnostic events Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Diagnostic of sensor Sensor connection faulty Check sensor connection Alarm Sensor initialization 1.
-
Page 60: Diagnostic List
Diagnostics and troubleshooting Cerabar PMC71B PROFINET with Ethernet-APL Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Configuration 1. Update firmware Alarm incompatible 2. Execute factory reset Dataset different 1. Check dataset file Warning 2. - Page 61 Cerabar PMC71B PROFINET with Ethernet-APL Diagnostics and troubleshooting Navigation path Diagnostics → Diagnostic list Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Diagnostic of sensor Sensor connection faulty Check sensor connection Alarm Sensor initialization 1.
- Page 62 Diagnostics and troubleshooting Cerabar PMC71B PROFINET with Ethernet-APL Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Configuration 1. Update firmware Alarm incompatible 2. Execute factory reset Dataset different 1. Check dataset file Warning 2.
-
Page 63: Event Logbook
Cerabar PMC71B PROFINET with Ethernet-APL Diagnostics and troubleshooting 11.7 Event logbook 11.7.1 Event history The Event list submenu provides a chronological overview of the event messages that have occurred Navigation path Diagnostics → Event logbook A maximum of 100 event messages can be displayed in chronological order. -
Page 64: Resetting The Device
Diagnostics and troubleshooting Cerabar PMC71B PROFINET with Ethernet-APL Info number Info name I1398 CDI: access status changed I1440 Main electronic module changed I1444 Device verification passed I1445 Device verification failed I1461 Sensor verification failed I1512 Download started I1513 Download finished... -
Page 65: Firmware History
Cerabar PMC71B PROFINET with Ethernet-APL Diagnostics and troubleshooting 11.8.3 Resetting the device via keys on the electronic insert Resetting the password 15 s Display 2× A0050210 9 Sequence - resetting the password Deleting/resetting the password 1. Press operating key I three times. - Page 66 Diagnostics and troubleshooting Cerabar PMC71B PROFINET with Ethernet-APL 11.9.1 Version 01.00.zz Original software Endress+Hauser...
-
Page 67: Maintenance
12.1.2 Flushing rings The use of flushing rings allows the membrane to be cleaned without removing the device from the process. For more information: contact the Endress+Hauser sales office. 12.1.3 Exterior cleaning Notes on cleaning • The cleaning agents used should not corrode the surfaces and the seals •... -
Page 68: Repair
General information 13.1.1 Repair concept Under the Endress+Hauser repair concept, devices have a modular design and repairs are carried out by Endress+Hauser Service or by properly trained customers. Spare parts are grouped into logical kits with the associated replacement instructions. -
Page 69: Return
The device must be returned in the event of a factory calibration, or if the wrong device has been ordered or delivered. As an ISO-certified company and also due to legal regulations, Endress+Hauser is obliged to follow certain procedures when handling any returned products that have been in contact with medium. -
Page 70: Accessories
Accessories Cerabar PMC71B PROFINET with Ethernet-APL Accessories 14.1 Device-specific accessories 14.1.1 Mechanical accessories • Mounting bracket for housing • Mounting bracket for block & bleed valves • Block&Bleed valves: • Block&Bleed valves can be ordered as enclosed accessories (seal for mounting is enclosed) •... -
Page 71: Technical Data
Cerabar PMC71B PROFINET with Ethernet-APL Technical data Technical data 15.1 Output Output signal PROFINET with Ethernet-APL 10BASE-T1L, 2-wire 10 Mbit Signal on alarm Signal on alarm in accordance with NAMUR recommendation NE 43. PROFINET with Ethernet-APL: • According to "Application Layer protocol for decentralized periphery", Version 2.4 •... - Page 72 Technical data Cerabar PMC71B PROFINET with Ethernet-APL Supported connections • 2 x AR (IO Controller AR) • 1 x AR (IO-Supervisor Device AR connection allowed) • 1 x Input CR (Communication Relation) • 1 x Output CR (Communication Relation) • 1 x Alarm CR (Communication Relation) Configuration options for •...
-
Page 73: Environment
Cerabar PMC71B PROFINET with Ethernet-APL Technical data 15.2 Environment Ambient temperature The following values apply up to a process temperature of +85 °C (+185 °F). At higher range process temperatures, the permitted ambient temperature is reduced. • Without segment display or graphic display: Standard: –40 to +85 °C (–40 to +185 °F) - Page 74 Technical data Cerabar PMC71B PROFINET with Ethernet-APL • Dummy plug transport protection: IP22, TYPE 2 • Plug HAN7D, 90 deg. IP65 NEMA Type 4X • Plug M12 When housing is closed and connecting cable is plugged in: IP66/67 NEMA Type 4X...
- Page 75 Cerabar PMC71B PROFINET with Ethernet-APL Technical data Stainless steel dual compartment housing Mechanical construction Sine wave oscillation IEC62828-1 / IEC61298-3 Shock Device 10 Hz to 60 Hz: ±0.15 mm (0.0059 in) 15 g 60 Hz to 1000 Hz: 2 g High-temperature device version 10 Hz to 150 Hz: 0.2 g...
-
Page 76: Process
Technical data Cerabar PMC71B PROFINET with Ethernet-APL 15.3 Process Process temperature range NOTICE The permitted process temperature depends on the process connection, process seal, ambient temperature and the type of approval. ‣ All the temperature data in this document must be taken into consideration when selecting the device. - Page 77 Extreme jumps in temperature can result in temporary measuring errors. Temperature compensation takes place after a few minutes. Internal temperature compensation is faster the smaller the jump in temperature and the longer the time interval involved. For more information: contact the Endress+Hauser sales office. Endress+Hauser...
- Page 78 Ultrapure gas applications Endress+Hauser also offers devices for special applications, such as for ultrapure gas, that are cleaned of oil and grease. No special restrictions regarding the process conditions apply to these devices.
- Page 79 Cerabar PMC71B PROFINET with Ethernet-APL Index Index Symbols Function ....... 36 Filtering the event logbook .
- Page 80 Index Cerabar PMC71B PROFINET with Ethernet-APL Using the devices Borderline cases ......8 Incorrect use ......8 Version data for the device .
- Page 84 *71605805* 71605805 www.addresses.endress.com...
