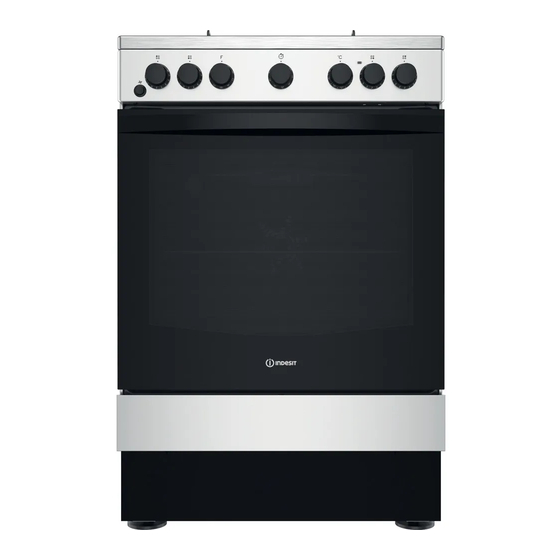

- Page 1 ENGLISH Health and Safety guide Quick guide Installation guide IS67G5PHX/UK...
-
Page 2: Safety Instructions
CAUTION : In case of hotplate glass breakage:- SAFETY INSTRUCTIONS shut immediately off all burners and any electrical heating element and isolate the appliance from IMPORTANT TO BE READ AND OBSERVED the power supply; - do not touch the appliance surface;... -
Page 3: Gas Connection
specific table). Make sure pots on the grates do Liquid petroleum gas sinks to the floor as it not protrude beyond the edge of the hob. is heavier than air. Therefore, rooms containing LPG cylinders must also be equipped with vents Improper use of the grids can result in damage to allow gas to escape in the event of a leak. -
Page 4: Disposal Of Packaging Materials
DISPOSAL OF PACKAGING MATERIALS ADAPTING TO DIFFERENT TYPES OF GAS (This operation needs to be carried out by a The packaging material is 100 % recyclable qualified technician.) and is marked with the recycle symbol In order to adapt the appliance to a type of gas The various parts of the packaging must therefore other than the type for which it was manufactured be disposed of responsibly and in full compliance... -
Page 5: Product Description
PRODUCT DESCRIPTION 1.Hob burner 2.Hob grid 3.Control panel 4.Wireshelf 5.Tray 6.Door 7.Guide rails for the sliding racks 8. position 1 9.position 2 10. position 3 11.position 4 12. position 5 CONTROL PANEL Thermostat lamp Burner ignition Left rear Left front Right front Right rear hob burner... -
Page 6: Installation
WARNING : This operation must be perfomed by a qualified technician INSTALLATION INSTALLATION INSTALLATION INSTALLATION INSTALLATION Before moving your cooker check that it is cool, and switch off For a correct installation of the cooker the following precautions must be at the cooker control unit. - Page 7 Gas connection The cooker should be connected to the gas-supply by a gas safe registered installer. Connection of the appliance to the gas mains or liquid gas must be carried out according to the prescribed regulation in force, and only after it is ascertained that it is adaptable to the type of gas to be used.
-
Page 8: Gas Section
The front right hob burner injector should be used as the pressure test point. Characteristics of the gas section Model Gas section Rated power Gas category kW (1) 8,00 (G20) II2H3+ 8,00 (582 g/h-G30) IS67G5PHX/UK (571 g/h-G31) (1) The values in g/h refer to the capacities with liquid gas (Butane, Propane). -
Page 9: Electrical Connection
ELECTRICAL CONNECTION For appliances with a rating greater than 13 amp WARNING : This operation must be perfomed (eg: electric hob, double ovens and freestanding by a qualified technician electric cookers etc.) the mains cable must be wired into a cooker output point with a rating of 45 amp. In this case the cable is not supplied. -
Page 10: Using The Hob
FIRST TIME USE DAILY USE Using the hob Flame adjustment according to levels Lighting the burners the burner flame intensity can be adjusted with the For each BURNER knob there is a complete ring knob according to 10 power levels, from maximum showing the strength of the flame for the relevant to minimum with 5 intermediate positions: burner. - Page 11 USING THE OVEN FIRST TIME DAILY USE ! The first time you use your appliance, heat the empty 1. SELECT A FUNCTION oven with its door closed at its maximum temperature To select a function, turn the selection knob to the symbol for for at least half an hour.
- Page 12 ACCESSORIES BAKING TRAY BAKING TRAY BAKING TRAY GRID DRIP TRAY KIT TURNSPIT KIT TURNSPIT KIT TURNSPIT The number and type of accessories may vary depending on which model The number and type of accessories may vary depending on which model is purchased.
- Page 13 The table lists the best function, accessories and level to use to cook various types of food. Cooking times start from the moment food is placed in the oven, excluding preheating (where required). Cooking temperatures and times are approximate and depend on the amount of food and type of accessory used. Use the lowest recommended settings to begin with and, if the food is not cooked enough, then switch to higher settings.
-
Page 14: Switching The Appliance Off
CLEANING AND MAINTENANCE BEFORE SWITCHING ON AGAIN, ENSURE THAT TURN OFF THE MAIN SWITCH AND ENSURE ALL CONTROLS ARE IN THE OFF POSITION. THE COOKER IS COLD BEFORE CLEANING. Do not use steam cleaning Carry out the required Do not use wire wool, abrasive equipment. - Page 15 CLEANING AND MAINTENANCE pour 250ml of drinking water into the baking tray in the oven, grill at the bottom shelf: CONVENTIONAL...
- Page 16 ~15° ~60° www.indesit.com...
- Page 17 Min. 750 mm Min. 420 mm 420mm Min 65mm Min 750mm Min 65mm Min 600mm Min max. 15 mm The height of the cooker can be adjusted by means of adjustable feet in the base of the product (900mm - 915mm). To allow alignment with a worktop height greater than 915mm (max 940mm), longer feet are supplied inside your new product.
- Page 18 Connecting to gas supply Hot parts Position the gas connection point such that it is located within the shaded area, and the hose also hangs naturally within the shaded area. There are 2 spacers on the rear panel of the appliance (see Fig 1) intended to prevent the appliance trapping the flexible hose.
- Page 20 Whirlpool Management EMEA Srl 02/2023 - W11641326 Via Pisacane 1, XEROX FABRIANO 20016 Pero (MI), Italy www.whirlpool.com...
