U-Line H-10646 Manual

H-10646, H-10647

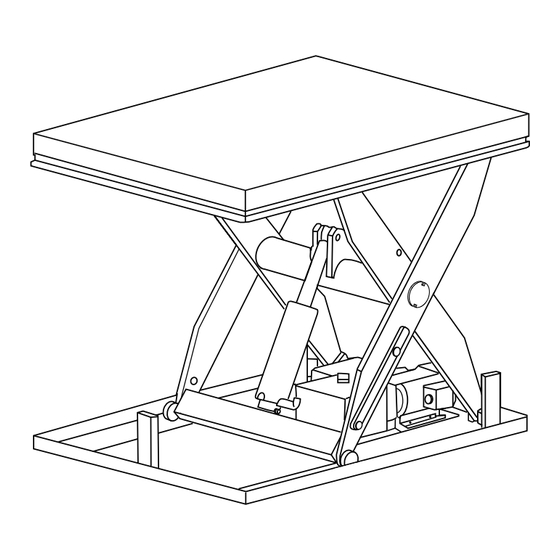

ELECTRIC LIFT TABLE
SPECIFICATIONS
Load Capacity
Voltage
Phase
Motor Power
Table Length
Table Width
Min. Table Height
Max. Table Height
Lift Method
Operating Environment
WARNING! Do not operate this lift table unless
you have been trained to use it, authorized
to do so and have checked that it is in good
condition. The operator should read all of the
warning signs and instructions here and on the
lift table before using it.
• Never exceed the maximum capacity of the
table. Maximum rated load capacity is for evenly
distributed loads.
• Use caution and be aware of pinch and crush
points. Never put hands or feet in scissor lift
mechanism.
• Do not allow anyone other than the operator
to stand in front of or behind the table when
in use.
PAGE 1 OF 18
1-800-295-5510
uline.com
TECHNICAL INFORMATION
H-10646 H-10647
3,300 lbs. 5,500 lbs.
115V 115V
1 1
1HP 2HP
48" 72"
36" 48"
8" 9.75"
39" 47"
Electric Electric
Indoors Indoors
SAFETY
• Keep area under table clear of all objects.
• Do not lift people.
• Stop operating the lift table if the oil temperature
• Table should be lowered completely when not in
• Do not work with electrical components unless you
• Do not use table on angled surfaces.
Pour le français, consulter les pages 13-18.
Platform Length
is too high.
use.
are a qualified technician.
Para Español, vea páginas 7-12.
Platform
Width
Raised
Height
Lowered
Height
