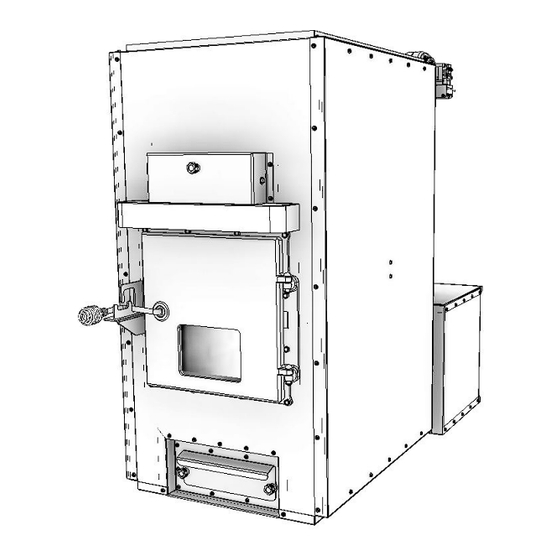

Owner's Instruction and Operation Manual
Model Number:
HB1520
Report Number: 22-808
Certified to UL-391-2006 (R2019), Certified
to: CSA B366.1-11 (R2020), and CSA B415.1:22
* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.
Save These Instructions In A Safe Place For Future Reference.
SAFETY NOTICE: If this unit is not properly installed, a fire may result. For your
safety, follow the installation instructions. Never use make-shift compromises during
the installation of this unit. Contact local building or fire officials about permits,
restrictions and installation requirements in your area.
CAUTION! Please read this entire manual before you install or use this unit. Failure
to follow instructions may result in property damage, bodily injury, or even death.
Improper Installation Will Void Your Warranty!
U.S. Environmental Protection Agency
Certified to comply with 2020 particulate
emission standards
THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.
© 2023 United States Stove Company, 227 Industrial Park Rd., South Pittsburg, TN 37380
R
Wood Only Central Furnace
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including carbon
monoxide, which is known to the State of California to cause
cancer, birth defects, and/or other reproductive harm. For
more information, go to
853966D- 0406M
www.P65warnings.ca.gov
Ph. 800-750-2723
