-48 VDC TELECOMMUNICATIONS POWER SYSTEM
CONTENTS
1. INTRODUCTION ................................................ 1
A. Reason for Reissue ......................................... 1
B. Description ...................................................... 2
C. Features .......................................................... 2
2. APPLICATIONS ................................................. 2
3. FUNCTIONAL DESCRIPTION ........................... 3
4. INSTALLATION .................................................. 5
A. Selecting the Site ............................................ 5
B. Mounting the Power Node/30 .......................... 6
D. Using Auxiliary Power ................................... 13
5. SPECIFICATIONS ........................................... 14
6. MAINTENANCE ............................................... 15
7. CUSTOMER SERVICE .................................... 20

1. INTRODUCTION

This practice describes the Pulsecom
shown in Figure 1. Installation and engineering references are included.
A. Reason for Reissue
This practice has been released to production.
Trademarks used in this manual:
CLEI is a trademark of Telcordia Technologies, Incorporated.
EnerSys is a registered trademark and PowerSafe is a trademark of EnerSys Incorporated.
GMT is a trademark of Bussman Corporation.
MATE-N-LOK is a trademark of AMP Incorporated.
Pulsecom is a registered trademark of Hubbell Incorporated.
©2011 Pulse Communications Incorporated. All rights reserved.
POWER NODE/30
CLEI™ Code PBB1GF0D
PAGE

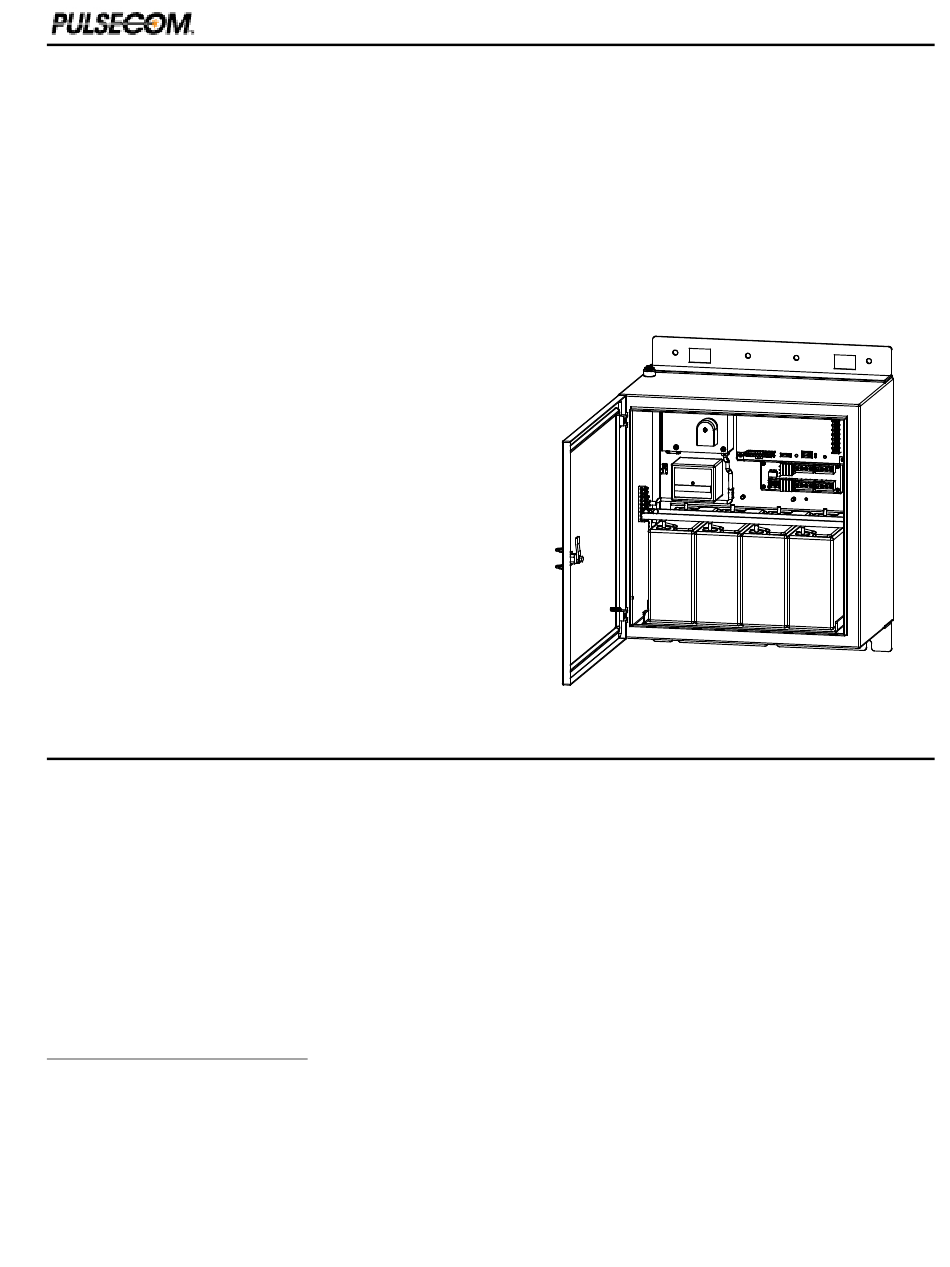

Figure 1. Power Node/30 System Shown with
®
Power Node/30, a -48 VDC Telecommunications Power System,
1
Practice Section 1650
User-Supplied Batteries Installed
Issue 1, March 2011
