DSC HD-HD 4K PLUS A Series • Setup Guide

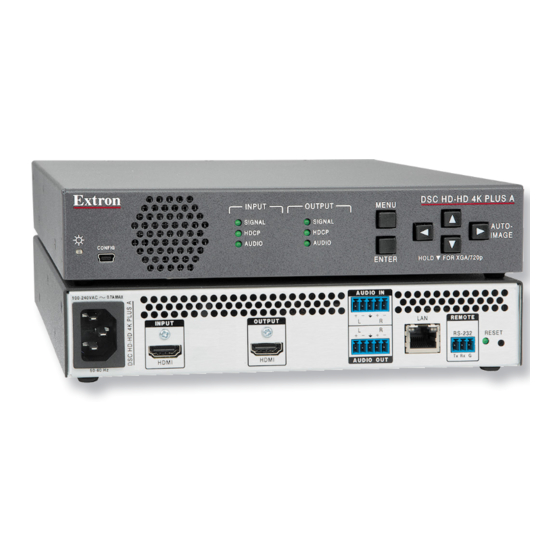

The Extron DSC HD‑HD 4K PLUS A and DSC HD‑HD PLUS A xi are high performance, HDCP 1.4 and 2.2 compliant scalers
capable of processing HDMI resolutions up to 4K @ 60 Hz with full 4:4:4 signal processing. They feature HDMI 2.0 connections
that support data rates up to 18 Gbps. Both models support 4K @ 60 Hz signals at 4:4:4 on a single connection, with the
DSC HD‑HD 4K PLUS A xi also supporting 4K @ 60 Hz signals as columns using two connections. This setup guide provides
step‑by‑step instructions for an experienced user to set up and configure the DSC HD‑HD 4K PLUS A series. It covers how to
perform basic operations using
Installation
ATTENTION:
• Installation and service must be performed by authorized personnel only.
• L'installation et l'entretien doivent être effectués par le personnel autorisé uniquement.
NOTE:
For full installation, configuration, menus, connector wiring, and operation details, see the DSC HD-HD 4K PLUS A
Series User Guide, available at www.extron.com.
Rear Panel Features
A A B B
100-240VAC ~ 0.7 A MAX
INPUT
HDMI
50-60 Hz
DSC HD-HD 4K PLUS A Rear Panel
Figure 1.
A A B B
100-240VAC ~ 0.7 A MAX
INPUT
A
HDMI
50-60 Hz
DSC HD-HD 4K PLUS A xi Rear Panel
Figure 2.
Setup Overview
Disconnect power — Turn off or disconnect all equipment power sources.
1.
Mount the unit (Optional) — Mount the DSC HD‑HD 4K HD PLUS A either in a rack using shelf mounting bracket kits or
2.
under furniture using furniture mounting brackets (see the instructions provided with the kit).
Connect the HDMI video inputs and outputs — Connect HDMI video sources and displays to one or both (xi model)
3.
HDMI input and output
B
Connect audio input and output devices (Optional) — Connect analog audio sources and outputs to the 3.5 mm captive
4.
screw Audio In and Audio Out connectors (
Connect a control device — For remote control, connect a computer or control system to any of these ports:
5.
• Remote RS-232 — This 3‑pole captive screw RS‑232 connector (
commands. RS‑232 protocol for this port is 9600 baud, 1 stop bit, no parity, 8 data bits, and no flow control.
• USB — This front panel USB mini‑B port (
configuration and control via SIS commands or the Extron PCS Configuration software.
• LAN — This RJ‑45 Ethernet jack (
commands, the PCS software, or the DSC HD‑HD 4K PLUS A series Web page.
front panel controls, the OSD menu
C C
AUDIO IN
OUTPUT L
L
HDMI AUDIO OUT
C C
AUDIO IN
OUTPUT
L
B A B L
HDMI
AUDIO OUT
connectors. Secure each HDMI device to the connector with a provided LockIt
C
).
D
B in the
) connects the unit to a network, enabling you to configure the DSC via SIS
E
system, and Simple Instruction Set
D D E E F F G G H H
LAN REMOTE
R
R
RS -232
RESET
Tx Rx G
D D E E F F G G H H
LAN
REMOTE
R
R
RS -232
RESET
Tx Rx G
) enables serial control via SIS
F
front panel illustration
on the next page) enables
(SIS ) commands.
™ ™
A AC power connector
HDMI input connectors
B
HDMI output connectors
C
Analog audio input and
D
output connectors
Ethernet LAN connector
E
F Remote RS‑232
connector
Reset LED
G
Reset button
H
bracket.
®
RS-232
Tx Rx G
1
