Summary of Contents for Haier HW90-BP14959

  • Page 1 User manual Washing machine HW90-BP14959 HW100-BP14959S6 HW120-BP14959S6...
  • Page 3 Thank You Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

  • Page 4: Table Of Contents

    Content 1-Safety information....................4 2-Product description....................7 3-Control panel....................... 8 4-Programmes.......................11 5-Daily use......................12 6-Eco-friendly washing ..................17 7-Care and cleaning ....................18 8-Troubleshooting....................21 9-Installation......................24 10-Technical data....................28...

  • Page 5: 1-Safety Information

    1-Safety information Before switching on the appliance for the first time read the following safety hints! WARNING! Before first use Make sure these is not transport damage. Make sure all transport bolts are removed. Remove all packing and keep out of children’s reach. Handle the appliance always with at least two persons because it is hea- Daily use This appliance can be used by children aged from 8 years and above a-...
  • Page 6 1-Safety information WARNING! Daily use Do not remove or inset the plug in the presence of flammable gas. Do not hot wash foam rubber or sponge-like materials. Do not wash any laundry which is polluted with flour. Do not open detergent drawer during any wash cycle. Do not press the door during the washing precess, it gets hot.
  • Page 7 1-Safety information WARNING! Installation Installor use the appliance only where the temperature is above 5 °C. Do not place the appliance directly on a carpet, or close to a wall or furn- iture. Do not install the appliance in direct sunlightor in the near of heat sourc- es (e.g.

  • Page 8: 2-Product Description

    2-P oduct description Note: Due to technical changes and different models,the illustrations in the following ch- apters may differ from your model. 2.1 Picture of appliance Front (Fig. 2-1): Rear side (Fig. 2-2): 1 Transportation bolts (T1-T4) 1 Detergent/Softener drawer 2 Backcover Worktop Control panel...

  • Page 9: 3-Control Panel

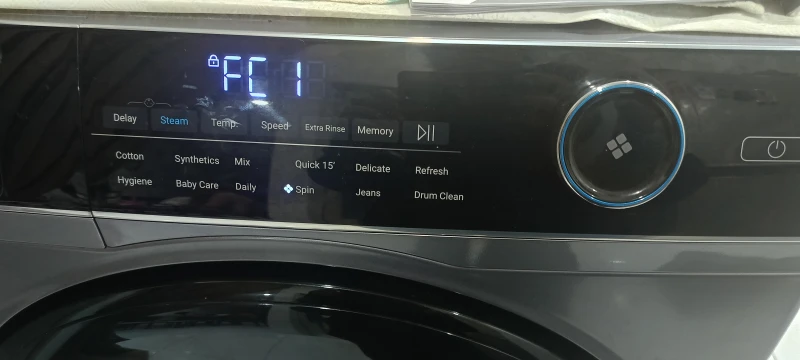

    3-Control panel “Power” button 3 Display 5 Function buttons 6 “Start/Pause” button 2 Programme selector 4 Detergent / Softener drawer Note : Acoustic signal In following cases an acoustic signal sounds: when pressing a button at the end of programme in case of failures The acoustic signal can be deselected if necessary;...
  • Page 10 If a button has multiple options, the desired option can be selected by touching the button sequentially. Note: Factory settings To get best results in each programme Haier has well defined specific default set- tings. If there is no special requirement dafault settings are recommended. 3.5.1-Function button “Delay”...
  • Page 11 3-Control panel 3.5.3 Function button “Speed” Press this button (Fig. 3-9) to change or deselect the spin of the programme. If no value is illuminated the laundry will not spun. 3.5.4 “Extra Rinse” button 3-10 Press this button (Fig. 3-10) to rinse the laundry more intense with fresh water.

  • Page 12: 4-Programmes

    Detergent compartment for: Detergent Softener or care product Optional, º Max. load Temperature Preset Function spin in kg speed in °C in rpm HW90-BP14959 HW100-BP14959S6 selectable HW120-BP14959S6 range Programme Fabric type º º º Cotton º º 9/10/12 * to 90...

  • Page 13: 5-Daily Use

    5-Daily use 5.1 Power supply Connect the washing machine to a power supply (220V/50Hz ; Fig. 5-1). Please refer also to section INSTALLATION. 5.2 Water connection Before connecting check the cleanliness and clar- ity of the water inlet. Tun on the tap (Fig.5-2). Note: Tightness Before use check for leakage in the joints between the tap and the inlet hose by turning on the tap.
  • Page 14 5-Daily use Care chart Washing Washable up to 90°C Washable up to 60°C Washable up to 60°C normal process normal process mild process Washable up to 40°C Washable up to 40°C Washable up to 40°C normal process mild process very mild process Washable up to 30°C Washable up to 30°C Washable up to 30°C...
  • Page 15 5-Daily use 5.5 Selecting detergent Washing efficiency and performance is determined by used detergent quality. Use only machine wash approved detergent. If needed use specific detergents, e.g. synthetic and woolen fabric. Mind always detergent manufacturer recommendations. o not use dry cleaning agents such as trichloroethylene and similar products. Choose the best detergent Kind of detergent Universal...
  • Page 16 5-Dai y use 5.6 Adding detergent 1. Slide out the detergent drawer. 2. Put the required chemicals into corresponding compartments (Fig. 5-4). 3. Push back the drawer gently. Note: Remove detergent residues before next wash cycle from the detergent drawer. Do not overuse detergent or softener.
  • Page 17 5-Daily use 5.10 Start wash programme Press “Start/Pause” button (Fig.5-8) to start. Applia- nce operates according to present settings. Changes are only possible by cancelling the programme. 5.11 Interrupt / cancel wash programme To interrupt a running programme press gently “Start/Pause”. The LED in the button is flashing.

  • Page 18: 6-Eco-Friendly Washing

    6-Eco-friendly washing Environmentally responsible use To achieve best use of energy, water, detergent and time you should use the recom mended maximum load size. Do not overload (hand width clearance above laundry). For slightly solid laundry select the Quick 15’ programme. Apply exact dosages of each washing agent.

  • Page 19: 7-Care And Cleaning

    7-Care and cleaning 7.1 Cleaning the detergent drawer Take always care there are no detergent residues. Clean the drawer regularly (Fig. 7-1): 1. Pull out the drawer until it stops. 2. Press the re lease button and remove the drawer. 3.
  • Page 20 7-Care and cleaning .5 Long periods of disuse 7-5.1 7-5.2 If the appliance is left idle for a longer period: 1. Pull out the electrical plug (Fig. 7-5.1). 2. Turn of water supply (Fig. 7-5.2). 3. Open the door to prevent formation of moisture and odours.
  • Page 21 7-Care and cleaning 7-6.7 7-6.8 9.Clean carefully pump filter, e.g. using running water(Fig.7-6.7). 10.Refix it thoroughly(Fig.7-6.8). 11.Close service flap. CAUTION! Pump filter sealing has to be clean and unhurt.If the lid is not full tightened, water can escape. The filter must be in place, or it may lead to leakage.

  • Page 22: 8-Troubleshooting

    8-Troubleshooting Many occuring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE. WARNING! Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
  • Page 23 8-Troubleshooting Problem Cause Solution • Motor error. • Contact the After sales service. • Abnormal communication error. • Contact the After sales service. • Unbalanced load error. • Reduce the load. • Water level sensor error. Contact the After sales service. •...
  • Page 24 8-Troubleshooting Problem Cause Solusion Washing programme duration will This is normal and doesn’t af- Automatic adjustment be adjusted. fect functionality. of washing time. Spinning fails. Unbalance of laundry. Check machine load and laun- dry and run a spinning progra- mme again. Degree of pollution does not agree Select an other programme.

  • Page 25: 9-Installation

    9-Installation 9.1 Preparation Take the appliance out of the packaging. Remove all packing material including polystyrene base, keep them out of childr- ens reach. While opening the package, water drops may be seen on plastic bag and porthole. That nomal phenomenon results from water tests in the factory. Note: Packaging disposal Keep all packaging materials out of children´s reach and dispose them in an environm- entally friendly manner.
  • Page 26 9-Installation 3. Replace back cover by inserting it in the two gaps 9-3.3 9-3.4 its convexity is facing out (Fig. 9-3.3). 4. Fill left holes with blanking plugs (Fig. 9-3.4). Note: Keep in safe place Keep the transportation bolts in a safe place for later use.
  • Page 27 9-Installation 9.6 Drain Water Connection the water drain hose properly to the piping. The hose has to reach at one point a height between 80 and 100 cm above the appliance bottom line! If possible keep always drain hose fixed to the clip at the appliance back. WARNING! Use only the supplied hose set for the connection.
  • Page 28 9-Installation 9.7 Fresh Water Connection 9-7.1 9-7.2 Make sure that the gaskets are inserted. 1. Connect the water inlet hose with the angled end to the appliance (Fig. 9-7.1). Tighten the screw joint by hand. 2. The other end connect to a water tap with a 3/4’’ thread (Fig.

  • Page 29: 10-Technical Data

    10-Technical data 10.1 Additional technical data Model name HW90-BP14959 HW100-BP14959S6 HW120-BP14959S6 Dimension height 850mm 850mm 850mm Width 595mm 595mm 595mm Depth 500mm 560mm 670mm Power supply 220V/50Hz 220V/50Hz 220V/50Hz Current Max. power 1750W 1800W 1850W Water pressure 0.03MPa≤P ≤1MPa 0.03MPa≤P ≤1MPa 0.03MPa≤P ≤1MPa...
  • Page 30 0020509530...
  • Page 31 HW90-BP14959 HW100-BP14959S6 HW120-BP14959S6...
  • Page 38 ลดเส ี ย งรบกวน (HW120-BP14959S6)
  • Page 41 /P--3...
  • Page 42 HW90-BP14959 HW100-BP14959S6 HW120-BP14959S6 9/10/12 4.5/5/6 4.5/5/6 4.5/5/6 4.5/5/6 4.5/5/6 9/10/12...
