ATEN PE1107mZ Quick Start Manual

PE1107mZ/PE1216mG
Energy PDU
Quick Start Guide
© Copyright 2013 ATEN ® International Co., Ltd.
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved.
All other trademarks are the property of their respective owners.
This product is RoHS compliant.
Printing Date: 07/2013
PE1107mZ/PE1216mG Energy PDU Quick Start Guide

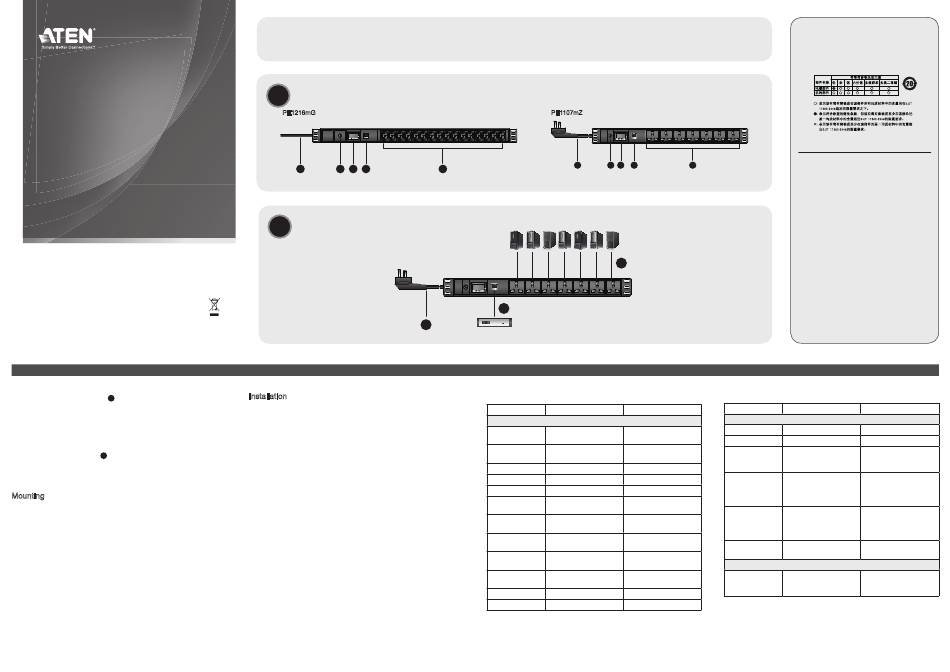

Hardware Review
A
1. Power Cord
2. Over Load Protector
3. Total Current Meter
4. Connection Interface
5. Power Outlet
Hardware Setup
B
For safety reasons the Energy PDU should not be installed with the power
sockets facing directly up or down, and thus should only be installed with
the power sockets facing out from a vertical position.
Mounting
PDU is compatible with standard cabinet (482.6 mm (19") ) or non-standard
cabinet
1. PDU can be mounted on the frame in a horizontal way or on both sides of
the cabinet in a vertical direction.
2. PDU can be mounted on the front or rear side of the frame in a horizontal
way.
Package Contents
1 Energy PDU
1 Mounting Kit
1 User Instructions
A
Hardware Review
PE1216mG
1 2 3 4
B
Hardware Installation
3
Installation
1. For each device you want to connect, use its power cable to connect
from the device's AC socket to any available outlet on the PE1107mZ/
PE1216mG
2. (Optional) If using an EC1000 Energy Box, plug the cable that connects
the PE1107mZ/PE1216mG to the Energy Box into the PE1107mZ/
PE1216mG's RJ-45 port(s).
3. Connect the PE1107mZ/PE1216mG "s power cord to an AC power
source.
Note: We strongly advise that you do not plug the PE1107mZ/PE1216mG
into a multi socket extension cord, since it may not receive enough
amperage to operate correctly.
4. Once you have fi nished these installation steps, you can turn on the
Energy PDU and the connected devices.
PE1107mZ
1 2 3
5
Server 1 Server 2 Server 3 Server 4 Server 5 Server 6 Server 7
1
2
Specifi cations
Model PE1107mZ
Electrical
Nominal Input
250 VAC
Voltage
Maximum Input
10A Max
Current
Input Frequency 50-60 Hz
Input Connection 1 x GB1002 10A Plug
Input Power 2500 VA(Max)
7 x GB2099.3 10A
Outlet Type
Receptacle
Nominal Output
250 VAC
Voltage
Maximum Output
10A (Max)
Current (Outlet)
Maximum Output
10A (Max)
Current (Bank)
Maximum Output
10A (Max)
Current (Total)
Breakers 1 x 10A Non-Fuse breaker 1 x 16A Non-Fuse breaker
Metering PDU level Current
4 5
All information, documentation, firmware,
software utilities, and specifi cations contained in
this package are subject to change without prior
notifi cation by the manufacturer. Please visit our
website http://www.aten.com/download/?cid=dds
for the most up-to-date versions.
Model
PE1216mG
Electrical
Outlet Switching None
250 VAC
Current Meter Y
Current Monitor
16A Max
(EC1000) 1 x CT Module RJ-45 port 1 x CT Module RJ-45 port
Connector
50-60 Hz
Current>10A Accuracy
1 x IEC C20
PDU Metering +/-5%
4000 VA(Max)
Accuracy Current < 10A Accuracy
+/-0.5A
16 x IEC C13
Current >1A Accuracy +/-
EC1000 Energy
1%
250 VAC Box Metering
Current <1A Accuracy +/-
Accuracy
0.1A
10A (Max)
Power Cord
2 m
Length
16A(Max)
Environmental
Temperature
16A(Max)
(Operating / 0 – 60˚C
Storage)
PDU level Current
The following contains information that relates
to China:
www.aten.com
PE1107mZ PE1216mG
None
Y
Current>10A Accuracy
+/-5%
Current < 10A Accuracy
+-0/.5A
Current >1A Accuracy +
/-1%
Current <1A Accuracy +/-
0.1A
2 m
0 – 60˚C
