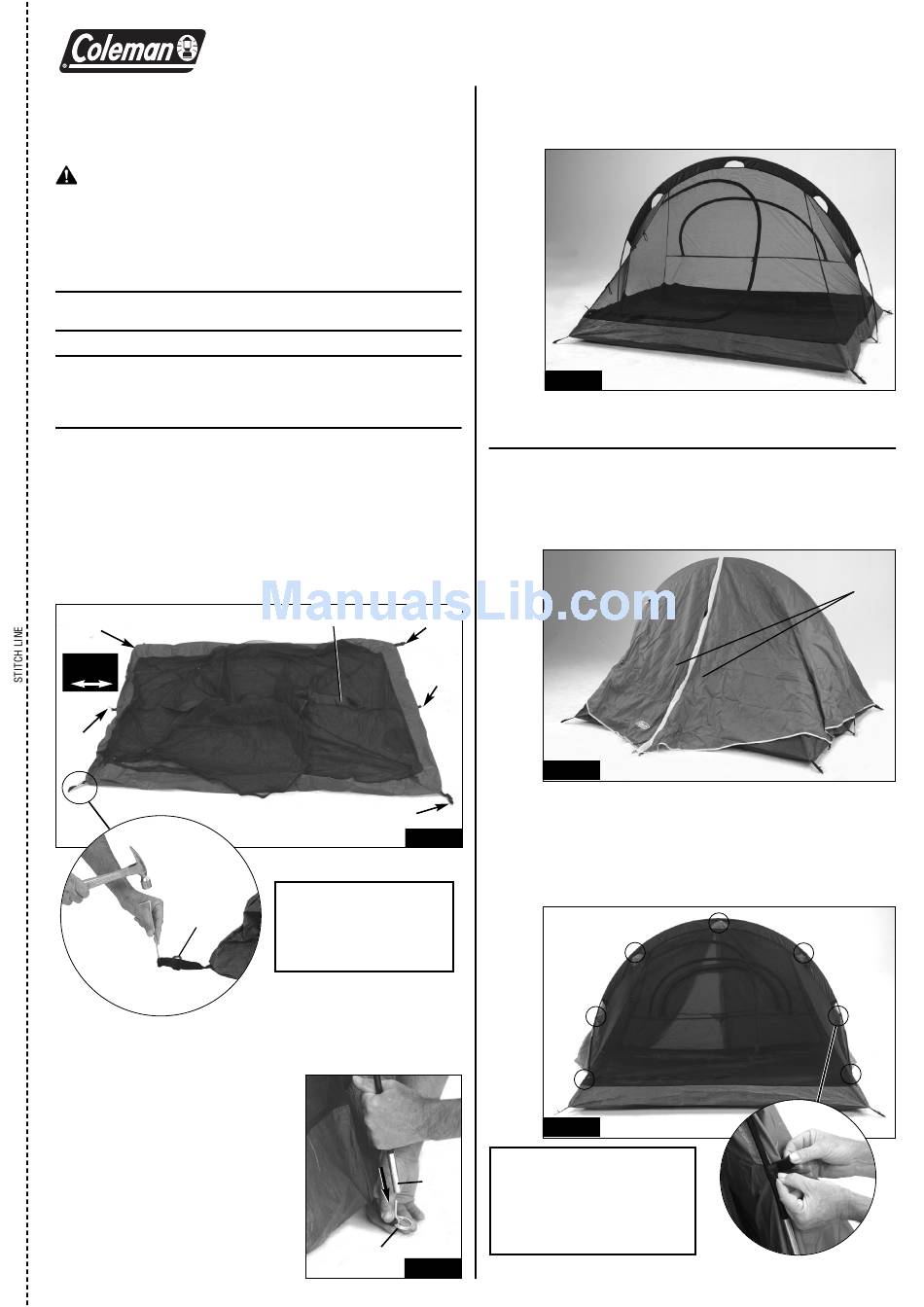

Coleman Tent 2000000436 Instructions

Before you begin
Read all instructions before set up.
• Select a level campsite clear of rocks, branches, and other hard
or sharp objects, to install your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees.
• For best results in windy conditions, position peaked ridge of
tent into the direction the wind is blowing.
• Enlist the help of at least one other person to assist you when
it is time to assemble the tent.
Parts and Components
Description
Main Pole (1)
Rainfly
To Set Up Tent
1. Unfold tent and spread out on a clean, level surface with the
door facing perpendicular to the wind direction. Unzip door.
2. Stretch out corners and sides of tent. Secure four corners
with stakes driven in at an angle through the loops, at the
end of the web straps, to better anchor the tent (Fig. 1 & 2).
Note: Staking the corners will make it easier to raise and
tear-down the tent.
Stake
Back of Tent
Wind
Direction
Window
Pin
Front of Tent
Plastic
Loop
Fig. 2
3. Assemble main pole by interlocking the black, shock-corded,
sections.
4. Insert main pole through sleeve in
top of tent. (Fig. 1)
5. Insert one end of black main pole
into pin on metal loop located at
either end of tent. (Fig. 3)
HOOLIGAN TM
Part Number
5010000251
5010000266
Sleeve
Door
Stake
IMPORTANT:
Never drive stakes
through plastic loops
on the web straps.
Metal Loop
& Pin
2
MODEL 2000000436
6. Go to opposite end of the main pole and gradually apply
pressure to the pole forming an arch. Insert the pin into the
pole end. (Fig. 3 & 4)
Fig. 4
6. Drive in stakes at an angle through the two metal loops to
help anchor the sides of the tent.
To Attach Rainfly
1. Drape rainfly over tent. Make sure vestibule and window on
the rainfly are positioned over the tent door and the window
on the tent. (Fig. 5)
Window on
back of
Stake
Rainfly
Pin
Fig. 5
2. Unzip door on rainfly and fold back flaps for better access
to the hook & loop fasteners on the underside of the rainfly.
(Fig. 6)
Fig. 1
3. Wrap the hook & loop fasteners around the main pole
to secure (Fig. 7). There are seven fasteners located on
the rainfly.
Fig. 6
IMPORTANT:
Make certain all seven
Main
Pole
hook & loop fasteners
are secured before moving
on to next assembly step.
Fig. 3
Front of Tent
Fig. 7
Fig. 7
(continued on other side)
Rainfly
Vestibule
