Coleman Tent Instructions

When You Are Ready
To Set Up Your Tent
– Select a level campsite clear of
rocks, branches and other hard
or sharp objects.
– Do not set up your tent under trees.
– For best results in windy conditions,
position the end of tent into the wind.
1 Layout & Positioning
of Tent, Pole Assembly
– Layout and position tent with doors
facing desired direction. (illus. 1)
– Unzip doors.
– Stake down tent corners, using the stake
loops. Keep the floor taut. (illus. 2)
– Stake down tent through the rings on the pin
and ring system.
– Assemble frame poles by interlocking shock-
corded poles. (four poles)
– Insert the poles into pole sleeves. The longer
black poles should cross forming an "X" in
the middle of tent. The shorter side grey
poles insert into sleeves running front to
back. The shorter black center pole runs
straight front to back. (illus. 1)
Assembled poles inserted
through pole sleeves
Side poles
(Grey)
Short Center
Pole (Black)
Pebble Creek
Instructions apply to Part Number 9272-210C
(2) Main Tent Poles
(Black)
(2) Side Poles (Grey)
(1) Center Pole
(Black)
(2) Upright Poles
(Black)
(2) Rainfly Poles
Rainfly
illus. 1
illus. 2
Tent stake
through ring
on stake loop
20'x11'
™
POLE ASSEMBLY PARTS
Part No. 9272-321
Part No. 9272-323
Part No. 9272-319
Part No. 9272-317
Part No. 9272-325
Part No. 9272-315
2 Connect Frame to Tent
– Insert one pin into the end of main black tent
pole to the side of the door. (illus. 3), (illus. 4)
– Go to opposite end of pole and gradually
apply pressure to the pole forming an arch
until you are able to insert the pin into the
pole end.
– Repeat for second pole.
– Insert remaining pin into the end of side pole,
go to opposite end of pole and apply
pressure until you arch the pole and can
insert the pin into the pole. (illus. 3), (illus. 4)
– Repeat for other side pole.
Tent frame
illus. 3

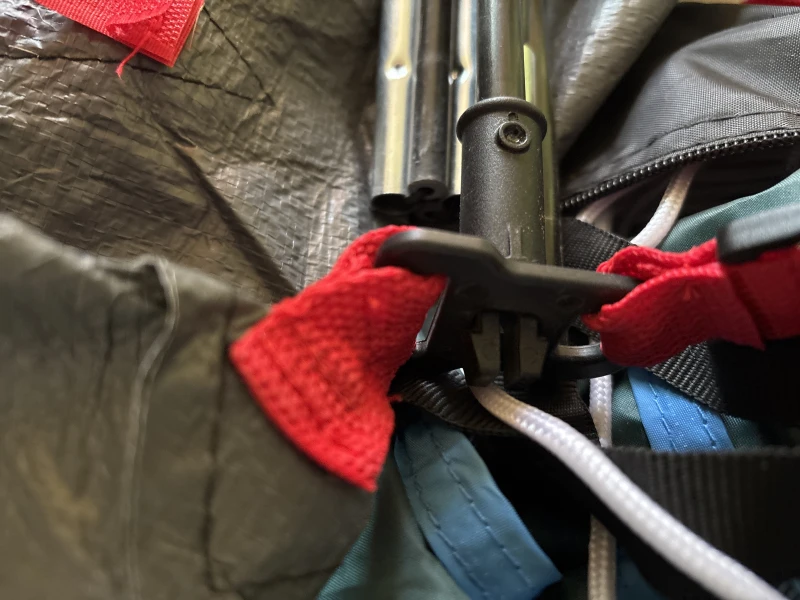

Insert pin into pole end
illus. 4
set-up
