Coleman TYL X2 9830-261 Instructions

Main Tent Poles (Silver)
Part No. 9830-1131
Brow Pole
Part No. 9830-1231
1

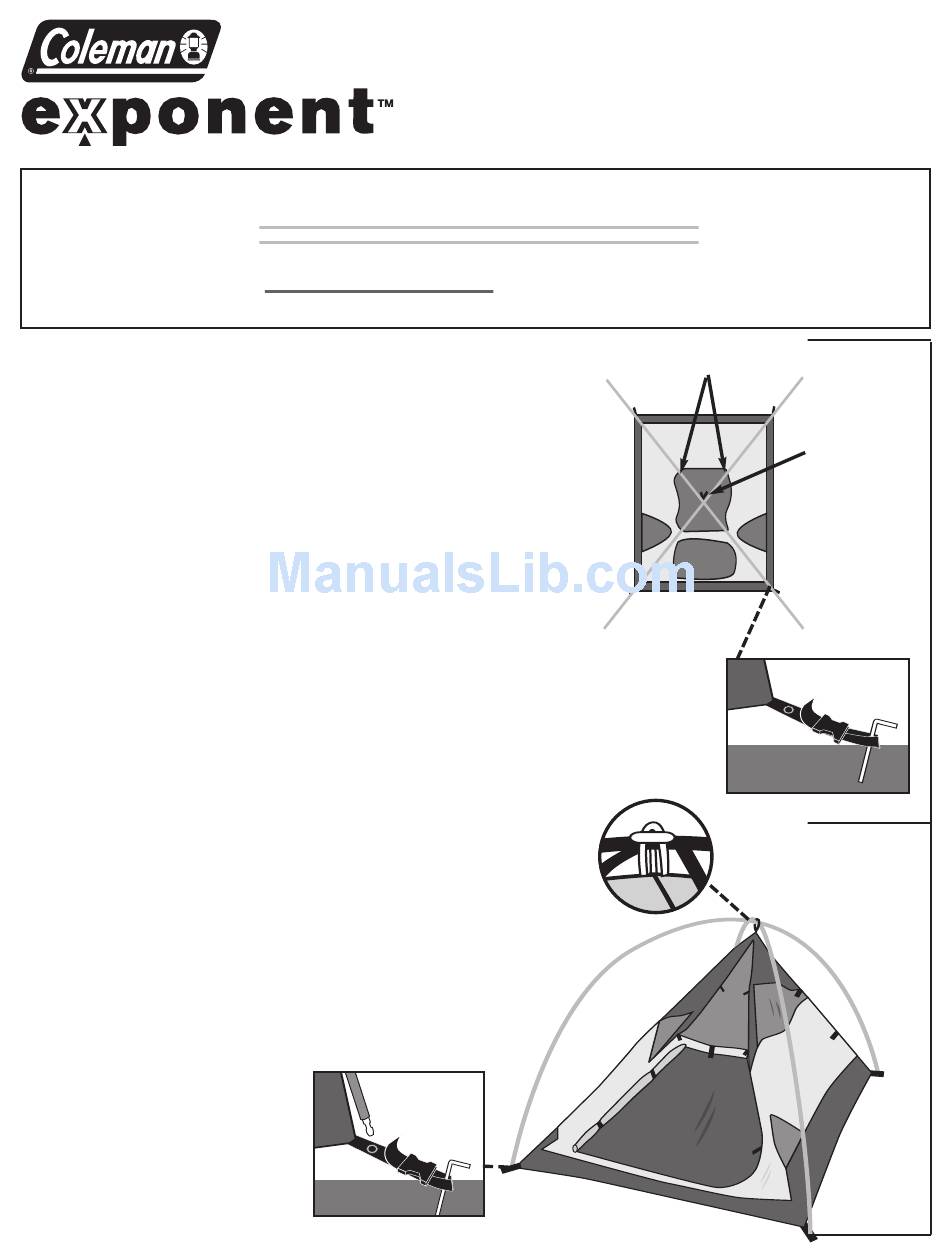

Layout & Positioning
of Tent, Pole Assembly
– Layout and position tent with door facing
desired direction. (illus. 1)
– For best results in windy conditions, position
door or back of tent into the wind.
– Unzip door.
– Stake down tent corners. Keep the floor
taut. (illus. 2)
– Assemble Frame Poles by interlocking the
shock-corded sections. This will make two
long silver poles.
– Lay the poles out diagonally, centered on the
tent.The center of the poles should cross
forming an "X" in the middle of tent. (illus. 1)
– Fasten toggle & loop on top of tent over both
poles. (illus. 1), (illus. 3)
2
Connect Frame to Tent
– Insert one pole tip into the grommet on the
webbing located at the corners of the tent (illus. 4).
– Go to opposite end of the same pole and
gradually apply pressure to the pole, forming an
arch, until you are able to insert the pole tip
into the grommet.
– Repeat for second pole.
Insert Pole Talon on
stake loop into pole.
POLE ASSEMBLY PARTS
illus.4
Tyl
™
part number 9830-261
Attach center of the tent to the poles
illus. 1
illus. 2
Tent stake
through Loop
illus. 5 Tent frame up
2
X
Rainfly
Part No. 9830-1331
Toggle & Loop
illus. 3
Toggle & Loop
