Assembly Instructions
NOTE: Tools Needed for Installation: One 7/16 open end or box end wrench. Note: Ratchet and sockets can be substituted for the
above wrenches.
STEP 1. After uncrating both upper and lower cabinets roll the Lower Cabinet into a position which allows ample working space
around the cabinet.
STEP 2.

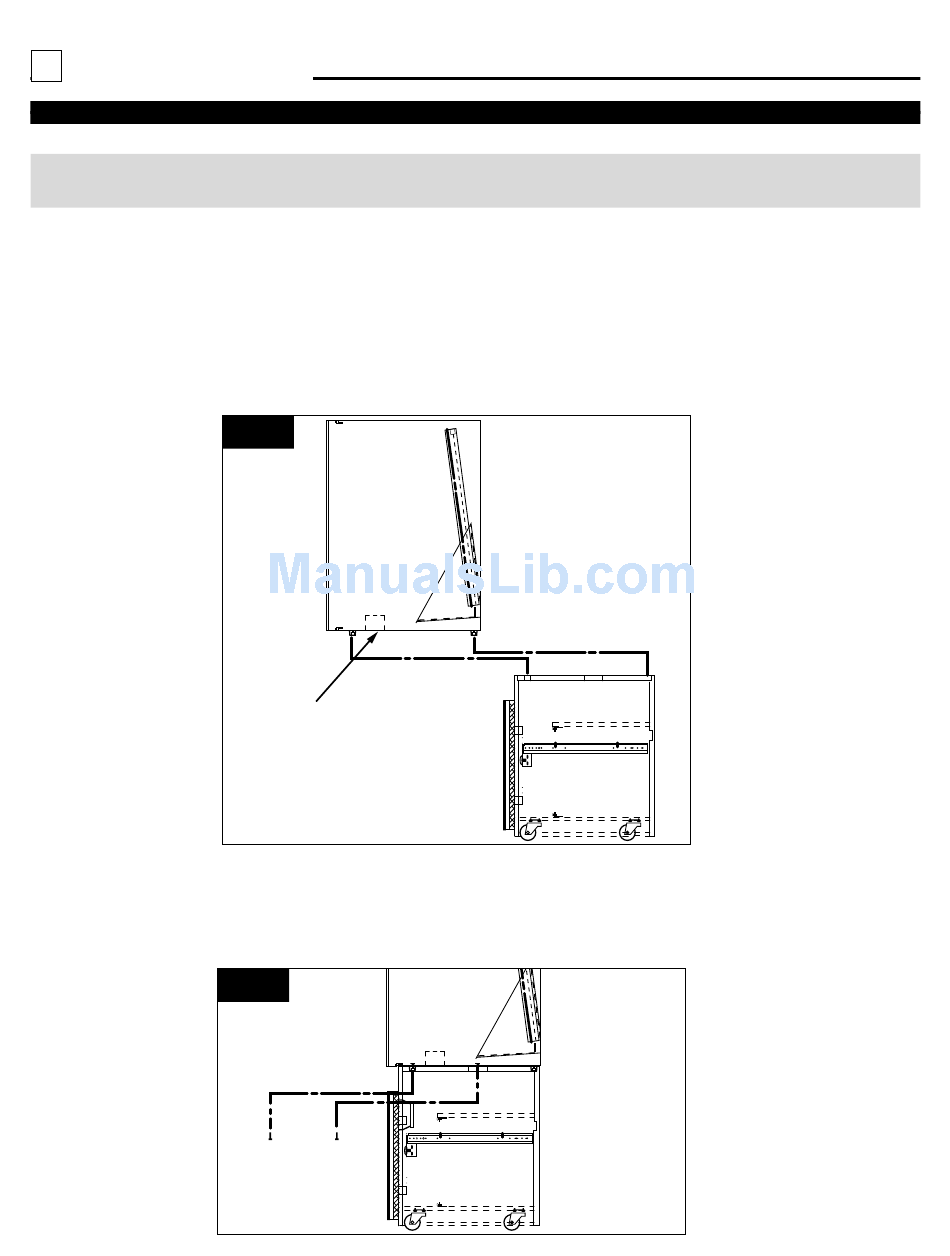

(Refer to Fig.1) Before lifting the Upper Cabinet test the weight by lifting one side slightly off the floor. With a minimum
of two people (four may be required) and with one hand firmly in Hand Grip and the other under the rear side of cabinet lift
and place upon lower cabinet. (NOTE: Align plastic feet with the two round holes in top of lower cabinet.)
STEP 3.
(Refer to Fig.2) For more structural security bolt the Upper Cabinet to the Lower Cabinet with 4 ea. 1/4 x 1 1/2 hex bolts
and washers (provided). (NOTE: Access fastening locations through Front Access Cover and Hinged Side Grills in lower
cabinet see Fig. 3&7)
FIG.1
HAND GRIP
FIG.2
4
