PART NAMES AND FUNCTIONS

OPTIONAL Boards

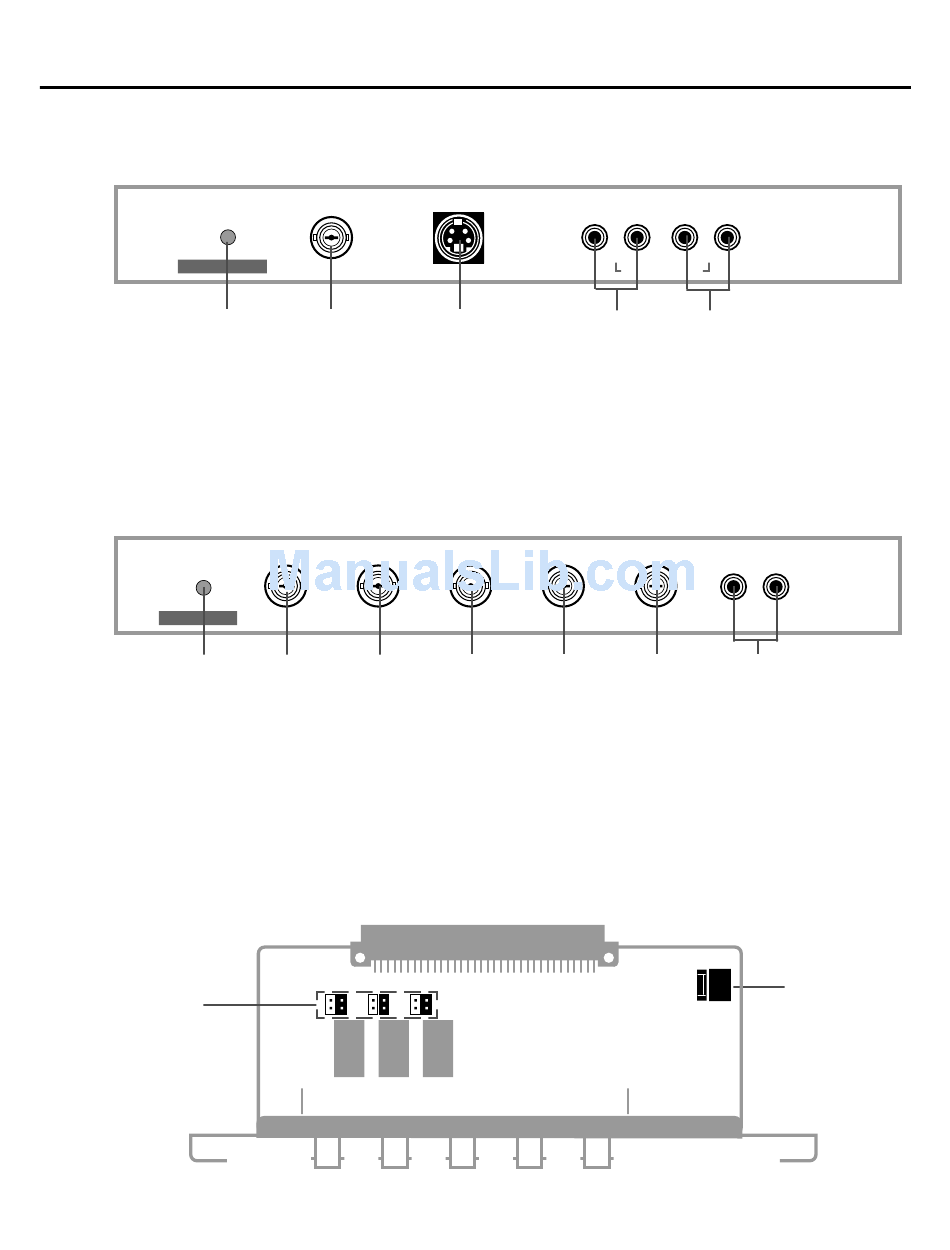

VIDEO INPUT Board [XG VIDINA]
Front view
VIDEO INPUT
1
1 Active Indicator (green LED) ...... Lights up when this board is selected.
2 VIDEO INPUT Terminal ............... Connects composite video output signals.
3 S-VIDEO INPUT Terminal ........... Connects S-video output signals.
4 VIDEO INPUT Terminal ............... Connects the audio outputs of the external equipment such as a VCR.
5 S-VIDEO INPUT Terminal ........... Connects the S-video audio outputs of the external equipment such as a VCR with
RGB INPUT Board [XG RGBINA]
Front view
RGB INPUT
1
1 Active Indicator (green LED) ...... Lights up when this board is selected.
2 R Input Terminal .......................... Connects a Red output signal.
3 G Input Terminal ......................... Connects a Green output signal.
4 B Input Terminal .......................... Connects a Blue output signal.
5 H/HV Input Terminal .................... Connects horizontal sync or horizontal/vertical sync output signals.
6 V Input Terminal .......................... Connects a vertical sync output signal.
7 AUDIO Input Terminals ............... Connects the audio outputs of the external equipment such as the ISS-6020/
RGB INPUT Board
Top view
9
8 Rotary Switch (S1001)
9 Jumper(S1002, S1003, S1004)
