ATEN NRGence PE7216/PE7324/PE8216/PE8324 - eco PDU Quick Start Guide

Package Contents

• 1 Power Distribution Unit
• 1 power cord (PE7216 / PE8216 only)
• 1 mounting kit
• 1 user instructions
• 1 CD-ROM

Support and Documentation Notice

All information, documentation, fi rmware, software utilities, and specifi cations contained in this package are subject to change without prior notifi cation by the manufacturer. To reduce the environmental impact of our products, ATEN documentation and software can be found online at http://www.aten.com/download/

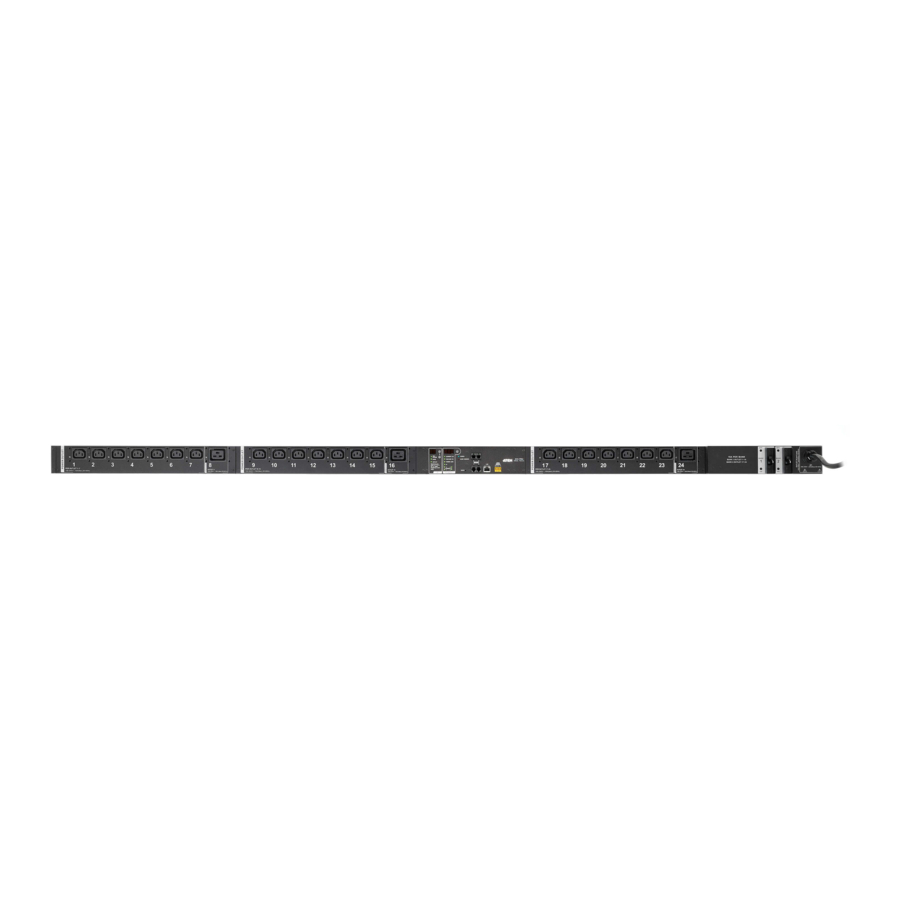

Hardware Overview

1. power outlet
2. status panel
3. circuit breaker pushbutton (PE7216 / PE8216) or circuit breakers (PE7324 / PE8324)
4. power inlet (PE7216 / PE8216) or power cord (PE7324 / PE8324)
5. outlet status LEDs (PE8216 / PE8324 only)

Status Panel

1. ID section
2. readout section
3. status LEDs
4. sensor ports
5. reset switch
6. LAN port
7. door sensor

Installation

1. Ensure that the eco PDU unit is properly grounded.
2. For each device you want to connect, use its power cable to connect it to any available outlet on the eco PDU. Use ATEN Lok-U-Plug cable holders to secure them.
3. Use an Ethernet cable to connect the eco PDU's LAN port to the network.
4. (Optional) To use environmental sensors in your installation, up to 4, connect them to the eco PDU's RJ-11 sensor ports.
5. (Optional) To use a door sensor in your installation, connect it to the eco PDU's 4-pin dry sensor port.
6. Depending on your model, connect the eco PDU's built-in power cord to an AC power source, or use the power cord provided to connect the eco PDU's power socket to an AC power source. Once you have fi nished these installation steps, you can turn on the eco PDU and the connected devices.

Operation

NRGence eco PDU models provide three methods to access and manage your installation: browser, eco DC (Energy & DCIM Management Web GUI), and SNMP.

Browser

To operate the eco PDU from an Internet browser, begin by logging in:

1. Open your browser and specify the IP address of the eco PDU you want to access in the browser's URL location bar.
   Note: You can get the IP address from the eco PDU administrator, or see the IP Address Determination section of the user manual (default IP address: 192.168.0.60).
2. If a Security Alert dialog box appears, accept the certifi cate — it can be trusted. The login page appears.
3. Provide a valid Username and Password.
   Note: If you are logging in for the fi rst time, use the default username and password: administrator and password.
4. Then click Login to bring up the browser main page.

eco DC

All eco PDUs support eco DC (Energy & DCIM Management Web GUI). NRGence eco DC provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to confi gure a PDU device and monitor power status of the equipment connected to it. NRGence eco DC can be found on the software CD provided with the eco PDU package.

SNMP

NRGence eco PDUs support any 3rd-party V1, V2, V3 SNMP manager software. SNMP Management Information Database (MIB) fi les for the eco PDU device can be found on the software CD provided with the eco PDU package.
