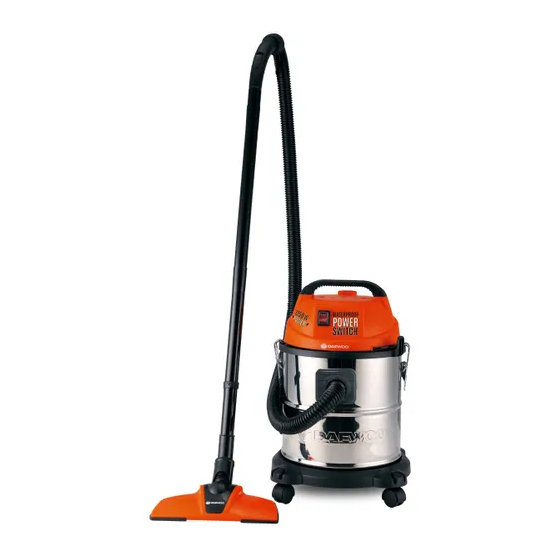

- Page 1 DAVC 90-20L/40L Vacuum cleaner USER'S MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
-
Page 2: Table Of Contents
INDEX 1. PRODUCT CHARACTERISTICS ......................2 2. PARTS NAME ............................2 3. SAFETY INSTRUCTIONS ........................4 4. OPERATION METHOD ..........................6 5. PROTECTIVE DEVICE ..........................8 6. MAINTENANCE ............................8 7. TECH DATA ............................9... -
Page 3: Product Characteristics
1. PRODUCT CHARACTERISTICS (1) Vacuum cleaner for wet and dry (2) Jacks on the base, easy for depositing accessories (3) Blowing function, satisfy different requirements 2. PARTS NAME Handle Top cover Switch Barrel cap Barrel lock Cord & Plug Air inlet mouth Barrel Pedestal... - Page 4 Hose assembly Tubes Floor brusch Crevice nozzle Filter bag Round brush Use the right accessories according to different situations. Bristle for bookshelves, windows and bibulous brush for floor and carpet, tables, etc. Crevice nozzle for crevice, corner, etc. Blowing mouth for blowing the dust away in the crevice of the machine...
-
Page 5: Safety Instructions
3. SAFETY INSTRUCTIONS (1) Check before operation that the local power supply is the same as the specification on the rating label. (2) Do not use machine in the combustible and explosive place in case the motor spark causes fire. (3) Do not jam the air inlet mouth, in case temperature rises and damaging the motor. - Page 6 (4) Do not collect combustible and explosive objects such as glowing cigarette, gasoline, etc. *Do not collect sharp objects. *Do not collect objects which can easily attach on the filter such as calcareousness powder, gesso and graphite powder. Because those will block the ventilation damage motor. (5) Do not overturn the machine in case water goes into the motor and damages the motor.
-
Page 7: Operation Method
(6) Warning: If water is out from air outlet mouth, do not overturn the machine when being repaired in case water goes into the motor and causes damage. Do not use this machine as pump in case of damaging the motor. (7) Turn off the machine and remove the plug each time after using or when being repaired. - Page 8 hose connector from machine. Insert hose connector into the blowing mouth as shown in the picture when you want to use its blowing function. As shown in the picture, connect all the accessories for wet & dry cleaning.
-
Page 9: Protective Device
(2) Operation 1. Insert the plug into the supply socket. 2. Press switch button, the machine 3.You can adjust the airflow by pushing the begins to work. sliding block up and down. 5. PROTECTIVE DEVICE Special instruction concerning protective device. (1) When the water in the barrel is full, the device begins to work. -
Page 10: Tech Data
7. TECH DATA DAVC90-20L Power: 1200 W Airflow rate: ≥1.5 min/m³ Vacuity: ≥18 kPa Noise: ≤78 dB Cable length: 4.5 m Tank capacity: 20 L N.W./G.W.: 5.3 kg / 6.2 kg Size: 36 x 35.6 x 51 cm Accessories: 1.5 m hose assembly/ plastic tubes/ round brush/ floor brush/ crevice nozzle/ fabric filter/ sponge filter Features: Wet and dry function;... - Page 11 Manufactured under license of Daewoo International Corporation, Korea...
