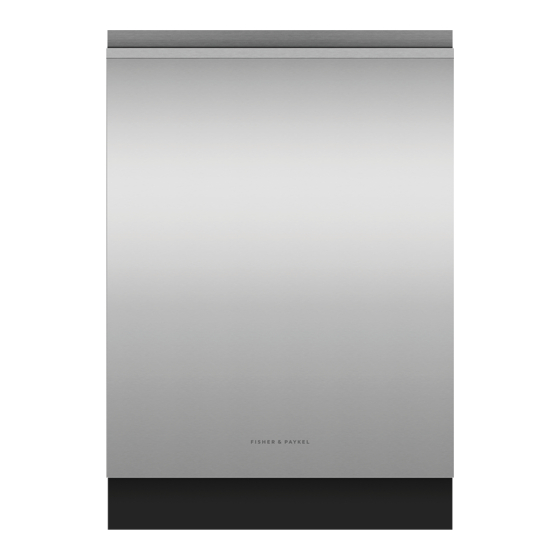

- Page 1 DISHWASHER CONTEMPORARY DW24UNT4X2 models INTEGRATED DW24UT4I2 models USER GUIDE US CA 431045A 11.22...
-
Page 3: Table Of Contents
CONTENTS Safety and warnings First use Loading suggestions Wash programs Wash modifiers Setting a wash Wi-Fi connection & remote mode Delayed start Keylock Sanitize Preferences Detergent Rinse aid Racking features Maintenance Troubleshooting Fault codes Manufacturer’s Warranty and Service guide Registration To register your product visit our website: fisherpaykel.com/register... -
Page 5: Safety And Warnings
SAFETY AND WARNINGS READ AND SAVE THIS GUIDE When using your Dishwasher, follow basic precautions, including the following: General The information in this guide must be followed to minimise the risk of fire or explosion or to prevent property damage, personal injury or loss of life. Use the Dishwasher only for its intended function as described in this guide. - Page 6 SAFETY AND WARNINGS Household appliances are not intended to be used by children. Children of less than 8 years old must be kept away from the appliance unless continuously supervised. This appliance can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and they understand the hazards involved.
- Page 7 SAFETY AND WARNINGS If the Dishwasher is installed as a permanently connected appliance, this appliance must be connected to a grounded metal, permanent wiring system, or an equipment- grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.
-
Page 8: First Use
FIRST USE Ensure the installer has completed the ‘Final checklist’ in the Installation instructions. Read this guide, taking special note of the 'Safety and warnings' section. Remove all internal and external packaging and dispose of it responsibly. Recycle items that you can. Dishwasher overview Control panel features 1 Cutlery/Utensil tray... - Page 9 FIRST USE Control panel overview DISPLAY TREATMENT: RUCTIONS EXAMPLE Control panel features 1 Wash program selector 7 Wi-Fi indicator 2 Wash modifier selector 8 Delayed start selector 3 Remote mode 9 Key lock 4 Display !0 Start 5 Delayed start indicator !1 Cancel 6 Rinse aid indicator Floor light...
- Page 10 FIRST USE Dishware The combination of high temperatures and dishwasher detergent may cause damage to some items. Refer to the manufacturer's guidance or wash by hand if in doubt. Cutlery & silverware Glassware Rinse cutlery and silverware immediately Most glassware is dishwasher safe. Crystal, after use to prevent tarnishing.
-
Page 11: Loading Suggestions
LOADING SUGGESTIONS When loading your Dishwasher ensure items are placed so water coming from the rotating spray arm below can reach all areas. Wash performance will be reduced if it can't. Your dishwasher can hold up to a maximum of 15 place settings. Ensure Lower and middle spray arms can rotate freely. -
Page 12: Wash Programs
WASH PROGRAMS Your dishwasher has a number of wash programs designed to suit your needs. Selecting the most appropriate cycle for each load will help ensure the best wash results. WASH PROGRAM PROGRAM DESCRIPTION Suitable for any type of load. The dishwasher automatically AUTO selects the optimum wash program Designed for heavily soiled pots, pans and dishes... -
Page 13: Wash Modifiers
WASH MODIFIERS After setting a wash program, you can also select a wash modifer. Not all modifiers can be combined with all wash programs. can be used in combination with the 1/2 LOAD other modifiers. 1/2 LOAD SANITIZE DRY+ INTENSIVE Adjusts the wash Raises the water Increases the final... -
Page 14: Setting A Wash
SETTING A WASH Remove all food scraps from dishware before carefully loading into the dishwasher. Ensure the spray arms are free from any obstructions and rotate freely. If rinse aid is required fill the rinse aid dispenser. Refer to 'Rinse aid' for additional guidance. Add detergent to the dispenser and close the cover. - Page 15 SETTING A WASH Select a wash modifier if required. DISPLAY TREATMENT: Press to start the wash and close the door. If the door is not closed within 4 seconds the wash will be cancelled. Open the door carefully at any point during the wash to pause.
-
Page 16: Wi-Fi Connection & Remote Mode
WI-FI CONNECTION & REMOTE MODE Your appliance may be connected to your home wireless network and operated remotely using the app. Getting started Ensure your home Wi-Fi network is turned on. You will be given step by step guidance on both your appliance and mobile device. It may take up to 10 minutes to connect your appliance. -
Page 17: Delayed Start
DELAYED START Set your dishwasher to start later in the day and run a selected wash program. can be set after a wash program has been selected and can be set for up DELAYED START to 12 hours. Setting Delayed Start Add detergent and select a wash program, and wash modifier if required. -
Page 18: Keylock
KEYLOCK Lock the dishwasher controls for cleaning or to prevent unintended use. Locking the controls Press and hold together for 1 second. Locking the controls and setting a wash Add detergent and select a wash program and wash modifier if required. Press and hold together for 1 second. -
Page 19: Sanitize
SANITIZE Using SANITIZE wash modifier adjusts the wash program to meet the conditions required by SANITIZE Section 6, NSF 184 for sanitization to occur. While is running, the wash program is SANITIZE monitored to ensure that these conditions are met. Only programs utilising the wash modifier are certified to meet the conditions SANITIZE... -
Page 20: Preferences
PREFERENCES You can adjust any of the below settings prior to starting a wash cycle. OPTION DESCRIPTION DEFAULT SETTINGS DISPLAY Controls the amount of rinse aid dispensed. Rinse aid Max: 6 Refer to 'Rinse aid' for further details. Your dishwasher is set to automatically power on for 30 Auto power-on... - Page 21 PREFERENCES Changing the settings Ensure there is no wash in progress. Press and hold together for 1/2 LOAD 4 seconds to enter the menu. DISPLAY TREATMENT: Press to scroll through the settings. 1/2 LOAD DISPLAY TREATMENT: Press to adjust the setting. Press to exit the menu and save CANCEL...
-
Page 22: Detergent
DETERGENT WARNING: Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children and infirm persons away from the dishwasher when it is open. Check the powdered detergent dispenser is empty after each wash. - Page 23 DETERGENT Powdered detergent quantity recommendations Use the table below to determine the optimal powdered detergent quantity for each wash program. If you have hard water in your area, more detergent may be required. Refer to 'Water hardness' for more details. WASH PROGRAM PRE WASH COMPARTMENT MAIN WASH COMPARTMENT...
-
Page 24: Rinse Aid
RINSE AID Rinse aid provides a streak-free finish to glass and dishware as well as preventing metal from tarnishing. We recommend using a liquid rinse aid regularly for optimal drying results. The rinse aid dispenser is located on the inside of the door next to the detergent dispenser. Using rinse aid The amount of rinse aid dispensed in each wash may need to be adjusted to suit your water conditions. -
Page 25: Racking Features
RACKING FEATURES Cutlery basket To reduce the risk of injury, load knives and sharp utensils with handles facing up. Mix spoons, knives and forks within each section to stop cutlery nesting together and to ensure the water circulates freely. Features 1 Cutlery basket 2 Removable anti-nesting grid 3 Small items container... - Page 26 RACKING FEATURES Cutlery/Utensil tray Use the tray to secure cutlery and utensils. Place cutlery into the notches to secure. Place larger utensils in the middle of the tray. Slide side sections to the middle to create more space for items below. Upper basket Adjust the height of the upper basket to make space for taller items.
- Page 27 RACKING FEATURES Foldaway cup racks Adjust the height to suit or fold out of the way to make space for other items. Use the notches to support wine glass stems. To adjust height 1 Fold up to unlock. 2 Adjust the height to suit by sliding up or down.
-
Page 28: Maintenance
MAINTENANCE Disconnect the dishwasher from the power supply and allow it to cool before undertaking any cleaning or maintenance. Maintenance parts 1 Filter 2 Filter plate 3 Lower spray arm Not shown: middle and upper spray arms. Cleaning surfaces Wipe with a damp cloth and dry using a lint-free cloth. We do not recommend using the following cleaning aids as they may damage the surfaces: Hand washing liquids or soap Plastic or stainless steel scouring pads... - Page 29 MAINTENANCE Removing and cleaning the filter Twist the filter anti-clockwise to release. Lift to remove. filter cap Separate the filter cap from the base by pressing the release buttons and lifting. Do not attempt to remove the filter by force as this may cause damage. Clean under hot water and rinse thoroughly.
- Page 30 MAINTENANCE Removing and cleaning the filter plate filter plate With the filter removed, carefully lift the filter plate up and out. Clean under hot water and rinse thoroughly. Replacing the filter plate Slot the filter plate under the locating clips at the filter plate rear of the drain and push firmly back into place.
- Page 31 MAINTENANCE Cleaning the lower spray arm To remove the lower spray arm, lift it from the base lower spray arm of the dishwasher. Rinse the spray arm thoroughly under running water, then refit. Ensure the arm rotates freely when refitted. Winterizing (cold climates) If the Dishwasher is installed in a cold climate where temperatures fall below freezing, we recommend winterizing.
-
Page 32: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE WHAT TO DO Dishwasher will No power. Ensure the dishwasher is plugged in and not start the power supply is turned on at the wall. The door is not Close the door. properly closed. has not been pressed. Press . - Page 33 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE WHAT TO DO The dish washer Power or water supply has Check the power and water supplies. stops suddenly been interrupted. during the wash Knocking or Spray arm knocking Pause the wash and rearrange dishes. rattling sound against dishes.
- Page 34 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE WHAT TO DO Plastic items Not enough detergent, Pre-rinse plastic dishes before are discoloured not pre-rinsed. placing in the dishwasher and/or add (e.g. stain left more detergent. by tomato Alternatively, using the Rinse sauce) program after adding dishes may minimise staining.
- Page 35 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE WHAT TO DO Water marks Rinse aid level or dosage Ensure there is rinse aid in dispenser. If left on glasses setting is too low. necessary, increase the rinse aid setting and cutlery or try using a wash program with a higher temperature.
-
Page 36: Fault Codes
FAULT CODES How do I know if there is a fault? Your dishwasher will beep continuously and a fault code will flash in the display. There are two types of fault codes – ‘F’ and ‘A’. To fix a fault First try to fix the issue and clear the code according to the steps in the following tables. - Page 37 FAULT CODES 'A' fault codes Follow the steps below to try and fix the issue. PROBLEM POSSIBLE CAUSE WHAT TO DO Drain hose is crimped Check the drain hose and straighten if needed. or bent. Drain fault Blocked Check that drain connection is free from blockages. drain connection.
-
Page 38: Manufacturer's Warranty And Service Guide
MANUFACTURER’S WARRANTY AND SERVICE GUIDE Before you call for service or assistance Check the things you can do yourself. Refer to the installation instructions and your user guide and check that: 1 Your product is correctly installed. 2 You are familiar with its normal operation. If after checking these points you still need assistance or parts, please refer to the Service &... - Page 39 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2022. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
