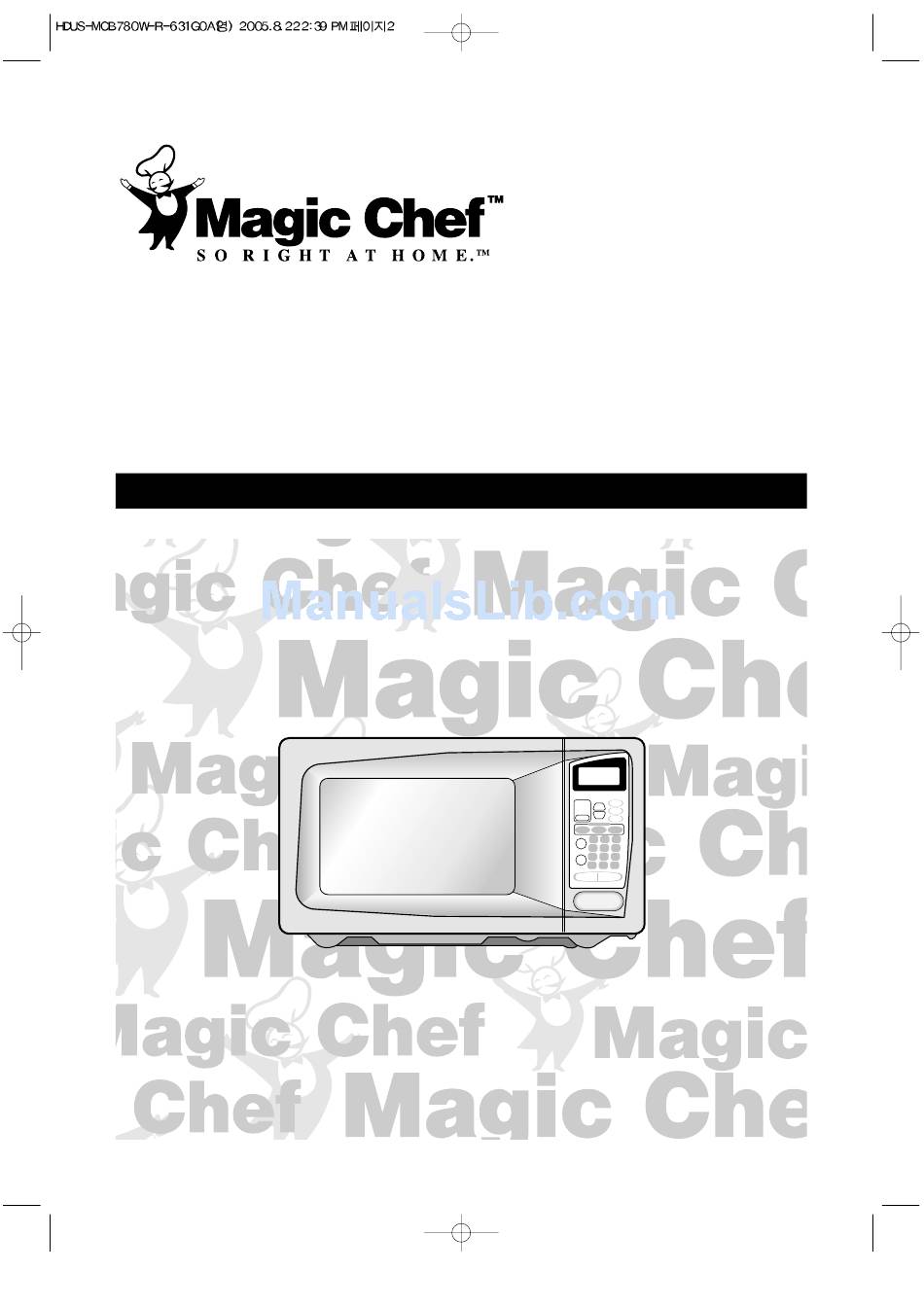

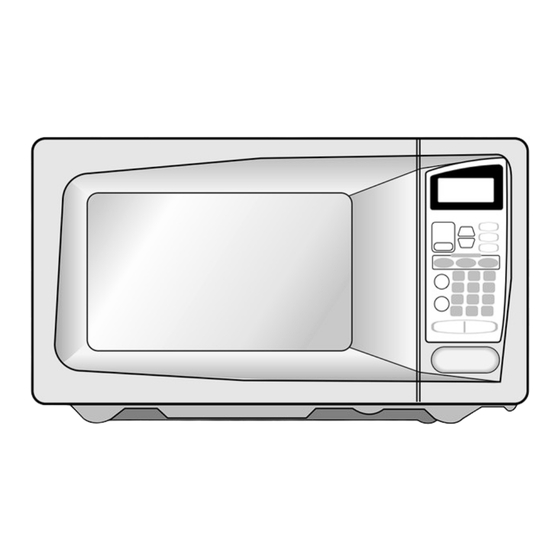

- Page 1 0.7 cu.ft Microwave Oven MCB780W Before operating this oven, please read these instructions completely.
-
Page 2: Table Of Contents
MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. -
Page 3: Important Safety Instructions
Stir the liquid both before and halfway through heating it c) Do not use straight-sided containers with narrow necks. d) After heating, allow the container to stand in the microwave oven for a short time before removing the container. -
Page 4: Federal Communications Commission Radio Frequency Interference Statement(U.s.a. Only)
• Relocate the Microwave oven with respect to the receiver. • Move the microwave oven away from the receiver. • Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits. THE MANUFACTURER is not responsible for any radio or TV interference caused by UNAUTHORIZED MODIFICATION to this microwave oven. -
Page 5: Installation
6. Power supply. This microwave oven requires a power supply of approximately 12 Amperes, 120 Volts, 60Hz and a grounded outlet. A short power cord is provided to reduce the risk of the user becoming entangled in or tripping over a longer cord. Longer cord sets or extension cords are available and may be used if care is exercised. -
Page 6: Specifications
SPECIFICATIONS POWER SUPPLY POWER CONSUMPTION MICROWAVE OUTPUT POWER FREQUENCY OUTSIDE DIMENSIONS (W X H X D) CAVITY DIMENSIONS (W X H X D) NET WEIGHT TIMER POWER LEVELS * Specifications are subject to change without notice. 120V AC 60 Hz SINGLE PHASE WITH GROUNDING... -
Page 7: Features Diagram
If the door is opened while the oven is operating, the magnetron will automatically shut off. 2. Door seal-The door seal maintains the microwave within the oven cavity and prevents microwave leakage. 3. Oven cavity 4. Spatter shield-Protects the microwave outlet from splashes of cooking foods. - Page 8 FEATURES DIAGRAM (continued) 10. Time set pad-Used to set the cooking time and the present time. 11. Display-Cooking time, power level, indicators and present time are displayed. 12. One touch-Used to cook or reheat specific quantities of food. 13. Auto Cook-Used to cook or reheat. 14.
-
Page 9: Operation Procedure
The glass tray and roller guide must always be in place during cooking. 3. Shut the door. Make sure that it is firmly closed. The oven light is on only when the microwave oven is operating. The oven door can be opened at any time during operation by touching the door release button on the control panel. -
Page 10: Controls
CONTROLS SETTING THE CLOCK When the oven is first plugged in, the display will flash “:0” and a tone will sound. If the AC power ever goes off, the display shows “ : 0” when the power comes back on. 1. -
Page 11: Weight Defrosting
WEIGHT DEFROSTING AUTO DEFROST lets you easily defrost food by eliminating guesswork in determining defrosting time. Follow the steps below for easy defrosting. 1. Touch MEAT pad. MEAT 2. Select the desired defrosting weight. (Refer to the weight defrost chart below.) 3. -
Page 12: Cooking In One Stage
COOKING IN ONE STAGE 1. Touch POWER pad. (Select the desired power POWER level.) 2. Touch number pads for the cooking time. 3. Touch START pad. When you touch START pad, the M/W indicator starts blinking to show the oven is cooking. The display counts down the time to show how much cooking time is left. -
Page 13: Kitchen Timer Mode
Timer operates as a minute timer, can be set to delay cooking and used to set a holding time after cooking. However delay cooking can not be programmed for defrost. Timer operates without microwave energy. HOW TO USE AS A MINUTE TIMER 1. -
Page 14: Speedy Cook
• 14 oz : Touch FROZEN PIZZA twice within 1.5 seconds. NOTE: 1 Use only one frozen pizza at a time 2. Use only frozen pizza made for microwave ovens. 3. If the cheese of frozen pizza does not melt sufficiently, cook a few seconds longer. -
Page 15: Auto Cook
“ AC-1 ” is displayed. By repeatedly touching this pad, you can select other food category as shown in the chart below. TOUCH PAD DIRECTIONS Place bread on a microwave dish Touch AUTO COOK once. Pour soup into microwave bowl Touch AUTO COOK... -
Page 16: Less, More
LESS, MORE To alter one touch cooking or cooking time whilst oven is in operation, use LESS or MORE.(except for defrosting) Press LESS/MORE to decrease/increase the one touch cooking time in multiples of 10 seconds. The overall one touch cooking time can be increased to a maximum of 59 minutes 50 seconds. Press LESS/MORE to decrease/increase the cooking time in multiples of 1 minute. -
Page 17: Utensil Test
Do not use recycled paper products, such as brown paper bags. They contain impurities which may cause arcing and damage the oven. Metal Metal utensils should not be used in the oven. Metal reflects microwave energy so foods will not cook evenly. Metal can cause arcing and damage the oven. -
Page 18: Care Of Your Microwave Oven
Control Panel. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit. -
Page 19: Use Your Microwave Oven Safely
- Do not hit or strike the control panel with hard objects. This can damage the oven. Food - Never use your microwave oven for home canning. The oven is not designed for proper home canning. Improperly canned food may spoil and be dangerous to consume. -
Page 20: Before You Call For Service
* Q : Why do I have moisture in my microwave oven after cooking? A : The moisture on the side of your microwave oven is normal. It is caused by steam from cooking food hitting the cool oven surface. -
Page 21: Microwave Oven Warranty
Microwave Oven Warranty MC Appliance corp. warrants each new Microwave Oven to be free from defects in material and workmanship and agrees to remedy any such defect or to furnish a new part(s) (at the company’s option) for any part(s) of the unit that has failed during the warranty period. Parts and labor expenses are covered on this unit for a period of one year after the date of purchase.
