Generac Power Systems PCRGM1 Installation Manual

RGM Accessory Kit Installation Manual
Kit Contents
Quantity
1
2
1
1
4
4
Tools Required
•
Phillips Head Screwdriver
•
Flat Head Screwdriver
•
Flush Cutter / Wire Cutter
DANGER
Electrocution. Never touch terminals when
inverter and PWRcell DC disconnects are ON.
Doing so could result in death or serious injury.
DANGER
Electrocution. Do not wear jewelry while
working on this equipment. Doing so will
result in death or serious injury.
DANGER
Automatic start-up. Disconnect utility power and
render unit inoperable before working on unit.
Failure to do so will result in death or serious injury.
WARNING
Electrocution. Potentially lethal voltages are generated
by this equipment. Render the equipment safe before
attempting repairs or maintenance. Failure to do so
could result in death or serious injury.
Instructions
NOTE: Competent, qualified personnel should install,
operate, and service this equipment. Strictly comply to
local, state, and national electrical and building codes.
When using this equipment, comply with regulations
established by the National Electrical Code (NEC), CSA
PWRview for PWRcell Set-up Guide
PCRGM1
Description
PWRView Meter
Current Transformers
Voltage Cable
Mounting Plate
Mounting Screws
Cable Ties
(000686)
(000188)
(000191)
(000187)
Standard; the Occupational Safety and Health Adminis-
tration (OSHA), or the local agency for workplace health
and safety.
1. Initiate an inverter shutdown by pressing the red
Shutdown button on the inverter front control panel.
2. Allow DC voltage to drop below 10VDC.
3. Open all PWRcell DC Disconnects and verify DC
voltage reported on LCD screen has dropped to
below 10VDC.
4. Disconnect AC Grid source to inverter and wait for
Inverter LCD screen to turn off.
5. Ensure all sources of AC and DC Power are dis-
connected.
6. Open the inverter front cover to horizontal and
push inward to lock in the open position.
7. Use a Phillips Head screwdriver to remove the wir-
ing compartment cover (5 screws total).

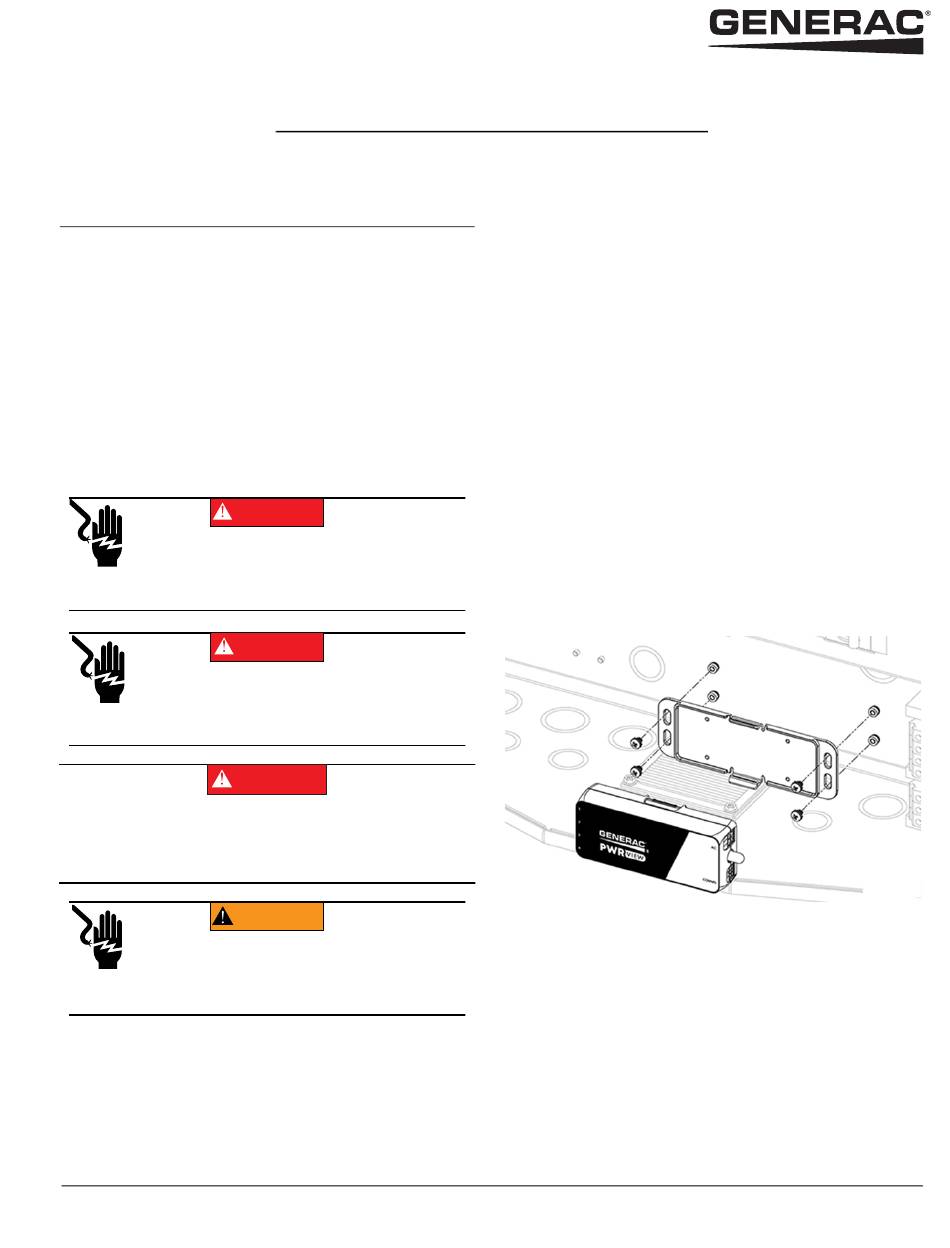

8. Locate the 4 standoffs on the rear sheet metal
panel.
9. Place mounting plate over the standoffs and
secure with the included mounting screws.
10. Follow wiring diagram on the backside to complete
PWRView meter install.
11. Clip PWRView meter onto the mounting plate.
12. Replace dead-front over the inverter wiring com-
partment and tighten screws.
13. Close front cover.
14. Power on inverter.
15. Follow install verification steps on next page to
confirm everything is in working order.
011165
1
