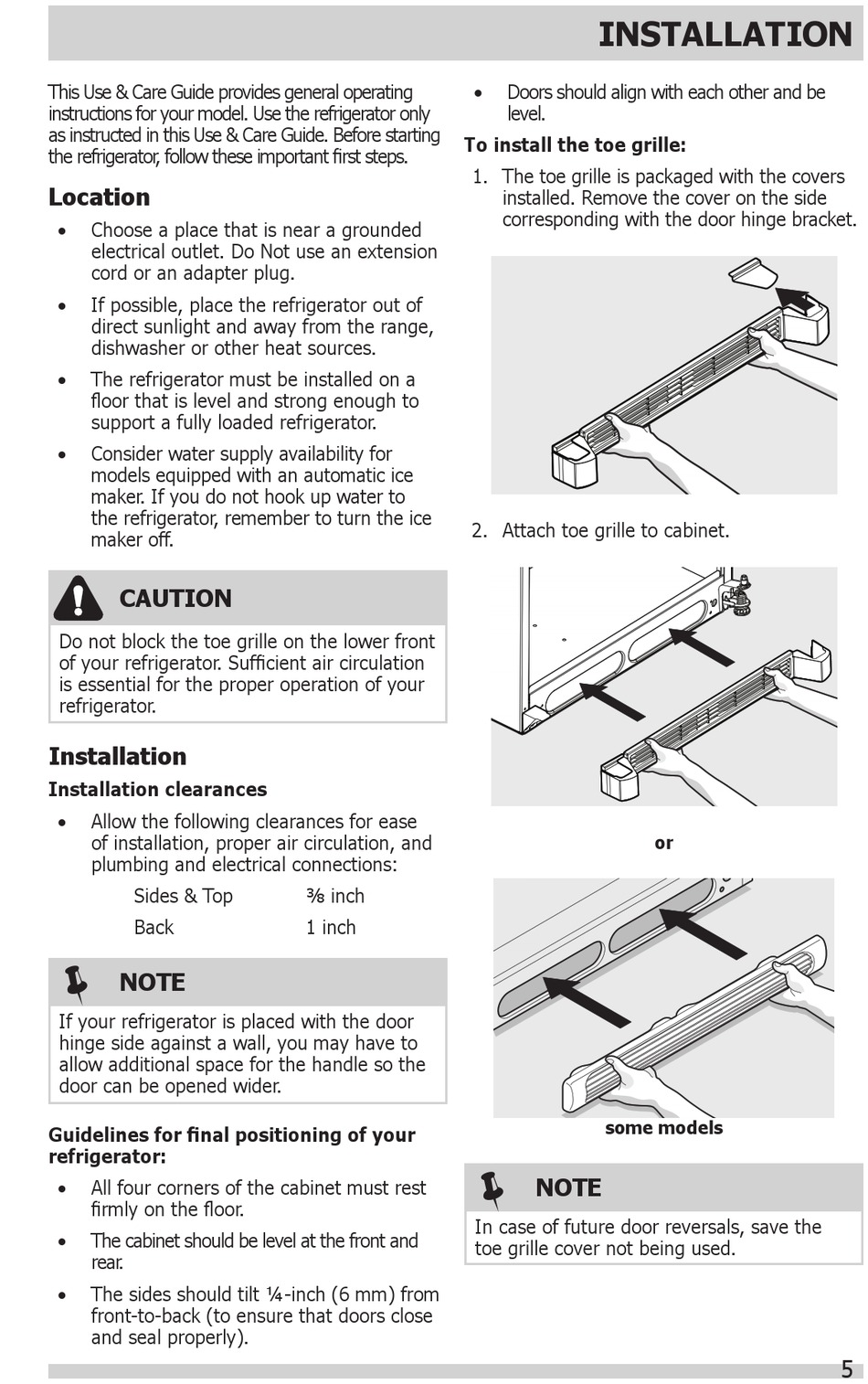

This Use & Care Guide provides general operating
instructions for your model. Use the refrigerator only
as instructed in this Use & Care Guide. Before starting
the refrigerator, follow these important first steps.
Location
•
Choose a place that is near a grounded
electrical outlet. Do Not use an extension
cord or an adapter plug.
•
If possible, place the refrigerator out of
direct sunlight and away from the range,
dishwasher or other heat sources.
•
The refrigerator must be installed on a
floor that is level and strong enough to
support a fully loaded refrigerator.
•
Consider water supply availability for
models equipped with an automatic ice
maker. If you do not hook up water to
the refrigerator, remember to turn the ice
maker off.
CAUTION
Do not block the toe grille on the lower front
of your refrigerator. Sufficient air circulation
is essential for the proper operation of your
refrigerator.
Installation
Installation clearances
•
Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top
Back
NOTE
If your refrigerator is placed with the door
hinge side against a wall, you may have to
allow additional space for the handle so the
door can be opened wider.
Guidelines for final positioning of your
refrigerator:
•
All four corners of the cabinet must rest
firmly on the floor.
•
The cabinet should be level at the front and
rear.
•
The sides should tilt ¼-inch (6 mm) from
front-to-back (to ensure that doors close
and seal properly).
To install the toe grille:
⅜ inch
1 inch
INSTALLATION
•
Doors should align with each other and be
level.
1. The toe grille is packaged with the covers
installed. Remove the cover on the side
corresponding with the door hinge bracket.
2. Attach toe grille to cabinet.
some models
NOTE
In case of future door reversals, save the
toe grille cover not being used.
or
5
