USE AND MAINTENANCE
CULTIVATOR
MODEL
BL 105
16/06/2008

Advertisement

loading

Related Manuals for Benassi BL 105

Summary of Contents for Benassi BL 105

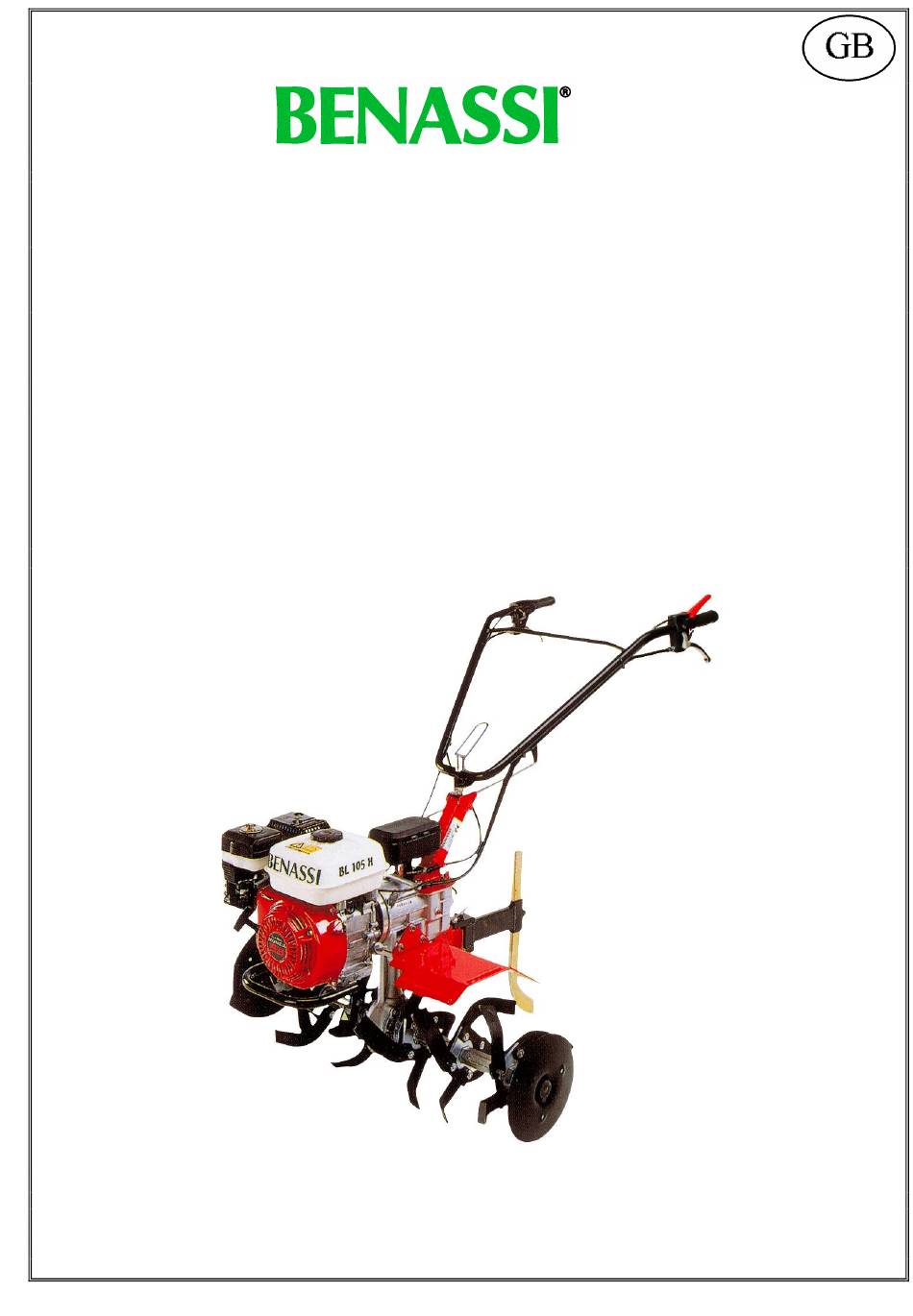

  • Page 1 S.p.A. USE AND MAINTENANCE CULTIVATOR MODEL BL 105 16/06/2008...
  • Page 2 B L 1 0 5 S.p.A. CONTENTS INTRODUCTION STARTING AND STOPPING THE MACHINE ◊ ◊ LIST OF MACHINE PARTS OPERATING AND REGULATING THE MACHINE ◊ ◊ TECHNICAL DATA MAINTENANCE ◊ ◊ ◊ PACKING AND TRANSPORT ◊ WARRANTY SAFETY RULES AND LIMITS ON USE DECLARATION OF CE CONFORMITY ◊...
  • Page 3 BL 105 S.p.A. S.p.A. S.p.A. S.p.A. Overall dimensions (mm.) TECHNICAL DETAILS For the engine features, see the engine instruction booklet delivered with the machine. -PICT. n° 1- TRANSMISSION : Oil bath gearcase with bevel gear pairs to transmit movement to cutters rotor.
  • Page 4 BL 105 S.p.A. S.p.A. S.p.A. S.p.A. PACKING AND TRANSPORT WIDTH: 87 cm. ◊ HEIGHT: 50 cm. ◊ LENGTH: 72 cm. ◊ -PICT. n° 2- Remove the power hoe from its packing • Accurately clean cutters hubs and cutters supporting shaft applying a small quantity of •...
  • Page 5 BL 105 S.p.A. S.p.A. S.p.A. S.p.A. STARTING AND STOPPING THE MACHINE Please check the engine USE AND MAINTENANCE concerning the “operations before staring”. -PICT. n° 4- STARTING ENGINE Starting the engine of the machine always follow these instructions very carefully: only in version 4 stroke Check the oil in the engine : THE BRAND NEW MACHINE IS DELIVERED •...
  • Page 6 • (detail B) PICT.17. In models BL 105LE,BL 105KD, BL 105KE and BL 105 LD, as weight is considerable, in order to balance the machine when at rest, a receding • support stand, connected to the bumper is provided (Fig. 12 Ref. “Q”).
  • Page 7 BL 105 S.p.A. S.p.A. S.p.A. S.p.A. -PICT. n° 10- -PICT. n° 11- -PICT. n° 12- -PICT. n° 13- -PICT. n° 14- -PICT. n° 15- -PICT. n° 16- -PICT. n° 17-...
  • Page 8 BL 105 S.p.A. S.p.A. S.p.A. S.p.A. WARRANTY Our machines and accessories are guaranteed for 2 YEARS excluding electric and rubber parts. All the defective parts will be replaced free of charge excluding cost of labour and transport fees which would be at customer’s charge.
