Spa

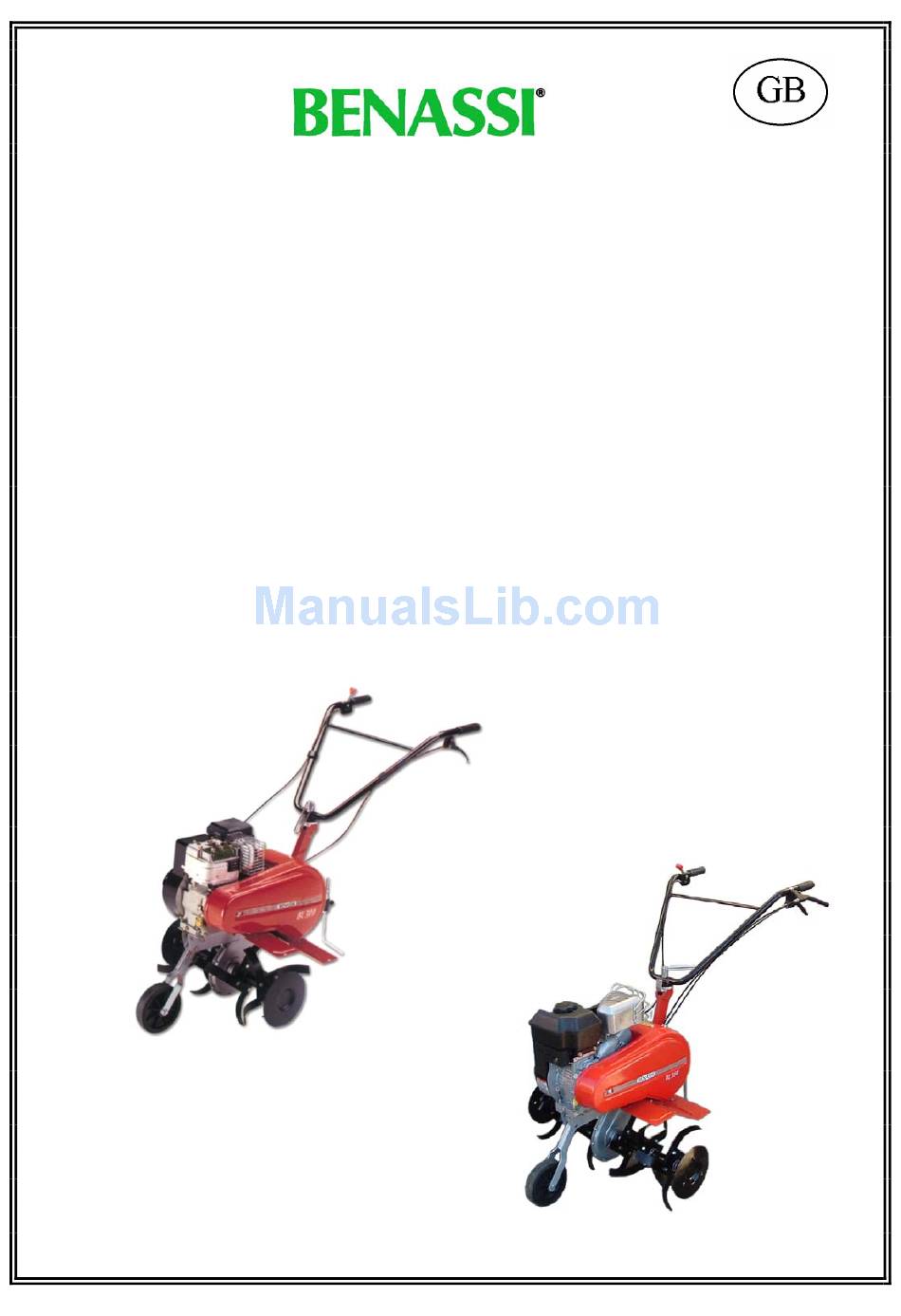

USE AND
MAINTENANCE
CULTIVATOR
MODEL
BL300 / BL350
02/12/2008

Advertisement

Table of Contents
loading

Related Manuals for Benassi BL300

Summary of Contents for Benassi BL300

  • Page 1 USE AND MAINTENANCE CULTIVATOR MODEL BL300 / BL350 02/12/2008...
  • Page 2 INTRODUCTION Dear user, thank you for preferring BENASSI, The top performance and the easy use of our machine should give you any satisfaction. • This machine is the result of a long experience working at the top quality standard and using first quality material.

  • Page 3: Technical Details

    Safety device for both forward and backward gear stopping the tiller. • The model BL300 has a single belt transmission for the engine and a greased chain for the tiller. • The model BL350 has a double belt transmission (front and reverse) for the engine and a greased chain for the tiller.

  • Page 4: Security Terms

    BL 300 /350 INSTRUCTIONS FOR MOTORHOE ASSEMBLY The machine is packed in a box of the following dimensions : ◊ ◊ ◊ WIDTH: 80 cm. HEIGHT: 70 cm. LENGHT: 45 cm. • Take the machine out of the carton box. •...

  • Page 5: Starting And Stopping The Machine

    In the model BL350 with two levers you can insert the reverse gear pulling the hand lever “H” in position “b” (PICT 10). • In the model BL300 pulling the clutch lever in position “b” the correct space of the internal sides of the belt (PICT 12) should be of 45-55 mm.
  • Page 6 BL 300 /350 • In the type with full side and vertical adjustment (PICT 18) you have to release the blocking lever “P” than adjust the handlebar position as you prefer and lock it again. • The standard tiller is 57 cm wide, with two sets of knives on each side, and the side protection plates. •...

  • Page 7: Maintenance

    BL 300 /350 MAINTENANCE • For the normal maintenance (oil, filter, spark plug) check the booklet for the engine included. • The chain for the final transmission is lubricated with normal grease. Every year you should introduce some grease through the hole “Q” (PICT 19) in the main body. •...
  • Page 8 40010 San Matteo della Decima BO Italy Via Lampedusa n°1 We hereby declare that the machine conforms with the essential requirements for health and safety in accordance with EEC Directive 98/37/CE BL300/350, BL 300/350HS, BL 300/350 R CULTIVATOR TYPE MODEL...

This manual is also suitable for:

Bl350
