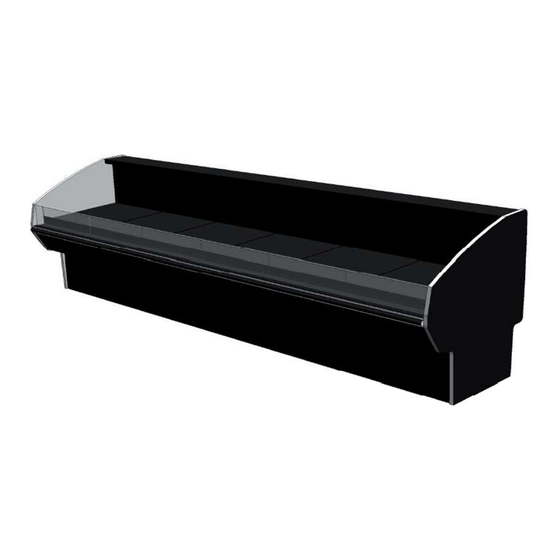

Deli self service case

Advertisement

Quick Links

Q 1 - S S N
DELI SELF SERVICE CASE
I N S T A L L A T I O N & O P E R A T I O N G U I D E

Advertisement

Table of Contents
loading

Summary of Contents for Hussmann Q1-SSN

  • Page 1 Q 1 - S S N DELI SELF SERVICE CASE I N S T A L L A T I O N & O P E R A T I O N G U I D E...
  • Page 2: Table Of Contents

    Evaporator Fans ..............16 The serial number and shipping date of all equipment Copper Coils ................16 has been recorded in Hussmann’s files for warranty and Tips and Troubleshooting ............16 replacement part purposes. All correspondence pertaining Glass Replacement and Adjustment Instructions ....16 Stainless Steel Cleaning and Care..........
  • Page 3: Installation

    Q-Series Joining Guide LINE-UP PLATE (INSERT INTO ALUMINUM PROFILE) CASE BOLTING USE 1/4"- 20 X 1 1/2" SCREW AT TOP LINE-UP PIN (INSERT INTO OUTER 1/2" HOLE) LINE-UP PLATE (INSERT INTO VERTICAL SLOT) LINE-UP TAB (AT BACK OF BUMPER) CASE BOLTING (MULTIPLE 3/8" HOLES) ACCESS BEHIND AIR DISCHARGE WALL FRONT CASE BOLT (UPPER 3/8"...
  • Page 4: Setting And Joining

    11. Remove front, back and end shipping braces. FIRST, with the rest if the lineup being leveled from Q1-SSN Refrigerated Wedges and Standard Cases it. The Q1-SSN case has adjustable legs to allow for Line up taper pins and line-up plates with holes on adjoining leveling.
  • Page 5 Installation (Cont'd) To adjust the front glass please follow these steps Step # 1 Before you start any adjustments make sure the cases are To level the cases remove the front and rear close-offs, You level, Front to Back and side to side can adjust the Height by turning the base leg adjusters When you turn the leg adjuster clock-wise the case will go up.
  • Page 6 Installation (Cont'd) Glass must be parallel to ledge when viewed from front Glass Height should be centered on “V” glass seal IMPORTANT: Attempting to compensate for poor installation practices by manipulating the canopy hardware will result in unsatisfactory workmanship and possibly cause hardware failure and/or injury.
  • Page 7: Bumper Installation Instructions

    Installation (Cont'd) Bumper Installation Instructions Step 2: Use silicone lubricant to help the Step 1: Make sure the aluminum channel and end caps bumper slide into the channel. are installed. Step 3: Starting on one end: while inserting the bumper, Step 4: As you insert the bumper into the channel with push it up against the end cap to prevent one hand, pull the bumper toward you with...
  • Page 8 Installation (Cont'd) Boston Series 2000 Boston 2000 Eco Series NOTE: Flexible top: Over cut vinyl 1/8" for every 4' section for the flexible top to ensure a proper fit. NOTE: Rigid Top: Do not over cut. 1. Attach the base and end/corner cap to the desired surface by inserting #8 pan head screws through the pre-slotted holes in both the end cap and the base.
  • Page 9 Installation (Cont'd) Boston 1000 Series 2b. Rigid Top: Snap the Rigid Top over the Rigid Base. NOTE: Flexible top: Over cut vinyl 1/8" for every 4' section for the flexible top to ensure a proper fit. NOTE: Rigid Top: Do not over cut. Installation 3.
  • Page 10: Waste Outlet And P-Trap

    Defrost Locate first the electrical box, the outlets are then on the times should be as directed in the Q1-SSN technical same side of the case, but at the opposite end. Insulate data sheet. The number of defrosts per day should never suction lines to prevent condensation drippage.
  • Page 11: Specification Sheet

    Spec Sheet...
  • Page 12: Electrical

    Electrical Wiring Color Code Electrical Service Receptacles (When Applicable) The receptacles located on the exterior of the merchandiser are intended for scales and lighted displays. They are not intended nor suitable for large motors or other external appliances. BEFORE SERVICING ALWAYS DISCONNECT ELECTRICAL POWER AT THE MAIN DISCONNECT WHEN SERVICING OR REPLACING ANY...
  • Page 13: Ashrae Color Code

    Electrical (Cont'd) Ashrae Color Code NOTE: All other manufacturers have no standard sensor codes. Case Control Systems SENSOR COLOR Manufacturer ® > Location Coil Inlet Color Blue Blue Part# 225-01-1755 225-01-3255 Color Coil Outlet Part# 225-01-1757 225-01-3123 Color Green Green Discharge Air Part# 225-01-1756...
  • Page 14: User Information

    Important Steps product. Hussmann cases were not designed to “heat up” 1. Do not set temperature too cold, as this causes or “cool down” product - but rather to maintain an item’s product dehydration.
  • Page 15: Cleaning Glass And Mirrors

    1. Scrub thoroughly, cleaning all surfaces, with soap Cleaning and hot water. Hussmann recommends using a clean damp chamois, or a paper towel marked as dust and abrasive free with 210 2. Rinse with hot water, but do not flood.
  • Page 16: Maintenance

    There are three basic things, which can break down your Copper Coils stainless steel’s passivity layer and allow corrosion. The copper coils used in Hussmann merchandisers may 1. Mechanical Abrasion be repaired in the field. Materials are available from local Mechanical Abrasion means those things that refrigeration wholesalers.
  • Page 17 Maintenance (Cont'd) When cleaning your stainless steel products, take frequently to avoid build-up of hard, stubborn stains. care to use non-abrasive tools. Soft Clothes and If you boil water in your stainless steel equipment, plastic scouring pads will NOT harm the steel’s remember the single most likely cause of damage is passive layer.
  • Page 18: Electrical Wiring Diagrams

    Electrical Wiring Diagrams Q1-SS-3R 3017875 Q1-SS-4R 3017876 Q1-SS-5R 3017877 Q1-SS-6R 3017878 Q1-SS-8R 3017879 Q1-SS-10R 3020840 Q1-SS-12R 3017880 Q1-SS-22.5I/22.5O-R 3017881 Q1-SS-45I/455O-R 3017882 Q1-SS-90O-R 3017883...
  • Page 19: Wiring Diagrams

    Wiring Diagrams...
  • Page 20 Wiring Diagrams (Cont'd)
  • Page 21 Wiring Diagrams (Cont'd)
  • Page 22 Wiring Diagrams (Cont'd)
  • Page 23 Wiring Diagrams (Cont'd)
  • Page 24 Wiring Diagrams (Cont'd)
  • Page 25 Wiring Diagrams (Cont'd)
  • Page 26 Wiring Diagrams (Cont'd)
  • Page 27 Wiring Diagrams (Cont'd)
  • Page 28 Wiring Diagrams (Cont'd)
  • Page 29: Appendices

    NOTE: installation instructions and recommendations determining if the refrigerator will be allowed to display provided by Hussmann for the installation potentially hazardous food. For the purpose of this of each individual type refrigerator. evaluation, product temperature above the FDA Food...
  • Page 30: Appendix D. - Recommendations To User - Refrigerated

    Fahrenheit shall be accurate to 12. Are the shelf positions, number, and size 2°F. The thermometer should be checked for other than recommended by Hussmann? proper calibration. (It should read 32°F when 13. Is there an improper application or control the stem is immersed in an ice water bath).
  • Page 31 Food store refrigerators are not food chillers nor can they reclaim quality lost through previous mishandling. For further technical information, please log on to http://www.hussmann.com/products/Q1-SS.htm...
  • Page 32: Controller Parameters

    Controller Parameters Q1‐SS PGM0005A01 TANDARD CASE REV E 6/5/1 Parameter Co e Default A tual ( C) A tual ( ) Temperature (set point) Deli (Type I) -50.0°C 50.0°C 2.0°C -6.1 Thermostat Differential 0.1 K 20.0K 2.0 K Ma . limitation of setpoint setting -49.0°C 50°C 50.0°C...
  • Page 33 Defrost Sensor (0=time, 1=S5. 2=S4) Pump down delay 0 min 60 min 0 min 0 min Drain delay 0 min 60 min 0 min 0 min Max. aggregate refrigeration time between two d18 0 hours 48 hours 0 hours defrosts Defrost on demand - S5 temperature's permitted variation during frost build-up.
  • Page 34 Download a set of predetermined settings. See Access code 2 (partly access) Save the controllers present settings to the Load a set of settings from the programming key Replace the controllers factory settings with the Service S0-S33 Status codes are shown on page 17 Temperature measured with S5 sensor Status on DI1 input.
  • Page 35: Controller Manual

    User Guide Controller for temperature control AK‐CC 210 ADAP‐KOOL® Refrigeration control systems...
  • Page 36 August 31, 2018 This warning does not mean that Hussmann products will cause cancer or reproductive harm, or is in violation of any product-safety standards or requirements. As clarified by the California State government, Proposition 65 can be considered more of a ‘right to know’...
  • Page 37 Additional copies of this publication may be obtained by contacting: unit. Hussmann® Chino They can be found on a small metal plate on the unit. 13770 Ramona Avenue • Chino, California 91710 Please note them below for future reference.
