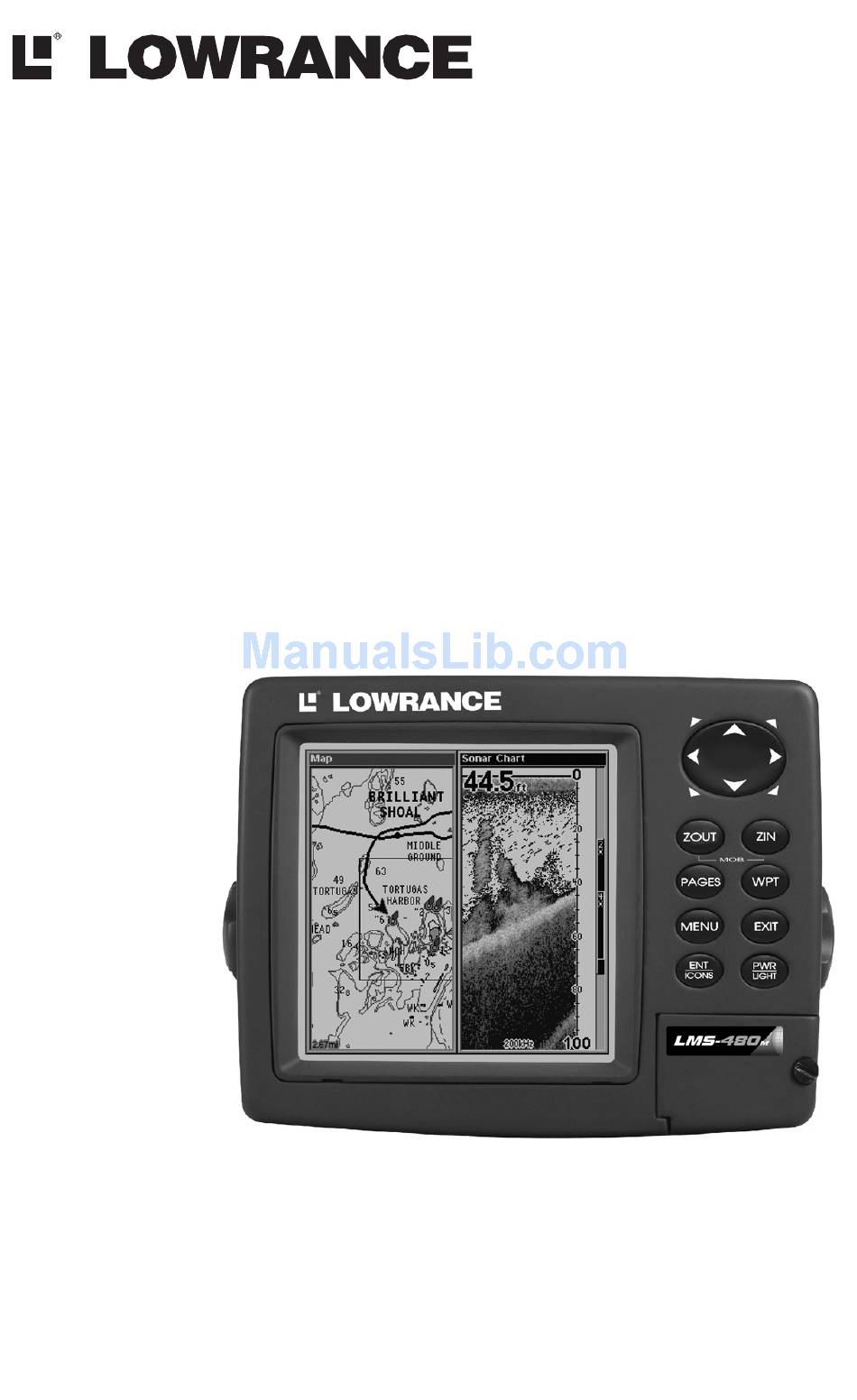

Page 1: Operation Instructions
Pub. 988-0151-181 www.lowrance.com LMS-480M, LMS-480DF Fish-finding Sonar & Mapping GPS Operation Instructions...
Page 2: Visit Our Web Site
Ltd. Exit Authority and eXitSource are trademarks of Zenrin Co. Ltd. Lowrance Electronics may find it necessary to change or end our policies, regulations and special offers at any time. We reserve the right to do so without notice. All features and specifications subject to change without notice.
Page 3: Table Of Contents
Sec. 1: Read Me First! ... 1 Capabilities and Specifications: LMS-480 and LMS-480DF ... 3 How LMS-480 Sonar Works ... 5 How LMS-480 GPS Works ... 6 Introduction to GPS and WAAS... 8 How to Use this Manual: Typographical Conventions... 10 Sec.
Page 4 Surface Clarity ... 91 Upper and Lower Limits ... 92 Zoom & Zoom Bar ... 92 Zoom Pan... 93 Sec. 5: Sonar Troubleshooting... 95 Sec. 6: Basic GPS Operations... 99 Keyboard ... 99 Power/Lights (Turn Unit On and Off) ... 100...
Page 5 Visual Trailing ... 125 Navigate a Trail (Forward)... 125 Navigate a Back Trail (Backtrack, or Reverse) ... 127 Transfer Custom Maps and GPS Data Files ... 128 Cancel Navigation... 130 Sec. 7: Advanced GPS Operations ... 131 Find Distance from Current Position to Another Location ... 131 Find Distance from Point to Point ...
Page 6 Selecting a Waypoint ... 143 Set a Waypoint by Average Position ... 143 Set a Waypoint by Projecting a Position... 143 Sec. 8: System & GPS Setup Options... 145 Alarms ... 145 Auto Satellite Search... 146 Check MMC Files and Storage Space ... 147 Communications Port Configuration ...
Page 7 Map Orientation ... 158  Navionics Charts... 160 Display a Navionics Chart:... 160 Port Information ... 161 Tidal Current Information ... 162 Tide Information ... 163 Pop-Up Help ... 165 Position Pinning... 165 Reset Options ... 166 Require DGPS ... 166 Screen Contrast and Brightness ...
Page 8 When a GPS unit is used in a vehicle, the vehicle operator is solely re- sponsible for operating the vehicle in a safe manner. Vehicle operators must maintain full surveillance of all pertinent driving, boating or fly- ing conditions at all times.
Page 9: Sec. 1: Read Me First
Section 3 covers Basic Sonar Operation. It will show you how easy it is to run your LMS-480 series sonar, right out of the box. This section fea- tures a one-page Sonar Quick Reference. (If you've already jumped...
Page 10 Section 6 or scanning through the command por- tion of Section 7. LMS-480 is ready to use right out of the box, but you can fine tune and customize it's operation with dozens of options. Since sonar is the unit's key feature, we put the main sonar options in Section 4.
Page 11: Capabilities And Specifications: Lms-480 And Lms-480Df
GPS power your unit con- tains. It's important to us (and our power users), but, if you don't care how many watts of power the unit has, or how many waypoints LMS-480 can store, skip ahead to important information on how LMS-480 sonar works, on page 5.
Page 12 LMS-480DF. It has 35°/12° cone angles. A sin- gle-frequency Skimmer transducer with built- in temperature sensor is packed with the LMS-480. It has a 20° cone angle. Transducers operate at speeds up to 70 mph (61 kts). LMS-480: 1,000 feet/305 meters.
Page 13: How Lms-480 Sonar Works
Zoom range:... 39 ranges; 0.02 to 4,000 miles. NOTE: The above memory capacities refer only to LMS-480's on-board memory. The amount of GPS or sonar data you can record and save for recall later is only limited by the number of MMC cards you have.
Page 14: How Lms-480 Gps Works
First, think of your LMS-480 as a small but powerful computer. (But don't worry — we made the LMS-480 series easy to use, so you don't need to be a computer expert to find your way!) The unit includes a keypad and a screen with menus so you can tell LMS-480 what to do.
Page 15 The whole process takes place several times a second! The performance doesn't stop there. Stored in the permanent memory of each LMS-480 is a basic background map of the entire world. We lock it in here at the factory — you can't change or erase this map.
Page 16: Introduction To Gps And Waas
Introduction to GPS and WAAS Well, now you know the basics of how LMS-480 does its work. You might be ready to jump ahead to Section 2, Installation & Accessories, on page 13, so you can mount your unit and plug in the power. Or you might want to see how our text formatting makes the manual tutorials easy to skim.
Page 17 These signals can be easily blocked by trees, buildings, an automobile roof, even your body. Like most GPS receivers, LMS-480 doesn’t have a compass or any other navigation aid built inside. It relies solely on the signals from the sat- ellites to calculate a position.
Page 18: How To Use This Manual: Typographical Conventions
Alaska, that do not yet receive robust WAAS coverage. Continued WAAS development is planned to extend WAAS coverage in the years to come. WAAS boosts the accuracy of land GPS navigation, but the system is designed for aircraft. The satellites are in a fixed orbit around the Equator, so they appear very low in the sky to someone on the ground in North America.
Page 19 Instructions = Menu Sequences Most functions you perform with LMS-480 are described as a sequence of key strokes and selecting menu commands. We've written them in a condensed manner for quick and easy reading.
Page 20 Notes...
Page 21: Sec. 2: Installation & Accessories
Installation & Accessories Preparations You can install the sonar and GPS systems in some other order if you prefer, but we recommend this installation sequence: Caution: You should read over this entire installation section before drill- ing any holes in your vehicle or vessel! 1.
Page 22: Selecting A Transducer Location
Read these instructions carefully before attempting the installation. Determine which of the mounting positions is right for your boat. Re- member, the transducer installation is the most critical part of a sonar installation. NOTE: The following installation types also call for these recommended tools and required supplies that you must provide (supplies listed here are not included): Single-frequency transom installations...
Page 23: How Low Should You Go
at speeds faster than 35 mph. Typically, a good transom location on aluminum boats is between the ribs closest to the engine. 3. The transducer should be installed with its face pointing straight down, if possible. For shoot-thru applications: Many popular fishing boat hulls have a flat keel pad that offers a good mounting surface.
Page 24: Shoot-Thru-Hull Vs. Transom Mounting
usually give you the best combination of smooth water flow and protec- tion from bangs and bumps. Transducer centerline Align transducer centerline with hull bottom. However, there are times when you may need to adjust the transducer slightly higher or lower. (The slots in the mounting brackets allow you to loosen the screws and slide the transducer up or down.) If you fre- quently lose bottom signal lock while running at high speed, the trans- ducer may be coming out of the water as you cross waves or wakes.
Page 25: Transom Transducer Assembly And Mounting
Second, the transducer angle cannot be adjusted for the best fish arches on your sonar display. (This is not an issue for flasher-style sonars.) Lack of angle adjustment can be particularly troublesome on hulls that sit with the bow high when at rest or at slow trolling speeds. Third, a transducer CAN NOT shoot through wood and metal hulls.
Page 26 Place the ratchets into the bracket with the letter "A" aligned with the alignment mark molded into the bracket. Place the ratchets onto the transducer with the letter "A" aligned with the 12 o'clock position on the transducer stem. These positions set the transducer's coarse angle adjustment for a 14°...
Page 27 If the transducer's face isn't parallel with the ground, remove the transducer and ratchets from the bracket. Place the ratchets into the holes in the bracket with the letter "B" aligned with the dot stamped in the bracket. Reassemble the transducer and bracket and place them against the transom.
Page 28 Bolt Flat washer Assemble transducer and bracket. 3. Assembling the transducer. A. One-piece bracket: Once you determine the correct position for the ratchets, assemble the transducer as shown in the following fig- ure. Don't tighten the lock nut at this time. Assemble transducer and bracket.
Page 29 Transom Transom Position transducer mount on transom and mark mounting holes. Side view shown at left and seen from above at right. 5. Attaching transducer to transom. A. One-piece bracket: Remove the transducer from the bracket and re-assemble it with the cable passing through the bracket over the bolt as shown in the following figures.
Page 30 Flat-bottom hull Align transducer centerline with hull bottom and attach transducer to transom. Rear view of dual-frequency Skimmer shown. 6. Route the transducer cable through or over the transom to the sonar unit. Make sure to leave some slack in the cable at the transducer. If possible, route the transducer cable away from other wiring on the boat.
Page 31: Trolling Motor Bracket Installation
TROLLING MOTOR BRACKET INSTALLATION (single-frequency only) 1. Attach the optional TMB-S bracket to the transducer as shown in the following figure, using the hardware supplied with the transducer. (Note: The internal tooth washer is supplied with the TMB-S.) Bolt Attach motor mounting bracket to transducer. 2.
Page 32: Shoot-Thru-Hull Preparation And Installation
Transducer aimed too far back Full fish arch Transducer angles and their effects on fish arches. If the arch slopes up – but not back down – then the front of the trans- ducer is too high and needs to be lowered. If only the back half of the arch is printed, then the nose of the transducer is angled too far down and needs to be raised.
Page 33 WARNING: Do not remove any material from your inner hull unless you know the hull's composition. Careless grinding or cutting on your hull can result in damage that could sink your boat. Contact your boat dealer or manufacturer to confirm your hull specifications. Fill with polyester resin Flotation material Epoxy to hull first...
Page 34 To choose the proper location for shoot-thru-hull mounting, follow these testing procedures: (You may need a helper to complete these steps.) 1. Anchor the boat in about 30 feet of water. Add a little water to the sump of the boat. Plug the transducer into the sonar unit, turn it on, then hold the transducer over the side of the boat in the water.
Page 35 4. Most people can get good results by following steps 1 through 3, so this step is optional. If you want to make an extra effort to be absolutely sure that your selected location will work under all conditions, make a test run with the boat on plane and observe the bottom signal.
Page 36: Speed/Temperature Sensors
2. The epoxy consists of the epoxy itself and a hardener. Remove the two compounds from the package and place them on the paper plate. Thoroughly stir the two compounds together until the mixture has a uniform color and consistency. Do not mix too fast or bubbles will form in the epoxy.
Page 37 Once you've determined the proper location for the unit, place the sen- sor on the transom. The bottom of the bracket should be flush with the hull's bottom. Using the sensor as a template, mark the hull for the screws' pilot holes. Drill four 1/8" holes, one in each end of the slots. Mount the sensor to the hull using #8 stainless steel wood screws (not included).
Page 38: Gps Antenna/Receiver Module
Y-adapter extension cable as shown in the following dia- gram. To connect it to the LMS-480, insert the cable's splitter plug into the Network socket on the back of the unit and your system is ready to use.
Page 39: Power Connections
In an automobile, you may achieve good results by simply placing the external antenna on the top of the dash, at the base of the windshield. A piece of the rubber non-skid shelf liner material available in recreational vehicle supply stores will help hold the antenna in place. This may not work well if you have a cab-over design pickup truck camper or motor home.
Page 40: Powering Your Unit
2000 Power cable's red wire should be attached (with provided 3-amp fuse) to the boat battery's positive terminal, and the NMEA-2000 Power cable's black and shield wires should both be attached to the battery's negative terminal. NOTE: If the NMEA-2000 buss draws power directly from the boat's battery, the LGC-2000 will remain on (drawing power) all the time.
Page 41 Power cable to the boat's battery. Data Cable Power connections for the LMS-480 series sonar/GPS unit. NOTE: If you're powering a NMEA-2000 buss, you will attach both the NMEA-2000 Power cable and the unit's Power Supply cable to the boat's battery. To attach the NMEA-2000 Power cable, connect the red wire to battery's + and black and shield wires to battery's –.
Page 42: Nmea 0183/Dgps Cable Connections
The most popular DGPS system relies on a grid of ground-based trans- mitters that send correction signals to DGPS receivers. These in turn, connect to the GPS receiver (such as the LMS-480). Lowrance offers an optional DGPS receiver for your unit.
Page 43 Power cable terminator Power Supply cable from some other GPS receiver. NMEA Receive Network socket LGC-2000 25' extension cable antenna module LMS-480 cable connections. NMEA Transmit GPS Receiver Ground Ground Sonar socket SP-X optional speed sensor Transducer To Other To Other...
Page 44: Mounting The Unit: Bracket, In-Dash Or Portable
Mounting the Unit: Bracket, In-Dash or Portable You can install the LMS-480 on the top of a dash with the supplied gimbal bracket. It can also be installed in the dash or mounted on a portable power supply. If you use the supplied bracket, you may be interested in the optional ...
Page 45 — it's a matter of personal preference. 137.9 [5.43] Millimeter Front view (left) and side view (right) showing dimensions of LMS-480 sonar/GPS unit when mounted on gimbal bracket. the front of your unit. 173.9 [6.85] [Inch] 72.9...
Page 46 Adapter Kit. The kit includes mounting hardware, a template for cut- ting the hole and an instruction sheet, part 988-0147-43. In-dash mounting template for LMS-480 sonar/GPS unit, showing dimensions. NOTE: The figure above is not printed to scale. A scaled template (FM-5 In-Dash Adapter Kit instructions) is available for free download from our web site, www.lowrance.com.
Page 47: Mmc Or Sd Card Memory Card Installation
Portable Installation Like many Lowrance products, the LMS-480 is capable of portable op- eration by using the optional PPP-11 portable power pack. The power pack, the magnet-equipped antenna module and an optional portable transducer expand the uses for your sonar/GPS unit. The PPP-11...
Page 48 Both of these solid-state flash memory devices are about the size of a postage stamp. An SD card is slightly thicker than an MMC. As this manual went to press, MMCs were available in storage capacities of 8 MB, 16 MB, 32 MB, 64 MB and 128 MB. SD cards were available in capacities of 8 MB, 16 MB, 32 MB, 64 MB, 128 MB, 256 MB and higher.
Page 49: Other Accessories
Other Accessories Other LMS-480 accessories include MMC cards, MMC card readers and MapCreate™ 6 custom mapping software for your computer. MMC card readers are available in USB and parallel port versions. Two switch boxes are available for this unit. The SB-7X transducer switch box switches two transducers to one sonar unit.
Page 50: Face Cover
Face Cover Your LMS-480 comes with a white protective cover that snaps on and off the front of the unit. This cover is intended for use when your unit and the vehicle it's mounted in are idle.
Page 51: Sec. 3: Basic Sonar Operation
Quick Reference on page 51. Keyboard LMS-480 series sonar/GPS unit, front view, showing map with sonar split screen, keyboard and access door for the MMC slot. 1. PWR/LIGHT (Power & Light) – The PWR key turns the unit on and off and activates the backlight.
Page 52: Power/Lights (Turn Unit On And Off)
3. MENU – Press this key to show the menus and submenus, which allow you to select a command or adjust a feature. This also accesses search functions for streets, intersections, addresses and highway exits. 4. ARROW KEYS – These keys are used to navigate through the menus, make menu selections, move the map and sonar chart cursors and enter data.
Page 53 Sec. 4, Sonar Options & Other Features. (For general system setup and GPS options, see Sec. 8, System Setup and GPS Setup Options.) You can access the Main Menu from any of the four Page screens by pressing .
Page 54: Satellite Status Page
Status Page: Press the (Clear the Pages Menu by pressing This page represents a GPS function, so it is discussed in much greater detail in Sec. 6. No matter what Page you are on, a flashing current position indica- tor/question mark symbol and flashing GPS data displays indicate that satellite lock has been lost and there is no position confirmed.
Page 55: Navigation Page
Page: Press PAGES EXIT AVIGATION This page represents a GPS function, so it is discussed in much greater detail in Sec. 6. Navigation Page, recording a trail, traveling southwest. Map Page The Map Page screens show your course and track from a "bird's-eye"...
Page 56: Sonar Page
You can display a split screen showing both the Map and Sonar pages at the same time. This feature is discussed in Sec. 4, Sonar Options & Other Features. The Map Page represents a GPS function, so it is discussed in much greater detail in Sec. 6. Sonar Page The Sonar Page displays the sonar chart.
Page 57 At left, Pages Menu, showing sonar chart display option commands. At right, Sonar Page in full sonar chart display mode. Sonar chart display options (from left) split zoom and split frequency. Sonar chart display options (from left) digital data and flasher.
Page 58 Sonar Page Menu. Most of these functions are discussed in Sec. 4. Digital data overlay (depth & temperature) Fish arches Structure Sonar Page, showing full sonar chart mode. You can customize how the Sonar Page displays its pictures and other data in many ways.
Page 59: Basic Sonar Quick Reference
Page screens (Map Page, Satellite Status Page, Navigation Page, Sonar Page) by pressing Pages to display Sonar Page. 5. If GPS data is desired, wait while unit locates satellites and calculates current position. When the unit acquires position, a tone sounds and a posi- tion acquired message appears.
Page 60: Sonar Operations
Sonar Operations As you can see from the quick reference on the previous page, basic operation is pretty easy, right out of the box. If you are a sonar novice, try operating the unit with the factory defaults until you get a feel for how it's working. As you're learning the basics, there is one setting you might want to tinker with from time to time —...
Page 61 You can change the sensitivity level whether you are in Auto Sensitivity mode or Manual Sensitivity mode. The adjustment method works the same in both modes, but it gives you slightly different results. Adjusting sensitivity in Auto Sensitivity Mode is similar to manually ad- justing a car's speed with the accelerator pedal while cruise control is on.
Page 62 2. The unit asks if you want to reset all the options. Press ← to . All options are reset, and the unit reverts back to the Map Page at the 4000 mile zoom range. (Any recorded sonar logs or GPS data will be unchanged.) Fish Symbols vs.
Page 63 Aside from being just plain fun, this program can help you learn both basic and advanced operations without burning boat fuel! Lowrance is one of the first sonar manufacturers to provide this type of training tool for customers.
Page 64 The emulator works exactly like your real sonar/GPS unit. Using the Sonar Simulator and GPS Simulator features, it allows you to play back sonar logs, run GPS routes and trails, even create real waypoints you can use in the field! You can even take snapshots of the Sonar...
Page 65: Sec. 4: Sonar Options & Other Features
Section 4: Sonar Options & Other Features Material in this section is arranged in alphabetical order. ASP (Advanced Signal Processing) The ASP feature is a noise rejection system built into the sonar unit that constantly evaluates the effects of boat speed, water conditions and interference.
Page 66: Alarms
3. Press ↓ or ↑ to select a setting, then press 4. To return to the previous page, press EXIT EXIT Alarms This unit has three different types of sonar alarms. The first is the Fish Alarm. It sounds when the Fish I.D. feature determines that an echo is a fish.
Page 67: Zone Alarm
To adjust and turn on the shallow alarm: 1. Press MENU MENU 2. Press → to HALLOW 3. Press ↑ or ↓ to change the first number, then press → to move the cursor to the next number and repeat until the depth is correct, then press 4.
Page 68: Fish Alarm
At left, Sonar Alarms menu, with Adjust Zone command selected. At right, Adjust Zone Alarm selection box, with Upper selected. 3. To set the upper boundary for the Zone Alarm, use ← or→ to select , then press ↑ or ↓ to move the top of the bar to the desired depth. PPER 4.
Page 69: Calibrate Speed
A good way to gauge your speed sensor's performance is to compare its reading with the ground speed measured by your unit's GPS functions. When you make a run to compare GPS ground speed to speed sensor speed, perform your test in relatively calm water free of current, if pos- sible.
Page 70: Chart Speed
Chart Speed The rate that echoes scroll across the screen is called the chart speed. The default is maximum; we recommend that you leave the speed set there for virtually all fishing conditions. However, you might consider experimenting with chart speed when you are stationary or drifting very slowly.
Page 71: Depth Range - Automatic
At left, Sonar Page menu with Depth Cursor command selected. At right, sonar chart with the depth cursor active. The line indicates the The cursor can be moved to any location on the screen, letting you pin- point the depth of a target. 1.
Page 72: Depth Range - Manual
At left, Sonar Page menu with Depth Range command selected. At right, the Depth Range Control Scale. 2. The Depth Range Control Scale appears. Press ↑ or ↓ to select a dif- ferent depth range. A black bar highlights the selected range. Range numbers in gray cannot be selected.
Page 73: Depth Range - Upper And Lower Limits
Depth Range - Upper and Lower Limits Virtually any segment of the water column can be displayed by using the upper and lower limit feature. This lets you pick the shallow and deep depth range limits that are shown on the screen, provided there is at least 10 feet between the upper and lower limit you select.
Page 74: Fastrack
Area "zoomed" Normal display, in auto depth range mode, left. At right, display "zoomed" with Upper and Lower Limits focusing on the portion of the water column from 20 feet to 40 feet deep. In the "zoomed" image, note the target definition at lower left, showing a fish holding just above the structure.
Page 75: Fish I.d. (Fish Symbols & Depths)
Fish I.D. (Fish Symbols & Depths) The Fish I.D. feature identifies targets that meet certain conditions as fish. The microcomputer analyzes all echoes and eliminates surface clutter, thermoclines, and other signals that are undesirable. In most instances, remaining targets are fish. The Fish I.D. feature displays fish symbols on the screen in place of the actual fish echoes.
Page 76: Fishtrack
Fig. 1 A Fig. 1 B Many fish Fewer fish arches visible symbols visible Fig. 2 A Fig. 2 B Fish arches No fish shown above structure FasTrack graph confirms fish above structure At left, figures 1A and 2A show Sonar Page in normal chart mode. At right, figures 1B and 2B show the same underwater scene with Fish I.D.
Page 77: Fishreveal
1. From the Sonar Page, press |↓ to MENU ONAR EATURES 2. Press →|then press ↓ to EXIT EXIT EPTHS To turn off FishTrack, repeat the instructions in step 1. Turning off FishTrack in this manner will not turn off Fish I.D. symbols. Symbols with FishTrack depths Sonar Features menu with Fish I.D.
Page 78 Sonar Color Mode command with FishReveal selected (at left, dual-frequency menu; at right, single-frequency menu). To turn FishReveal on: 1. From the Sonar Page, press 2. Press →|then press ↓ to 3. Press |↑ to EXIT 4. Press ↑ until the Sensitivity Control Bar reads 100% (or close to it), then press .
Page 79: Frequency (Change Transducer Frequency)
Frequency (Change Transducer Frequency) (LMS-480DF only) The LMS-480DF transducer operates with both 200 kHz and 50 kHz. The 200 kHz frequency has a 12° cone angle and the 50 kHz frequency has a 35° cone angle. The default frequency is 200 kHz, which is best for use in shallow water (about 300 feet or less).
Page 80: Grayline
To change the frequency setting to 200 kHz: 1. From the Sonar Page, press 2. Press →|then press ↓ to 3. Press EXIT EXIT  Grayline Grayline lets you distinguish between strong and weak echoes. It "paints" gray on targets that are stronger than a preset value. This al- lows you to tell the difference between a hard and soft bottom.
Page 81 Fig. 1A Fig. 2A Fig. 3A This series of figures shows how different Grayline settings can reveal more information. The "A" figures to the left show locations with Gray- line set at the factory level of 64 percent. At right, the "B" figures show the same locations with Grayline increased to 84 percent.
Page 82: Hyperscroll
(to play a recorded sonar chart log, see the entry in this section for So- nar Simulator). If you have a personal computer and Internet access, visit our web site, www.lowrance.com, and download the free Sonar Viewer and the emulator for your unit. These programs will allow you to replay sonar logs on your personal computer.
Page 83: Noise Rejection
Noise Rejection See the entry on Advanced Signal Processing in this section. Overlay Data To change the digital data shown "floating" on top of the Sonar Page or the Map Page: , use → or ← to select a Page Name, then press First, press PAGES EXIT...
Page 84: Change Displayed Data Font Size
Data list showing "Ground Speed" selected to display on Sonar Page. 3. To return to the previous page, press To turn off displayed data: 1. From the Map or Sonar page, press 2. Press ↓ or ↑ to select Data Type| from the top of the list and reverts to its previous, unchecked position.
Page 85: Ping Speed & Hyperscroll
Steering arrow At left, Map Page showing boat cruising Puget Sound, Washington, with Overlay Data turned on. This example shows Depth, Ground Speed and the Steering Arrow. Note that the Steering Arrow always points directly to the destination you are navigating toward. In this case, the boater is headed on a northwesterly course of 275º.
Page 86 to the transducer during the next ping cycle, or sounding. This can result in a large amount of clutter appearing on the screen. If this occurs, just decrease the sensitivity to a level that eliminates the clutter. When you turn HyperScroll off, you can return to your original sensitivity level. At left, Sonar Menu with Ping Speed command selected.
Page 87: Reset Options
The sonar chart's Digital Data display option includes a box that shows distance traveled, called Water Distance. This information is calculated from an optional water speed sensor, not the GPS. The Water Distance window can be reset to zero using the Reset Water Distance command.
Page 88 played by the digital depth, chart depth scale, chart cursor or fish sym- bols is not the exact water depth. If the transducer is 1 foot below the surface, and the screen shows the water depth as 30 feet, then the ac- tual depth is 31 feet.
Page 89: Sensitivity & Auto Sensitivity
4. Press → to the second number, them press ↑ to change the num- ber to 5, then press the water depth from surface to bottom. Sensitivity & Auto Sensitivity The sensitivity controls the ability of the unit to pick up echoes. Sensi- tivity can be adjusted, because water conditions vary greatly.
Page 90: Turn Auto Sensitivity Back On
At left, Sonar Menu with Sensitivity command selected. At right, the To adjust sensitivity in manual mode: 1. First, turn off Auto Sensitivity: from the Sonar Page, press ENSITIVITY 2. Press ↑ to ENSITIVITY Press ↓ or ↑ to pick a different sensitivity setting. When it's set at the desired level, press To turn Auto Sensitivity back on: From the Sonar Page, press...
Page 91: Sonar Page & Sonar Chart Display Options
To change the chart mode color scheme: 1. From the Sonar Page, press |↓ to MENU ONAR EATURES 2. Press ↓ to ONAR OLOR 3. Press ↓ or ↑ to Mode Name| 4. Press to return to the Sonar Page. EXIT EXIT Sonar Page &...
Page 92: Split Zoom Sonar Chart
Full Sonar Chart. The Overlay Data (depth and water temperature) are both set to the small text size. Split Zoom Sonar Chart A split chart shows the underwater world from the surface to the bot- tom on the right side of the screen. The left side shows an enlarged ver- sion of the right side.
Page 93: Digital Data/Chart
Split Frequency Sonar Chart page, with 50 kHz view at left and 200 kHz view at right. You can adjust the sensitivity in each window. To adjust sensitivity in auto mode: 1. Press MENU 2. The unit asks which you wish to adjust. Press ← or→ to select the one you want | 3.
Page 94 log, it also requires a speed sensor); Surface Water Temperature; Tempera- ture #2, Temperature #3 and Voltage. (Note: Temperature #2 and #3 re- quire additional optional temperature sensors.) Digital Data/Chart Customizing the Digital Data/Chart Screen The Digital Data/Chart screen can be customized to show digital data different from the defaults first shown.
Page 95: Flashgraf
Options List for customizing Digital Data boxes. At left, the list first appears with Water Speed selected. At right, Maximum Speed has been picked to replace Water Speed in the top digital data box. Tip: You can customize other digital data boxes before returning to the Sonar Page.
Page 96: Map With Sonar Split Screen
Map With Sonar Split Screen There is a page mode that splits the screen in half, with the map on the left and the sonar on the right. This screen option can be found on the Pages Menu under the Map Page category. Map With Sonar split screen option.
Page 97 NOTE: With Simulate Position checked, the simulator will also automatically run the GPS simulator (if GPS data was recorded with the sonar log). 2. To use the default sonar chart log stored in the unit, press The recorded chart begins scrolling across the screen, just as if you were on the water.
Page 98: Stop Chart
Menu sequence for playing a sonar chart log from the MMC File List. NOTE: For some great practice, try running the Sonar Simulator and the GPS Simulator at the same time. This will really give you a feel for how the unit will work in the field. NOTE: If you turn on your unit before attaching a transducer, it may enter a demo mode.
Page 99: Surface Clarity
Sonar Menu with Stop Chart command selected. The box is unchecked, indicating that the chart is scrolling across the screen. Surface Clarity The markings extending downward from the zero line on the chart are called "surface clutter." These markings are caused by wave action, boat wakes, temperature inversion and more.
Page 100: Upper And Lower Limits
2. Press ↓ to ENT. URFACE LARITY ↓ or ↑ to select clarity level| 3. Press EXIT EXIT EXIT Surface clutter In the illustration at left, Surface Clarity is turned off. The right view shows Surface Clarity set at High. Upper and Lower Limits See the entry in this section for Depth Range - Upper and Lower Limits Zoom &...
Page 101: Zoom Pan
At left, Sonar Page, normal view. Center, same view zoomed to 2X. Right, same view zoomed to 4X Zoom Pan Your unit has the handy ability to quickly zoom in on any portion of the water column with just the touch of an arrow key. The Zoom Pan feature lets you rapidly move the zoomed area up and down to different depths.
Page 102 Notes...
Page 103: Sec. 5: Sonar Troubleshooting
Section 5: Sonar Troubleshooting If your unit is not working, or if you need technical help, please use the following troubleshooting section before contacting the factory customer service department. It may save you the trouble of returning your unit for repair. For contact information, refer to the last page, just inside the back cover of this manual.
Page 104 3. The water may be deeper than the sonar's ability to find the bottom. If the sonar can't find the bottom signal while it's in the automatic mode, the digital sonar display will flash continuously. It may change the range to limits far greater than the water you are in. If this hap- pens, place the unit in the manual mode, then change the range to a realistic one, (for example, 0-100 feet) and increase the sensitivity.
Page 105 To eliminate or minimize the effects of electrical noise, first try to de- termine the cause. With the boat at rest in the water, the first thing you should do is turn all electrical equipment on the boat off. Make sure the engine is also off.
Page 106 Notes...
Page 107: Sec. 6: Basic Gps Operations
Quick Reference on page 112. Keyboard MMC slot access door LMS-480 sonar/GPS unit, front view, showing map with sonar split screen, keyboard and access door for the MMC slot. 1. PWR/LIGHT (Power & Light) – The PWR key turns the unit on and off and activates the backlight.
Page 108: Power/Lights (Turn Unit On And Off)
The tutorial lessons in this section will deal only with functions, the basic commands that make the unit do something. The GPS will work fine for these lessons right out of the box with the factory default settings. But, if you want to learn about the...
Page 109 Sounds command: enables or disables the sounds for key strokes and alarms and sets the alarm style. Alarms command: turns GPS or sonar alarms on or off and changes alarm thresholds. Route Planning command: used to plan, view or navigate a route.
Page 110: Sonar Page
TATUS No matter what Page you are on, a flashing current position indica- tor/question mark symbol and flashing GPS data displays indicate that satellite lock has been lost and there is no position confirmed. The Sat- key, then use → or ← to select...
Page 111 You can use this to see which satellites are obstructed by obstacles in your immediate area if the unit is facing north. The GPS receiver is tracking satellites that are in bold type. The re- ceiver hasn't locked onto a satellite if the number is grayed out, there- fore it isn't being used to solve the position.
Page 112: Navigation Page
This also gives you an indicator of the fix quality the unit currently has. The smaller the position error number, the better (and more ac- curate) the fix is. If the position error flashes dashes, then the unit hasn't locked onto the satellites, and the number shown isn't valid. (For details, see the Customize Page Displays entry in Sec.
Page 113 When navigating to a waypoint, the Navigation screen looks like the following figure. Your ground speed, track, distance and bearing to waypoint, and course are all shown digitally on this screen. NOTE: Remember, when the Speed, Track and Position information dis- plays are flashing, satellite lock has not been achieved and no posi- tion fix has been determined.
Page 114: Map Page
The cross track error range is shown on the compass rose as a wide, white, corridor enclosing the course line. The outer edges of this white corridor represent lines that show the current cross track error range. The default for the cross track error range is 0.20 miles. For example, if the present position symbol touches the right cross track error line, then you are 0.20 miles to the right of the desired course.
Page 115 The arrow in the center of the screen is your present position. It points in the direction you're traveling. The solid line extending from the back of the arrow is your plot trail, or path you've taken. The map zoom range is the distance across the screen. This number shows in the lower right corner of the screen.
Page 116: Background Map Vs. Mapcreate Map Content
What's more important is the large scale map detail that allows your GPS unit to show a higher level of position accuracy. For example, the background map would show you the general outline and approximate shape of a coastline or water body, but the higher detail in MapCreate shows the shoreline completely and accurately (finer detail).
Page 117 NOTE: Available through LEI Extras (look inside back cover for accessory ordering information), FreedomMaps are pre-made maps that con- tain all of the same information available in a custom MapCreate map, without any of the work of preparation. Interstate Minor Streets Marker School POI...
Page 118 At left, Digital Data map page; at right, Two Position Formats page. In pages that have two major windows (such as two maps) you can tog- back forth between windows pressing . This allows you to change which map your cursor PAGES PAGES moves on, and which map the menu operates on.
Page 119 The following page contains a 12-step quick reference for the most basic GPS operations. If you don't want to carry the manual with you as you practice with the unit, you might consider photocopying this quick ref-...
Page 120: Basic Gps Quick Reference
Basic GPS Quick Reference Start outdoors, with a clear view of the open sky. As you practice, try navigating to a location at least a few blocks away. While you're learning, navigation in too small an area will constantly trigger arrival alarms.
Page 121: Find Your Current Position
NOTE: "Clear sky" means open sky, unobstructed by terrain, dense foliage or structures. Clouds do not restrict GPS signal reception. If for some reason satellite acquisition takes longer, you may be inside a structure or vehicle or in terrain that is blocking signal reception. To...
Page 122: Selecting Any Map Item With The Cursor
Now that you've seen how the unit can find where you are, let's search for something somewhere else. Searching is one of the most powerful features in the Lowrance GPS product line. In this example, we'll look for the nearest fast-food restaurant. For more information on different types of searches, refer to Sec.
Page 123 2. You could search the entire restaurant category, but in this example we will narrow our search. Press → to |↓ to HAINS 3. The unit says it is calculating, then a list of restaurants appears, with the closest at the top of the list, and the farthest at the bottom of the list.
Page 124: Set A Waypoint
You can copy waypoints from your unit to your personal computer with MapCreate software. When you want to repeat a trip, these archived waypoints can be reloaded into your GPS unit. the result of a restaurant search. . (Before you completely exited out of the Search...
Page 125: Create Waypoint At Current Position
To create and save a Waypoint: These first two techniques use the Quick Save method, the fastest and easiest way to create a waypoint. Create Waypoint at Current Position While you are traveling, press automatically given a name with a sequential number, such as "way- point 003."...
Page 126: Create Waypoint On Map
next time you "quick save" a waypoint. To revert back to the default symbol, edit a waypoint and choose the original symbol, or use the Reset Options command (described in Sec. 8). Create Waypoint on Map 1. Use the arrow keys to move the cursor to the place where you want to make a waypoint.
Page 127: Set Man Overboard (Mob) Waypoint
Course line (dotted) Off course range, set at 0.20 mile Navigation Page, navigating toward waypoint 004 and leaving a trail. Set Man Overboard (MOB) Waypoint One of boating's most terrifying events is having a friend or family member fall overboard. This situation can be deadly on any body of wa- ter —...
Page 128: Navigate To Cursor Position On Map
Navigating to Man Overboard: Man Overboard Activated message, left, Navigation Page, center, Map Page, right. The victim is to the starboard of the vessel; the GPS shows which direction to steer to for the rescue. The man overboard position is also stored in the waypoint list for future reference.
Page 129: Navigate To A Point Of Interest
Navigate to cursor. In this example, the cursor has selected the town of Oologah, Oklahoma. 3. Press and the unit will begin navigating to the cursor lo- MENU cation. The Map Page will display a dotted line from your current position to the cursor position.
Page 130: Creating And Saving A Trail
The other method involves searching for POIs with the Find Waypoint command, launched with the lier in this section, or turn to Sec. 9, Searching, for detailed instructions on POI searches.) After you have looked up an item with the Find Waypoint command, use ↑...
Page 131 Active symbol Visible symbol Sequence for saving a trail and beginning a new one. At left, My Trails command. Center, the Trails Menu. The arrow to the right of Trail 14 indicates the trail is "active," and the check to the left indicates the trail is visible on the map display.
Page 132: Displaying A Saved Trail
Tip: Another quick way to stop recording one trail and begin a new one is to use the New Trail command: Press RAILS Caution: You also have the option of completely turning off trail record- ing, under the trail Options command. However, if the Update Active Trail option is left turned off, it will cancel the automatic trail creation feature.
Page 133: Visual Trailing
"navigating a trail" follows a trail forward (from start to end) while "backtracking" follows a trail in reverse (from end to start.) When hiking at walking speed with a hand-held GPS, we often just use visual back trailing because it is a bit better at following each little turn on a foot path.
Page 134 Figure 1. Navigate a trail menu sequence: Fig. 1, My Trails command. Fig. 2, Trails Menu. Fig. 3, Edit Trail Menu. Fig. 4, Edit Route Menu with Navigate command highlighted for Trail 6. A trail is always converted to a "route" when you navigate the trail. On the Map Page, the trail you are navigating is represented by a dot- ted line that alternates with a flashing solid line.
Page 135: Navigate A Back Trail (Backtrack, Or Reverse)
Track or compass heading indicator Trail waypoint symbol Course line made from trail Navigate trail, navigation page (compass rose) views: at left, driver is northbound heading straight toward trail point 6; bearing arrow shows the trail point is due north (straight ahead.) At right, driver has reached trail point 6 and must turn west to follow the trail.
Page 136: Transfer Custom Maps And Gps Data Files
GPS data automatically recorded in the unit's internal memory must be saved to the MMC (as a GPS Data File) in order to store it on your per- sonal computer. GPS Data Files stored on an MMC must be copied from the card to the unit's internal memory before the unit can read them.
Page 137 To transfer data from the unit to the MMC: press To transfer data from the MMC to the unit: press → to 3. Saving to MMC: To accept the default name "Data" for the GPS Data File, press ↓ to shown in the following figures), press Press ↑...
Page 138: Cancel Navigation
Figure 2. Figure 3. Figure 4. These figures show the menu sequence for loading a GPS Data File from an MMC into the unit's memory. Cancel Navigation You can turn off any of the navigation commands after you reach your destination or at any other time by using the Cancel Navigation com- ←...
Page 139: Sec. 7: Advanced Gps Operations
Advanced GPS Operations Find Distance From Current Position To Another Location 1. While on the Map Page press: 2. Center your cursor over the position you want to find the distance to. A rubber band line appears, connecting your current position to the cursor's location.
Page 140: Icons
Icons Icons are graphic symbols used to mark some location, personal point of interest or event. They can be placed on the map screen, saved and re- called later for navigation purposes. These are sometimes referred to as event marker icons. This unit has 42 different symbols you can pick from when creating an icon.
Page 141: Navigate To An Icon
1. Press |↓ to MENU 2. Press ↓ to ELETE press The Delete All Icons command will ask if you are sure. Press ← to . All icons will be deleted from the map. The Delete by Symbol command will launch the Select Symbol menu. Press ←...
Page 142: Create And Save A Route
To load a MapCreate route into the unit, follow instructions in MapCre- ate's manual for creating a route and saving it as part of a GPS Data File (file format *.usr). Copy the GPS Data File to an MMC and insert the MMC in the unit.
Page 143 Route Planning command on Main Menu, left, will open the Route List screen, right. 2. Press ↓ to |↓ to . The Map Page ND OF OUTE appears with the cursor showing. Edit Route menu, left. Edit Route Waypoints menu, right, with Add From Map command selected.
Page 144 Route creation sequence, from left: Fig. 1. Set route waypoint (1) at 11th St. & 145th Ave. Fig. 2. Zoom in; move cursor north to set point (2) at 145th & Admiral. Fig. 3. With point (2) set, move cursor east to mark interstate on-ramp with waypoint (3).
Page 145: Delete A Route
You can edit the route and run other commands, but if you are finished with the route for now, return to the last page displayed by pressing EXIT EXIT Delete a Route 1. From the AVIGATION press |↓ to MENU MENU 2.
Page 146: Navigate A Route
3. Use ↓ and ↑ to select a command from the Edit Route Waypoints menu and press route by clicking on a map location with the cursor. Add Waypoint calls up the Waypoint List so you can insert a waypoint from the list. Re- move Waypoint will delete the waypoint from the route.
Page 147: Navigate A Route In Reverse
3. Upon arrival at your destination, cancel navigation: press |↓ to MENU MENU The following figures show what the Navigation Page and Map Page look like while navigating a route. Navigate a Route in Reverse Here's how you run a route backward, from the end waypoint to the beginning waypoint: 1.
Page 148: Trails
Trails Delete a Trail This command Press MENU MENU |← to ELETE RAIL Tip: You can also delete all trails at once: 1. Press MENU 2. Press → to Edit a Trail Name To edit a trail name: press . Press ↑ or ↓ to change the first character, then press name| →...
Page 149: Edit A Trail Pattern
Edit a Trail Pattern To edit a trail pattern: press name| |↓ to ATTERN then press → to the next character and repeat until the pattern is cor- rect. Press , then page display. At left, Edit Trail Menu with Pattern option selected. At right, edited Utilities Utilities are useful tools for traveling or for outdoor activities.
Page 150: Waypoints
Waypoints Delete a Waypoint delete |← to POINT EXIT EXIT To delete a waypoint from the map: 1. Use the arrow keys to select the waypoint with the cursor. 2. Press |→ to the previous page and clear the cursor, press To delete all waypoints at one time: press |↓...
Page 151: Selecting A Waypoint
3. Longitude: press ↓ to character, then press → to the next character and repeat until the lon- gitude is correct. Press 4. When latitude and longitude are correct, return to the previous page: press EXIT EXIT EXIT Selecting a Waypoint To select a waypoint on the map (for navigating to, for editing, etc.,) use the arrow keys and center the cursor over the waypoint.
Page 152 5. Press ↓ to . Press ↑ or ↓ to change the first character, EARING then press → to the next character and repeat until the bearing is cor- rect. Press 6. Press ↑ to . The Edit Waypoint menu appears. You ROJECTION can simply save the new projected waypoint by pressing EXIT...
Page 153: Sec. 8: System & Gps Setup Options
Section 8: System & GPS Setup Options Alarms This unit has several GPS alarms. The factory default setting has all of these but the anchor alarm turned on. You can turn the alarms off and on and change their distance settings.
Page 154: Auto Satellite Search
It then searches for only those satellites. When your GPS receiver is turned on for the first time, it doesn't know what your position or elevation (altitude) is. It does know the current UTC time and date since these were programmed into it at the factory and an internal clock keeps the time while the unit is turned off.
Page 155: Check Mmc Files And Storage Space
GPS Auto Search on the Satellite Status Menu. You can force the unit to immediately kick into auto search mode. Here's how: ← From the Satellite Status page, |↓ to MENU GPS A EARCH Check MMC Files and Storage Space...
Page 156: Configure Dgps
OMMUNICATIONS A. If you have a Magnavox receiver, press ↓ to B. If you have a Lowrance or Starlink receiver, press ↓ to C. If you have a Magnavox or Starlink, press the only setup necessary. If you have a Lowrance receiver or another Magnavox- or Starlink- compatible brand, continue with these steps: 3.
Page 157: Configure Nmea
• GSA and GSV transmits fix mode, DOP values, and satellites in view information. • DBT transmits the depth below the transducer. • DPT transmits the depth • MTW transmits the water temperature. • VLW transmits the distance traveled through water as meas- ured by the paddle wheel.
Page 158 This includes waypoints. To change the coordinate system, press highlighted. Press the ↑ or ↓ arrow keys to highlight the desired for- mat. Press to select it. Press |↓ to GPS S ETUP YSTEM to erase the menus. EXIT while...
Page 159: Setup Loran Td
To setup Loran TD: NOTE: If the Loran TD conversion is chosen, you must enter the local Lo- ran chain identification for the master and slaves. Do this by se- lecting "Setup Loran TD" at the bottom of the "Coordinate System" menu and select the ID.
Page 160: Customize Page Displays
Press ↓ or ↑ to select a data box. With the data box highlighted and flashing, press different data option, then press to return to the page display. EXIT |↓ to GPS S ETUP YSTEM CALE chart or topographical map. RIGIN selected;...
Page 161: Dgps Status
EXIT EXIT GPS Simulator The GPS simulator lets you use the unit as if you were outdoors navi- gating somewhere. It's a great way to practice using your unit. You can set the starting location by entering latitude/longitude (Starting Posi- tion) or from a stored waypoint, map place or POI location ( command).
Page 162: Simulating Trail Or Route Navigation
This will allow you to use the map cursor during a simulation. To turn steering and speed boxes back on again, return to the GPS Simulator menu, se- lect the TEER WITH to return to the previous page.
Page 163: Hide Gps Features
Map Auto Zoom This receiver has an auto zoom feature that eliminates much of the but- ton pushing that other brands of GPS receivers force you to make. It works in conjunction with the navigation features. First, start navigation to a waypoint. (See the waypoint section for more information on navigating to a waypoint.) Then, with the auto...
Page 164: Map Data
This menu lets you turn the map off, if desired (which turns the map screen into a GPS plotter); turn off or on the pop-up map info boxes; draw the map boundaries or boxes around the areas of high detail; or fill land areas with gray.
Page 165: Fill Water With White
All datums are named. The GPS system is based on the WGS-84 da- tum, which covers the entire world. Other datums may also cover the entire world, or just a small portion of it. By default, your position shows using the WGS-84 datum.
Page 166: Map Detail Category Selection
3. To return to the last page displayed, press A list of the datums used by this unit is in the back of this manual. GPS Setup Menu, left, Map Datum Menu, right. Map Detail Category Selection This menu determines which of the mapping features are shown on the screen.
Page 167 In Track Up mode, map shows "N" and arrow to indicate north. Map orientation at left is shown in north up and at right, track up. This is fine if you're always traveling due north. What you see to your left corresponds to the left side of the map, to your right is shown on the right side of the map, and so on.
Page 168: Navionics  Charts
NOTE: In North Up and Course Up, the present position arrow appears in the center of the map page. In Track Up, the position arrow appears centered in the lower third of the page.  Navionics Charts Your unit can display Navionics work just like a MapCreate custom map on an MMC.
Page 169: Port Information
3. To turn off a Navionics chart, From the Map Page, press |↓ to , then press OWRANCE Port Information Navionics charts contain Port Services information, represented by an- chor icons on the map display. An example is displayed in the following figure.
Page 170: Tidal Current Information
Port Services information screens. Tidal Current Information Navionics charts contain Tidal Current information, represented at large zoom ranges by a box icon with the letter "C." The icon stands for a Tidal Current Station location. An example is displayed at right. When you zoom in to a sufficiently small zoom range, the icon itself be- comes an animated arrow showing tidal current velocity and direction for the selected tidal station at the present time.
Page 171: Tide Information
Current Information screen. The Tidal Current Information screen displays daily tidal current data for this station on this date at the present time. The graph at the top of the screen is an approximate view of the flood and ebb pattern for the day, from midnight (MN), to noon (NN) to midnight (MN).
Page 172 To view tide information: 1. Select a Tide Station icon: use the arrow keys to move the cursor over an icon. When it is selected, a pop-up name box appears. 2. After selecting the Tide Station icon, press Information screen. Cursor line Tide Station icon...
Page 173: Pop-Up Help
Map Menu. Position Pinning When you are standing still or moving at extremely slow speed, a GPS receiver can have trouble determining the direction you are traveling. In the past, this resulted in a "wandering" plot trail that moved around the map, even if you were standing still.
Page 174: Reset Options
MENU MENU 2. To return to the last page displayed, press 3. You can return to this command and press ture off. |↓ to GPS S ETUP to return to the previous page. |↓ to YSTEM ETUP Reset Options command, left, |↓...
Page 175: Screen Contrast And Brightness
GPS Setup command, left; Require DGPS command on the GPS Setup Menu, right. Screen Contrast and Brightness To access the Screen menu, press MENU MENU Once in the Screen menu: To adjust the display's contrast: slider bar is already selected. Press → or ← to move the ONTRAST bar.
Page 176: Set Language
Set Language This unit's menus are available in 10 languages: English, French, Ger- man, Spanish, Italian, Danish, Swedish, Russian, Dutch and Finnish. To select a different language: 1. Press MENU MENU 2. Press ↓ to ANGUAGE 3. Use ↓ or ↑ to select a different language and press now appear in the language you selected.
Page 177: Show Waas Alarm
3. You can return to this command and press ture on. Software Version Information From time to time, Lowrance updates the operating system software in some of its products. These software upgrades are usually offered to customers as free downloads from our web site, www.lowrance.com.
Page 178: Sounds And Alarm Sound Styles
EXIT EXIT Track Smoothing This is a factory setting on the GPS Setup menu that should always be left on. When stopped or traveling at slow speeds (such as walking or trolling), Track Smoothing prevents wandering of trails, the steering arrow, compass rose and a map in track-up mode.
Page 179: Trail Options
Track Smoothing option, turned on. Trail Options There are several options you can use with trails. Some affect all trails, other options can be applied to a particular trail. You can change the way trails are updated, display or hide trails, make them flash on the screen or not flash, create a new trail, delete a trail, etc.
Page 180: Update Trail Option
Update Trail Option This menu lets you change the way the trail updates occur. WARNING: If you uncheck the Update Trail option, automatic trail creation and recording will be turned off. You must turn it back on to record trails. The default setting is on. From the Trails Menu, press →...
Page 181: Delete Trail
On the Edit Trail menu, press ↓ or ↑ to highlight the section you wish to change, then press this menu. Related trail functions are discussed in further detail under the Trails topic in Sec. 7, Advanced GPS Operations. Units of Measure This menu sets the speed and distance (statute or nautical miles, me- ters), depth (feet, fathoms, or meters), temperature (degrees Fahrenheit or Celsius) and heading (true or magnetic) units.
Page 182 System Setup Menu, left, Units of Measure Menu, right. To set Speed/Distance Unit of Measure: Press ↑ or ↓ to change the Speed/Distance, then press . After the option is set, press to return to the page display. EXIT EXIT EXIT To set Heading: Press ↑...
Page 183: Sec. 9: Searching
NOTE: The background map loaded in your unit lets you to search for U.S. Interstate Highway exits and exit services, as well as some land features, including cities and lakes. For a full set of searchable land features, including landmarks, streets, addresses and Points of In- terest, you must load your own high-detail custom map produced with our MapCreate 6 software.
Page 184 2. Press to search in the Address field. 3. To enter an address number, press ↑ or ↓ to change the first number, then press → to move the cursor to the next number and re- peat until the number is correct, then press 4.
Page 185 If you select yes, there are two options: A. You can spell out the city name in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and repeat until the name is correct, then press , then press ↓...
Page 186: Find Any Item Selected By Map Cursor
Address search result list, left. At center, Map Page showing location of the address on the map, highlighted by cursor. At right, after the address is located, you can navigate to it ("D" symbol for destination). 8. To navigate to the address, press begin showing navigation information to the address pointed out by the cursor.
Page 187: Find Interstate Highway Exits
A POI selected by the cursor, left, POI information screen, right. NOTE: Since the Go To Waypoint command is highlighted, you can navi- gate to the selected POI by pressing Waypoint Information screen. Find Interstate Highway Exits 1. From the Map Page, press up the Find Exit menu.
Page 188 Find By Name menu. 3. Once you have selected a highway name you can then select an exit. Press ↓ to switch to the Exit List, then press ↓ or ↑ until you highlight the exit, then press ENT. Find Exit menu, with an exit selected in the Exit List. 4.
Page 189: Find Map Places Or Points Of Interest (Poi)
Tip: You can also look up some additional information on the Exit Serv- ices located near this exit. Press ↓ to Service Name| Exit Information screen, left; general location and amenities information, at right. Find Map Places or Points of Interest (POI) 1.
Page 190 Find by Nearest option, left, Calculating screen, center, POI list, right. 3. Search by name of POI. Press . There are two options: A. You can spell out the POI in the top selection box. Press ↑ or ↓ to change the first letter, then press →...
Page 191: Find Streets Or Intersections
"Go To" POI option, left, "Find on Map" POI option, right. Find Streets or Intersections Find a Street 1. From the Map Page, press |↓ to and the Find MENU TREETS Streets Menu appears. Find Streets command, left, Find Streets menu, right. 2.
Page 192 Find Street By Name menu. Spell out name in the top box, or select from the list in the lower box. 3. The Find Streets menu reappears with the street you're searching for in the First Street box. (In this example, it's 80th Street.) To search for that street, press ↓...
Page 193 Map Page showing results of a street search. The cursor points to the located street. If you want to navigate to the found street at the cursor location, just press MENU EXIT Find an Intersection You must enter one street in the First Street dialog box and enter the next street in the Second Street dialog box.
Page 194 5. The Find Streets menu reappears with the first and second street dialog boxes filled in. In this example, we selected 71st Avenue as our second street. You could now use similar techniques to select a city or Zip code, but your search will probably be faster if you leave those boxes blank.
Page 195: Find Waypoints
If you want to navigate to the found intersection, just press MENU EXIT Find Waypoints 1. Press 2. If searching for the waypoint By Name, press . If searching for the Nearest waypoint, press ↓ to . (To search by name, |ENT EAREST jump to step 5.)
Page 196 A. To navigate to the waypoint, press command is already highlighted.) The unit will show navigation in- formation to the waypoint. B. To find the waypoint, press ↓ to appears with the cursor highlighting the found waypoint. Waypoint Information screens with the Go To Waypoint command se- lected, left, and the Find on Map command selected, right.
Page 197 A. To navigate to the waypoint, press . (Go To Waypoint com- mand is already highlighted.) The unit will show navigation infor- mation to the waypoint. B. To find the waypoint, press ↓ to . The Map Page appears with the cursor highlighting the found waypoint.
Page 198 Notes...
Page 199: Sec. 10: Supplemental Material
Section 10: Supplemental Material Datums Used by This Unit WGS 1984 Default Adindan Mean for Ethiopia, Sudan Adindan Burkina Faso Adindan Cameroon Adindan Ethiopia Adindan Mali Adindan Senegal Adindan Sudan Afgooye Somalia Ain el Abd 1970 Bahrain Ain el Abd 1970 Saudi Arabia Anna 1 Astro 1965 Cocos Islands...
Page 200 Chua Astro Paraguay Corrego Alegre Brazil Dabola Guinea Djakarta (Batavia) Indonesia (Sumatra) DOS 1968 New Georgia Islands (Gizo Island) Easter Island 1967 Easter Island European 1950 Mean for Austria, Belgium, Denmark, Finland, France, West Germany, Gi- braltar, Greece, Italy, Luxembourg, Neth- erlands, Norway, Portugal, Spain, Sweden, Switzerland...
Page 201 Naparima BWI Trinidad & Tobago North American 1927 Mean for Antigua, Barbados, Barbuda, Caicos Islands, Cuba, Dominican Republic, Grand Cayman, Jamaica, Turks Islands North American 1927 Mean for Belize, Costa Rica, El Sal- vador, Guatemala, Honduras, Nicaragua North American 1927 Mean for Canada North American 1927 Mean for CONUS...
Page 202 Point 58 Sweden Santo (DOS) 1965 Espirito Santo Island Sao Braz Azores (Sao Miguel, Santa Maria Islands) Sapper Hill 1943 East Falkland Island Schwarzeck Nambia Selvagem Grande Salvage Islands SGS 85 Soviet Geodetic System 1985 South American 1969 Mean for Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay,...
Page 203: Fcc Compliance
This device complies with Part 15 of the U.S. Federal Communi- cations Commission (FCC) Rules. Operation is subject to the fol- lowing two conditions: (1) this device may not cause harmful in- terference, and (2) this device must accept any interference re- ceived, including interference that may cause undesired opera- tion.
Page 204 Notes...
Page 205: Index
Fish Symbols, 51, 54, 58, 60, 67, 68 Interpreting, 54 FishReveal, 69 FishTrack, 68 Frequency, 3, 71 Change Frequency, 71 GPS Data File, 7, 8, 128, 129, 130, 134,  Grayline , 72 HyperScroll, 74, 77 Icons, 5, 7, 11, 44, 100, 108, 109, 128,...
Page 206 39, 97, 128, 160 Sec. 2, Installation & Accessories, 13 Introduction GPS and WAAS, 8 Sec. 1, Introduction, 1 Specifications, 3 Typographical Conventions, 10 Keel Offset, 79, 80 Keypad Description, 10, 43, 99 Languages, 3, 168 Lat/Lon Grid (Map Data option), 157...
Page 207 Automatic, 63 Manual, 64 Upper and Lower Limits, 65, 92 Range Rings (Map Data option), 157 Reset Options, 54, 79, 82, 111, 118, 166 Reset Water Distance, 79 Route, 5, 7, 9, 11, 13, 15, 21, 22, 23, 28, 29, 45, 56, 79, 95, 97, 101, 104, 126, 128, 133, 134, 135, 136, 137, 138, 139, 146, 154, 166 Create and Save, 134...
Page 208 136, 156 Auto Zoom, 155 Zooming, 4, 5, 44, 51, 83, 88, 92, 93, 96, Zoom Bar, 92 100, 106, 107, 112, 113, 125, 135, Zoom Pan, 93...
Page 209 Notes...
Page 210 Notes...
Page 211 THIS IS A LEGAL AGREEMENT BETWEEN THE END-USER WHO FIRST PURCHASES THIS PRODUCT AS A CONSUMER ITEM FOR PERSONAL, FAMILY, OR HOUSEHOLD USE ("YOU") AND LOWRANCE ELECTRONICS, INC., THE MANUFACTURER OF THIS PRODUCT ("WE", "OUR", OR "US"). USING THE PRODUCT ACCOMPANIED BY THIS LICENSE AGREEMENT CONSTITUTES ACCEPTANCE OF THESE TERMS AND CONDITIONS.
Page 212 DATABASES LIMITED WARRANTY "We", "our", or "us" refers to Lowrance Electronics, Inc., the manufacturer of this product. "You" or "your" refers to the first person who purchases the prod- uct as a consumer item for personal, family, or household use. The Databases Limited Warranty applies to the one or more databases that your product may contain.
Page 213 LOWRANCE ELECTRONICS FULL ONE-YEAR WARRANTY "We," "our," or "us" refers to LOWRANCE ELECTRONICS, INC., the manufacturer of this product. "You" or "your" refers to the first person who purchases this product as a consumer item for personal, family or household use.
Page 214: How To Obtain Service
…in the USA: We back your investment in quality products with quick, expert service and genuine Lowrance parts. If you're in the United States and you have technical, return or repair questions, please contact the Factory Customer Service Department. Before any product can be returned, you must call customer service to determine if a return is necessary.
Page 215 Accessory Ordering Information for all countries To order Lowrance GPS accessories such as computer cables or MMC cards, please contact: 1) Your local marine dealer or consumer electronics store. Most quality dealers that handle marine electronic equipment or other consumer electronics should be able to assist you with these items.
