Lorex SHS-4QM22 Quick Setup Manual

Getting Started

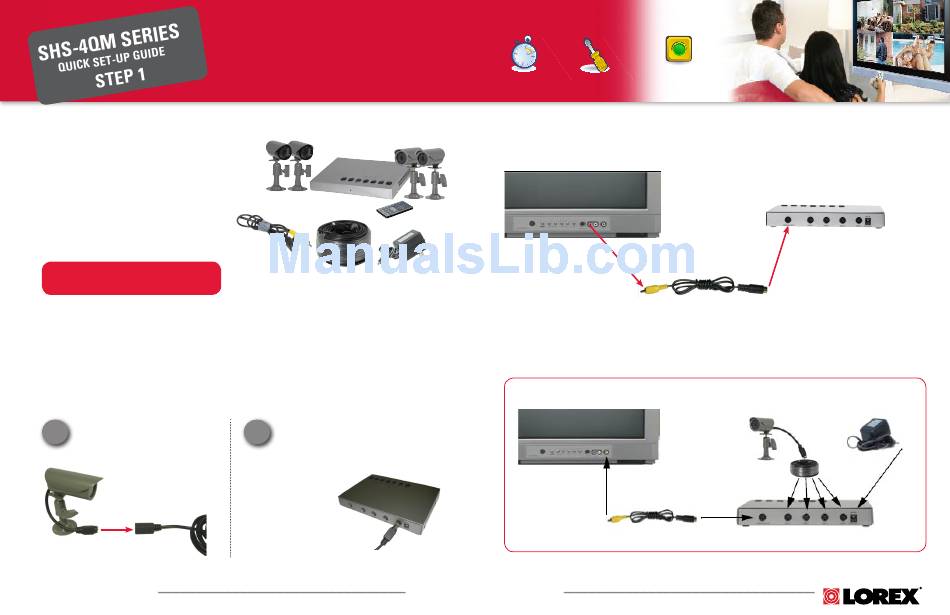

The SHS System comes with the following components:
• Quad Processor
• 2 x Weatherproof Color Cameras with Stands
• 2 x Weatherproof Color Day/Night IR Cameras with Stands
• 4 x 60' DIN Extension Cables
• DIN Video Cable
• Remote Control
• Power Adapter
Check your package to confirm that you have received the
complete system, including all components shown above.
A. Connect Cameras
Before you install the camera, carefully plan where and how you will position the camera, and where you will route the cables
* IR illumination range up to 16 ft. (5M) under ideal conditions. Objects at or beyond this range may be partially or completely obscured,
depending on the camera application. Picture changes from Color to B&W under low light conditions.
* Note that the IR Night Vision Cameras have a black lens cover.
Connect the female end of the supplied 60'
1
extension' cable to the camera.
NOTE: Confirm that the arrows
on the DIN Camera Cable and the
DIN Extension cable are aligned
when connecting the cable. If the
pins in the DIN Cable are bent, the
Camera will NOT function.
SHS-4QM SERIES R1
Quick Set-Up Guide
Quad Surveillance SyStem
with 4 ccd indoor/outdoor cameraS*
Night Vision
Cameras
Connect the male end of the supplied 60'
2
extension cable to an open DIN channel on
the back of the Quad Processor. Continue
connecting additional DIN cameras.
NOTE: The arrow on
the DIN Connector
Connector should
be facing up when
connecting it to the
Quad Processor.
under 15 minutes
Hand Tools
time tools
utes*
Under 10 Min
Hand Tools
* Installation time may vary based
on application and camera cabling
Skill Level
B. Connecting the DIN Video Cable
Connect the DIN end of the Video Cable to the Quad Processor. Connect the RCA VIdeo cable
easy
to the TV, VCR or Monitor.
Day Use
Cameras
TV / VCR / MONITOR
Connect the Yellow RCA
connector to the TV Video IN
Port (yellow)

Connectivity Diagram

TV / VCR / MONITOR
www.lorexcctv.com
under 30 minutes under 60 minutes over 60 minutes
Skill Level
Hardware Hi Speed
Skills - easy
Intermediate advanced
easy
Router
Plug & Play connectors, On
screen set up
Intermediate advanced
SHS CABLE
RCA to DIN Cable
4 x CAMERAS
4 x 60' EXTENSION CABLES
QUAD PROCESSOR
DIN CABLE
QUAD PROCESSOR
Connect the DIN Cable end
to the Video Output port
POWER ADAPTER
