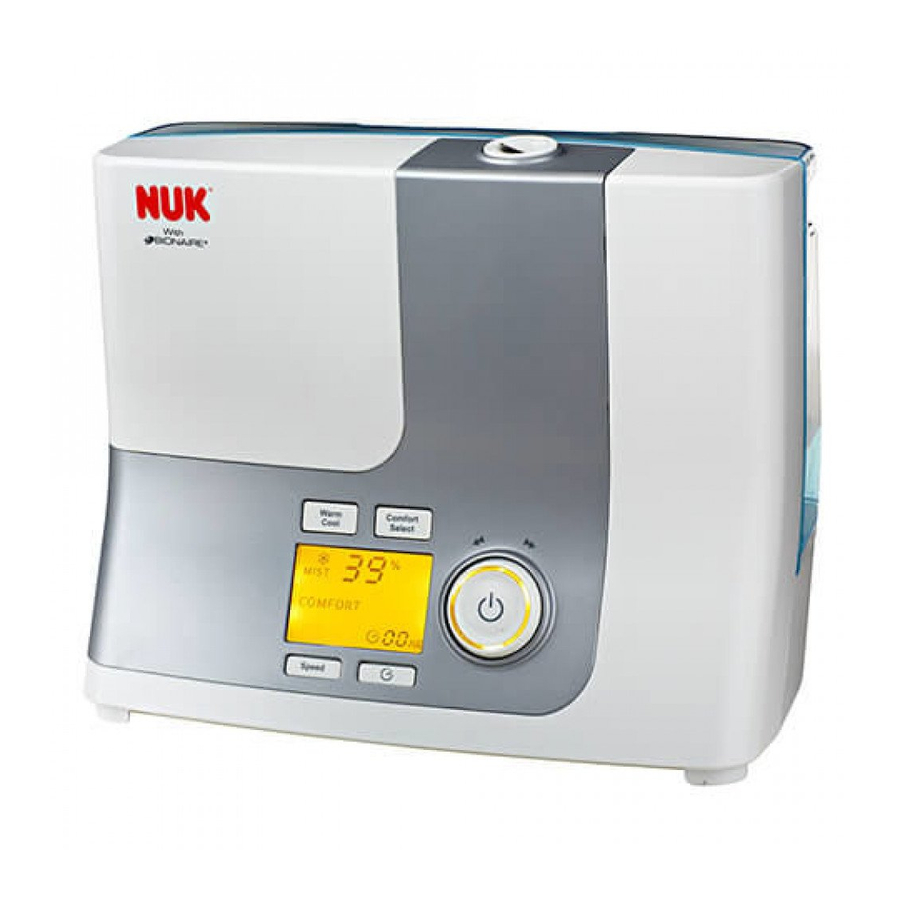

Bionaire NUK 78102 - Ultrasonic Warm & Cool Mist Humidifier Manual

PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT NOTES: Please read this entire manual carefully before using this device. Product may vary from picture.

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before using the appliance.
2. To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet.
3. Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs or near heat registers.
4. DO NOT place humidifier near heat sources such as stoves, radiators, and heaters. DO locate your humidifier on an inside wall near an electrical outlet. The humidifier should be at least 4 inches (10 cm) away from the wall for best results.
5. ALWAYS keep humidifier out of reach of children. ALWAYS keep the room with a running humidifier well ventilated – either a window or a door should be open at all times (a closed room may result in excessive humidity).
6.
   DO NOT attempt to refill humidifier without first unplugging the unit from its electrical outlet. Failure to heed this warning may cause personal injury. Be sure to unplug the unit by pulling on the plug and not the cord.
7. NEVER place anything over moisture outlet when the unit is running.
8. NEVER drop or insert any object into any openings.
9. DO NOT operate any appliance with a damaged cord or plug, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Discontinue use and call the NUK^® Customer Service Center for further instruction.
10. Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. The use of attachments not recommended or sold by the manufacturer may cause hazards.
11. DO NOT use outdoors.
12. ALWAYS place humidifier on a firm, flat, level surface. A waterproof mat or pad is recommended for use under the humidifier. NEVER place it on a rug or carpet, or on a finished floor that may be damaged by exposure to water or moisture.
13. DO NOT allow the moisture outlet to directly face the wall. Moisture could cause damage, particularly to wall paper.
14. Humidifier should be unplugged when not in use.
15. NEVER tilt, move, or attempt to empty unit while it is operating. Shut off and unplug before removing the water tank and moving the unit.
16. This humidifier requires daily and weekly maintenance to operate appropriately. Refer to daily and weekly cleaning procedures. Use only cleaners and additives recommended by the manufacturer.
17. NEVER use detergents, gasoline, glass cleaner, furniture polish, paint thinner, or other household solvents to clean any part of the humidifier.
18. Excessive humidity in a room can cause water condensation on windows and some furniture. If this happens, turn the humidifier OFF.
19. DO NOT use humidifier in an area where humidity level is in excess of 50%. Use a hygrometer, available at your local retailer, to measure the humidity.
20. DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.
21. NEVER place housing under flowing water or immerse in liquids.
22. DO NOT plug in the cord with wet hands – electric shock could result.
23. DO NOT pour water in any openings other than the water tank.
24. To prevent damage to surfaces, DO NOT place humidifier under overhanging surfaces.
25. NEVER operate unit without water in the tank.
26. DO NOT move unit after it has been used until unit cools completely.
27. Use both hands when carrying full tank of water.

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet.
Do not attempt to modify this plug or defeat this safety feature in any way.

CONSUMER SAFETY INFORMATION

NOTE: This is an electrical appliance and requires attention when in use.

NOTE: If moisture forms on the walls or windows of the room, turn off the humidifier. The room already has plenty of humidity and additional moisture may cause damage.

NOTE: DO NOT block air inlet or outlet.

CORD AND PLUG INSTALLATION SAFETY INSTRUCTIONS

The length of cord used on this appliance was selected to reduce the hazards of becoming tangled in, or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the humidifier (refer to the rating information placed on the humidifier). Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

STRANGULATION HAZARD. Keep cord out of children's reach. NEVER place humidifier or cords within 3 feet of crib or playing area.

FEATURES - OPERATIONS

HOW ULTRASONIC WORKS

An ultrasonic transducer atomizes water, producing refreshing visible cool or warm mist.

NOTE: A humidity level below 20% can be unhealthy and uncomfortable. The recommended humidity level is between 40% - 50%.

FILLING INSTRUCTIONS

1. Be sure the humidifier is switched off.
2. Select a location for your humidifier on a flat level surface about 4 inches (10 cm) away from the wall. DO NOT place the humidifier on a finished floor or near furniture which can be damaged by too much moisture or water. Place on a moisture resistant surface.
3. Remove the tank (C) from the main housing.
4. Bring the tank (C) to the sink, twist off the tank cap (D) by turning counterclockwise. Fill tank with cool, fresh tap water. DO NOT fill with warm water as this may cause leaking. Replace the cap on tank FIRMLY.
5. Place tank back onto the base. The tank will immediately begin to empty into the base.
6. Plug the humidifier into a 120V electrical outlet.

OPERATING INSTRUCTIONS

Power Button

1. Press the Power Button (K) to turn the humidifier on; the LCD display (H) shows the room humidity level.

NOTE: The display range is 30% - 90%, If your room humidity level falls below 30%, the unit will still display 30. If your room humidity level rises above 90%, the unit will continue to display 90.

2. Once the unit is turned on, it begins to run at the Cool Mist and High Speed settings. The Cool Mist Icon () and High Speed Setting (2) will illuminate on LCD display.
3. To switch to Low (1) setting, press the Speed (I) Button.

Warm/Cool Mist Button

Press the Warm/Cool Mist Button (G) to switch between Cool Mist and Warm Mist mode. The corresponding icon (() for Warm / () for Cool Mist) will illuminate on LCD display (B) to indicate which mode is activated. Cool Mist and Warm Mist can operate at all speed settings. Press the Speed Button (I) to switch between High (2) and Low (1) settings.

NOTE: For optimal warm mist output allow up to 20 minutes of run time after selecting the warm mist function.

Comfort Select Button (5 Comfort Modes)

The humidifier is designed with 5 comfort modes; you may select the one which suits your need. Press the Comfort Select Button (F) to activate the function, and then turn the Dial Knob (J) to cycle through the 5 comfort levels and select your preferred mode; the selected mode will illuminate on LCD display (H):

• ALLERGY
• COLD/FLU
• COMFORT
• DRY SKIN
• NOSE & THROAT

Digital Humidistat Control

Your humidifier is equipped with a digital humidistat that allows you to set your humidifier to your desired comfort level. To preset a precise comfort level, turn the Dial Knob (J) to adjust the humidity level ranging from 35% to 60% or "Stay On" setting for constant humidity. The LCD Display (H) will show the selected humidity level for 5 seconds and then change back to show the room humidity. When the room humidity level rises above the set humidity, the humidifier will stop. When the room humidity level drops below the set humidity, the humidifier will turn on automatically to maintain the preset humidity level.

NOTE: To shut the humidifier off at any setting, press the Power Button (K). The humidistat has memory. This means that when you turn the unit back on, it will be at the last humidity setting before the humidifier is turned off. However, if the humidifier is unplugged, the digital humidistat will no longer remember the previous humidity setting. You will need to reset the digital humidistat if the humidifier is unplugged.

DO NOT move the humidifier with water in the tank (C) or the humidifier base (E). The moving action of the water may activate the water tank's release nozzle and overfill the humidifier base. This may cause the humidifier to function intermittently, or stop emitting mist. Should his occur, simply remove the excess water from the humidifier base.

NOTES:

• High setting will produce the maximum moisture level and Low setting will produce the longest run time and quieter performance.
• When the humidifier runs out of water, the transducer and fan will automatically shut off.

Tank Empty

Once the tank (C) is empty, TANK EMPTY will illuminate in the LCD display (H), and the humidifier will shut off automatically. Unplug the humidifier from the electrical outlet. Before refilling, empty any residual water from the base (E) and the tank (follow the Daily Maintenance Instructions.)

Timer

Your humidifier is equipped with a 24-Hour Auto Shut-off Timer feature. This allows you to program your humidifier to shut off automatically after running for a defined time interval.

1. Press the Timer Button (L) once. The "00" next to HR icon will begin to blink.
2. Press the Timer Button (L) to select your desired time interval for the humidifier to shut off automatically after 8, 12, 16, or 24 hours.
3. The Timer Icon () will appear on the LCD Display to indicate that the timer is active.
4. To cancel the timer feature, press the Timer Button (L) to select "00" HR.

CLEANING AND MAINTENANCE INSTRUCTIONS

The following maintenance procedures must be routinely followed in order to ensure proper efficient operation of your humidifier. The unit will not work properly if not cleaned regularly.

When the unit is in use, daily and weekly maintenance is recommended. Regular weekly cleaning prevents scale buildup on the heating element and tray. It also prevents micro-organisms from growing on the tray and tank. This ensures that maximum efficiency will be achieved.

We cannot over-emphasize how essential proper cleaning is to the maintenance and continued use of your unit and to the avoidance of algae or bacteria buildup.

DAILY MAINTENANCE

1. Before cleaning, switch off the humidifier and unplug the unit from the electrical outlet. Allow the unit to cool down before cleaning.
2. Remove the water tank from the humidifier and place in sink or tub.
3. Drain any remaining water and rinse thoroughly to remove any sediment or dirt. Wipe clean and dry with a clean cloth or paper towel.
4. Refill with cool tap water. Do not overfill.

WEEKLY MAINTENANCE

To Remove Scale:

1. Repeat steps 1-3 in the Daily Maintenance section.
2. Clean all surfaces with a soft brush (provided – see Figure 3). Lift door on left button side of humidifier to access transducer. Use brush provided to gently clean transducer (See Figure 3). Remove the scale by wiping the entire base with a cloth dampened with undiluted white vinegar.
3. Rinse with clean warm water to remove scale and the white vinegar solution before beginning to disinfect the tank.

To Disinfect Tank:

1. Fill the humidifier tank ½ full with water and ½ tablespoon of chlorine bleach.
2. Let the solution stand for 20 minutes, swishing every few minutes. Wet all surfaces.
3. Empty the tank after 20 minutes, and rinse well with water until the bleach smell is gone. Dry with a clean cloth or paper towel.
4. Refill the water tank with cool water; replace the housing and the water tank. Repeat ALL Operating Instructions.

STORAGE INSTRUCTIONS

If your humidifier will not be in use for two days or more, follow these instructions:

1. Clean, rinse and thoroughly dry the humidifier as directed in the weekly maintenance section. DO NOT leave any water inside the base.
2. Remove the tank cap. Do not store with the tank cap in place.
3. Place the humidifier in the original carton and store in a cool, dry place.
4. Always clean the humidifier before the next season begins.

TROUBLESHOOTING

FREQUENTLY ASKED QUESTIONS

ICES STATEMENT

This apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. This Class B digital apparatus complies with Canadian ICES-001.

FCC STATEMENT

Potential for Radio/Television interference.

This device complies with part 18 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

This product has been tested and found to comply with the limits for a class B digital device, pursuant to Part 18 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. The product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If the product does cause harmful interference to radio or television reception, which can be determined by turning the product on or off, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the product and the receiver.
• Connect the product into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

WARRANTY INFORMATION

3 YEAR LIMITED WARRANTY

NUK USA LLC warrants that for a period of three years from the date of purchase, this product will be free from defects in material and workmanship. NUK USA LLC will replace this product or any component of the product found to be defective during the warranty period.

Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. DO NOT attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable.

Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Dealers, service centers, or retail stores selling NUK USA LLC products do not have the right to alter, modify or in any way change the terms and conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than NUK USA LLC. Further, the warranty does not cover acts of God, such as fire, flood, hurricanes and tornadoes.

What are the Limits on NUK USA LLC Liability?

NUK USA LLC shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition.

Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty.

NUK USA LLC disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.

NUK USA LLC shall not be liable for any damages of any kind resulting from the purchase use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.

Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from province to province, state to state, or jurisdiction to jurisdiction.

How to Obtain Warranty Service

If you have any questions regarding this warranty or would like to obtain warranty service, please call the NUK^® Customer Service Center at 1-800-447-0167.

To make a claim or troubleshoot a problem, please contact the NUK^® Customer Service Center at 1-800-447-0167. NUK^® Customer Service will provide the assistance in resolving the issue through troubleshooting and/or provide an address for returning the product.

In the U.S.A., this warranty is offered by NUK USA LLC located in Reedsburg, Wisconsin 53959. If you have any other problem or claim in connection with this product, please visit our website: www.NUK-USA.com or call our Customer Service: (1-800-447-0167).

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.

For more information on NUK^® products, visit our website: www.NUK-USA.com or call NUK^® Customer Service: (1-800-447-0167)

Distributed by NUK USA LLC, a subsidiary of Jarden Corporation (NYSE:JAH), 728 Booster Blvd., Reedsburg, WI 53959 USA. NUK is a registered trademark of Mapa GmbH, Zeven, Germany. Bionaire Logo is a registered trademark of Sunbeam Products, Inc. used under license. ©2013. All rights reserved. Due to continuing product development, the product inside the packaging may look slightly different than the one on the package.

03-U-C-78103 RevA
