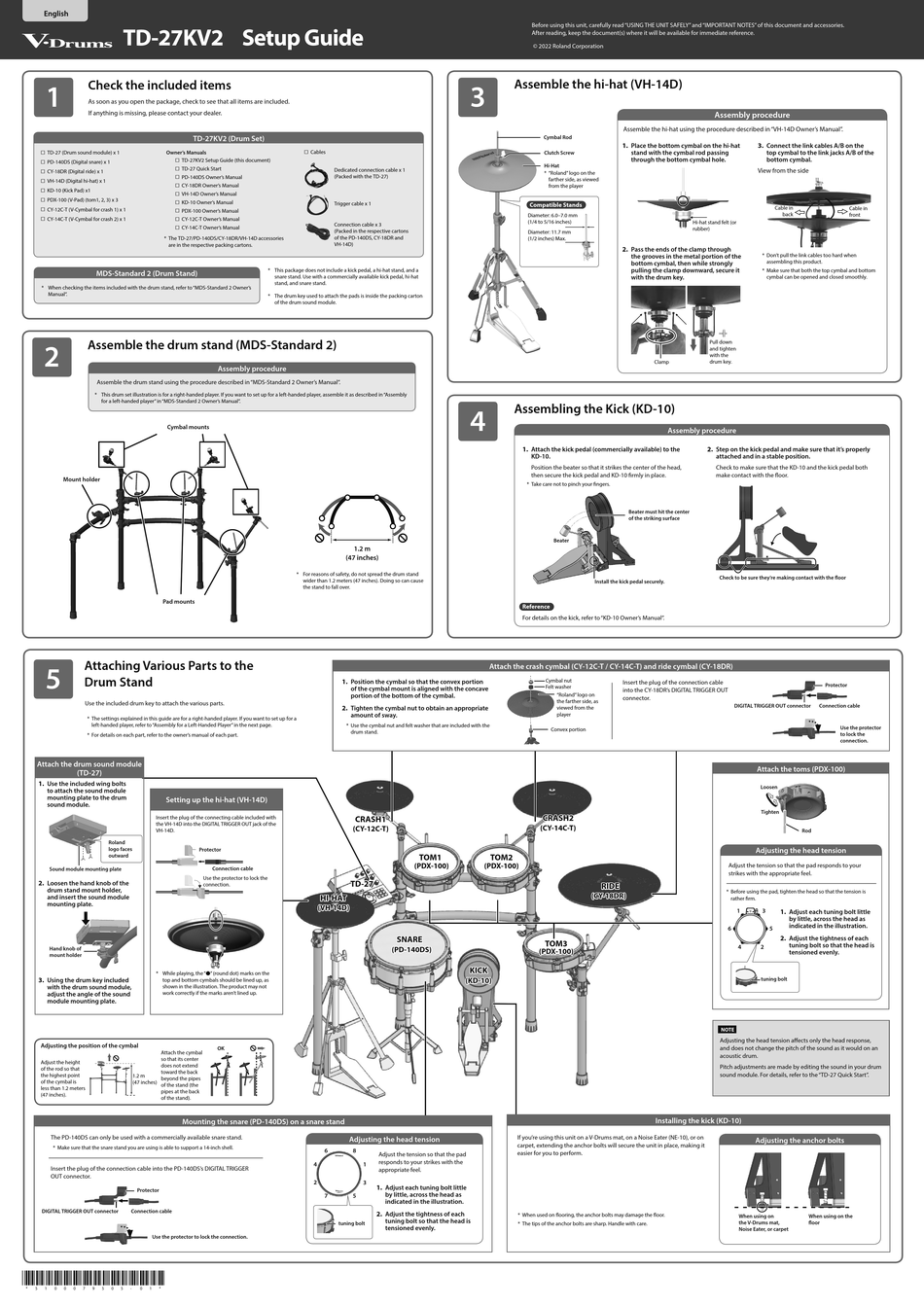

Roland V-Drums TD-27KV2 Setup Manual

TD-27KV2
Check the included items
1
As soon as you open the package, check to see that all items are included.
If anything is missing, please contact your dealer.
TD-27KV2 (Drum Set)
· TD-27 (Drum sound module) x 1
Owner's Manuals
· TD-27KV2 Setup Guide (this document)
· PD-140DS (Digital snare) x 1
· TD-27 Quick Start
· CY-18DR (Digital ride) x 1
· PD-140DS Owner's Manual
· VH-14D (Digital hi-hat) x 1
· CY-18DR Owner's Manual
· KD-10 (Kick Pad) x1
· VH-14D Owner's Manual
· PDX-100 (V-Pad) (tom1, 2, 3) x 3
· KD-10 Owner's Manual
· CY-12C-T (V-Cymbal for crash 1) x 1
· PDX-100 Owner's Manual
· CY-14C-T (V-Cymbal for crash 2) x 1 · CY-12C-T Owner's Manual
· CY-14C-T Owner's Manual
* The TD-27/PD-140DS/CY-18DR/VH-14D accessories
are in the respective packing cartons.
MDS-Standard 2 (Drum Stand)
* When checking the items included with the drum stand, refer to "MDS-Standard 2 Owner's
Manual".
Assemble the drum stand (MDS-Standard 2)
2
Assemble the drum stand using the procedure described in "MDS-Standard 2 Owner's Manual".
* This drum set illustration is for a right-handed player. If you want to set up for a left-handed player, assemble it as described in "Assembly
for a left-handed player" in "MDS-Standard 2 Owner's Manual".
Cymbal mounts
Mount holder
Pad mounts
Attaching Various Parts to the
5
Drum Stand
Use the included drum key to attach the various parts.
* The settings explained in this guide are for a right-handed player. If you want to set up for a
left-handed player, refer to "Assembly for a Left-Handed Player" in the next page.
* For details on each part, refer to the owner's manual of each part.
Attach the drum sound module
(TD-27)
1.
Use the included wing bolts
to attach the sound module
mounting plate to the drum
Setting up the hi-hat (VH-14D)
sound module.
Insert the plug of the connecting cable included with
the VH-14D into the DIGITAL TRIGGER OUT jack of the
VH-14D.
Roland
logo faces
outward
Sound module mounting plate
2.
Loosen the hand knob of the
drum stand mount holder,
and insert the sound module
mounting plate.
Hand knob of
mount holder
* While playing, the "Á" (round dot) marks on the
3.
Using the drum key included top and bottom cymbals should be lined up, as
with the drum sound module, shown in the illustration. The product may not
adjust the angle of the sound work correctly if the marks aren't lined up.
module mounting plate.
Adjusting the position of the cymbal
Attach the cymbal
so that its center
Adjust the height
does not extend
of the rod so that
toward the back
the highest point
1.2 m
beyond the pipes
of the cymbal is (47 inches)
of the stand (the
less than 1.2 meters
pipes at the back
(47 inches).
of the stand).
Mounting the snare (PD-140DS) on a snare stand
The PD-140DS can only be used with a commercially available snare stand.
* Make sure that the snare stand you are using is able to support a 14-inch shell.
Insert the plug of the connection cable into the PD-140DS's DIGITAL TRIGGER
OUT connector.
Protector
DIGITAL TRIGGER OUT connector Connection cable
Use the protector to lock the connection.
*5100079505-01*
Setup Guide
· Cables
Dedicated connection cable x 1
(Packed with the TD-27)
Trigger cable x 1
Connection cable x 3
(Packed in the respective cartons
of the PD-140DS, CY-18DR and
VH-14D)
* This package does not include a kick pedal, a hi-hat stand, and a
snare stand. Use with a commercially available kick pedal, hi-hat
stand, and snare stand.
* The drum key used to attach the pads is inside the packing carton
of the drum sound module.
Assembly procedure
1.2 m
(47 inches)
* For reasons of safety, do not spread the drum stand
wider than 1.2 meters (47 inches). Doing so can cause
the stand to fall over.
1.
Position the cymbal so that the convex portion
of the cymbal mount is aligned with the concave
portion of the bottom of the cymbal.
2.
Tighten the cymbal nut to obtain an appropriate
amount of sway.
* Use the cymbal nut and felt washer that are included with the
drum stand.
CRASH1
(CY-12C-T)
Protector
Connection cable
Use the protector to lock the
TD-27
connection.
HI-HAT
(VH-14D)
OK
Adjusting the head tension
6 8
4 1
2 3
7 5
tuning bolt
Before using this unit, carefully read "USING THE UNIT SAFELY" and "IMPORTANT NOTES" of this document and accessories.
After reading, keep the document(s) where it will be available for immediate reference.
© 2022 Roland Corporation
Assemble the hi-hat (VH-14D)
3
Cymbal Rod
Clutch Screw
Hi-Hat
* "Roland" logo on the
farther side, as viewed
from the player
Compatible Stands
Diameter: 6.0–7.0 mm
(1/4 to 5/16 inches)
Diameter: 11.7 mm
(1/2 inches) Max.
Assembling the Kick (KD-10)
4
1.
Attach the kick pedal (commercially available) to the
KD-10.
Position the beater so that it strikes the center of the head,
then secure the kick pedal and KD-10 firmly in place.
* Take care not to pinch your fingers.
Reference
For details on the kick, refer to "KD-10 Owner's Manual".
Attach the crash cymbal (CY-12C-T / CY-14C-T) and ride cymbal (CY-18DR)
Cymbal nut
Felt washer
Convex portion
CRASH2
(CY-14C-T)
TOM1 TOM2
(PDX-100) (PDX-100)
SNARE
TOM3
(PD-140DS)
(PDX-100)
KICK
(KD-10)
If you're using this unit on a V-Drums mat, on a Noise Eater (NE-10), or on
carpet, extending the anchor bolts will secure the unit in place, making it
easier for you to perform.
Adjust the tension so that the pad
responds to your strikes with the
appropriate feel.
1.
Adjust each tuning bolt little
by little, across the head as
indicated in the illustration.
2. Adjust the tightness of each
* When used on flooring, the anchor bolts may damage the floor.
tuning bolt so that the head is
* The tips of the anchor bolts are sharp. Handle with care.
tensioned evenly.
Assembly procedure
Assemble the hi-hat using the procedure described in "VH-14D Owner's Manual".
1. Place the bottom cymbal on the hi-hat
stand with the cymbal rod passing
through the bottom cymbal hole.
Hi-hat stand felt (or
rubber)
2.
Pass the ends of the clamp through
the grooves in the metal portion of the
bottom cymbal, then while strongly
pulling the clamp downward, secure it
with the drum key.
Pull down
and tighten
with the
drum key.
Clamp
Assembly procedure
2.
Step on the kick pedal and make sure that it's properly
attached and in a stable position.
Check to make sure that the KD-10 and the kick pedal both
make contact with the floor.
Beater must hit the center
of the striking surface
Beater
Check to be sure they're making contact with the floor
Install the kick pedal securely.
Insert the plug of the connection cable
into the CY-18DR's DIGITAL TRIGGER OUT
"Roland" logo on
connector.
the farther side, as
viewed from the
player
RIDE
* Before using the pad, tighten the head so that the tension is
(CY-18DR)
6
NOTE
Adjusting the head tension affects only the head response,
and does not change the pitch of the sound as it would on an
acoustic drum.
Pitch adjustments are made by editing the sound in your drum
sound module. For details, refer to the "TD-27 Quick Start".
Installing the kick (KD-10)
3. Connect the link cables A/B on the
top cymbal to the link jacks A/B of the
bottom cymbal.
View from the side
Cable in Cable in
back front
* Don't pull the link cables too hard when
assembling this product.
* Make sure that both the top cymbal and bottom
cymbal can be opened and closed smoothly.
Protector
DIGITAL TRIGGER OUT connector Connection cable
Use the protector
to lock the
connection.
Attach the toms (PDX-100)
Loosen
Tighten
Rod
Adjusting the head tension
Adjust the tension so that the pad responds to your
strikes with the appropriate feel.
rather firm.
1 3
1. Adjust each tuning bolt little
by little, across the head as
indicated in the illustration.
5
2. Adjust the tightness of each
tuning bolt so that the head is
4 2
tensioned evenly.
tuning bolt
Adjusting the anchor bolts
When using on When using on the
the V-Drums mat, floor
Noise Eater, or carpet
