Gigabit Switching with Fiber Expansion
and Browser Configurability
This new Linksys rackmount switch delivers non-
blocking, wire speed switching for your 10, 100, and
1000 megabit network clients, plus multiple options
for connecting to your network backbone. Twenty-
four 10/100/1000 ports wire up your workstations,
while the two mini GBIC ports allow future expansion
to alternate transmission media like optical fiber for
your backbone.
It features WebView monitoring and configuration
via your web browser, making it easy to manage the
64 VLANs and up to 8 trunking groups. Or if you
prefer, you can use the integrated console port to
configure the switch. The non-blocking, wire-speed,
full-duplex switching forwards packets as fast as your
network can deliver them. Also included are
Address Learning and Aging to prevent data transfer
24 autosensing
10/100/1000 full
duplex, auto
MDI/MDI-X ports

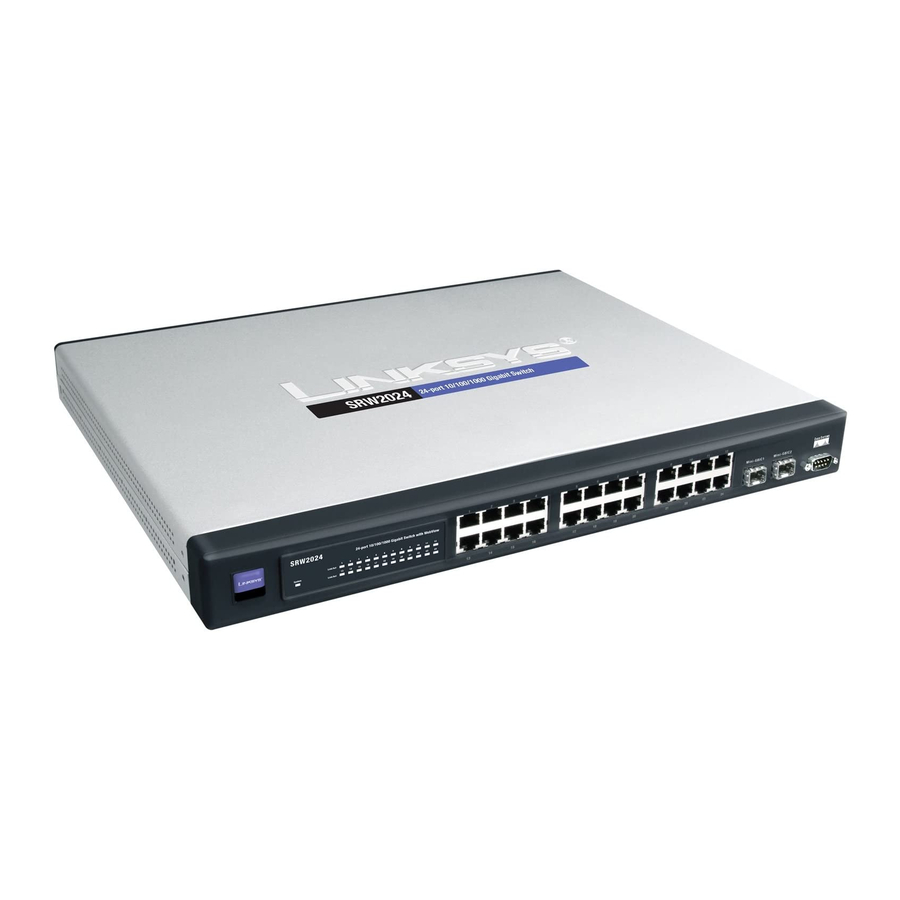

24-Port 10/100/1000 Gigabit Switch
WIRED
SRW2024
Model No.
Two mini GBIC
expansion ports for
fiber expansion
errors and Data Flow Control to help prevent packet
collisions. Four Quality of Service egress queues per
port let you prioritize traffic via 802.1p. The switch
provides broadcast storm suppression, has hardware
MAC address learning, and supports packet filtering
and port security.
All ports have automatic MDI/MDI-X crossover
detection, so you don't have to worry about the
cable type, and polarity detection will even
automatically correct wiring errors. Each port
independently and automatically negotiates for
best speed and whether to run in half- or full-duplex
mode. Head-of-line blocking prevention keeps your
high-speed clients from bogging down in lower-
speed traffic and fast store-and-forward switching
prevents damaged packets from being passed on
into the network.
No matter how intensive your network demands, the
Linksys 24-Port 10/100/1000 Gigabit Switch with
WebView has speed, flexibility, and reliability that you
can count on.
WebView remote
monitoring and
configuration via
web browser
with WebView
Product Data
64 VLANs, 8 port
trunking groups,
console port, 802.1p
CoS support
