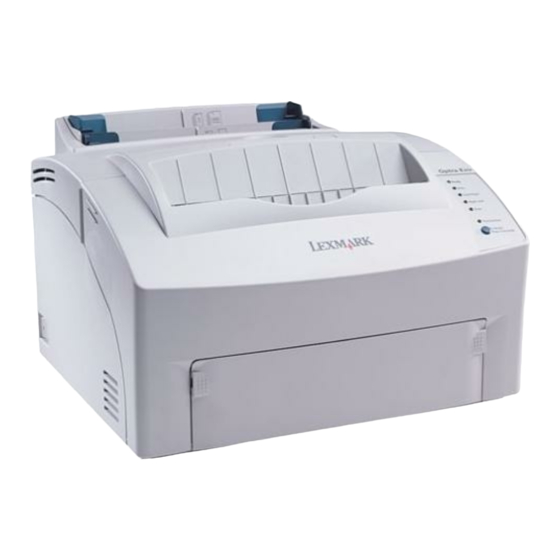

Lexmark Optra E312 User Manual

Lexmark optra e312: users guide
Hide thumbs Also See for Optra E312:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Reference Manual
Optra E312
User's Guide
June 2000
www.lexmark.com

Advertisement

Table of Contents
loading

Related Manuals for Lexmark Optra E312

Summary of Contents for Lexmark Optra E312

  • Page 1 Optra E312 User’s Guide June 2000 www.lexmark.com...
  • Page 2 (language) and functions included in its printer products. This printer is intended by Lexmark International, Inc. to be compatible with the PCL 5 and PCL 6 languages. This means the printer recognizes PCL 5 and PCL 6 commands used in various application programs, and that the printer emulates the functions corresponding to the commands.

  • Page 4: Table Of Contents

    Installing the print cartridge ........2 Connecting the printer to your computer ......4 Loading paper .
  • Page 5 Printer dimensions ........

  • Page 6: About Your Printer

    About your The Optra E312 printer combines the quality of a laser printer with a conveniently small footprint for a perfect fit. With its easy setup, you’ll be printing in no time. Use this CD for information on: • installing printer memory options •...

  • Page 7: Model Specifications

    Reorder print cartridge yield Model The information included on this CD applies to both the Lexmark™ Optra™ E312 and E312L printers. The differences between these two models are outlined in the following table. Note:Some sections in this printer manual may not apply to the E312L model.

  • Page 8: Performance

    Performance The Optra E312 printer prints up to 10 pages per minute for quick job turnaround. It comes with 4MB of memory, expandable to 68MB to print complex jobs quickly. You can also install an optional flash memory card to store forms, macros and downloaded fonts.
  • Page 9 8 Paper output bin Stack printed documents, face down. 9 Front output door Feed media straight out the front of the printer. Use the front exit when printing on card stock. To minimize curl, use when printing labels, envelopes and transparencies.
  • Page 10 Use the: When you want to: 10 Printer cable connector Connect your computer to the printer’s parallel port with a parallel interface cable. 11 USB connector Connect your computer to the printer’s USB port with a Universal Serial Bus cable.
  • Page 11 Press and hold Press Button for 3 seconds only when you want to reset the printer to the user defaults. When resetting the printer to the user defaults, all print job data is lost. The different light sequences are explained in the chapter.

  • Page 12: Other Information Sources

    Other information sources Online documents In addition to this User’s Guide CD, Lexmark offers other sources of information about your printer or about Lexmark products and services. The Drivers, MarkVision and Utilities CD that was shipped with your printer contains several online documents.

  • Page 14: The Basics

    – Drivers, MarkVision and Utilities CD If you need help during setup, or if any items are missing or damaged, refer to the registration card for the designated Lexmark phone number for your country. Place the printer on a flat, stable surface in a well-ventilated area near your workstation.

  • Page 15: Installing The Print Cartridge

    Installing the print cartridge Chapter 1: The basics Use the finger tab to pull down the printer cover. Unpack the print cartridge. Holding the cartridge level, pull out the sealing tape.
  • Page 16 Gently shake the cartridge to distribute the toner evenly. Insert the print cartridge: Slide the print cartridge down between the print cartridge slots. Gently push down on the cartridge until it drops into place. Close the printer cover. Installing the print cartridge...

  • Page 17: Connecting The Printer To Your Computer

    USB cable. Your printer requires an IEEE-1284 compliant parallel cable. We recommend Lexmark part number 1329605 (10 ft) or 1427498 (20 ft). If you use something other than an IEEE-compliant cable, you may not be able to use all of your printer’s functions.
  • Page 18 If you are connecting your printer to a PC with a USB Using a USB cable (Universal Serial Bus) cable, we recommend Lexmark part number 12A2405 (2 m). If you use something other than this cable, you may not be able to use all of your printer’s functions.
  • Page 19 When you finish, exit the setup program and remove the CD from your computer. If you are using Windows 98: Make sure your computer and printer are turned off. Connect the USB cable to the port on the back of your computer.
  • Page 20 In the Print to the following port the USB port that contains the name of the printer you are currently installing as your default printer port. When you finish, exit the setup program and remove the CD from your computer.
  • Page 21 Chapter 1: The basics For Macintosh users: Make sure the printer power is Off (O) and the printer power cord is unplugged from the electrical outlet. Connect the end of the USB cable to the port on your computer. Align and plug the other end of the USB cable into the port on the back of your printer as shown.
  • Page 22 Note: Both areas of the printer dialog box show the Optra E312 printer icon. Troubleshooting Tips Problem: Auto Setup fails in the PostScript Printer Description (PPD) File box In the PostScript Printer Description (PPD) File box, click Auto Setup Wait for the information to process.

  • Page 23: Loading Paper

    Loading paper Automatic paper feeder Manual paper feeder Chapter 1: The basics You can load paper in the automatic paper feeder, which holds up to 150 sheets, or the manual feeder, which holds 1 sheet at a time. To print from the automatic paper feeder, extend the paper support.
  • Page 24 Slide the paper guides against the edges of the paper. Extend the paper support on the paper output bin. Select the paper size from your software application. Start your print job. Loading paper...

  • Page 25: Printing A Test Page

    150 sheets, depending on the thickness of the paper. • Make sure the paper guides are properly positioned against the edges of the paper. To check that your printer is working correctly, print a test page. page To print a test page, the print cartridge must be...

  • Page 26: Attaching A New Operator Panel Overlay

    If it doesn’t, check problems What to do: • Make sure the power cord is firmly plugged in at the back of the printer and at the wall outlet. If you have a non-English overlay sheet in your printer box and wish to use it, peel it off and place it over the overlay currently on your printer.

  • Page 27: Installing Memory

    To install a memory card or a flash memory card, go on to the next section. Otherwise, you are ready to set up your application software and install the appropriate printer driver. Refer to the booklet that came with the Drivers, MarkVision and Utilities CD for installation instructions. Go to Printer drivers about the printer utilities and drivers.
  • Page 28 With the printer facing you, place it on its left side. Turn the printer around so the bottom of the printer is facing you.
  • Page 29 Chapter 1: The basics Grasp the corner of the shield and gently pull it out, then down. Pull the shield away from the printer.

  • Page 30: Installing A Printer

    Installing a printer memory card Notch Connection points Printer memory connector To install an optional printer memory card, follow the instructions below. Remove the printer memory card from its packaging. Avoid touching the connection points along the edge of the card.

  • Page 31: Memory Card

    Gently push the card all the way in. Push the card back with your thumbs until it snaps into place. To install an optional flash memory card: Remove the printer memory card from its packaging. Avoid touching the connection points along the edge of the card.
  • Page 32 Hold the option card with the connection points facing toward the system board and the notch pointing down and to the left. Insert the card into the option card connector at a 45 degree angle. Gently push the card all the way in. Push the card back with your thumbs until it snaps into place.
  • Page 33 Plug the power cord into the printer. Turn the printer on. As the printer powers up and the operator panel lights begin cycling on and off, there is a pause while the new memory is tested, then the lights continue cycling.

  • Page 34: Printer Drivers

    F1 for online Help at any time. You can also create diskettes from the CD or visit our web site at http://www.lexmark.com to download a printer driver to your computer. Printer drivers Printer drivers for the following operating systems...

  • Page 35: Printer Utilities

    CD. In the U.S. and Canada, you can get a list of available Automated fax drivers by calling the Lexmark Automated Fax System. system The system is available 24 hours a day, 7 days a week.

  • Page 36: Markvision

    MarkVision With its easy-to-use tabs, MarkVision provides a quick and easy way to view and change printer settings right from your computer. You can: • select the status tab to view up-to-the-minute • use Quick Setup to save your printer settings and •...
  • Page 37 Chapter 2: Printer drivers...

  • Page 38: Paper Handling

    Manual sheet feeder Your printer also has an output bin on top of the printer that collates up to 100 sheets (face down), and the single sheet front output door, which lets you feed media straight out the front of the printer, reducing curling...

  • Page 39: Paper Types And Sizes

    Paper types and Media Size Paper A4, A5, B5, letter, legal, executive Transparencies Minimum: 3.875 x 5.9 in. (98 mm x 152 mm) Maximum: 8.5 x 14 in. (216 mm x 356 mm) Envelopes Minimum: 3.875 x 5.9 in. (98 mm x 152 mm) Maximum: 8.5 x 14 in.
  • Page 40 Envelopes a time from the manual feeder, or load up to 10 envelopes in the automatic paper feeder. We recommend Lexmark Laser Printer Transparencies: for letter size transparencies, part number 70X7240; for A4 size transparencies, part number 12A5010. Transparencies must be able to withstand temperatures of 200°C (392°F) without...
  • Page 41 When printing on envelopes: • Try a sample of any envelopes you are considering using with the printer before buying large quantities. • Use envelopes made from 75 to 105 g/m 28 lb) bond paper. For best performance and fewer paper jams, do not use envelopes that: –...

  • Page 42: Card Stock

    • Load envelopes vertically, flap side down so the stamp area is in the top left corner. • Adjust the left and right paper guides to fit the width of the envelopes. For occasional label printing, use paper labels designed Labels for laser printers.

  • Page 43: Loading Paper, Other Media In The Automatic Feeder

    To avoid curling and potential jams when printing on special media, open the front output door to feed the media straight out the front of the printer. Extend the paper support on the automatic paper feeder.
  • Page 44 If loading: • A4, A5, B5, legal or executive-size paper, insert the paper with the print side facing you • letterhead paper, insert letterhead with the top of the page pointing down, facing you • transparencies with a removable stripe, insert them so the stripe is pointing away from you and pointing down •...
  • Page 45 Chapter 3: Paper handling Extend the paper support on the paper output bin or open the front output door if you’re printing on special media. Select the automatic paper feeder from your software application. Start your print job.

  • Page 46: Loading Paper, Other Media In The Manual Sheet Feeder

    Manual sheet feeder Use the manual feeder to feed paper or special media, one sheet at a time, into your printer. If you experience problems feeding envelopes or index cards in the automatic paper feeder, try printing them one at a time from the manual feeder.

  • Page 47: Clearing Paper Jams

    After you remove the cartridge from the printer, cover it or store it in a clean, dark place. Chapter 3: Paper handling If you get a paper jam, the Paper Jam indicator light prompts you to clear the paper path.
  • Page 48 Call for service. Grasp the paper on both sides and pull the paper toward you. Make sure there is no more paper in the printer. Re-insert the print cartridge. Close the printer cover to resume printing. If a paper jam occurs while printing labels: Be sure the labels remain attached to the backing sheet after clearing the paper jam.
  • Page 49 Troubleshooting Tips Problem: Paper sticks together/printer feeds multiple sheets of paper. Paper skews or buckles. Envelopes fail to feed correctly. Chapter 3: Paper handling What to do: • Make sure you are using recommended paper/other media (see types and sizes).

  • Page 50: Troubleshooting

    • Hot/humid or cold/dry weather conditions may affect how well toner adheres to paper. Select the next darker print setting. • If Toner Saver is on, turn it off using MarkVision or your printer driver. • Remove the print cartridge, shake it from side-to-side to redistribute the toner, and reinsert it.

  • Page 51: Print Quality Problems

    — If you can print a test page, the problem is in the computer or the software application. — If you cannot print a test page, call the Lexmark service number listed on the printer registration card. • Open and close the printer cover to restart the printer.

  • Page 52: Indicator Lights

    The next section explains the various light sequences with a corresponding illustration. The indicator lights mean different things, depending on their sequence. They indicate that the printer is Ready to print (printer status information); the printer needs attention (printer attendance information); or the printer needs servicing (printer service information).

  • Page 53: Printer Status Information

    • Print a test page by pushing the operator panel button with a brief button press, or • reset the printer by pushing the operator panel button with a long button press. Each time the printer is reset, the print job in process is terminated.
  • Page 54 If your printer lights look like this: Then your printer: is Busy receiving data, processing data, the print engine is running, or processing/printing a test page. • If you want to reset the printer, push the operator panel button with a long button press. Indicator lights...
  • Page 55 Waiting until a Print Timeout occurs or until additional data is received. • Print data stored in the printer buffer by pushing the operator panel button with a brief button press or • reset the printer by pushing the operator panel button with a long button press.
  • Page 56 If your printer lights look like this: Then your printer: is Resetting settings to their power-on default settings or saving settings changed in configuration mode. Indicator lights...
  • Page 57 If your printer lights look like this: Then your printer: is Flushing corrupted print data. Chapter 4: Troubleshooting...
  • Page 58 Printer attendance information If your printer lights look like this: Then your printer: detects a Paper Jam. • Open the printer cover, clear all paper from the paper path and close the cover to resume printing. Indicator lights...
  • Page 59 • Load media, with the side to be printed facing the front of the printer, into the manual feeder and push the operator panel button to resume printing, or • reset the printer by pushing the operator panel button with a long button press. Then your printer: is alerting you that the printer is out of paper/envelopes or that the paper did not feed properly from the automatic paper feeder.
  • Page 60 If your printer lights look like this: If your printer lights look like this: Then your printer: top cover is open or the print cartridge is not installed. • Close the cover to display the light sequence that appeared before the cover was opened.
  • Page 61 If your printer lights look like this: Chapter 4: Troubleshooting Then your printer: • memory is full, or • received a page that is too complex to print, or • reduces the resolution of a formatted page to 300 dpi before printing, or •...

  • Page 62: Secondary Error Codes

    • Reduce the complexity of the job and/or the resolution, or • press the operator panel button with a brief button press to resume printing, or • reset the printer by pushing the operator panel button with a long button press. Indicator lights...
  • Page 63 • Switch the printing mode to a different printing mode via the Lexmark driver for Windows, or • press the operator panel button with a brief button press to resume printing, or • reset the printer by pushing the operator panel button with a long button press.
  • Page 64 300 dpi before printing it (Resolution Reduction Warning). • Push the operator panel button to resume printing, or • reset the printer by pushing the operator panel button with a long button press. Indicator lights...
  • Page 65 If your printer lights look like this when you double-click the operator panel button: Chapter 4: Troubleshooting Then your printer: has received a request for a PPDS font which is not installed (Font Error). • Reset the front panel by pushing the operator panel button with a...
  • Page 66 If your printer lights look like this when you double-click the operator panel button: Then your printer: doesn’t have enough memory to save what is in the buffer (Resource Save Off). • Install additional memory or • push the operator panel button to resume printing, or •...
  • Page 67 (Insufficient Defrag Memory). • Delete fonts, macros and other data in RAM, or install additional printer memory, then issue a PJL command to begin freeing up unused space in flash memory.
  • Page 68 USB port, but the port has been disabled in configuration mode. • If this error occurs when you turn on the printer, double check that the ENA is still plugged in to the printer. • If you want to print through the parallel port, print a menu settings...
  • Page 69 • Turn the printer off and back on. If the lights are still blinking, contact your point of purchase, or call the Lexmark service number listed on your printer registration card. When formatting problems occur or unexpected characters print, try resetting the printer default settings to your user defaults.
  • Page 70 Press Button light is blinking. Do a long button press to start Engine Clean Cycle. The printer feeds one sheet of plain paper through the paper path to remove any accumulated toner. Once the paper exits into the output bin, the printer returns to the Ready state.
  • Page 71 Once the paper exits into the output bin, the printer returns to the Ready state. When you’ve isolated the problem, i.e., print is too light, toner streaks, and so on, refer to the...
  • Page 72 Data sent to the printer is printed out in hexadecimal and character representation to help isolate the source of the problem. To exit Hex Trace, turn off the printer or press the operator panel button to reset the printer. Indicator lights...

  • Page 73: Restore Factory Defaults

    The operator panel Data light is on solid, the Error light is blinking and the Press Button light is blinking. Do a long button press to reset the printer to the original factory defaults. Once the settings are returned to the factory default...
  • Page 74 Once you’ve checked these things, turn your printer off and back on again. If your printer is still not operating properly, call the Lexmark service number listed on the printer registration card or contact your point of service. If the Ready indicator light is on, briefly press the operator panel button to print a test page.
  • Page 75 Chapter 4: Troubleshooting...

  • Page 76: Supplies

    Within the U.S. or Canada, you can order Lexmark supplies from any Lexmark Authorized Supplies Dealer. To locate the dealer nearest you, call the number on the printer registration card that came with your printer. In other countries, contact the place where you bought your printer.

  • Page 77: Recycling Used Supplies

    • The print cartridge may be defective. Replace the cartridge. • Make sure you removed the sealing tape from the print cartridge. • Make sure the print cartridge is installed. Lexmark’s Operation ReSource participate in worldwide recycling at no cost to you. Some shipping cartons have printed instructions for participating in Operation ReSource.

  • Page 78: Appendix A: Printer Specifications

    • 100-sheet paper output tray and a single-sheet output door • 4MB printer memory • 4MB, 8MB, 16MB, 32MB and 64MB memory options for 68MB maximum memory expansion • 1MB, 2MB and 4MB flash memory options •...

  • Page 79: Printer Dimensions

    Printer dimensions Appendix A: Printer specifications Height: 8.8 in. (224 mm) Width: 13.6 in. (345 mm) Depth: 14.4 in. (365 mm) Weight: 16.5 lb (7.5 kg) with print cartridge...

  • Page 80: Appendix B: Advanced Troubleshooting

    If you contact the Lexmark Customer Support Center to help you resolve a printing problem, they may guide you through configuration mode to change a default setting (i.e., turning on the PPDS Activated setting if your job application uses the PPDS datastream).
  • Page 81 This illustration represents the operator panel settings in configuration mode when an indicator light is on solid. When the printer is in configuration mode, the indicator lights take on new meanings based on their function. The following tables describe the function of...
  • Page 82 Parallel Port Enabled setting is set to Auto, the factory default. If your printer encounters a memory shortage when trying to print a job and you are not using the parallel port, turn off Parallel Port Enabled to free up a little more memory.
  • Page 83 Then your printer: Parallel Protocol setting is set to Fastbytes, the factory default. When the protocol is set to Fastbytes, the printer receives information at a much faster transmission rate, provided the host computer supports Fastbytes. When the protocol is set to Standard, the printer receives information at a normal transmission rate.
  • Page 84 • Do a long button press to select and save a setting for this menu. As the setting is saved, all operator panel indicator lights remain on for approximately 2 seconds. Turn off the printer to exit configuration mode. Appendix B: Advanced troubleshooting Factory...
  • Page 85 Then your printer: Auto CRLF/LFCR setting is off, the factory default. How the printer formats the end of a line depends on the computer system being used. Use this setting to select whether or not the printer automatically performs a carriage return (CR) after a line feed (LF) or a line feed after a carriage return.
  • Page 86 • Do a long button press to select and save a setting for this menu. As the setting is saved, all operator panel indicator lights remain on for approximately 2 seconds. Turn off the printer to exit configuration mode. Appendix B: Advanced troubleshooting Factory...
  • Page 87 Parallel Strobe Adjust. • Do a long button press to select and save a setting for this menu. As the setting is saved, all indicator lights remain on for approximately 2 seconds. Turn off the printer to exit configuration mode. Factory Default...
  • Page 88 • Do a long button press to select and save a setting for this menu. As the setting is saved, all operator panel indicator lights remain on for approximately 2 seconds. Turn off the printer to exit configuration mode. Appendix B: Advanced troubleshooting Factory...
  • Page 89 USB Port Enabled setting is set to Auto, the factory default. The Universal Serial Bus (USB) lets you connect a variety of devices, i.e., a printer, to your computer with a single cable. • Do a brief button press to scroll through the settings (Off, On, Auto) for this menu item.
  • Page 90 USB NPA Mode setting is set to Auto, the factory default. When USB NPA Mode is enabled, your computer can send print jobs to the printer and query printer status information simultaneously. • Do a brief button press to scroll through the settings (Off, On, Auto) for this menu item.
  • Page 91 Appendix B: Advanced troubleshooting...

  • Page 92: Appendix C: Safety Information

    • global safety standards with the use of specific Lexmark com- ponents. The safety features of some parts may not always be obvious. Lexmark is not responsible for the use of other replace- ment parts. • Your product uses a laser, exercise...
  • Page 93 Lexmark. Puede que las características de seguridad de algunas piezas no sean siempre evidentes. Lexmark no se hace responsable del uso de otras piezas de recambio. •...
  • Page 94 Denna produkt är utformad, testad och godkänd för att uppfylla internationella säkerhetsbestämmelser när den används tillsammans med andra Lexmark-produkter. Säkerhetsegenskaperna för vissa delar är inte helt uppenbara. Lexmark frånsäger sig ansvaret om delar av ett annat fabrikat används. Var försiktig - maskinen använder laser. •...
  • Page 95 • os padrões globais de segurança para uso de componentes específicos da Lexmark. Os recursos de segurança de alguns componentes podem não ser sempre óbvios. A Lexmark não é responsável pelo uso de outros componentes de substituição. • O produto usa raios laser, tome CUIDADO: O uso de controles, ajustes ou a execução de...
  • Page 96 Appendix C: Safety information...
  • Page 97 Appendix C: Safety information...
  • Page 98 Appendix C: Safety information...
  • Page 99 Appendix C: Safety information...

  • Page 100: Appendix D: Notices

    To assure compliance with FCC regulations on electromagnetic interfer- ence for a Class B computing device, use a properly shielded and grounded cable such as Lexmark part number 1329605 for parallel and 12A2405 for USB. Use of a substitute cable not properly shielded and grounded may result in a violation of FCC regulations.

  • Page 101: Japanese Vcci Notice

    This feature will cut the energy used by up to 50 percent. Lexmark is proud to be a participant in this program. As an Energy Star Partner, Lexmark International, Inc. has determined that this product meets the Energy Star guidelines for energy efficiency.
  • Page 102 DHHS 21 CFR Subchapter J, voor andere landen in IEC 825. Laserprodukten van klasse I worden niet als ongevaarlijk aangemerkt. De printer is voorzien van een laser van klasse IIIb (3b), dat wil zeggen een gallium arsenide-laser van 5 milliwatt met een golflengte van 700- 810 nanometer.
  • Page 103 Laserprodukter i Klass I anses ej hälsovådliga. Skrivaren har en inbyggd laser av Klass IIIb (3b) som består av en laserenhet av gallium-arsenid på 5 milliwatt som arbetar i våglängdsområdet 700-810 nanometer. Laser- systemet och skrivaren är utformade så att det aldrig finns risk för att någon person utsätts för laserstrålning över Klass I-nivå...

  • Page 104: Statement Of Limited Warranty

    Canada, refer to the country-specific warranty information that came with your printer. Optra E312 This Statement of Limited Warranty applies to this product if it was originally purchased for your use, and not for resale, from Lexmark or a Lexmark remarketer, referred to in this statement as “Remarketer.” Warranty Lexmark warrants that this product: •...
  • Page 105 When warranty service involves the exchange of a product or part, the item replaced becomes the property of the Remarketer or Lexmark. The replacement may be a new or repaired item. The replacement item assumes the remaining warranty period of the original product.
  • Page 106 Lexmark is legally liable. In no event will Lexmark be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages. This is true even if you advise Lexmark or a Remarketer of the possibility of such damages.
  • Page 107 Additional Rights Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you. This warranty gives you specific legal rights.

  • Page 108: Glossary

    1200 Image Quality. A print resolution setting that allows the printer to vary the size of each printed pixel, thereby producing a continuous tone effect. This setting improves the print quality of graphic fills, images and halftones. A4. Paper measuring 210 x 297 mm.
  • Page 109 A family or set of characters that have common visual characteristics, such as size, weight and style. fuser. The part of the printer that uses heat and pressure to make toner adhere to the paper. g/m². Grams per square meter. Metric measurement for paper weight.
  • Page 110 The basic software which provides the low-level functions needed to operate your computer, such as booting up. Operation ReSource. Lexmark’s process established to recycle toner cartridges and print units. operator panel. The 6 lights and 1 button on the printer that are used to change printer settings and display printer status.
  • Page 111 Clears the printer buffer and all temporary settings, and returns to the initial power-on state. resolution. A measure of the sharpness of a printed image, expressed in the number of dots per inch (dpi). scalable font. A font whose characters are...

  • Page 112: Index

    Parallel Protocol 70 Parallel Strobe Adjust 75 PPDS Activated 71 USB NPA Mode 77 USB Port Enabled 76 selecting 67 connecting the printer using a parallel interface cable 4 using a USB cable 5 CRLF/LFCR 72 energy conservation 88 Energy Star 88...
  • Page 113 Top Cover Open 47 Waiting 42 installing 18 flash memory card option 18 print cartridge 2 printer drivers 21 printer memory card option 17 Insufficient Defrag Memory 54 jams 34 label types 29 language, changing operator panel display 13 laser notices 88 lights.
  • Page 114 Load Paper 46 Paper Jam 45 Ready 40 Resetting 43 Service Error 56 Waiting 42 printer memory card option, installing 17 printing a test page 12 Ready light 40 removing the system board shield 14 reset user defaults 56 Resetting light 43...
  • Page 115 27 labels 29 paper 26, 27 transparency 27 unpacking the printer 1 USB ix, 5–9, 75, 76, 77 Waiting light 42 Index...
  • Page 116 Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries. © 2000 Lexmark International, Inc. 740 West New Circle Road Lexington, Kentucky 40550 www.lexmark.com...

This manual is also suitable for:

Optra e310Optra e312l
