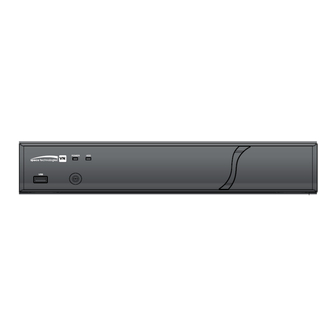

Speco D4VN User Manual

4, 8 & 16 channel hd tvi digital video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
(VN Ver. 0.91)
Model: D4VN, D8VN, D16VN
4, 8 & 16 Channel HD TVI Digital Video Recorder
About the User's Guide
Before operating the unit, please read this user's guide thoroughly and retain it for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Speco D4VN

Summary of Contents for Speco D4VN

  • Page 1 User Guide (VN Ver. 0.91) Model: D4VN, D8VN, D16VN 4, 8 & 16 Channel HD TVI Digital Video Recorder About the User’s Guide Before operating the unit, please read this user’s guide thoroughly and retain it for future reference.
  • Page 2 Cautions Explanation of Graphic Symbols This symbol indicates the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. This symbol indicates the presence of “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock, property damage, personal injury, or death.
  • Page 3 These Precautions must be followed for Safety Reasons Warning  Do not use if the unit emits smoke.  Do not disassemble the unit.  Do not place any heavy or sharp objects on the unit.  Do not place on uneven surface. ...
  • Page 4 Product Components Please make sure the following components are included as specified below. DVR Unit Remote Control Battery1.5V (AAA x 2EA) Quick Start Guide & Quick User Guide Mouse Software & Manual CD Adaptor (DC12V 3A) & Power cable (110V)
  • Page 5 JPEG, AVI, Proprietary Format and EXE Huge Backup Yes (Max. 24 hours) Storage Capacity of 1 HDD 10TB Internal HDDs e-SATA Front Rear User I/F Input Method IR Remote Control, Mouse, Keyboard Controller Network Interface 100Mbps 1Gbps Dynamic DNS Yes (Free Speco DDNS)
  • Page 6 System Event Notification Health, Restart, Shutdown, Panic Recording, Alarm, Motion, HDD Alert and email Network 3G/4G Mobile Viewer Speco Player (iPad / iPhone / Android)) Access PC Web Viewer Windows (IE, Edge, Chrome and Firefox) PC Client SecureGuard CMS and SpecoTech Multi-Client Viewer...

  • Page 7: Table Of Contents

    Table of Contents Main Features ..........................9 Initial Boot up Process ......................... 10 2-1. Initial Boot up and Basic Time Setup ..................10 2-2. Setting Daylight Saving Time ....................11 2-3. Setting NTP (Network Time Protocol) ..................12 2-4. EZ Setup ..........................15 Name, Function and Connection ....................
  • Page 8 5-3-8. Log List ..........................53 5-4. Playback Mode ........................53 Export and Back Up........................55 6-1. Still Image Backup onto USB Flash Drive ................55 6-2. Video Backup onto USB Flash Drive during playback ............56 6-3. EZCopy: Video Backup onto USB Flash Drive during playback..........57 6-5.

  • Page 9: Main Features

    1. Main Features  Easy Record, Copy and Setup  Easy Search by Thumbnail Preview  Easy Copy  Digital Deterrent function  H.265 & H.264 high quality compression saves HDD space  Simultaneous live view/playback while continuing to record/network transfer or backup ...

  • Page 10: Initial Boot Up Process

    2. Initial Boot up Process 2-1. Initial Boot up and Basic Time Setup 1. During the first boot up, the following logo and message will be displayed. 2. After the logo, select the language as specified below. 1) User has to set a password before using. Can not use ‘1111’...

  • Page 11: Setting Daylight Saving Time

    2-2. Setting Daylight Saving Time To enable Daylight Saving feature/NTP synchronization, take the following steps. 1. Enter the Setup mode. The default Username is “admin” and enter a password set on the initial boot-up process. 2. Go to Setup > System > Date & Time Setup...

  • Page 12: Setting Ntp (Network Time Protocol)

    3. Select ‘ok” from the Daylight Saving dropdown menu. 2-3. Setting NTP (Network Time Protocol) 1. Setup > System > NTP Setup > On > Select 2. Select the proper GMT Time Zone.
  • Page 13 Table 2.3.1. GMT Time Zone State Standard Time Daylight-Saving Time Alabama GMT-6 GMT-5 Alaska GMT-9 GMT-8 Alaska (Aleutian Islands) GMT-10 Arizona GMT-7 Arizona (Navajo) GMT-7 GMT-6 Arkansas GMT-6 GMT-5 California GMT-8 GMT-7 Colorado GMT-7 GMT-6 Connecticut GMT-5 GMT-4 District of Columbia GMT-5 GMT-4 Delaware...
  • Page 14 Nevada GMT-8 GMT-7 New Hampshire GMT-5 GMT-4 New Jersey GMT-5 GMT-4 New Mexico GMT-7 GMT-6 New York GMT-5 GMT-4 North Carolina GMT-5 GMT-4 North Dakota GMT-6 GMT-5 North Dakota (W) GMT-7 GMT-6 Ohio GMT-5 GMT-4 Oklahoma GMT-6 GMT-5 Oregon GMT-8 GMT-7 Oregon (E) GMT-7...

  • Page 15: Ez Setup

    2-4. EZ Setup VN Easy Setup(Click the right button on mouse > Advanced Menu > EZ Setup) Figure 2.4. EZ Setup Screen 2.4.1. Setup Date/Time and Record configuration Figure 2.4.1. EZ Record Setup Procedure ① Select EZ Record for Date/Time and Record Setup, click “next” to proceed. ②...

  • Page 16: Name, Function And Connection

    2.4.2. EZ Network (Using an internet connection) Figure 2.4.2. EZ Network Setup Procedure ① DVR automatically checking the network and configuration by scanning in few seconds. ② DVR will show the DDNS host name when configuration is finished automatically. ③ If you need to edit the host name please select ‘edit’ button. ④...

  • Page 17: Connectors

    ③ VGA: VGA (Video Graphics Array) output port. Connects to the PC VGA monitor. ④ HDMI VIDEO OUT: HDMI Video Output, Connections to the HDMI monitor (D4VN & D8VN: Max.1920x1080, D16VN: Max.3840x2160). ⑤ AUDIO IN: Four connectors for audio input.

  • Page 18: Remote Control

    3-3. Remote Control ① ID: To set the remote control ID. ② REC: To start and stop manual recording ③ SEARCH: To go to SEARCH menu. ④ F/ADV:  During playback – To move the playback position 60 seconds forward . ...

  • Page 19: Setting Up The Dvr

    4. Setting up the DVR The following sections detail the initial setup of the DVR. Menu screen will close if user input is not received in 5 minutes. 4-1. Setup – Main Live Screen To enter the setup menu, right click on the mouse and select setup from the submenu or press the setup button on the remote control.

  • Page 20: Setup - System Mode

    4-2. Setup – System Mode In the Setup menu, select the System tab. Then, the System menu is displayed as pictured below. Navigate through the menu items using the mouse or the remote control and change the value of the menu. Figure 4.2.1.
  • Page 21 Select Daylight Saving using the mouse or the remote control and select the appropriate daylight saving time zone. The options are: OFF: Daylight saving is turned off. ON: Applies the USA daylight saving time. Select Begin or End using the remote control and press the “ok” button. Caution - Do not set the start time to 23:00 for DLS.
  • Page 22 “NTP server time is faster than the system time. In this case, NTP server time is ignored to protect the user data. User must set the time manually. System Time: Mon Oct 10 13:46:49 2011 Server Time: Mon Oct 10 13:33:12 2011 DVR ID: DVR IP ADDRESS: 172.16.2.46”...
  • Page 23 System Event Notification Health Check (Allows the user to set e-Mail Status periodically) : Daily or Weekly or Monthly Video Clip Setup: Setup the duration of video clip for Pre Record and Post Record. Event And Notification – Yes or No (Allows the user to set Event Notification On or Off) Health Check / Restart / Shutdown / Panic Record Enable Email Notification in the event a problem occurs with the VN.

  • Page 24: Setup - Record Mode

    4-3. Setup – Record Mode In the Setup menu, select the Record tab. Then, the Record menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control. Figure 4.3.1. Record Setup Screen Table 4.3.1.
  • Page 25 Resolution Select 1920x2160, 1280x1944, 2580x1440, 1280x1440, 2048x1535, 1920x1080, 1920x540, 1280x720 and 640x360 using a mouse or a remote control. *Selectable recording resolutions are differ from input camera resolution. Set the frame rate for the specified channel. The sum of the frame rate values per Frame Rate channel cannot exceed the maximum frame rates for a specific recording resolution.
  • Page 26 4-3-1. Recording Schedules To setup a recording schedule, select Schedule in the Record menu. Navigate through the menu items or change the settings using the mouse or the remote control. Select the Channel; select one of the recording settings: None, Continuous or Motion, then highlight the area for the selected setting. To copy a schedule to a different channel, select the channel from the Copy Schedule menu, then click the Copy button.

  • Page 27: Setup - Device Mode

    4-4. Setup – Device Mode In the Setup menu, select the Device tab. Then, the device menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control. Figure 4.4.1. Device Setup Screen Table 4.4.1.

  • Page 28: Digital Deterrent

    Site Select specified channel for motion zone setup. Motion Zone Select either Full Zone or Partial Zone for motion detection. (Refer to #33) Press the right button of mouse to exit from Motion Zone grid screen. Motion Sensitivity Set the motion sensitivity for the selected channel. Control the motion sensitivity from 1 to 9.

  • Page 29: Keyboard Controller & Ptz Setup

    Table 4.4.2. Item for Digital Deterrent Setup Screen Item Description Import From USB Import up to 8 sound files from USB. Export To USB Export the sound file to USB Record Select a channel and set up the date and the duration. And, select the sound file to play.
  • Page 30 Figure 4.4.3. Sensor, Alarm & RS-485 Ports ② Open the PTZ sub menu by selecting the submenu button. Figure 4.4.4. PTZ Control Setup Screen Note: Connect PTZ cameras that support RS-485 directly to the RS-485 port. If the camera is controlled through an RS-232C interface, use an RS-232C to RS-485 to RS-232C signal converter.
  • Page 31 Notice : VN series can use UTC feature. : UTC(Up To Coax) allows for control of the camera’s OSD menu via the coax cable. User does not need extra connection via RS-485 to control the camera’s OSD menu How to set (Setup > Device > PTZ & Controller > UTC General) Figure 4.4.6.
  • Page 32 periodically. Sequence Dwell Set the dwell time for the spot channel display.(3-10 sec) Time Select a channel for spot monitoring using the mouse or the remote Spot Channel control and press “ok” button. 4-4-4. Motion Zone Setup Select Motion Zone using the mouse or the remote control and select either Partial Zone or Full Zone using the mouse control.

  • Page 33: Setup - Display Mode

    4-5. Setup – Display Mode In the Setup menu, select the Display tab. Then, the Display menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control. To return to the previous setup menu screen, press the “ESC”...

  • Page 34: Setup - Network Mode

    Control the Brightness, Contrast, Hue and Saturation. Video Output Select video output resolution (HDMI) (D4VN & D8VN: Max. 1920 X 1080, D16VN: Max. 3840 X 2160) Sub Monitor Select Sub Monitor Video out through BNC port. Output CVBS or Spot 4-6.

  • Page 35: Network Types

    Gateway Enter Gateway that is assigned for the DVR. DNS (Primary) Enter Primary DNS address that is assigned for the DVR DNS (Secondary) Enter Secondary DNS address that is assigned for the DVR DDNS Dynamic Domain Name System (DDNS) allows a DNS name to be constantly synchronized with a dynamic IP address.

  • Page 36: Network Port And Web Port

    Figure 4.6.2. Network Setup Screen – DDNS Table 4.6.2. DDNS Item Description Enable/disable the Dynamic Domain Name Service. Enable DDNS This item allows the user to setup a domain name manually, Host Name using virtual keyboard displays as shown. When manual host name input is done, move the cursor to this Subnet/Update item and select ON to submit the settings.
  • Page 37 D4VN: Up to 60 fps @ 640x360, 320x 240 for 4 channels. D8VN: Up to 120 fps @ 640x360, 320x 240 for 8 channels. D16VN: Up to 240 fps @ 640x360, 320x240 for 16 channels. <Note> Individual Channels can be set with different Resolution, Frame Rate, and Quality.

  • Page 38: Setup - User Management Mode

    4-7. Setup – User Management Mode In the Setup menu, select the User Management tab. Then, the User Management menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control.
  • Page 39 ADMIN, USER1, USER2, USER3, USER4, USER5, USER6, USER7, USER8, USER9: Selected Checkbox: The user can access the function. Blank Checkbox: The user cannot access the function. User Name Change the name of USER1, USER2, USER3, USER4, USER5, USER6, USER7, Setup USER8, and USER9.
  • Page 40 Remote Disconnect the remote playback after the specific time (Disable, 5min, 10min, 15min, Playback 30min, 60min. Timeout Import Upload https certificate through USB Certificate From Advanced Send IP address and ports information to the control center Setup Debug Port Open or Close the ports for remote checking Shows the current network connection status (User, IP Address, Date/Time).

  • Page 41: Setup - Storage Mode

    4-8. Setup – Storage Mode In the Setup menu, select the Storage tab. Then, the Storage menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control. Figure 4.8.1. Storage Setup Screen Table 4.8.1.

  • Page 42: Setup - Config Mode

    Disk Info Hard drive information. Displays the following information: Recording Limit Enable recording limit: The amount of data recorded in HDD will be limited to the most recent number of days as set by “Recording Limit Days”. Disable recording limit: When Overwrite is on, DVR will continue to record when HDD is full and overwrite older data.

  • Page 43: Software Upgrade

    1. In the USB flash drive root directory, create a new folder named “upgrade” 2. Create sub-folder for each model under “upgrade” folder and copy each software file to their folder.  “d4vn” for D4VN: “main_d4vn_speco_*.*.*_202****”  “d8vn” for D8VN: “main_d8vn_speco_*.*.*_202****”...
  • Page 44 Figure 4.9.2 Figure 4.9.3 Figure 4.9.4 Figure 4.9.5 NOTICE If selecting “Restart Now” when the USB flash drive is plugged, the following message will pop up with beep sound.

  • Page 45: Live, Search And Playback

    5. Live, Search and Playback 5-1. Live View In the Live screen, video inputs from the cameras are displayed as they are configured in the Display Setup screen. When the mouse is right clicked, and the quick operation window will be displayed as below. Figure 5.1.1.
  • Page 46 Table 5.1.1. Status Indicator Icons in Live Viewing Screen Icon Description Indicates the DVR is locked. Note) to unlock, right click on the live view screen and select on Unlock. Audio mute. Audio channel output can be selected from the quick operation menu Indicates that alarm is set.
  • Page 47 going through the search mode. Enable Manual Manual Record button. Click this button to enable manual recording. Record Also known as Panic Record. Instant Playback Instant playback on each channel for 10 / 20 / 30 / 60 seconds Advanced Menu EZ Setup Select this option to start EZ Setup Wizard Audio Mute...

  • Page 48: Ptz Control

    5-1-1. PTZ Control Table 5.1.3. Menu Items in PTZ Control Window Image Item Description INITIALIZE Initialize the PTZ settings of the selected camera PAN/TILT Select PAN/TILT using the ▲▼◀ and ▶button, then press SEL. Adjust the tilt (UP/DOWN)/pan (LEFT/RIGHT) position using the ▲▼◀and ▶ buttons.

  • Page 49: Digital Zoom In Live And Playback Screen

    5-2. Digital Zoom in Live and Playback Screen VN series supports Digital Zoom feature during live and playback mode. 1. Double click the target channel. 2. Click the left button of the mouse and drag to make rectangular shape. 5-3. Search Screen To enter the search screen menu, select Search menu on the screen using the mouse or press Search icon on live screen.

  • Page 50: Ezsearch

    There are 7 options in the Search Menu, they are: EZSearch, Time Line (Calendar), Event, Go To First Time, Go To Last Time, Go To Specific Time, Archive list, and Log list on the screen. 5-3-1. EZSearch The EZSearch window is used to find stored video with ease using the thumb nail playback screen. Figure 5.3.2.

  • Page 51: Time Line Search

    5-3-2. Time Line Search The Calendar Search window is used to find the stored video by using the time line bar. Figure 5.3.5. Calendar Screen Figure 5.3.6. Time-Line Search Screen When the Timeline menu is selected, the user can see a calendar, which displays recorded dates with highlights.

  • Page 52: Go To First Time

    Figure 5.3.8. Event Search Screen 5-3-4. Go To First Time You can access the oldest recorded data on the DVR hard drive by selecting Go To First Time on the Search window. Press the “prev” to return to the Search window. 5-3-5.

  • Page 53: Log List

    The following status bar hides automatically and appears again if a mouse pointer is positioned to the bottom of the screen. Table 5.4.1. Button Functions in PLAY Mode Button Description  1x, 2x, 4x, 8x,16x, 32x for D4VN  1x, 2x, 4x, 8x,16x for D8VN  1x, 2x, 4x, 8x for D16VN...
  • Page 54 Jump/Step backward. The playback position moves 60 seconds backward. Press to play or pause recorded video. Jump/Step forward. Playback position moves 60 seconds forward.  2x, 4x, 8x,16x, 32x for D4VN  2x, 4x, 8x,16x for D8VN  2x, 4x, 8x for D16VN Single Channel forward playback speed 1x, 2x, 4x, 8x, 16x, 32x, 64x Slow Mode play.

  • Page 55: Export And Back Up

    6. Export and Back Up 6-1. Still Image Backup onto USB Flash Drive Still images can be captured and archived onto a USB flash drive or an USB external hard drive in live mode or while playing back recorded video. 1.

  • Page 56: Video Backup Onto Usb Flash Drive During Playback

    6-2. Video Backup onto USB Flash Drive during playback Video can be captured and archived onto the USB flash drive or a hard drive while playing back the recorded video. In playback mode, press the “Export” button to launch the backup function. 1.

  • Page 57: Ezcopy: Video Backup Onto Usb Flash Drive During Playback

    5. The following shows the image to complete the backup. Select lose to return to the previous screen. 6-3. EZCopy: Video Backup onto USB Flash Drive during playback Using EZCopy feature, Video can be easily archived onto the USB flash drive or a hard drive. In playback mode, press the “EZCopy”...

  • Page 58: Playback Of Backup Video

    5. After backup format is selected, also select media type and channel(s) to archive the data to the media. 6-5. Playback of Backup Video 6-5-1. AVI Format AVI format: AVI format video can be played back by Window Media Player™ or other media player that is compatible with AVI format video.

  • Page 59: Nsf Format

    Timestamp On AVI. The subtitle is embedded to the video clip file. The subtitle is embedded to the AVI file. To display a subtitle, user should install a special filter called “Decoder Filter”. 6-5-2. NSF Format NSF format: NSF format video can be played back using the HDplayer that the DVR copies to “DvrPlayer”...

  • Page 60: Network Access Using The Multi-Sites Network Viewer

    7. Network Access Using the Multi-Sites Network Viewer 7-1. Overview The SpecoTech Multi Client is a multiple site monitoring client software with; video, audio, and alarm signals from the DVRs over the network. The SpecoTech Multi Client does not limit the number of DVR units to register.

  • Page 61: Installation Of The Program

    7-3. Installation of the Program 1. Insert the provided CD in the CD drive and double-click “SpecoTech Multi Client (XXXX).exe” 2. Select a destination folder and click “Next”. 3. Select the program folder and click “Next”. 4. The installation status screen is displayed. 5.

  • Page 62: Live Window

    7-4. Live Window When installation is completed, double click the “SpecoTech Multi Client” icon on your desktop to start the program. 7-4-1. Main User Interface...

  • Page 63: Control Buttons

    7-4-2. Control Buttons Button Description Click this icon to run a playback window to search and play videos that LOCAL PLAYBACK are recorded in the local PC. Click this icon to run a playback window to search and play videos that REMOTE PLAYBACK are recorded in the remote DVR.

  • Page 64: Search And Playback Window

    7-5. Search and Playback Window 7-5-1. Main User Interface You can access to search window by clicking the search icon (Local Playback / Remote Playback) on the upper right of the Live Window.

  • Page 65: Main Control Panel

    7-5-2. Main Control Panel Button Description Click this icon to run a playback window to search and play videos that LOCAL PLAYBACK are recorded in the local PC. Click this icon to run a playback window to search and play videos that REMOTE PLAYBACK are recorded in the remote DVR.
  • Page 66 To change a timeline scale from 24 hours to 60 minutes. The timeline shows recorded data in color on the bar. You can adjust the timeline scale and move it to the time you wish to playback. Then click the play icon to display the recorded video. Playback buttons.

  • Page 67: Smart Search

    7-5-3. SMART SEARCH 1) User can search with selected area 2) Click right mouse button when playback 3) ‘Smart Search’ will search in the selected area only. 4) ‘Smart Search’ checking the motion and event from the selected area. 5) User can set, Sensitivity, Internal, Thumbnail size, Date and Time...
  • Page 68 6) Select any of search Thumbnail then selected event will playing.

  • Page 69: Setup Of Specotech Multi Client

    7-6. Setup of SpecoTech Multi Client Click the setup icon to setup the configuration of SpecoTech Multi Client software. The SETUP window is displayed as below. 7-6-1. General Security Option: Set a password for security options. Select security options and set a password. Then when you access any of selected functions, you need to enter the password.

  • Page 70: Event

    7-6-2. Event Event log can be archived and searched. Event Log: Specify the location to save event logs and select event to archive. Event Search: Event log can be searched from the selected time.

  • Page 71: Record

    7-6-3. Record Record Setup: You can set the recording conditions as the following; Always, Event, or Auto record. And you can also select target DVR/DVRs and channel/channels. When you set the recording condition to event, you can set event for motion or alarm with duration. Record Local Storage Setup: You can select the local disk to record and the amount of disk space you want to allow the program to use for recording.

  • Page 72: Display

    7-6-4. Display You can select the OSD (On Screen Display) to be displayed. 7-6-5. Language English, French and Spanish is selectable.

  • Page 73: About

    7-6-6. About “About” provides network client version information.

  • Page 74: Remote Setup

    7-7. Remote Setup The menu settings for the DVR unit can be set over network. Put the cursor of the mouse on the channel, which is connected to the site and right click on the mouse to open the submenu. Then the following window is displayed as below. Select the REMOTE SETUP. Then the setup window is displayed.
  • Page 75 7-7-1. System Select System to set system and time settings.  DATE DISPLAY FORMAT: Select the date display format.  CLIENT ACCCESS: Enable/Disable remote access through network client software.  NTP SETUP: Sets whether to synchronize the time using NTP server or not. o Primary SNTP Server: Input the NTP primary server address.
  • Page 76 o SEND MAIL TEST: Examine the function with registered information.  USER NAME: Name the DVR  SYSTEM RESTART  SYSTEM EVENT NOTIFICATION Allows the user to set EVENT NOFICIATION ON or OFF o HEALTH CHECK (Allows the user to set MAIL STATUS periodically): DAILY or WEELY or MONTHLY o HDD TEMPERATURE o HDD BAD SECTOR o HDD ALMOST FULL...
  • Page 77 7-7-2. Record Select RECORD tab to set the recording conditions. These settings apply to the specified channel only.  Recording Setup o RESOLUTION: Sets the resolution for the recordings. The value applies to an individual channel. o FRAME RATE: Sets the recording rate. o QUALITY: Sets the image quality in 5 levels.
  • Page 78 7-7-3. Device Select Device to set Spot Out, Enable/Disable CVBS Out, motion zone.  ALARM OUT: Set the alarm out duration.  DIGITAL DETERRENT: Set the schedule of digital deterrent function and upload the sound file to DVR.  CONTROLLER: Set the controller baud rate and ID. ...
  • Page 79 7-7-4. Display Select the DISPLAY tab to set the DISPLAY conditions. These settings apply to all channels.  OSD: Sets whether to display or not, the date and time as well as channel number on the screen.  OSD CONTRAST: Adjust the character contrast on the screen. ...
  • Page 80 7-7-6. User Management Select the USER MANAGEMENT tab to set the DISPLAY conditions. 7-7-7. Storage Select Storage to configure continued recording settings by overwriting the hard disk and the storage period for the recording data.  OVERWRITE: Continues recording by writing over previous recordings when HDD is full. ...

  • Page 81: Operation

    7-8. Operation 7-8-1. Addition, Delete, and Modify of DVR Sites 7-8-1-1. Addition of Sites 1. Click SITE ADDITION button. And then the following window will be displayed as below. o Site Name: Input a name that properly describes a site. o IP Address: Input IP address (Public IP address of a router that DVR is connected.) or Domain name o Port Number: Default Port Number is “5445”.
  • Page 82 2. Click NET FINDER button. And then the following window will be displayed as below. 3. Click Modify button. And then the modified information is displayed as below.
  • Page 83 7-8-2. Connect and Disconnect 7-8-2-1. Connect 1. Select site/sites to connect from the directory window. 2. Click CONNECT button, and then site/sites displays/display as connected. 7-8-2-2. Disconnect 1. Select site/sites to disconnect from the directory window. 2. Click DISCONNECT button, and then selected site/sites disconnected.
  • Page 84 7-8-3. Still-image Capture During Live 1. Double-click a channel to capture from the display screen. (Otherwise all channels will be captured.). 2. Click CAPTURE button. And then a Capture window will be displayed as below. 3. Set Save Path, File Name, and File Format. And then click OK button. 4.
  • Page 85 7-8-4. Recording Video on Local PC During Live 1. Click SETUP button. And then a setup window will be displayed as below. 2. Select Record and set the values. 3. Select Disk and set the values. 4. Click RECORD ON button. And the color of button is changed. 5.
  • Page 86 7-8-5. Local Playback and Remote Playback 7-8-5-1. Playback of Recorded Video on a Local PC 1. Click LOCAL PLAYBACK. And then Playback Window will be displayed over the Live Window. 2. Select site/sites to connect from the directory window. 3. Click CONNECT button.
  • Page 87 7-8-5-2. Playback of Recorded Video on Remote DVR 1. Click REMOTE PLAYBACK. And then Playback Window will be displayed. 2. Select the site to connect from the directory window. 3. Click CONNECT. And then Green bar displays on Search calendar and timeline scale. 4.
  • Page 88 7-8-6. AVI Backup during Playback You can back up the recorded videos in AVI format during playback. 1. Double-click the target channel to backup. 2. Select the beginning time by using the search calendar and timeline scale bar. 3. Click EZCOPY START button on the timeline scale to select the beginning point of the backup.
  • Page 89 6. You can also set the beginning time and ending time on this window. After selecting a channel for backup, click the OK button. The backup will begin. 7. AVI video data is recorded as selected in AVI Backup window. AVI format video can be played back by using Window Media Player™...

  • Page 90: Network Access Using The Web-Browser Viewer

    8. Network Access Using the Web-Browser Viewer The DVR provides a live remote monitoring feature by web-browser viewer. (NOTE: Web-Brower is only available for Internet Explorer) 1. Check the IP address of the DVR from SETUP>SYSTEM>DESCRIPTION>IP ADDRESS or 2. Input the IP address or Domain name address that you pre-registered. 3.
  • Page 91  Site Name: Input a name that properly describes a site.  IP Address: Input IP address (Public IP address of a router that DVR is connected.) or Domain name  Port Number: Default Port Number is “5445”.  ID: Input ID of DVR. Default ID is “admin”. 7.

  • Page 92: Network Access Using The Smart Phone Viewer

    2. Search “Speco Player” in the App Store. Notice SPECO Player is for the VN, VX2, VX, VT, HT, HS, ZS, NS, DS, RS and HD series DVRs. SPECO VIEWER is not compatible with the T Series DVR’s (TH, TN or TL) or the PC Series DVR’s.
  • Page 93 4. The app will display the selected channel(s). Double tap the channel screen to switch 1 channel display to 4, 8, 10, 16 channels split display depending on the DVR. 5. To select the display mode(1, 4, 9, 10 or 16 split display), tap the arrow menus button 6.
  • Page 94 9-1-2.PTZ Control To control the PTZ functions of the camera, tap the menu button. Then PTZ menu icons will display. Using the PTZ icon on the screen, can control PTZF functions. 9-1-3. Playback 1. Select mode as ‘Playback’ and click ‘Connect’ button. Then select Date & Time and click ‘Connect’...

  • Page 95: App Viewer For Android Phone

    2. Search “Speco Player” in the Android Market and install the “Speco Player” app. Notice SPECO Player is for the VN, VX2, VX, VT, HU, HT, NU, NS, HS, DS, RS and HD series DVRs. SPECO VIEWER is not compatible with the T Series DVR’s (TH, TN or TL) or the PC Series DVR’s.
  • Page 96 3. The app will display the selected channel(s). Double tap the channel screen to switch 1 channel display to 4 channels split display. 9-2-2. Playback 1. Select the registered device and select ‘Play back’ and select up to 4 channels to search. Then click ‘Start’ button.
  • Page 97 2. The app will display the selected channel(s). Double tap the channel screen to switch 1 channel display to 4 channels split display. 9-2-3.PTZ Control To control the PTZ function of the camera, tap the channel screen, and then the channel name will be highlighted in Light Green.

  • Page 98: Appendix: Network Connection - Lan

    APPENDIX: Network Connection - LAN 1. Install the network client software from the supplied CD. 2. Check the IP address from SETUP > SYSTEM > DESCRIPTION or SETUP>NETWORK of DVR. 3. Run the network client software. 4. Input Site Name, Site Address (IP address), Port Number, and Password on the connect window. ...

  • Page 100: Appendix: Network Connection - Internet And Ddns

    2. Go to SETUP>NETWORK>DDNS>HOST NAME. Manually enter a domain name using the virtual keyboard and click ENTER button. 3. When a manual host name is completed, Go to SETUP>NETWORK>DDNS>SUBMIT/UPDATE and select ON to submit the settings on the SPECO DDNS. Once the setting is completed, the DDNS address will be: http://hostname.ddns.specoddns.net For example, if you enter the host name as “D16VN”, then the address will be:...
  • Page 101 5. When you exit SETUP menu, DDNS NOTIFIY window will pop up. 6. DDNS registration status can be checked from SYSTEM INFORMATION or SETUP>SYSTEM>DESCRIPTION>DDNS STATUS 7. Check the NETWORK PORT (Default: 5445), WEB PORT (Default: 80), and the IP Address of the DVR from SETUP>NETWORK.
  • Page 102 9. Run the network client software. 10. Input Site Name, Site Address (IP address), Port No., and Password on the connect window.  Site Name: Input a name that properly describes a site.  IP Address: Domain name or Public IP address of a router that DVR is connected. ...
