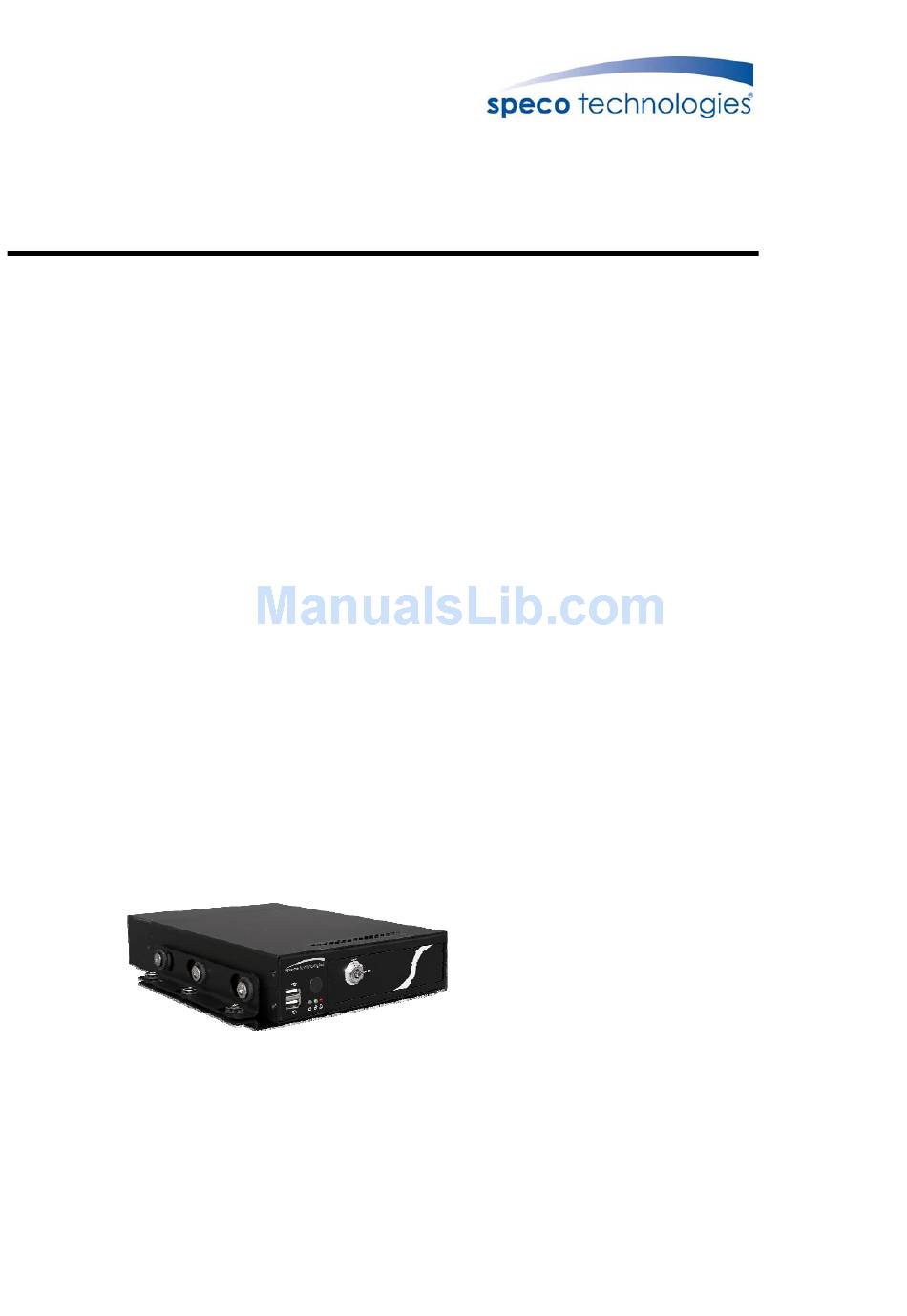

- Page 1 H.264 4-Channel Mobile D4M User’s Manual ▪ H.264 4-Ch. Mobile D4M ▪ Anti Shock & Vibration control ▪ Built-in System Heating ▪ 2.5” Mobile HDD & SD Card ▪ GPS, G-Sensor...
-
Page 2: Preface
Preface We welcome you as a new user of the world's best digital video recorder (D4M), and the leading Digital Video Surveillance System. For effective usage, please read this manual carefully. For future reference, please keep this manual close to hand. Copyright/Authentication/Trademark/Limited Warranty Copyright This manual is produced under copyright law. - Page 3 Risk of death or serious injury. This is the highest priority danger warning. • RISK OF EXPLOSION IF BATTERY IS REPLACED BY INCORRECT TYPE. DISPOSE OF USED BATTERY ACCORDING TO THE INSTRCTIONS. • THIS EQUIPMENT IS INDOOR USE AND ALL THE COMMUNICATION WIRINGS ARE LIMITED TO INSIDE OF THE BUILDING.
- Page 4 Risk of minor injury or damage. • If a foreign substance is stuck to the product, remove it using a soft cloth or tissue. Do not use chemical agents (thinner, solvent, etc.) to remove the substance. • Do not operate or store the product in the following places. - An area that is either too cold or too hot - An area of high humidity, or in front of an air-conditioner, or in places subject to sudden temperature changes...
-
Page 5: Table Of Contents
Contents Preface ....................1 Copyright/Authentication/Trademark/Limited Warranty ..........1 Cautions ........................1 Contents ..................... 4 Chapter 1. Introduction ..............7 1. The System ......................7 2. General Features ....................7 3. Specification ....................... 8 Chapter 2. System Installation ............9 1. Package Contents ....................9 2. - Page 6 Appendix B. How to set DDNS using router ........72 1. Domain Name Creation ................. 72 2. Router Configuration ..................74 3. D4M Configuration ..................75 Appendix C. Speco Live Tracker Instructions ........76 1. Summary ......................76 2. Feature ....................... 76...
- Page 7 Appendix D. Speco Cloud Archive Instructions ....... 83 1. Outline ....................... 83 2. Feature ....................... 83 3. How to use Speco Cloud Archiver ................. 84 4. Set Up ........................ 88 5. Reference ......................94 COMPLIANCE NOTICE OF FCC: ................95 WEEE (Waste Electrical &...
-
Page 8: Chapter 1. Introduction
Chapter 1. Introduction 1. The System This D4M provides the cutting edge of mobile solutions for any types of mobile transportations. This D4M was built upon industrial specification that offers the most reliable mobile solutions ever. Its industrial specification allows withstanding any harsh conditions of shock, vibration and temperature. -
Page 9: Specification
3. Specification Model 4 Channel Mobile D4M 4 Ch Video 1 CVBS 4 Mic-in Audio 1 Line-out Sensor In 2 TTL Device Alarm Out 2 Relay I/O Interface RS232, RS485, USB2.0 x 1, USB1.1 x 1 for Mouse Speed Real Time Display Resolution 720 x 480 (NTSC), 720 x 576 (PAL) -
Page 10: Chapter 2. System Installation
Chapter 2. System Installation 1. Package Contents The following components are included in the product: D4M Unit Harness & Terminal Block Remote Controller (User's Manual & Network S/W) Quick Guide Bracket Screws & Keys GPS Antenna... -
Page 11: Installation
2. Installation 2-1. Bracket Disassembly Bracket Screws (6 points) Rear Cover Screws (3 points) Rear Cover Take the unit out of the box and disassemble the brackets as follow: - Unscrew Rear Cover Screws to remove Rear Cover - Unscrew Bracket Screws to remove installation (bottom) bracket. - The installation bracket has following sizes, and it must be bolt down on the bottom or top surface strongly using the 6 taping screws. -
Page 12: Unit Installation
2-2. Unit Installation Bracket Screws (6 points) Bolt Down Installation Bracket on the bottom or top surface using bracket screws. [The Bottom] [The Top] - To install the unit on the bottom, just use the bracket screws to bolt down the unit with the installation bracket as it is. -
Page 13: Connection Devices
2-3. Connection Devices The front & rear panel of the 4 channel premium D4M comprises the following: • Front USB: Two USB ports are provided to connect external devices like HDD, Flash memory for Backup, System upgrade or USB mouse on the front panel. A USB mouse can be connected only front panel USB port dedicated only for mouse. - Page 14 Power In The D4M will operate on both 12V and 24V systems. Pins 1 and 2 should be connected directly to the positive (+) battery. Pin 3 should be connected to the positive (+) power bus bar that is turned on when the ignition switch is in the Accessory position. Pin 4 should be connected directly to ground.
- Page 15 • GPS Antenna: The unit has built in GPS. SMA type GPS antenna needs to be set up separately for the proper reception of GPS data. • Reset: The D4M has a Reset switch that will only be used to return all the settings to the original factory settings.
-
Page 16: Cautions
3. Cautions • Avoid installing the product where there are direct rays or it is hot by locating near from heat generator. (May cause fire) • Do not put vase, flowerpot, cup, cosmetics, drug, and anything the contain water on product. (May cause fire or electric shock, and it may injure people by falling) •... -
Page 17: Chapter 3. Using D4M
Chapter 3. Using D4M 1. Basic Operation 1-1. Front Panel & IR Remote Controller Front Panel Description Two USB ports are located on the front panel. A USB mouse USB Port can be connected USB port dedicated only for mouse as picture directed. - Page 18 Up, Down, Left, Right These are used to change settings for the product in MENU Arrow, ENTER Buttons mode or used in PTZ control mode. (pan, tilt) BACKUP Button Copies recorded data to an external storage device. PLAYBACK Button Changes to the playback mode from the live mode. Under playback mode, the button can be used to pause the PAUSE Button playback screen.
-
Page 19: Turning On The System
1-2. Turning on the System The unit will start and run automatically when turn on the ignition if it is installed properly. It will take about 20-30 seconds for the boot up and start recording based on the pre set up options. If the temperature below -0°C (32°F), the unit will start recording after HDD is heat up by our built in heating sensor. -
Page 20: Display Icons
1-4. Display Icons No Recording Recording (Red) E.REC (Emergency Recording) Event Recording (Red) Pre Event Recording (Blue) Motion Detection Sensor Detection Text In PTZ Camera Instant Backup Clip Maker (Blue) Backup (Red) Video Loss 1-5. User or Admin Login Press MENU to enter main menu screen. Login in screen appears to enter ID (Administrator or User) and Password. -
Page 21: The Main Menu
1-6. The Main Menu The Main Menu of D4M consists of SYSTEM, DEVICE, DISPLAY, RECORD, NETWORK and EVENT. And each menu consists of various sub menus that allow detail set up of the system. Use Mouse, Remote Controller or Front Buttons to access to each menu. Note : Please make sure the system log out is done when the system setting or operation is completed to prevent any unauthorized changes of system settings or operations. -
Page 22: Contextual Menu
1-7. Contextual Menu Additional Contextual Menu screen appears by pressing right button on the Mouse. Layout option allows changing Camera on the monitor. Select preferred camera display option on the monitor. Camera : Select camera no. Layout : Select display mode (8/16 ch. D4M Only) : Select OSD display option Text-In Info.: On/Off Text-In OSD. -
Page 23: D4M Configuration
2. D4M Configuration 2-1. SYSTEM Under SYSTEM menu, System configuration options for general Information, Date &Time, User, Quick Setup and System Log can be selected. 2-1-1.MENU>SYSTEM>Information In the Information screen, D4M Name, System Version, Upgrade, Mac Address and Configuration options can be selected. Highlight and press D4M Name to enter or change D4M name. - Page 24 Shutdown Delay(min.) Set Shutdown Delay time after Ignition is off. The system power will be stayed on according to the Shutdown Delayed time set in the menu. The time can be set from 5 to 60 minutes. Configuration System settings can be saved and loaded using Configuration option Export: Save settings to USB Flash Memory Import: Load saved settings from USB Flash Memory Default: Load factory default settings...
-
Page 25: Menu > System > Date & Time
2-1-2. MENU > SYSTEM > Date & Time In the Date & Time, Time Zone, Date, Time, NTP Server, Holiday options can be selected. Highlight and press Time Zone to select right Time Zone. Select ‘Use Daylight Saving Time’ if it is applicable. -
Page 26: Menu > System > Quick Setup
Auto Login: It allows a user to log in right after the system boots up automatically. As a system allows auto log in without the authentication process please make sure D4M has a limited access by non authorized personnel. Auto Logout: Turn On or Off Auto Logout option. Press to add a new user. -
Page 27: Menu > System > System Log
Quick Setup Menu allows easy and basic setup for main menu settings. 2-1-5. MENU > SYSTEM > System Log In the System Log, full list of system logs can be searched. Press Reload button to refresh log list. USE button to search log list page by page. Log list can be export in txt format. -
Page 28: Device
2-2. DEVICE Under Device menu, Device configuration options for Camera, Audio, Alarm, Keyboard and RS232 & RS485 (POS/PTZ) can be selected. 2-2-1. MENU > DEVICE > Camera Set Camera display option. Camera display (video loss display) can be disabled by unmarking the box next to it if there is no camera connected. -
Page 29: Menu > Device > Audio
Covert Setting Covert setting allows the privacy on monitoring. If Covert is set, live image will not be displayed. Covert can be scheduled by day, time and mode by cameras. Covert Low Mode: No display of video image on screen but OSD still remains on screen. Covert High Mode: Neither of video image or OSD will be displayed on screen. -
Page 30: Menu > Device > Keyboard
2-2-4. MENU > DEVICE > Keyboard Press to find and select keyboard from the list. 2-2-5. MENU > DEVICE > RS232 & RS485 Press to select a device for each ports. RS232: Supports Text In (POS) device. PTZ and Keyboard RS485: Supports Text In (POS) device ,PTZ and Keyboard. -
Page 31: Display
2-3. DISPLAY Under Display menu, Display configuration options for OSD and Monitor can be selected. 2-3-1. MENU > DISPLAY > Display Language: Select system language. Press to find available language options. Hide Status Bar: Select On/Off and time to hide Status Bar when system is not in use. OSD margin: Set OSD margin (position) using Freeze: Display an image in either Field or Frame format when it is in still (freeze) mode. -
Page 32: Record
2-4. RECORD Under Record menu, Record configuration options for Storage, Record and Record Tools can be selected. 2-4-1. MENU > RECORD > Storage In Storage, it displays the installed/connected storage status such as Capacity, Type, Usage and Status. Format: Press Format to format selected HDD. Record: Displays the recording period and data stored on HDD. -
Page 33: Menu > Record > Record
2-4-2. MENU > RECORD > Record In Record, general recording options can be selected including overwrite, resolution, speed, recording quality and etc. Overwrite: Select Overwrite to overwrite recorded HDD data when it is full. Audio Record: Select Audio Record to record audio with video image. Resolution: Select recording resolution. -
Page 34: Menu > Record > Record Tools
Use Default Setting: Check Use Default Setting to follow main recording setting under Record menu. 2-4-3. MENU > RECORD > Record Tools In Record Tools, estimated HDD usage and recording period can be calculated. Press Calculate once resolutions, ips, number of cameras and quality are set. The recording period is calculated based the size of HDD installed. -
Page 35: Network
2-5. NETWORK Under Network menu, Network configuration options for network Address, DDNS, Remote Notification and Transmission can be set up. 2-5-1. MENU > NETWORK > Address In Address, Information such as Type, IP address, Subnet Mask, Gateway Port and DNS can be set for network connections. -
Page 36: Menu > Network > Notification
2-5-3. MENU > NETWORK > Notification In Callback, set up IP addresses of client sites so that Events detected in local system can be notified to multi remote client sites simultaneously. Enter IP addresses of client sites to receive events notifications on remote sites. -
Page 37: Event
2-6. EVENT Under Event menu, events can be set in synchronization with Sensor, Motion, Video Loss, Text-In, System, 2-6-1. MENU > EVENT > Sensor In Sensor, each sensor can be selected for activation and its type. Select Sensor Type using button. -
Page 38: Menu > Event > Motion
PTZ can be sync with Event using its preset function. If Event occurs, PTZ moves to the position where event and positions are pre set. The above menu shows, Sensor 1 is set to sync to cameras 1,2. If you click PTZ section, PTZ preset (position) can be set for cameras in the event of Sensor activation. - Page 39 In Record, each camera can be synchronized with single and multi motion detections from other cameras. Press to select cameras to be synchronized with motions detections. In Alarm, each camera with motion can be synchronized with single and multi alarms. Press to select alarms to be synchronized with cameras for motion events.
-
Page 40: Menu > Event > Video Loss
2-6-3. MENU > EVENT > Video Loss In Video Loss, single or multi cameras can be synchronized for event recording when there is a video loss. Press to select single or multi cameras to be synchronized with cameras for video loss. In Alarm, each camera with video loss can be synchronized with single and multi alarms. -
Page 41: Menu > Event > Text-In
2-6-4. MENU > EVENT > Text-In The system allows Text In from POS/ATM machines. Note : For use of POS/ATM, the system must support general ASCII code. Text-In Model: Select Text-In model from the list Transaction Begin: Enter a word which the transaction info to be displayed on screen as a start. Any Character: Check Any Character to start display a text with any character as a start. -
Page 42: Menu > Event > System
In Notification, text event can be synchronized with single and multi callback or emailing sites. Press to enter callback or email address to be synchronized with text event. In Text In, each text input can be synchronized with single and multi cameras. Press to select cameras to be synchronized with text inputs. -
Page 43: Menu > Event > G-Sensor
warning message on screen. In Notification, each system events can be synchronized with single and multi callback or emailing sites. Press to enter callback or email address to be synchronized with system events. 2-6-6. MENU > EVENT > G-Sensor Built-in G-Sensor, it detects, Quick Start, Quick Stop and Traffic Accident. It allows to associate with Recording, Alarm and Event Notification using detected information. -
Page 44: Playback
3. Playback The system provides various playback menu to search recorded data. Please click right Mouse button on Search Mode and select the storage type. If backup data is selected, the data on external HDD can be searched. Note : To see the GPS information during playback, Contextual Menu -> Text Data -> Select GPS Info. -
Page 45: Go To Time
3-1. Go to Time Select Go to Time to search recorded data by time/date. Set time/date using button. Go to Beginning and End options are selectable to search the very first and last data recorded. Once desired settings are completed, press OK to begin playback. -
Page 46: Text-In Search
G-Sensor: System displays every events related to G-Sensor Once find specific list of event, move up and down button to highlight the log and press it to playback the event data. 3-4. Text-In Search Text In Search provides easy search by transactions. Search for Time and Transaction information. Press Search for detail information. -
Page 47: Backup Data Playback
3-5. Backup Data Playback Backup files on backup medias can be played on D4M. Insert the media with backup files and select a file to playback it on D4M. 3-6. Playback Control R.Play: Reverse Playback Step Backward: Go to the previous image Pause: Freeze or Stop current image Step Forward: Go to the next image Play: Play the data at normal speed... -
Page 48: Backup
4. Backup Recorded data can be backed up on USB Flash memory. Select backup or Clip Copy option during Search or Live mode by selecting Backup. 4-1. Backup In the BACKUP, the recorded data can be selected for backup to USB devices. Press USB Device to select the type of USB Device connected to the system. -
Page 49: Instant Backup
4-2. Instant Backup Press backup button to start Instant Backup during the playback. Instant Backup window will appear when press backup button during the normal playback mode. Select Device, File Name, Audio and press Start to continue the playback and backup. The Backup Icon will appear on the screen during the Instant Playback. -
Page 50: Chapter 4. Speco Network Monitor
Event Search Text-In Search The Log In window will appear when Speco Network Monitor program starts. Select user level as each user will have different authority level over the system control depend on the pre set up. Enter OK once the user level is selected as the default password is ‘none’. - Page 51 Screenshot: Capture the current screen and save it as a image file. Sequence: Display images on pre selected sites in sequence mode. Setup: To change set up on Speco Network Monitor S/W or a remote D4M. Audio Volume: Click Audio icon to select audio volume and mute options.
-
Page 52: Site Set Up
1-2. Site Set Up Click Connect button to display registered remote locations or add new locations. Click button to add remote location and required information. Name: Enter Site Name Address: Enter IP address or domain name of the site Port: Enter port number if there is a specific port to be set for the software Description: Enter the description of the site Auto Login: If do not want the Log In window to be popped up every time starting the remote S/W, check Auto Login to skip User/Password authentication process... - Page 53 Click to save information and complete the registration. Double click the location or Highlight it and click Connection button to get connected to the site. The D4M and Client program on PC start searching each other once they are on the same local network.
-
Page 54: Favorite Set Up
1-3. Favorite Set Up Favorite function allows multi site management. Up to 64 different cameras and sites can be monitored and managed on one screen. Select Favorite tap. Click button to group multiple sties as one favorite group. Enter the group name and description. Up to 64 different cameras or sites can be grouped and displayed together. -
Page 55: Site List Panel
1-3. Site List Panel The remote sites also can be registered on Site List Panel. Use EDIT REMOVE buttons on the bottom to register and managed the remote sites and favorite sites. Drag and Drop the listed sites on to the display section to connect the sites. Each camera can be dragged and dropped to arrange independent displays. -
Page 56: Tool Panel
1-4. Tool Panel 1-4-1. D4M Status D4M tap shows Video Loss, Motion Detection, Sensor Detection status of currently connected remote site. User can activate a remote alarm on D4M Status options. Reload: Refresh the latest D4M status info. Reset Alarms: Turn off activated Alarms on the D4M. -
Page 57: Text-In
1-4-3. TEXT-IN Displays recorded TEXT-IN info. TEXT-IN tap is activated under playback mode only. 1-4-4. GPS GPS is for Mobile D4M tracking under playback mode. GPS data is recorded with images using built in GPS on Mobile D4M. This data will be displayed on Google Map under playback mode. -
Page 58: Remote Playback
2. Remote Playback 2-1. Calendar Search Calendar Search Panel appears when a site is connected under playback mode as shown below. Time bar will appear once the date is selected and the image preview will appear when the specific time is selected on the time bar. Fold Calendar Search Panel Calendar Search Use below buttons to control the playback image. -
Page 59: Event Search
2-2. Event Search Select Event Search on the bottom of the screen to open Event Search Panel. Enter Date, Event Type and etc and select SEARCH button to retrieve the search results. Fold Event Search Panel Event Search Select an event from the list for playback. Search trough the list using < > buttons. Select the date of event search for from the Date list. -
Page 60: Text-In Search
3-3. Text-In Search Select Text-In Search on the bottom of the screen to open TEXT-IN Search Panel. Enter Date and Text and select SEARCH button to retrieve the search results. Fold Text-In Search Panel Text-In Search Select an text-in event from the list for playback. Search trough the list using < > buttons. -
Page 61: Saving The Recorded Data
3-4. Saving the recorded data Screenshot Select button to capture the current image during the playback as show below. Select Save... button to save the image. The Image can be saved in JPEG, BMP and PNG format. Save as MP4 Select button during the playback and select “Save as MP4”... -
Page 62: Play Backup Data
• Select Camera number. Press Start to create Backup file. 3-5. Play Backup Data Backed up data from the local site can be played on the Speco Network Monitor software. Select button during the playback and above window will appear. Select the location where the data is saved. -
Page 63: Play Independent Hdd Data On Pc
3-6. Play Independent HDD Data on PC Independent HDD (removed from a D4M) data can be played on PC using Speco Network Monitor S/W. Have the HDD connected to PC using a SATA to USB connector cable. Make sure the HDD is... -
Page 64: Setup
4-1. Speco Network Monitor Setup Click on Setup to enter Speco Network Monitor setup menu. Product: Displays general information of the S/W Software Version: Displays current S/W version Secondary Monitor: Select the secondary monitor when using multi monitors on PC Event Pop-up Duration: Set the time duration for a camera display when it is displayed in full screen mode in case of event. - Page 65 Click on Display tap to enter display setup menu. Maintain Aspect Ration (4:3): Keep 4:3 ration on Speco Network Monitor display screen Use Alpha-Blending: Enables alpha-blending effect to S/W UI Video Acceleration: Video Acceleration option enhances natural live image display on the client S/W.
- Page 66 Click on Sequence tap to enter sequence setup menu. Set sequence mode and sequential sites from registered individual or Favorite sites. Click the site and select > button to add the site into the sequencing list. >> button will move the all sites to into the sequencing list.
- Page 67 Click on User tap to enter user setup menu. Register Speco Network Monitor Software users. Each user needs to use the password they set in registration when they log in. Select Add to start new user registration.
-
Page 68: Remote Setup
4-2. Remote Setup Click on Remote Setup to enter remote setup menu. Select a D4M for setup and select Connection button. Setup menu will appear as show below once it is connected Note : The remote software provides interactive setup system that allows easy local D4M settings from remote sites. -
Page 69: Remote Upgrade
S/W version to find a file for upgrade • Select the file location and the file to upgrade the system. Note : Please do not close down Speco Network Monitor S/W or power off a computer until the system upgrade is completed. -
Page 70: Speco Callback
5. Speco Callback Start-> Program -> Speco Network Monitor -> Speco Callback Speco Callback icon will be displayed on the bottom right of Window once the program starts. Callback message will be displayed/notified as shown above. Click Speco Callback icon to display main window of Callback as shown below. - Page 71 Select a log from the list and click Live or Playback icon image to connect related D4M. Clear: Clear all the logs listed on Speco Callback window Log: Click Log button to display log search window as shown below. Up to 100,000 log can be saved. 1,000 log lists will be displayed per search. Click More button to display next 1,000 logs.
-
Page 72: Appendix A. Remote Access Using I.e
Internet Explore displays Active X installation message. Remote Monitoring Remote Playback Please refer to the remote program ‘Speco Network Monitor’ manual if further instructions on the control option are needed. Note : Web is supported only on Internet Explorer 7.0 or above. -
Page 73: Appendix B. How To Set Ddns Using Router
Appendix B. How to set DDNS using router (Except using public IP or connect with ADSL directly) Make it easy to understand through the example as below. Please refer the Diagram and follow this instruction. For example, If you connect 3 D4Ms through local Network. D4M 1 Public IP : 203.208.1.150 IP: 192.168.1.10... - Page 74 - Fill out the registration information as below. - Click ‘Submit’ to make the account. - Enter your domain name and click ‘Request Domain’ to create the domain name. - You can see the registered dome name “dvr1.dvr-ddns.com”...
-
Page 75: Router Configuration
- You can create 3 domain names for one account. - Click “Create additional domain names” to make another domain name. 2. Router Configuration - Insert the gateway address on the explorer to connect the homepage for the Router. - Go to “Port Forwarding” Menu. (The picture below is for particular Router.) - Please insert the IP address and Port number for D4M in the Port Forward menu. -
Page 76: D4M Configuration
3. D4M Configuration Example of D4M Network setting. Select Static IP option and enter following options accordingly. The system should be allocated with individual IP address. Make sure the ports for D4M are all set accordingly or set network ports according to D4M port settings. -
Page 77: Appendix C. Speco Live Tracker Instructions
Appendix C. Speco Live Tracker Instructions 1. Summary - Speco Live Tracker allows to monitor multi vehicles on a graphic map in live. 2. Feature - Live monitoring of multi vehicle status, events, movements and etc. - Calling each vehicles’ information. -
Page 78: Starting Speco Live Tracker
3. Starting Speco Live Tracker The startup screen of Speco Live Tracker is as follow. D4M’s Callback address (IP) should be set same as the address of PC where Live Tracking Program is installed and used. Once the Callback option is properly set and a D4M starts receiving GPS data, the vehicle name will appear under the vehicle list of Live Tracking program. -
Page 79: Set Up
Main Screen consists of Toolbar, Vehicle List and Map. Toolbar: Options for Speco Live Tracker Setting. Vehicle List: List of Vehicles which the Speco Live Tracker receives the data (GPS). Map: Shows registered Vehicle locations and information. B. Vehicle List Vehicle list shows the vehicle name with status icons such as event and timeout. - Page 80 Timeout Icon Timeout ※ Failed to receive GPS or Event during the time set by a user. (Refer to F. Vehicle Popup) Vehicle List Select a vehicle and click a right mouse button to edit vehicle name, information or delete the vehicle from the list.
- Page 81 D. Map Vehicle Image: Selected vehicle is shown in bold image and not selected vehicle is shown in blurred image. Vehicle route will be shown on the map as above when turning on the Tracking line on the Tool Bar. Click an vehicle image to display the detail vehicle information. The vehicle information includes Driver Picture, Vehicle Name, Driver Name, Company Name, Update Time, Speed, Latitude, and Longitude.
- Page 82 E. Vehicle Info Editor Vehicle Name: Enter or change Vehicle Name. Info1: Enter or change relevant information of Vehicle. Info2: Enter or change relevant information of Vehicle. Image Path: Enter or change image path to be shown on Vehicle Popup. F.
- Page 83 G. Log Check Event Log of each vehicle. H. Setup Setting the Program. Port: Enter Callback Port to receive Callback Data from D4M. Mobile D4M data is sent as Callback Data and through Callback Port. Timeout: Set maximum tolerable time to receive GPS and Event Data. If the data is not delivered within the time set, the system consider it as an event of Failure and, it is recommend to check the vehicle status.
-
Page 84: Appendix D. Speco Cloud Archive Instructions
Appendix D. Speco Cloud Archive Instructions 1. Outline Speco Cloud Archive is a Remote Archiving Program to keep recorded data from D4Ms on remote sites via Network. 2. Feature The S/W can be used without any additional upgrade of the D4Ms. -
Page 85: How To Use Speco Cloud Archiver
3. How to use Speco Cloud Archiver Start Speco Cloud Archiver(Archiving) by using Schedule Wizard(New Schedule). Step 1) Entering Archiving Site address and following information for a site registration and log-in. Name : Enter the Site name. Address : Enter the Site address for Remote Archiving. - Page 86 Step 2) Selecting a starting point of data for Remote Archiving. First : Archiving from the very beginning of recorded data on D4M. Last : Archiving from the latest recorded data on D4M. Specific : Archiving from designated point by user. If data doesn’t exist on the designated point, archiving will start from the latest data right after the designated point.
- Page 87 Step 3) Setting performing schedule for Archiving. Auto Connection Scheduler : Set a time schedule for Archiving. Select a time for Start/Stop point, the system will automatically perform Archiving as the schedule set. If Archiving is failed due to any causes, it will continuously attempt to re-connect the sites. If Always is selected, Archiving will continue until user stops the operation.
- Page 88 Step 4) Creating Storage Group. (refer to 4-D for the detail) Storage Group File : Set name of new Storage Group File. The default directory is designated to “My Documents Speco Cloud Archive Storages₩<Site Name>₩<Site Name>.strgx”. Create storage files automatically : Select to determine whether to create storage files automatically or not.
-
Page 89: Set Up
4. Set Up A. Main Screen Each schedule information is displayed on the main screen in real time. (Overall information of Site and Log-in / Starting point of ‘Archiving / Storage Group is considered and called ‘Schedule’. Each list is considered as one ‘Schedule’.) Archiving Time Archiving Status Storage Usage... - Page 90 If clicking right button of mouse on each list, it displays contextual menu for the Schedule operations. Start : Start selected Schedule. Stop : Stop selected Schedule. Delete : Delete selected Schedule. The Schedule can be deleted only when the Archiving is stopped.
- Page 91 C. Detail Information a. Site Name / Address / Playback Port / Username / Password : Information on registered Site and Log-in. (refer to 3-Step1 for the detail) Status : It shows current Archiving status and directly related with Icon on Archiving status of main screen.
- Page 92 b. Archiving Schedule Auto Connection Scheduler : Set time schedule for Archiving. Select time for Start/Stop points. Archiving will automatically be performed as the time set. If Archiving is failed due to any causes, it will continuously attempt to re-connect the sites. If Always is selected, Archiving will continue until user stops the operation.
- Page 93 D. Storage Manager Manage Storage Group each Archiving schedule. Filename : Name of Storage File. It is possible to check full path where the file is being stored by tool tip when mouse cursor is placed on the Filename. Capacity : Full capacity of File. Period : Full period of recorded data on Storage File.
- Page 94 Check the Log status of each Schedule. F. System Tray The program icon (System Tray) is located as shown below. Speco Cloud Archiver provides System Tray. Find the System Tray in order to shut down Network Archiver safely and completely.
-
Page 95: Reference
Playback all Storage Files linked and belong to the Storage Group at once. b. Restrictions 1. Storage File which is being used by Speco Cloud Archiver can not be playback at the same time on Speco Network Monitor. On the contrary, Storage File which is being used by Speco Network Monitor can not be used on Speco Cloud Archiver. -
Page 96: Compliance Notice Of Fcc
COMPLIANCE NOTICE OF FCC: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.
