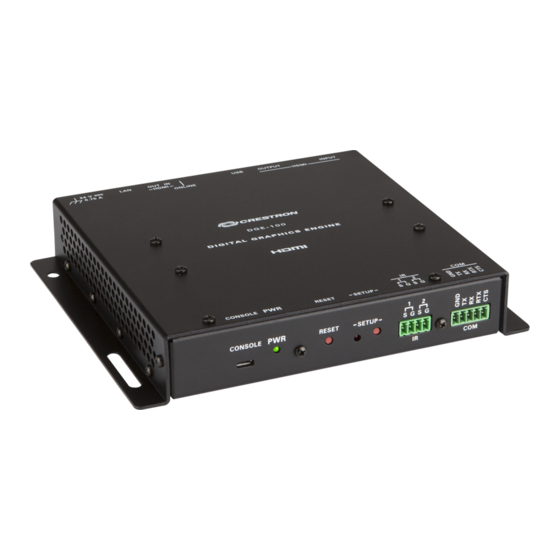

Crestron DGE-100 Product Manual
  1. Manuals
  2. Brands
  3. Crestron Manuals
  4. Engine
  5. DGE-100
  6. Product manual

Crestron DGE-100 Product Manual

Digital graphics engines
Hide thumbs Also See for DGE-100:
Table of Contents

Advertisement

Quick Links

Download this manual
DGE-100 and DM-DGE-200-C
Digital Graphics Engines
Product Manual
Crestron Electronics, Inc.

Advertisement

Table of Contents
loading

Related Manuals for Crestron DGE-100

Summary of Contents for Crestron DGE-100

  • Page 1 DGE-100 and DM-DGE-200-C Digital Graphics Engines Product Manual Crestron Electronics, Inc.
  • Page 2 Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.

  • Page 3: Table Of Contents

    Product Specifications Dimension Drawings DM-DGE-200-C Specifications Product Specifications Dimension Drawings Installation DGE-100 Installation In the Box Install the DGE-100 Connect the DGE-100 DM-DGE-200-C Installation In the Box Install the DM-DGE-200-C Connect the DM-DGE-200-C Configuration Initial Setup Access the Setup Screens...
  • Page 4 HDMI Output Network Device Perform a Factory Restore Operation Resources Crestron Support and Training Programmer and Developer Resources Product Certificates Related Documentation iv • Contents Product Manual — Doc. 7696D...

  • Page 5: Overview

    DM-DGE-200-C feature Smart Graphics® technology that may be used to create a custom graphical environment for controlling audio, video, lighting, shades, HVAC, security, and other amenities. The DGE-100 and DM-DGE-200-C can also be used for functions with dual-window video display, annotation, audio feedback, and web browsing.

  • Page 6: Features

    Features Refer to the following sections for more information on the features provided by the DGE-100 and DM-DGE-200-C. DGE-100 Features on page 3 DM-DGE-200-C Features on page 7 2 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...

  • Page 7: Dge-100 Features

    The DGE-100 features an HDMI® output for connecting to a display device, and includes a USB HID port for touch, mouse, or keyboard input. Additional control ports are provided for controlling the display device and other equipment.
  • Page 8 The DGE-100 supports high-definition streaming video, making it possible to view security cameras and other video sources over the network via the touch screen display. Native support for H.264 and MJPEG formats allows the DGE-100 to display live streaming video from an IP camera, a streaming encoder...
  • Page 9 Remote annotation is possible by using multiple digital graphics engines and touch screens. Adding a dedicated DGE-100 to the main display in a room allows the annotated session to be viewed by an entire audience.
  • Page 10 Notes: 1. The DGE-100 supports up to two simultaneous streaming inputs with a maximum combined total bitrate of 25 Mbps. 2. The HDMI® input signal cannot be downscaled more than 4 times. For instance, a 1920x1080 source signal can be displayed no smaller than 480x270 pixels.

  • Page 11: Dm-Dge-200-C Features

    DM® transmitter or switcher. Additionally, H.264 streaming video signals can be received over a high-speed Ethernet connection, and Ethernet provides an interface to a Crestron control system. NOTE: An Ethernet connection is required for touch screen and OSM control applications.
  • Page 12 Key features include: Touch screen graphics engine for the Crestron® TSD-2220 or a third-party USB HID-compliant touch screen Supports OSM (on-screen menu) applications without a touch screen HDMI® output supports display resolutions up to Full HD 1080p60 and 4K Ultra HD (3840x2160@30Hz) Displays dual-window or full screen video from HDMI, DM 8G+®, and H.264 streaming...
  • Page 13 Multitouch Support When paired with the TSD-2220 or another multitouch compatible touch screen display, the DM-DGE-200-C affords enhanced capabilities for browsing web pages using multitouch control. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 9...
  • Page 14 The DM-DGE-200-C is compatible with the XiO Cloud® service, which is an IoT (Internet of Things) based platform for remotely provisioning, monitoring, and managing Crestron devices across an enterprise or an entire client base. Built on the Microsoft® Azure® software platform and utilizing Microsoft's industry-leading Azure IoT Hub technology, XiO Cloud enables installers and IT managers to deploy and manage thousands of devices simultaneously.
  • Page 15 Notes: 1. The COM and IR ports can be used for fully-customizable control applications via integration with a Crestron control system with custom programming. 2. CEC may be utilized through either HDMI port for fully-customizable control applications via integration with a Crestron control system with custom programming.

  • Page 16: Specifications

    Specifications Refer to the following sections for more information on specifications for the DGE-100 and DM-DGE-200-C. DGE-100 Specifications on page 13 DM-DGE-200-C Specifications on page 18 12 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...

  • Page 17: Dge-100 Specifications

    DGE-100 Specifications Product specifications for the DGE-100 are provided below. Product Specifications Graphics Engine Smart Graphics® technology, landscape or portrait orientation, local and remote annotation, multilanguage web browser , multilanguage on-screen keyboard, screensaver, scalable dual streaming video windowing, displays any combination of HDMI® and streaming sources...
  • Page 18 HDMI (dual-mode DisplayPort compatible Output Signal Types HDMI Input/Output Formats 2 channel LPCM Audio Feedback Formats Connectors CONSOLE (USB) (1) USB Micro A connector, female; USB computer console port; Type A to Micro A USB cable included 14 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...
  • Page 19 Green LED indicates the Ethernet link status; Amber LED indicates Ethernet activity Power PoE (Power over IEEE 802.3at Type 1 (802.3af compatible) Class 0 (12.95 W) PoE Powered Ethernet) Device Power Pack (Included) Input: 100–240VAC, 50/60 Hz; Output: 0.75A @ 24VDC; Model: PW-2407WU Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 15...
  • Page 20 Notes: 1. The DGE-100 supports up to two simultaneous streaming inputs with a maximum combined total bitrate of 25 Mbps. 2. The HDMI® input signal cannot be downscaled more than 4 times. For instance, a 1920x1080 source signal can be displayed no smaller than 480x270 pixels.

  • Page 21: Dimension Drawings

    Dimension Drawings Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 17...

  • Page 22: Dm-Dge-200-C Specifications

    100 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SNMP, IPv4 or IPv6, Active Directory® authentication, HTTPS web browser setup, XiO Cloud® client, Crestron control system integration USB Host Supports TSD-2220 touch screen display and most third-party USB HID compliant peripherals...
  • Page 23 Interlaced video is not supported via the HDMI input. Output Resolutions 1920x1080@60Hz (1080p60), 3840x2160@30Hz (4K UHD) NOTE: All video inputs are scaled automatically to the operative output resolution when displayed full screen. Audio Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 19...
  • Page 24 (1) Green LED, indicates operating power is present via the local power pack; Flashes while the device is booting RESET (1) Recessed push button for hardware reset SETUP (1) Red LED and (1) recessed push button for Ethernet setup 20 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...
  • Page 25 Weight 25.6 oz (726 g) Compliance Regulatory Model: DM-DGE-200-C; UL® Listed for US and Canada, IC, CE, FCC Part 15 Class B digital device To search for product certificates, refer to support.crestron.com/app/certificates. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 21...
  • Page 26 4096x2160 DCI 4K Notes: 1. The COM and IR ports can be used for fully-customizable control applications via integration with a Crestron control system with custom programming. 2. CEC may be utilized through either HDMI port for fully-customizable control applications via integration with a Crestron control system with custom programming.

  • Page 27: Dimension Drawings

    Dimension Drawings Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 23...

  • Page 28: Installation

    Installation Refer to the following sections for instructions on how to install the DGE-100 and DM-DGE-200-C. DGE-100 Installation on page 25 DM-DGE-200-C Installation on page 30 24 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...

  • Page 29: Dge-100 Installation

    DGE-100 Installation Use the following procedures to install the DGE-100. In the Box Qty. Description DGE-100, Digital Graphics Engine Additional Items Connector, 4-Pin (2003576) Connector, 5-Pin (2003577) Power Pack, 24VDC @ 0.75A, 100–240VAC (2045865) Cable, USB-A Male to Micro USB-B Male, 6 ft (1.8 m) (2038114) Product Manual —...

  • Page 30: Install The Dge-100

    The DGE-100 can be mounted onto a rack rail or a flat surface. Rack Rail Mounting Mount the left or right mounting flange of the DGE-100 onto the front or rear of a rack rail using two rack mounting screws (not included).
  • Page 31 Surface Mounting Mount the DGE-100 onto a flat surface using four mounting screws (not included). Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 27...

  • Page 32: Connect The Dge-100

    Make all necessary connections to the DGE-100 as shown in the following diagrams. NOTE: Do not connect the DGE-100 to the included power pack if powering the device over PoE (Power over Ethernet). Similarly, do not connect the DGE-100 to a PoE power source if powering the device with the included power pack.
  • Page 33 Observe the following when connecting the DGE-100: Use Crestron power supplies for Crestron equipment. If powering the device over PoE, a Crestron PoE injector (PWE-4803RU) or a Crestron PoE switch (CEN-SW-POE-5 or CEN-SWPOE-16) is required. All PoE equipment is sold separately.

  • Page 34: Dm-Dge-200-C Installation

    In the Box Qty. Description DM-DGE-200-C, Digital Graphics Engine Additional Items Connector, 4-Pin (2003576) Connector, 5-Pin (2003577) Power Pack, 24VDC @ 2.5A, 100–240VAC (2045873) Cable, USB-A Male to Micro USB-B Male, 6 ft (1.8 m) (2038114) 30 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...

  • Page 35: Install The Dm-Dge-200-C

    The DM-DGE-200-C can be mounted onto a rack rail or a flat surface. Rack Rail Mounting Mount the left or right mounting flange of the DM-DGE-200-C onto the front or rear of a rack rail using two rack mounting screws (not included). Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 31...
  • Page 36 Surface Mounting Mount the DM-DGE-200-C onto a flat surface using four mounting screws (not included). 32 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...

  • Page 37: Connect The Dm-Dge-200-C

    Top Panel Connections Bottom Panel Connections Observe the following when connecting the DM-DGE-200-C: Use Crestron power supplies for Crestron equipment. Do not extend the included cable. Connect the chassis ground lug to a known earth ground circuit (such as building steel) to ensure that the device is grounded properly.

  • Page 38: Configuration

    PinPoint UX mode. This section provides the following information: Initial Setup on page 35 Local Configuration on page 40 Web Configuration on page 56 Perform a Factory Restore on page 83 34 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...

  • Page 39: Initial Setup

    DGE IP address or the XiO Cloud® service as described in the following sections. For more information on configuring the DGE using its web configuration interface, refer to Configuration on page Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 35...
  • Page 40 DGE. The MAC address and serial number are required to add the DGE to the XiO Cloud service. 2. Log in to your XiO Cloud account at portal.crestron.io. 3. Claim the DGE to the XiO Cloud service as described in the XiO Cloud User Guide.

  • Page 41: Turn On Authentication

    Turn on Authentication The DGE ships with authentication turned off by default. Crestron recommends turning on authentication as part of a secure deployment. Once authentication has been turned on, the DGE will prompt you to create an admin account username and password.

  • Page 42: Configure A Static Ip Address

    The DGE ships with DHCP turned on by default. To set a static IP address for the DGE: 1. Access the web configuration interface as described in Access the Web Configuration Interface on page 2. Navigate to NETWORK > Network Setting. 38 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...

  • Page 43: Set The Time Zone

    2. Navigate to DEVICE > Configure Date/Time. 3. Select the time zone where the DGE will be used from the Time Zone drop-down menu. 4. Select Save Changes on the top right of the accordion. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 39...

  • Page 44: Local Configuration

    A Save & Exit button that is used to save any changes made to settings, exit the setup screens, and return to the user project. The functions of each button are detailed in the following sections. 40 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...

  • Page 45: Ethernet Setup

    Tap Reboot to exit setup mode and restart the DGE. To change a static IP address, tap Off under DHCP Enabled. Then, tap Set Static IP Address Settings to display the Ethernet Setup - Static IPs screen. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 41...
  • Page 46  to delete the last character. Tap Save to save a new entry or tap the back button to discard any changes. The display returns to the Ethernet Setup - Static IPs screen. 42 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...

  • Page 47: Ip Table Setup

    IP table entry. (Green indicates that the control system is online.) To add or edit an entry, tap Add/Edit next to the corresponding entry. The Ethernet Setup - Edit IP Table Entry screen is displayed. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 43...
  • Page 48  to delete the last character. Tap Save to save a new entry or tap the back button to discard any changes. The display returns to the Ethernet Setup - Edit IP Table Entry screen. 44 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...
  • Page 49 Ethernet Setup - Edit IP Table Entry screen. Tap the back button to return to the Ethernet Setup - IP Table screen. Tap the back button again to return to the main setup screen. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 45...

  • Page 50: Audio Setup

    0 to 100%. Tap Beep On or Beep Off to turn the beep volume on or off. Tap the back button to return to the main setup screen. 46 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...

  • Page 51: Standby Timeout

    Tap the up and down arrow buttons to set the DGE standby timeout duration from 0 to 120 minutes. Select "0" to turn off standby timeout (primarily for nontouch applications). Tap Screen Saver Options to display the Standby - Screen Saver screen. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 47...

  • Page 52: Diagnostics

    Diagnostics screen also provides the DGE CPU temperature and available memory. Each test screen is described in the sections that follow. Tap the back button to return to the main setup screen. 48 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...
  • Page 53 Use the touch test screen to test the touch functionality of the connected touch screen display. When a location button is tapped, its respective indicator lights on the screen. Tap the back button to return to the Diagnostics screen. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 49...
  • Page 54 DGE, connection data is displayed below the ping test controls within five seconds. The connection data updates after every successive ping. Tap the back button to return to the Diagnostics screen. 50 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...
  • Page 55 Use the Diagnostics - Test Patterns screen to display any of the available test patterns on the connected touch screen display. Tap one of the buttons on the screen to display its respective test pattern. Tap the back button to return to the Diagnostics screen. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 51...
  • Page 56 HDMI Preview (DGE-100 Only) Tap HDMI Preview on the DGE-100 Diagnostics screen to display the Diagnostics - HDMI Preview screen. Use the Diagnostics - HDMI Preview screen to preview the video source that is connected to the HDMI® input. Tap the up and down arrow buttons next to Media Volume to raise or lower the media volume incrementally from 0 to 100%.
  • Page 57 0 to 100%. Tap On or Off under Media Mute to mute or unmute the media volume. Tap the back button to return to the Diagnostics screen. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 53...
  • Page 58 0 to 100%. Tap On or Off under Media Mute to mute or unmute the media volume. Tap the back button to return to the Diagnostics screen. 54 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...

  • Page 59: About

    Use the About screen to view information about the DGE, including the firmware version and the operating system versions. Tap the back button to return to the main setup screen. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 55...

  • Page 60: Web Configuration

    If authentication is turned on, a user profile icon is shown in the top right of the page. Select the user profile icon to view details about the user and to log out of the web configuration interface. 56 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...

  • Page 61: Status

    Firmware Version: The firmware version loaded onto the DGE. Select +Show More to display an expanded section that shows additional DGE information. If + Show More is selected, select - Show Less to collapse the section. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 57...
  • Page 62 Ethernet connection is active, while a false message indicates that the Ethernet connection is inactive). MAC Address: The unique MAC (media access control) address for the DGE Ethernet adapter. For information on configuring network settings, refer to Network on page 58 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...

  • Page 63: Hdmi Input

    IP ID: The IP ID used to connect the DGE to the control system. Room ID: The control system room ID that the DGE is associated with (for connections to the Crestron Virtual Control server-based control system). IP Address/Hostname: The control system IP address or host name. Type: The control system connection method.
  • Page 64 NOTE: Only devices that use the selected EDID profile are allowed to send signals through the DGE. If the desired EDID profile is not listed, a custom EDID (CEDID) profile may be loaded onto the device. 60 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...
  • Page 65 Select + More Details to display an expanded section that shows additional information about the HDMI input signal. If + More Details is selected, select - Less Details to collapse the section. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 61...

  • Page 66: Dm In

    2. Select Load CEDID File. The Load CEDID dialog box is displayed. 3. Select + Browse, and then navigate to the CEDID file on the host computer. 4. Select the CEDID file, and then select Open. 62 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...

  • Page 67: Hdmi Output

    Select an accordion name to expand the section. If the section is expanded, select the accordion name again to collapse it. Each selection is described in the sections that follow. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 63...
  • Page 68 Expand the Connected Display accordion to view the status of the display connected to the HDMI output. Sink Connected: Reports whether the display device is connected to the DGE. Manufacturer: The display device manufacturer. Name: The display device name. Serial Number: The display device serial number. 64 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...

  • Page 69: Network

    Select an accordion name to expand the section. If the section is expanded, select the accordion name again to collapse it. Each selection is described in the sections that follow. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 65...
  • Page 70 Default Gateway: Enter the gateway router address on the network. Select Save Changes next to the Network Setting accordion to save any changes. Select Revert to revert to the last saved settings. 66 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...
  • Page 71 Username: If EAP MSCHAP V2- password is selected for Authentication Method, enter a username that is required for authentication. Password: If EAP MSCHAP V2- password is selected for Authentication Method, enter a password that is required for authentication. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 67...
  • Page 72 Actions column for a CA to delete it. A dialog box is displayed asking if the CA should be deleted. Select Yes to delete the certificate or No to cancel. 68 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...

  • Page 73: Device

    Select an accordion name to expand the section. If the section is expanded, select the accordion name again to collapse it. Each selection is described in the sections that follow. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 69...
  • Page 74 Select Save Changes next to the Display accordion to save any changes. Select Revert to revert to the last saved settings. Device Management Expand the Device Management accordion to perform various device management tasks for the DGE. 70 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...
  • Page 75 Select the x button to close the Firmware Upgrade dialog box at any time during the upgrade process. Selecting the x button before the PUF is uploaded to the DGE cancels the upgrade. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 71...
  • Page 76 Turn on the Cloud Configuration Service Connection toggle to allow the DGE to be connected to an XiO Cloud® service account. This toggle is turned on by default. For more information on connecting the DGE to an XiO Cloud service account, refer to XiO Cloud Service on page 72 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...
  • Page 77 Turn on the Auto Update toggle to turn on automatic firmware updates for the DGE. When Auto Update is turned on, the DGE connects to a secure Crestron file server to check for new firmware at an established time outside of business hours (02:00 local time).
  • Page 78 Room ID: Enter the room ID that is associated with the DGE. This setting is applicable only if connecting the DGE to a Creston Virtual Control server-based control system. NOTE: For more information on connecting the DGE to Crestron Virtual Control via a room ID, refer to the Crestron Virtual Control Server Software Product Manual.
  • Page 79 After restarting the DGE, this username and password must be entered to access the web configuration utility or to connect to the DGE through Crestron Toolbox™ software. For more information, refer to Turn on Authentication on...
  • Page 80 Enter the existing password in the Current Password field. Then, enter a new password in the Password field, and reenter the password in the Confirm Password field. Select OK to save the new password, or select Cancel to cancel the change. 76 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...
  • Page 81 The following selections may be selected from the Actions column. User Details Select the information button in the Actions column to view information for the selected user. The User Details dialog box is displayed. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 77...
  • Page 82 Directory user. Active Directory User: Turn on the toggle to use authentication via Active Directory for the selected user. Select OK to save any changes or select Cancel to cancel the changes. 78 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...
  • Page 83 Select OK to save any changes and create the new user or select Cancel to cancel. The new user is added to the Users tab of the Authentication Management accordion. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 79...
  • Page 84 Additionally, the number of groups displayed on each page may be set to 5, 10, or 20 users. An Actions column is also provided for each group that allows various actions to be performed. The following selections may be selected from the Actions column. 80 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...
  • Page 85 A dialog box is displayed asking whether the group should be deleted. Select Yes to delete the group or No to cancel. Create Group Select Create Group at the bottom of the page to create a new DGE group. The Create Group dialog box is displayed. Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 81...
  • Page 86 Active Directory group in the Name field. If this information is being entered via console commands, omit domain\local from the command (for example, use adddomaing -n:crestron -L:A instead of adddomaing - n:domain.local\crestron -L:A). Access Level: Select the access level for the selected group (Administrator, Programmer, Operator, User, or Connect).

  • Page 87: Perform A Factory Restore

    IP addresses or IP table connections that were previously added. 1. Press the red RESET button on the device bottom panel. The DGE will begin to reset. 2. Once the Crestron swirl logo is shown on a connected touch screen display, the reset process has completed. Press the RESET button again.

  • Page 88: Operation

    The DGE is controlled using a connected touch screen display. The DGE supports gesturing and swiping controls to perform various functions. Supported touch controls vary by the loaded user program. 84 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D...

  • Page 89: Resources

    Resources The following resources are provided for the DGE-100 and DM-DGE-200-C. NOTE: You may need to provide your Crestron.com web account credentials when prompted to access some of the following resources. Crestron Support and Training Crestron True Blue Support Crestron Resource Library Crestron Online Help (OLH) Crestron Training Institute (CTI) Portal...
  • Page 90 Crestron Electronics, Inc. Product Manual — Doc. 7696D 15 Volvo Drive, Rockleigh, NJ 07647 10/27/22 Tel: 888.CRESTRON Specifications subject to Fax: 201.767.7656 change without notice. www.crestron.com...
