LMX9838
®
Bluetooth
1.0 General Description
The National Semiconductor LMX9838 Bluetooth Serial Port
module is a fully integrated Bluetooth 2.0 baseband controller,
2.4 GHz radio, crystal, antenna, LDO and discreets; com-
bined to form a complete small form factor (10 mm x 17 mm
x 2.0 mm) Bluetooth node.
All hardware and firmware is included to provide a complete
solution from antenna through the complete lower and upper
layers of the Bluetooth stack, up to the application including
the Generic Access Profile (GAP), the Service Discovery Ap-
plication Profile (SDAP), and the Serial Port Profile (SPP).
The module includes a configurable service database to fulfil
service requests for additional profiles on the host. Moreover,
the LMX9838 is qualified as a Bluetooth endproduct, ready to
be used in the end application without additional testing and
license cost.
Based on National's CompactRISC
tecture and Digital Smart Radio technology, the LMX9838 is
optimized to handle the data and link management process-
ing requirements of a Bluetooth node.
The firmware supplied in the on-chip ROM memory offers a
complete Bluetooth (v2.0) stack including profiles and com-
mand interface. This firmware features point-to-point and
point-to-multipoint link management supporting data rates up
to the theoretical maximum over RFComm of 704 kbps. The
internal memory supports up to 7 active Bluetooth data links
and one active SCO link.

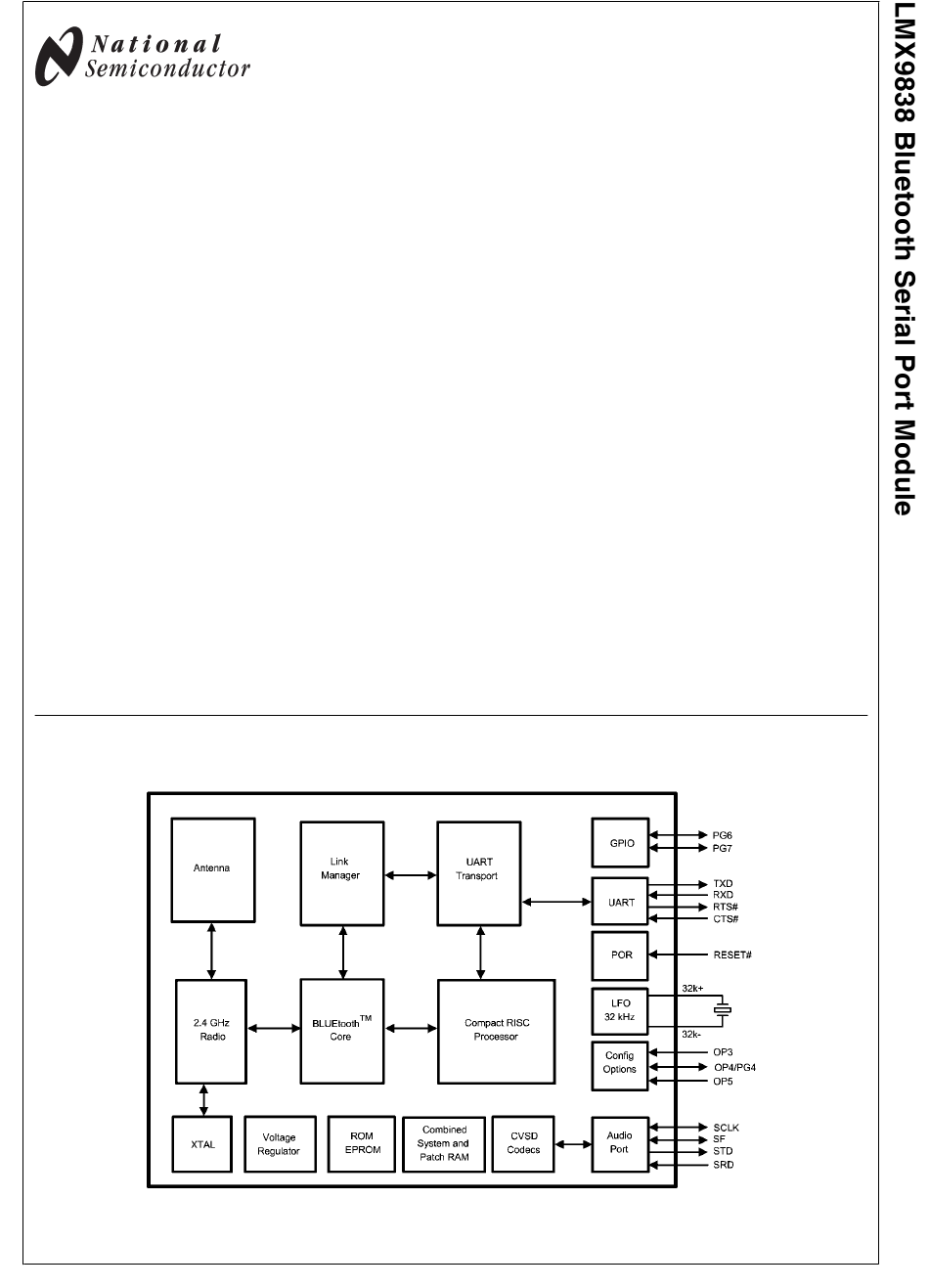

3.0 Functional Block Diagram
Bluetooth
®
is a registered trademark of Bluetooth SIG, Inc. and is used under license by National Semiconductor Corporation.
CompactRISC
®
is a registered trademark of National Semiconductor Corporation.
© 2007 National Semiconductor Corporation
Serial Port Module
®
16-bit processor archi-
300279
The on-chip Patch RAM provided for lowest cost and risk, al-
lows the flexibility of firmware upgrade.
The module is lead free and RoHS (Restriction of Hazardous
Substances) compliant. For more information on those quality
standards, please visit our green compliance website at
http://www.national.com/quality/green/
2.0 Features
■
Complete Bluetooth 2.0 Stack including
— Baseband and Link Manager
— Protocols: L2CAP, RFCOMM, SDP
— Profiles: GAP, SDAP, SPP
■
High Integration: Includes Antenna, crystal, EEPROM,
LDO
■
Supporting up to 7 active Bluetooth data links and 1 active
SCO link
■
Class 2 operation
■
UART Command/Data port speed up to 921.6kbits/s
■
Advanced Audio Interface for external PCM codec
■
Better than -80dBm input sensitivity
■
FCC certified: FCC ID: ED9LMX9838
■
IC certified: IC-1520A-LMX9838
■
CE Self certified
■
Bluetooth SIG QD ID: B012394
■
Compact Size: 10mm x 17mm x 2.0mm
September 2007
30027913
www.national.com
