Hitachi NEXT Series Instruction Manual page 31

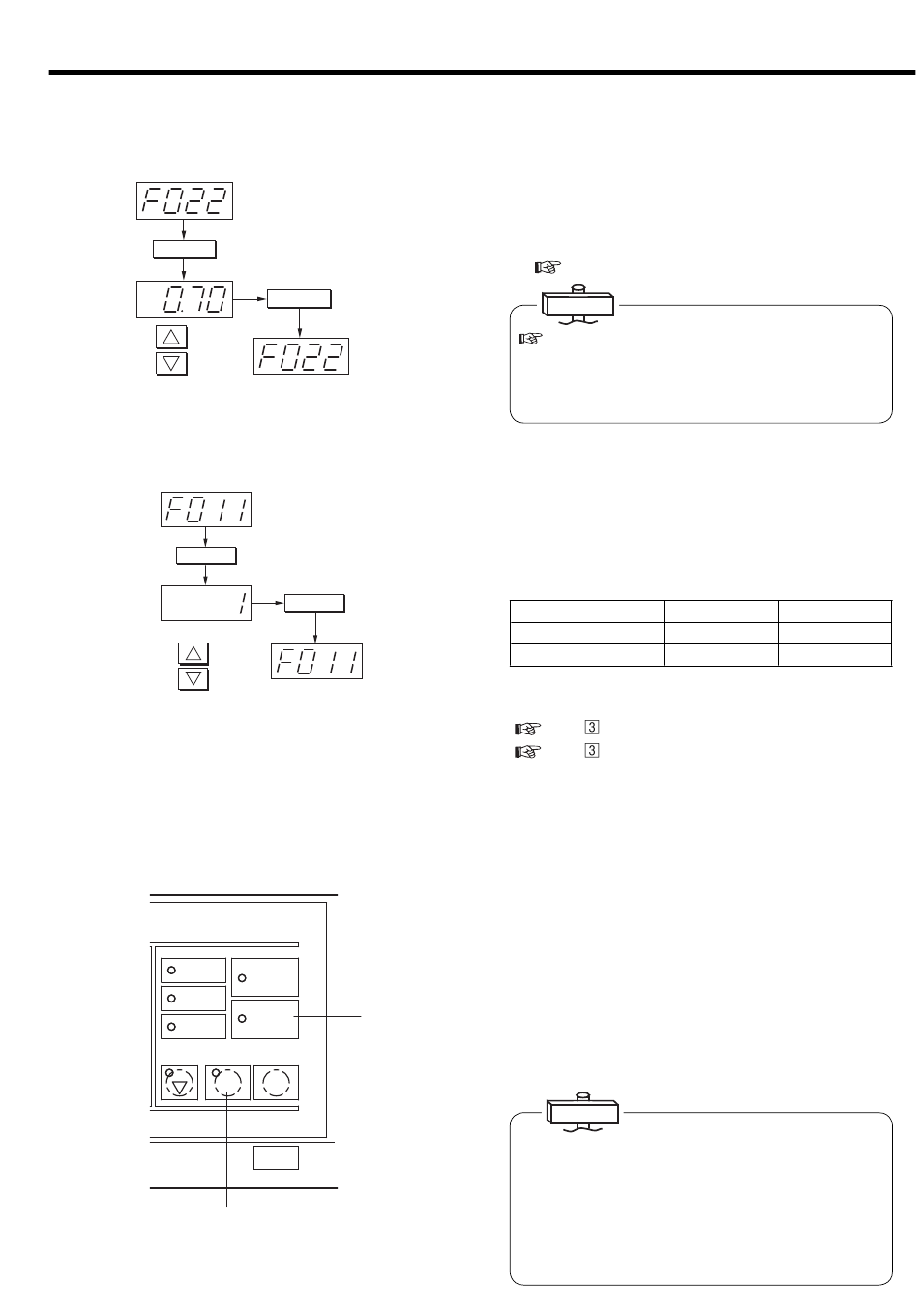

3.4.3 Change of Pressure Setting
Pres.
setting 1
Press the button.
FUNC
1
Chvange
values.
2
3.4.4 Change of Capacity Control Type
AUTO setting
Press the button.
FUNC
(Initial value: 0)
1
Change
values.
2
3.4.5 Restart for Instantaneous Power
Interruption
RUNNING MODE
REMOTE
LOAD
SHUTDOWN
START
2
UNLOAD STOP
②③
IPI is standard function. IPI can be canceled by F002.
refer to 3.4.2.
3. OPERATION PROCEDURE [How to Use the Digital Monitor]
Press the button.
STR
Press the button.
STR
Set AUTO OFF.
POWER
③
AUTO START
STOP
Use the following procedure to change the pressure
setting of the capacity control system.
① Switch the display from monitor mode to setting
mode (F mode).
② Set Pressure Setting 1 in F mode.
( 3.4.2)
IMPORTANT
For operation procedure, refer to the various settings.
After entering setting values, be sure to press the
STORE button and return to the monitor mode.
Make sure to press the STORE button to memorize
the setting value.
AUTO (automatic motor stop/restart function) can be
selected properly.
① Switch the display from monitor mode to setting mode
(F mode).
② Set 0 (valid) or 1(invalid) while the air compressor is
stopped.
Capacity control type
F011
Digital monitor display
After setting change, confirm the capacity control type
by checking the settings on the digital monitor
( 3.3.5 ).
( 3.3.5 ).
and 8.4
In item F018, pressure setting 1 and 2 can be switched.
① This function is available for IPI between 20 ms and
the set value (F003: 1 to 5 sec).
② When IPI occurs , the air compressor stops and the
START light turns off.
③ After power recovers within F003 set condition, the
AUTO light blinks and the START light turns ON
(growing) to inform that the air compressor is waiting
for restarting from IPI.
④ The air compressor restarts 15 seconds after power
recovers.
IMPORTANT
(1) IPI means that the power voltage drops to zero (0)
instantaneously.
(2) For the IPI time of less than 20 ms, the air compressor
continues to run.
(3) For the IPI time of more than the setting, the air
compressor judges it as a power failure; the air
compressor stops but does not restart automatically.
Press the START button to restart the air compressor.
AUTO ON AUTO OFF
0: Valid 1: Invalid
0. AＸX 0. UＸX
29
