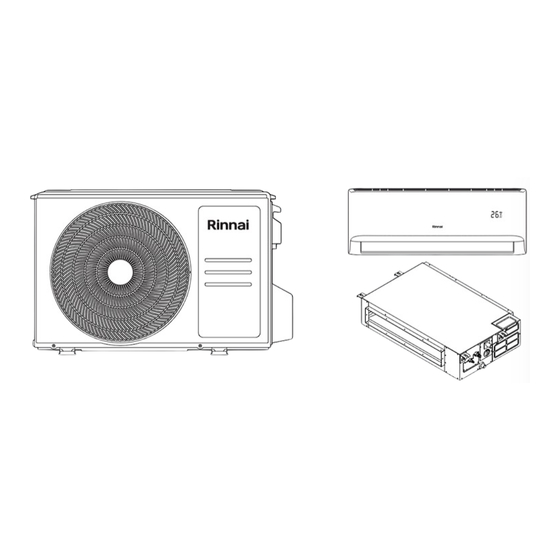

Rinnai Inverter Multi Split System Models
Outdoor
MON3H07B
MON4H09B
MON5H11B
Multi Split Type Air Conditioner
Installation Manual
Indoor Wall
Indoor Ducted
HINRP20M
DINSD26MB
HINRP26M
DINSD35MB
HINRP35M
DINSD50MB
HINRP50M
DINSD70MB
HINRP60M
HINRP70M
Indoor Cassette
CIN020MB
CIN026MB
CIN035MB
CIN050MB
REFRIGERANT
R32
Advertisement
Table of Contents
Related Manuals for Rinnai MON3H07B
Summary of Contents for Rinnai MON3H07B
- Page 1 Rinnai Inverter Multi Split System Models REFRIGERANT Outdoor Indoor Wall Indoor Ducted Indoor Cassette MON3H07B HINRP20M DINSD26MB CIN020MB MON4H09B HINRP26M DINSD35MB CIN026MB MON5H11B HINRP35M DINSD50MB CIN035MB HINRP50M DINSD70MB CIN050MB HINRP60M HINRP70M Multi Split Type Air Conditioner Installation Manual...
- Page 2 The design and specifications are subject to change without prior notice for product improvement. Consult with the Dealer or manufacturer for details. Any updates to the manual will be uploaded to the service website, please check for the latest version. Rinnai Multi Split Type AC...
-
Page 3: Table Of Contents
AIR EVACUATION Preparations and Precautions .......................27 Note on Adding Refrigerant ........................28 Safety and Leakage Check ........................29 TEST RUN Before Test Run .............................30 Test Run Instructions ..........................30 AUTOMATIC CORRECTION FUNCTION Automatic Wiring/Piping Correction Function ..................31 CONTACTS Rinnai Multi Split Type AC... -
Page 4: Safety Precautions
CLEANING AND MAINTENANCE WARNINGS Turn o the device and disconnect the power before cleaning. Failure to do so can cause • electrical shock. Do not clean the air conditioner with excessive amounts of water. • Rinnai Multi Split Type AC... -
Page 5: Caution
NOTE: For the units with R32 or R290 refrigerant , only the blast-proof ceramic fuse can be used. WARNINGS FOR PRODUCT INSTALLATION 1. Installation must be performed by an authorised dealer or specialist. Defective installation can cause water leakage, electrical shock, or re. Rinnai Multi Split Type AC ... - Page 6 If larger refrigerant charges than standard are used, then consult AS/NZS 60335.2.40 to determine WARNING for Using R32 Refrigerant For R32 frigerant models: X m² X m² Appliance shall not be installed in an unventilated space, if that space is smaller than (Please see the following form). Rinnai Multi Split Type AC...
-
Page 7: Disposal Guidelines
• Sell the appliance to certi ed scrap metal dealers. or operated under any circumstances. Installation of damaged or incorrect appliances may contravene local government regulations. Rinnai disclaims any liability or responsibility whatsoever in relation to the Special notice installation or operation of damaged or incorrect appliances. -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS MULTI OUTDOOR UNIT MON3H07B MON4H09B MON5H11B Number of Indoor Units Power Supply (To Outdoor Unit) V-Ph-Hz 220~240-1-50 Rated Capacity (Range) 7. 5 (1.7 – 9.8) 9.15 (1.7 – 11.5) 12.0 (1.7 – 12.3) Rated Input Power 1.98 2.38 3.42... - Page 9 Capacities tested in accordance with AS/NZS 3823.3, with 5m interconnecting length for all attached Indoor Units. With our policy of continuous improvement, we reserve the right to change, or discontinue at any time, specifications or designs without notice. 05 September 2022 Rinnai Multi Split Type AC...
-
Page 10: Specifications
When installing multiple indoor units with a single outdoor unit, ensure that the length of the refrigerant pipe and the drop height between the indoor and outdoor units meet the requirements illustrated in the following diagram: Outdoor unit Indoor unit Max.Height di erence Indoor unit Indoor unit Rinnai Multi Split Type AC... -
Page 11: Accessories
Parts you must purc hase 9.52( 3/8in) Φ separately. Consult the dealer 9.52( 3/8in) about the proper pipe size of Connecting pipe Φ assembly the unit you purchased. Gas side 12.7( 1/2in) Φ 16( 5/8in) Φ Rinnai Multi Split Type AC... -
Page 12: Installation Instructions
INSTALLATION INSTRUCTIONS Installation Summary Installation Summary INSTALLATION ORDER (L1) (L2) Install the outdoor unit Connect the refrigerant pipes Connect the wires Evacuate the refrigeration Perform a test run system Rinnai Multi Split Type AC ... -
Page 13: Installation Diagram
The actual shape of your air condtioner may • Copper lines must be independently insulated. • NOTE: The installation must be performed in accordance with the requirement of local and national standards. The installation may be Rinnai Multi Split Type AC... -
Page 14: Outdoor Installation
If the unit is frequently exposed to salty air (seaside): Where snowfall is anticipated, take Use outdoor unit that is specially designed to appropriate measures to prevent ice resist corrosion. buildup and coil damage. Rinnai Multi Split Type AC... -
Page 15: Unit Mounting Dimensions
In cold climates, make sure that the drain hose is as vertical as possible to ensure swift water drainage. If water drains too slowly, it can freeze in the hose and ood the unit. Rinnai Multi Split Type AC ... -
Page 16: Refrigerant Piping Connection
A and B systems. Connective pipe size of an A and B system (unit: mm) Indoor Unit capacity Liquid (kW) 2.0 / 2.6 / 3.5 6.35 9.53 3.5 / 5.0 / 6.0 6.35 12.70 9.53 15.88 Rinnai Multi Split Type AC ... -
Page 17: Connection Instructions - Refrigerant Piping
Using a pipe cutter, cut the pipe a little longer or change their direction after flaring. than the measured distance. 3. Make sure that the pipe is cut at a perfect 90° Flare nut angle. 90° Copper pipe Oblique Rough Warped Rinnai Multi Split Type AC... - Page 18 1. When connecting the flare nuts, apply a thin coat of refrigeration oil to the flared ends of the pipes. 2. Align the center of the two pipes that you will connect. Rinnai Multi Split Type AC ...
- Page 19 NOTE: DO NOT intertwine signal cable with other wires. While bundling these items together, do not intertwine or cross the signal cable with any other wiring. Rinnai Multi Split Type AC ...
-
Page 20: Wiring
Outdoor unit the electrical components soon after the power Indoor unit supply has been turned o . After turning o the power, always wait 10 minutes or more before you touch the electrical components. Rinnai Multi Split Type AC... -
Page 21: Outdoor Unit Wiring
Using a wire crimper, crimp u-lugs on the system. ends. NOTE: When connecting the wires, strictly follow the wiring diagram found inside the electrical box cover. Rinnai Multi Split Type AC ... -
Page 22: Wiring Figure
Please pay special attention while connecting the wire. NOTE: For quick-connector models, please refer to “Owner’s Manual & Installation Manual” packed with the indoor unit. NOTE: Run the main power cord through the lower line-outlet of the cord clamp. Rinnai Multi Split Type AC ... -
Page 23: Outdoor Wiring Diagram - 3 Head Models
WIRING Outdoor Unit Wiring Diagram – 3 Head models 3 Heads outdoor unit Rinnai Multi Split Type AC... -
Page 24: Outdoor Wiring Diagram - 4 Head Models
WIRING 4 Heads outdoor unit Outdoor Unit Wiring Diagram – 4 Head models Rinnai Multi Split Type AC... -
Page 25: Outdoor Wiring Diagram - 5 Head Models
WIRING 5 Heads outdoor unit Outdoor Unit Wiring Diagram – 5 Head models Rinnai Multi Split Type AC... - Page 26 . Please contact your distributor or installer to get further information and purchase magnetic rings (The supplier of magnetic ring is TDK （model ZCAT3035-1330） or similar). Rinnai Multi Split Type AC...
-
Page 27: Air Evacuation
Compound Meter reads -76cmHG (-1x105Pa). 6. Close the manifold gauge’s Low Pressure valve and turn o the vacuum pump. 7. Wait for 5 minutes, then check that there has been no change in system pressure. Rinnai Multi Split Type AC... -
Page 28: Note On Adding Refrigerant
Standard pipe length x N Make sure to remove the additional refrigerant charge according to the rated volume (5m refrigerant piping) when doing market or government veri cation test. NOTE: The standard pipe length is 10m. Rinnai Multi Split Type AC ... -
Page 29: Safety And Leakage Check
Outdoor unit check point A, B,C,D are points for the 4 Head model. A, B,C,D, and E are points for the 5 Head model. Rinnai Multi Split Type AC Page 40 ... -
Page 30: Test Run
Ensure the indicators on the remote control and the display panel on the indoor unit work properly. e. Ensure the manual buttons on the indoor unit works properly. Page 41 Rinnai Multi Split Type AC... -
Page 31: Automatic Correction Function
2. Check that the stop valves of the liquid pipe and gas pipe are open. 3. Turn on the breaker and wait at least 2 minutes. 4. Press the check switch on the outdoor PCB board unit LED display "C E". Page 42 Rinnai Multi Split Type AC... -
Page 32: Contacts
Monday to Friday, 8.00 am to 5.00 pm EST. *Cost of a local call may be higher from a mobile phone. (National calls from public phones in Australia are free.) For further information visit www.rinnai.com.au or email enquiry@rinnai.com.au innai has a Service and Spare Parts network with...
