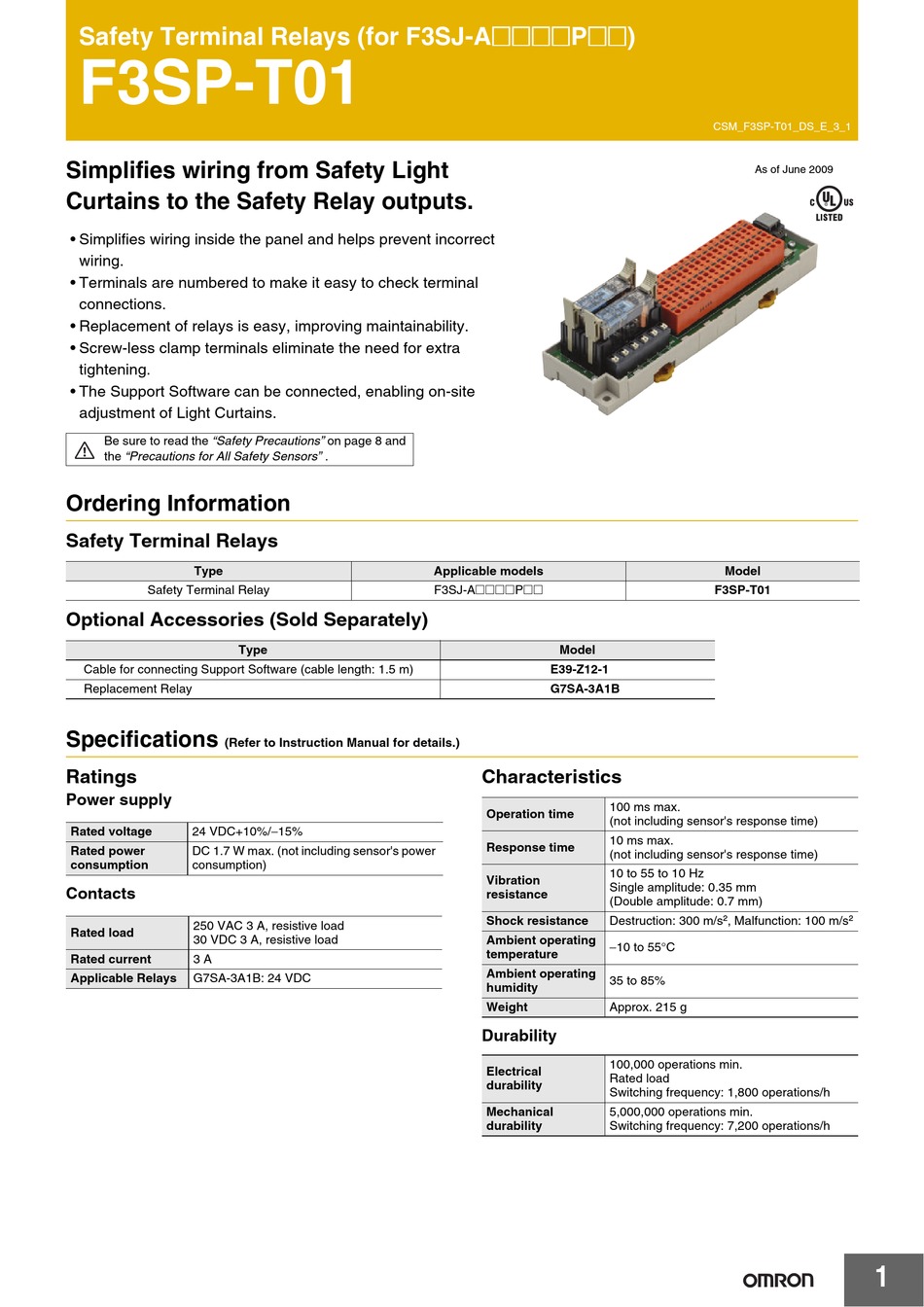

Safety Terminal Relays (for F3SJ-A@@@@P@@)
F3SP-T01
Simplifies wiring from Safety Light
Curtains to the Safety Relay outputs.
• Simplifies wiring inside the panel and helps prevent incorrect
wiring.
• Terminals are numbered to make it easy to check terminal
connections.
• Replacement of relays is easy, improving maintainability.
• Screw-less clamp terminals eliminate the need for extra
tightening.
• The Support Software can be connected, enabling on-site
adjustment of Light Curtains.
Be sure to read the "Safety Precautions" on page 8 and
the "Precautions for All Safety Sensors" .
Ordering Information
Safety Terminal Relays
Type
Safety Terminal Relay
Optional Accessories (Sold Separately)
Type
Cable for connecting Support Software (cable length: 1.5 m)
Replacement Relay
Specifications
(Refer to Instruction Manual for details.)
Ratings
Power supply
Rated voltage
24 VDC+10%/−15%
Rated power
DC 1.7 W max. (not including sensor's power
consumption
consumption)
Contacts
250 VAC 3 A, resistive load
Rated load
30 VDC 3 A, resistive load
Rated current
3 A
Applicable Relays
G7SA-3A1B: 24 VDC
Applicable models
F3SJ-A@@@@P@@
Model
E39-Z12-1
G7SA-3A1B
Characteristics
Operation time
Response time
Vibration
resistance
Shock resistance
Ambient operating
temperature
Ambient operating
humidity
Weight
Durability
Electrical
durability
Mechanical
durability
CSM_F3SP-T01_DS_E_3_1
As of June 2009
Model
F3SP-T01
100 ms max.
(not including sensor's response time)
10 ms max.
(not including sensor's response time)
10 to 55 to 10 Hz
Single amplitude: 0.35 mm
(Double amplitude: 0.7 mm)
2
Destruction: 300 m/s
, Malfunction: 100 m/s
−10 to 55°C
35 to 85%
Approx. 215 g
100,000 operations min.
Rated load
Switching frequency: 1,800 operations/h
5,000,000 operations min.
Switching frequency: 7,200 operations/h
2
1

Advertisement

loading

Summary of Contents for Omron F3SP-T01

  • Page 1 Safety Terminal Relays (for F3SJ-A@@@@P@@) F3SP-T01 CSM_F3SP-T01_DS_E_3_1 Simplifies wiring from Safety Light As of June 2009 Curtains to the Safety Relay outputs. • Simplifies wiring inside the panel and helps prevent incorrect wiring. • Terminals are numbered to make it easy to check terminal connections.
  • Page 2: Wiring Diagrams

    F3SP-T01 Connections Internal Circuit Diagrams Modular Connector I/O terminals Relay contact output terminal Wiring Diagrams...
  • Page 3: Wiring Example

    F3SP-T01 Wiring Example The following example is for when two muting sensors are connected in the auto reset mode, and the external device monitoring function is enabled. Connecting Four Muting Sensors 24 V DC S1: External test switch Note: If you are connecting four muting...
  • Page 4 F3SP-T01 The following example is for when no muting sensors are connected in the auto reset mode, and the external device monitoring function is enabled. 24 V DC S1: External test switch KM1, KM2: Magnet contactor M: 3-phase motor F1, F2: Fuse Note: If a lockout reset is required, connect a switch between RST and V.
  • Page 5 F3SP-T01 The following example is for when two muting sensors are connected in the manual reset mode, and the external device monitoring function is enabled. Computer Tool Connecting for F3SJ Cable F39-GWUM E39-Z12-1 Connecting Four Muting Sensors 24 V DC...
  • Page 6 F3SP-T01 The following example is for when no muting sensors are connected in the manual reset mode, and the external device monitoring function is enabled. 24 V DC S1: External test switch S2: Interlock/lockout reset switch KM1, KM2: Magnet contactor...
  • Page 7 F3SP-T01 Dimensions (Unit: mm) F3SP-T01 Status indicators (LEDs) From left to right: PWR, RY1 (K1), RY2 (K2), TEST, RESET, and AUX. Modular Connector for Light Curtain G7SA-3A1B (K1) Support Software I/O terminals Two, 4.2 dia. holes G7SA-3A1B (K2) (169) Relay contact output terminals...
  • Page 8: Safety Precautions

    Do not exceed 1 A. Do not use a load that exceeds the contact ratings or • Use the F3SP-T01 in an enclosure that provides at least IP54 switching capacity. Doing so may cause the product to fail degree of protection.
  • Page 9 F3SP-T01 • Apply the specified voltages to the input terminals. Applying an Mounting to and Removing from DIN Track inappropriate voltage may prevent specified functions from • To mount the product to a DIN Track, release the slider lock, place operating properly, which may cause damage to the product or the product on the DIN track, and then lock the slider.
  • Page 10 Warranty and Limitations of Liability WARRANTY OMRON's exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified) from date of sale by OMRON. OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS.
