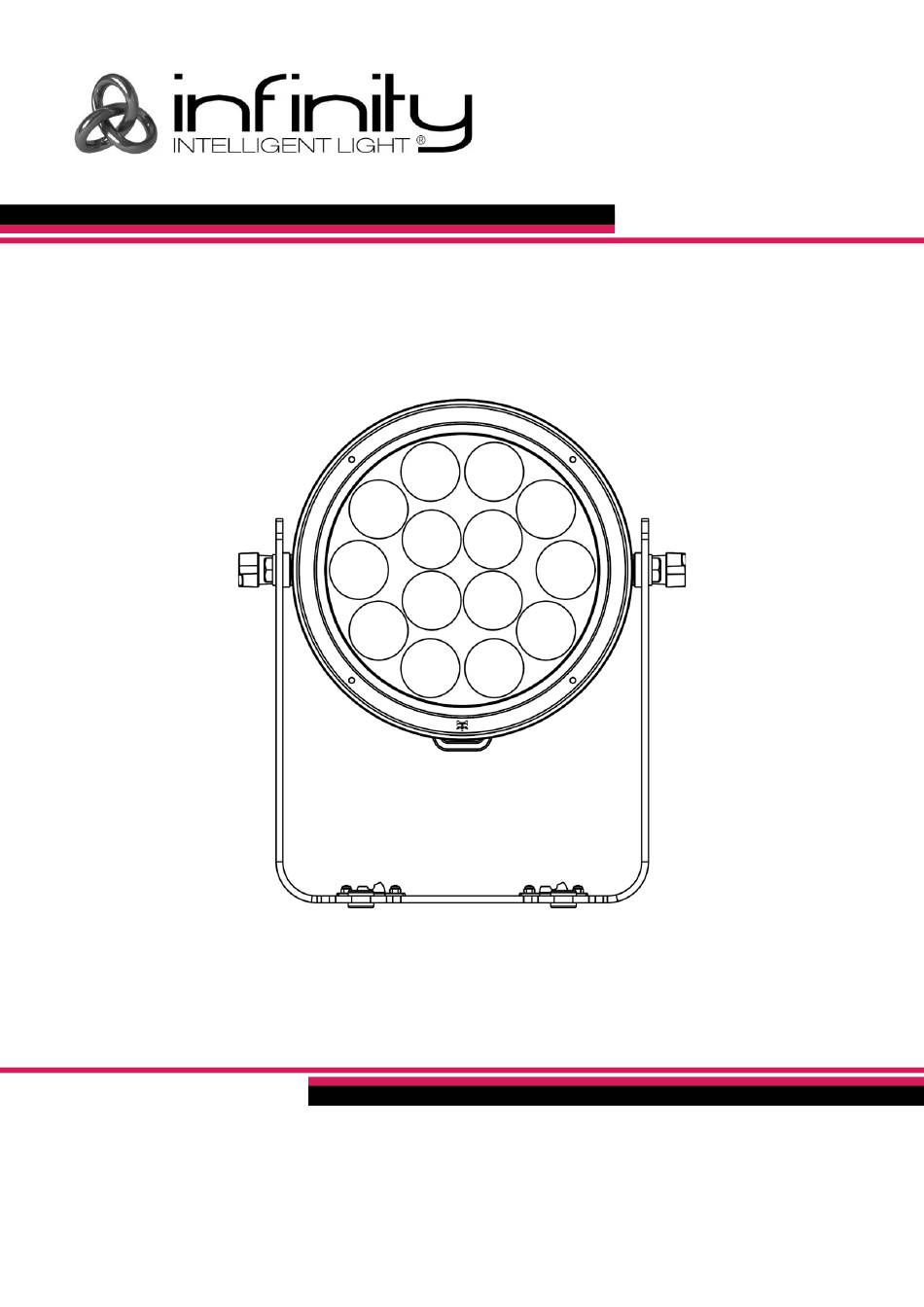

- Page 1 USER MANUAL ENGLISH Raccoon P14/4 Product code: 200500 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Raccoon P14/4 Preface Thank you for purchasing this Infinity product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Raccoon P14/4 Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 LEDs Lifespan ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 Raccoon P14/4 LED Frequency ............................30 Display Settings ............................31 Backlight ..............................31 Display Flip ............................31 Key Lock ...............................32 DMX Failure ..............................32 System Information ..........................33 Power Consumption Status ......................33 Sending Settings .............................34 Restore Factory Settings ........................34 DMX Channels ..............................35 DMX Channels Overview ..........................35 Dimmer (1 Channel), Pixel (3 Channels), XY (8 Channels), Raw (8 Channels) .......36...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Infinity Raccoon P14/4 ● Seetronic Schuko to Power Pro True power cable (1,5 m) ●... -
Page 6: Symbols And Signal Words
Raccoon P14/4 Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
Raccoon P14/4 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 Raccoon P14/4 WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.
-
Page 9: Requirements For The User
Raccoon P14/4 Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. ● The safety devices are not damaged. -
Page 10: Description Of The Device
Raccoon P14/4 Description of the Device The Infinity Raccoon P14/4 is an IP65-rated LED par effect. It is equipped with 14 extremely bright LEDs (red, green, blue, mint). It is suitable for rental applications and situations that demand a high light output. -
Page 11: Product Specifications
Raccoon P14/4 Product Specifications Model: Raccoon P14/4 Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 165 W Physical: Dimensions: 300 x 260 x 195 mm (L x W x H) Weight: 5,5 kg Optics: Light source: 14 x 15 W RGBM LEDs Dimmer: 0–100 %... -
Page 12: Optional Accessories
Raccoon P14/4 Optional Accessories You can additionally purchase the following accessories: ● Product code: 200560 (Accessory Holder for Raccoon Series) ● Product code: 200251 (Barndoor for 300W Fresnel) ● Product code: 200561 (Top Hat for Raccoon Series) ● Product code: 200564 (15°... -
Page 13: Rigging
Raccoon P14/4 Rigging The device can be mounted to a truss or other rigging structure in any orientation. Make sure that all loads are within the pre-determined limits of the supporting structure. CAUTION Restrict the access under the work area during rigging and/or derigging. -
Page 14: Angle Adjustment
Raccoon P14/4 Angle Adjustment You can adjust the angle of the device with the 2 adjustment screws (02). Turn the 2 adjustment screws (02) counterclockwise to loosen them. 02) Tilt the device to the desired angle (Fig. 06). 03) Turn the 2 adjustment screws (02) clockwise to tighten them. Make sure that the device cannot move freely after the 2 adjustment screws (02) are tightened. -
Page 15: Barndoor Installation
Raccoon P14/4 Barndoor Installation The Barndoor is not supplied and shall be purchased separately. See 3.4. Optional Accessories on page 11. Contact your Highlite International dealer for more information. To install the Barndoor, follow the steps below: Install the Accessory Holder. See 4.6. Accessory Holder Installation on page 13 for more information. -
Page 16: Top Hat Installation
Raccoon P14/4 Top Hat Installation The Top Hat is not supplied and shall be purchased separately. See 3.4. Optional Accessories on page 11. Contact your Highlite International dealer for more information. To install the Top Hat, follow the steps below: Install the Accessory Holder. -
Page 17: Diffusor Installation
Raccoon P14/4 Diffusor Installation The Diffusor is not supplied and shall be purchased separately. See 3.4. Optional Accessories on page 11. Contact your Highlite International de aler for more information. To install the Diffusor, follow the steps below: Install the Accessory Holder. See 4.6. Accessory Holder Installation on page 13 for more information. -
Page 18: Power Linking Of Multiple Devices
Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Raccoon P14/4 is not connected to a controller or to other devices, it functions as a stand- alone device. For more information about the control modes, refer to 6.2. Control Modes on page 20. -
Page 19: Dmx Connection
DMX-512 Protocol You need a DMX serial data link to run light shows of one or more devices using a DMX-512 controller. The Raccoon P14/4 has 5-pin DMX signal IN and OUT connectors. The pin assignment is as follows: ●... -
Page 20: Dmx Linking
04) Continue assigning the starting addresses of the remaining devices by adding each time 12 to the previous number. Make sure that you do not have any overlapping channels in order to control each Raccoon P14/4 correctly. If two or more devices are addressed similarly, they will work similarly. -
Page 21: Operation
Control Modes The Raccoon P14/4 can be operated with a DMX controller and as a stand-alone device. The Raccoon P14/4 supports the following control modes: ●... -
Page 22: Control Panel
Use the SET button to open menus, to confirm choices or to adjust values. Start-up Upon start-up, the display shows a splash screen with the Infinity logo and the name of the device. Immediately afterwards, the display shows the current operation mode, the frequency and the temperature of the LEDs. -
Page 23: Menu Overview
Raccoon P14/4 Menu Overview Product code: 200500... - Page 24 Raccoon P14/4 Product code: 200500...
- Page 25 Raccoon P14/4 Product code: 200500...
-
Page 26: Main Menu Options
Raccoon P14/4 Main Menu Options The main menu has the following options: ● DMX Mode: See 6.6.1. DMX Channel Mode ● DMX Address: See 6.6.2. DMX Address ● Manual: See 6.6.3. Manual Mode ● Dimmer Curve: See 6.6.4. Dimmer Curve Selection ●... -
Page 27: Dmx Channel Mode
Raccoon P14/4 ● Send Settings: See 6.6.14. Sending Settings ● Factory Settings: See 6.6.15. Restoring Factory Settings Press the UP/DOWN buttons to select menus. Press the SET button to open menus. DMX Channel Mode In this menu you can select the DMX channel mode. -
Page 28: Manual Mode
Raccoon P14/4 Manual Mode In this menu you can use the device in Static Color mode or activate one of the 3 built-in effects. 01) Press the UP/DOWN buttons to select one of the 4 options: ● STATIC: See 6.6.3.1. Static Color ●... -
Page 29: Built-In Effects
Raccoon P14/4 Built-in Effects In this menu you can run the built-in effects and adjust their settings. 01) Press the UP/DOWN buttons to select one of the 4 options: ● DIMMER: From low to high intensity (0–100 %) ● PERIOD: Built-in effect duration (2–60 seconds) -
Page 30: Dimmer Speed
Raccoon P14/4 Dimmer Speed In this menu you can set the dimmer speed. 01) Press the UP/DOWN buttons to choose one of the 4 options: ● AUTO: Fast dimmer with jump detection ● SLOW: Slow dimmer ● MEDIUM: Medium dimmer ●... -
Page 31: Led Mode
Raccoon P14/4 LED Mode In this menu you can set the LED performance settings. 01) Press the UP/DOWN buttons to choose one of the 2 options: ● HIGH QUALITY ● HIGH BRIGHTNESS 02) Press the SET button to confirm. Calibration In this menu you can set the color calibration. -
Page 32: Display Settings
Raccoon P14/4 Display Settings In this menu you can adjust the display settings of the device. 01) Press the UP/DOWN buttons to select one of the following 3 submenus: ● BACKLIGHT: See 6.6.11.1. Backlight ● DISPLAY FLIP: See 6.6.11.2. Display Flip ●... -
Page 33: Key Lock
Raccoon P14/4 Key Lock In this menu you can set the display lock. 01) Press the UP/DOWN buttons to select one of the following 2 options: ● LOCKED: The display will be locked. ● UNLOCKED: The display will be unlocked 02) Press the SET button to confirm. -
Page 34: System Information
Raccoon P14/4 System Information In this menu you can view the parameters of the device. 01) Press the UP/DOWN buttons to select one of the following 9 submenus: ● OPERATING HOURS: Provides information about the total hours of operation of the device ●... -
Page 35: Sending Settings
Raccoon P14/4 Sending Settings In this menu you can use DMX to send your current settings to the other connected Raccoon devices. 01) Press the UP/DOWN buttons to select one of the following 3 options: ● ABORT: Return to the previous screen ●... -
Page 36: Dmx Channels
Raccoon P14/4 DMX Channels DMX Channels Overview Dimmer Pixel Basic Function 1 CH 3 CH 8 CH 8 CH 8 CH 10 CH 12 CH 12 CH Dimmer Coarse Dimmer Fine Strobe Hue Coarse Hue Fine Saturation Intensity X Coarse... -
Page 37: Dimmer (1 Channel), Pixel (3 Channels), Xy (8 Channels), Raw (8 Channels)
Raccoon P14/4 Dimmer (1 Channel), Pixel (3 Channels), XY (8 Channels), Raw (8 Channels) Dimmer Pixel Function Value Setting 8 CH 1 CH 3 CH 8 CH Dimmer Coarse 000–255 From low to high intensity (0–100 %) Dimmer Fine 000–255 From low to high intensity (0–100 %) -
Page 38: Basic (8 Channels), Hsi (10 Channels) Rgb (12 Channels), Cmy (12 Channels)
Raccoon P14/4 Basic (8 Channels), HSI (10 Channels) RGB (12 Channels), CMY (12 Channels) Basic Function Value Setting 12 CH 12 CH 8 CH 10 CH Dimmer Coarse 000–255 From low to high intensity (0–100 %) Dimmer Fine 000–255 From low to high intensity (0–100 %) 000–005... - Page 39 Raccoon P14/4 Basic Function Value Setting 12 CH 12 CH 8 CH 10 CH 038–040 Light Amber L102 041–043 Straw L103 044–046 Deep Amber L104 047–049 Orange L105 050–052 Primary Red L106 053–055 Dark Pink L111 056–058 Magenta L113 059–061...
-
Page 40: Color Saturation
Raccoon P14/4 Basic Function Value Setting 12 CH 12 CH 8 CH 10 CH Color Saturation 000–255 Color filter saturation, from 100 % to 0 % 000–007 No function 008–015 Dimmer curve: Linear 016–023 Dimmer curve: S-Curve 024–031 Dimmer curve: Square Law 032–039... -
Page 41: Rdm Information
RDM Information This device supports RDM. Refer to 6.8.2. Supported RDM PIDs (Parameter IDs) for more information. RDM Details ● Responder: 29B4:0AAxxxxx ● Manufacturer's ID: Infinity (Highlite International B.V.) ● Manufacturer Label: Infinity ● Model Description: Raccoon P14/4 ● Model ID: 170 (0AA hexadecimal) ●... -
Page 42: Troubleshooting
Raccoon P14/4 Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 43: Maintenance
Raccoon P14/4 Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. -
Page 44: Draining Condensation Water
Raccoon P14/4 Draining Condensation Water The Raccoon P14/4 is IP65 rated. The device can resist water jets. If the device is exposed to extreme humid conditions during servicing, condensation may collect inside the device. This can happen also during transportation, if the device is exposed to extreme temperature variations. -
Page 45: Deinstallation, Transportation And Storage
Raccoon P14/4 Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 46 Raccoon P14/4 Product code: 200500...
- Page 47 Raccoon P14/4 Product code: 200500...
- Page 48 ©2022 Infinity...
