MANUAL
ENGLISH

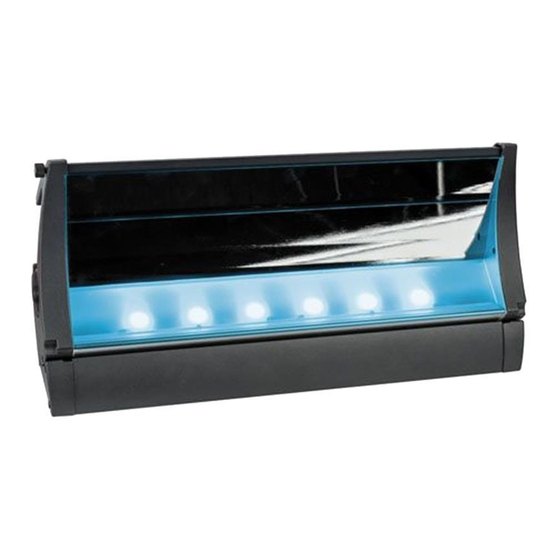

Infinity TCYC-7 Cyclorama
V1
Ordercode: 200300
Firmware Version 1.04
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading

Related Manuals for Infinity TCYC-7

Summary of Contents for Infinity TCYC-7

  • Page 1 MANUAL ENGLISH Infinity TCYC-7 Cyclorama Ordercode: 200300 Firmware Version 1.04 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...

  • Page 2: Table Of Contents

    TCYC-7 Cyclorama Table of contents Warning ....................................3 Safety Instructions ................................. 4 Operating Determinations ............................5 Rigging .................................... 5 Bracket Installation ............................... 6 Clamp Installation ................................. 7 Connection with the mains............................7 Return Procedure ................................8 Claims ....................................8 Description of the device ..............................9 Overview ..................................10...
  • Page 3 TCYC-7 Cyclorama 11 Channels (RGB Pro Mode) ..........................31 11 Channels (CMY Pro Mode) ..........................34 11 Channels (HSI Pro Mode) ..........................37 21 Channels (RAW Mode) ............................40 Maintenance ..................................44 Troubleshooting ................................44 No Light ..................................44 No Response to DMX..............................44 Product Specifications ..............................46 Dimensions ..................................47 Notes ....................................48...

  • Page 4: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Infinity TCYC-7 Cyclorama ● Neutrik PowerCON to Schuko power cable (1,4 m) ●...

  • Page 5: Safety Instructions

    TCYC-7 Cyclorama Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: ● be qualified ● follow the instructions of this manual Before your initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device.

  • Page 6: Operating Determinations

    ● If your device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Infinity dealer for service. ● For adult use only. The device must be installed beyond the reach of children. Never leave the unit running unattended.

  • Page 7: Bracket Installation

    TCYC-7 Cyclorama Bracket Installation 01) Carefully place the Cyclorama on its side. 02) Slide the lip of the clamp under the designated area. 03) Slide the lip of the other clamp under the designated area. 04) Align both parts, so that both pins can slide into the holes.

  • Page 8: Clamp Installation

    TCYC-7 Cyclorama Clamp Installation The Infinity TCYC-7 Cyclorama can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property ! Connection with the mains Connect the device to the mains with the power-plug.

  • Page 9: Return Procedure

    TCYC-7 Cyclorama Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

  • Page 10: Description Of The Device

    TCYC-7 Cyclorama Description of the device Features The Infinity TCYC-7 Cyclorama is an extremely bright and powerful luminaire. ● 300W Lumiled 7 colour LED engine using custom designed array ● CRI > 96 Consistently on full CCT range ● LED Colour Linearity Compensation ●...

  • Page 11: Overview

    TCYC-7 Cyclorama Overview Fig. 01 01) Mirror 02) 300W Lumiled 7-color LED Back Fig. 02 03) Safety Eye 04) Neutrik PowerCON OUT (Gray) 05) Neutrik PowerCON IN (Blue) 06) 5-pin DMX signal connector IN 07) 5-pin DMX signal connector OUT 08) LCD Display 09) Back/Home Button (hold down >3sec = focus mode)

  • Page 12: Focus Angle

    Focus angle 30°- Electronic adjustment Fig. 03 Installation Remove all packing materials from the Infinity TCYC-7. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly.

  • Page 13: Using The Barndoor

    TCYC-7 Cyclorama Using the Barndoor Ordercode: 200300...

  • Page 14: Control Modes

    TCYC-7 Cyclorama Control Modes There are 2 modes: ● Manual control ● DMX512 (1CH, 6CH, 7CH, 11CH, 11CH, 11CH or 21CH) One Cyclorama (Manual control) 06) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

  • Page 15: Fixture Linking

    DAP DMX adapter: 3-pin > 5-pin. Ordercode FLA30. ● DAP DMX Terminator 3-pin. Ordercode FLA42. ● DAP DMX Terminator 5-pin. Ordercode FLA43. The Infinity TCYC-7 Cyclorama can be operated with a controller in control mode or without the controller in stand-alone mode. Ordercode: 200300...

  • Page 16: Control Panel

    TCYC-7 Cyclorama Control Panel LC-display Back/Home button (hold down >3sec = focus mode) Menu button Enter button (PRESS) + Up/down (TURN) Fig. 13 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address the next time.)

  • Page 17: Menu Overview

    TCYC-7 Cyclorama Menu Overview Ordercode: 200300...
  • Page 18 TCYC-7 Cyclorama Ordercode: 200300...

  • Page 19: Activate Focus Mode

    TCYC-7 Cyclorama Activate Focus Mode Press and hold down the Home button (B) for 2 sec. The output will be open white 3200K(Focus mode). The device automatically returns to normal mode after 3 min. or when the Home button is pressed again.

  • Page 20: Dmx Configuration

    TCYC-7 Cyclorama 1. DMX Configuration In this menu you can choose a DMX configuration. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose one of the 7 channel modes 04) Press the ENTER button to confirm.

  • Page 21: Color Wheel

    TCYC-7 Cyclorama 3.3 Color Wheel 01) Press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the submenu. 03) Press the UP/DOWN buttons to choose one of the 64 preset colors and white: 04) Press the ENTER button to confirm.

  • Page 22: Dimmer Curves

    TCYC-7 Cyclorama 4. Dimmer Curves In this menu you can choose a dimmer curve. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose from the 4 available options: 04) Press the ENTER button to confirm.

  • Page 23: Cct Mode

    TCYC-7 Cyclorama 6. CCT Mode In this menu you can choose between different outputs in the CCT mode. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu.

  • Page 24: Dmx Lost Mode

    TCYC-7 Cyclorama 8. DMX Lost Mode In this menu you can determine the behaviour of the Cyclorama in case of a DMX failure. The display will blink (only if Display set to “Auto Off”). 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu.

  • Page 25: Display

    TCYC-7 Cyclorama 12. Display In this menu you can set the backlight of the display. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose one of the 3 options: The display will turn off in 60 seconds.

  • Page 26: Info

    TCYC-7 Cyclorama 14. Info In this menu you can view the information about the device. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) The display will show:...

  • Page 27: Dmx Channels Quickguide

    TCYC-7 Cyclorama DMX Channels Quickguide Infinity TCYC-7 Dimmer Basic Thungsten RGB Pro HSI Pro Mode Mode Mode Mode Mode Mode Mode 7Color Profile (1CH) (6CH) (7CH) (11CH) (11CH) (11CH) (21CH) Dimmer Coarse Dimmer Fine Strobe Color Wheel CW Crossfade Hue Coarse...

  • Page 28: Dmx Channels

    TCYC-7 Cyclorama DMX Channels 1 Channel (Basic) Channel 1 – Dimmer Coarse 0-255 Dimmer intensity, from dark to brightest 0-100% 6 Channels (Basic) Channel 1 – Dimmer Coarse 0-255 Dimmer intensity, from dark to brightest 0-100% Channel 2 – Shutter/Strobe...
  • Page 29 TCYC-7 Cyclorama 68-70 Light blue Lee 118 71-73 Dark blue Lee 119 74-76 Deep blue Lee 120 77-79 Lee green Lee 121 80-82 Fern green Lee 122 83-85 Dark green Lee 124 86-88 Bright pink Lee 128 89-91 Medium blue...

  • Page 30: Channels (Thungsten)

    TCYC-7 Cyclorama 252-253 25,3 sec. crossfade 253-254 25,4 sec. crossfade 254-255 25,5 sec. crossfade Note: The color wheel crossfade time is the time which needs to pass before the device fades from color 1 to color 2. Channel 6 – Vertical movement (Tilt) Move the slider up, in order to move head vertically (TILT).
  • Page 31 TCYC-7 Cyclorama 98-100 Pale lavender Lee 136 101-103 Special lavender Lee 137 104-106 Pale green Lee 138 107-109 Primary green Lee 139 110-112 Bright blue Lee 141 113-115 Apricot Lee 147 116-118 Bright rose Lee 148 119-121 Pale gold Lee 152...

  • Page 32: Channels (Rgb Pro Mode)

    TCYC-7 Cyclorama Channel 7 – Control mode (Hold DMX value for at least 3 sec. before the function takes effect) No function 8-15 Dimmer curve 1: Linear 16-23 Dimmer curve 2: Gamma 2.0 24-31 Dimmer curve 3: Gamma 2.2 32-39...
  • Page 33 TCYC-7 Cyclorama 229-254 6000K-8000K 8000K Channel 5 – Red Dimmer Coarse (CH1 must be set between 1-255 and CH3 between 6-255 0-255 Gradual adjustment Red from 0-100% Channel 6 – Green Dimmer Coarse (CH1 must be set between 1-255 and CH3 between 6-255...
  • Page 34 TCYC-7 Cyclorama 131-133 Flame red Lee 164 134-136 Daylight blue Lee 165 137-139 Lilac tint Lee 169 140-142 Deep lavender Lee 170 143-145 Lagoon blue Lee 172 146-148 Chrome orange Lee 179 149-151 Dark lavender Lee 180 152-154 Congo blue...

  • Page 35: Channels (Cmy Pro Mode)

    TCYC-7 Cyclorama 96-103 Simulation source: Tungsten 2000W 104-111 PWM speed: 1,1 kHz 112-119 PWM speed: 1,2 kHz 120-127 PWM speed: 1,3 kHz 128-135 PWM speed: 1,4 kHz 136-143 PWM speed: 1,5 kHz 144-151 PWM speed: 1,6 kHz 152-159 Calibration disabled...
  • Page 36 TCYC-7 Cyclorama Channel 7 – Yellow Dimmer Coarse (CH1 must be set between 1-255 and CH3 between 6-255 0-255 Gradual adjustment Yellow from 0-100% Channel 8 – Color wheel (CH1 must be set between 1-255 and CH3 between 6-255 No function...
  • Page 37 TCYC-7 Cyclorama 161-163 Half CT blue Lee 202 164-166 Quarter CT Blue Lee 203 167-169 Full CT orange Lee 204 170-172 Half CT orange Lee 205 173-175 Quarter CT orange Lee 206 176-178 Filter minus green Lee 247 179-181 Half minus green...

  • Page 38: Channels (Hsi Pro Mode)

    TCYC-7 Cyclorama 176-183 Fan mode: auto 184-191 Fan mode: full 192-199 Graphic display: auto off 200-207 Graphic display: on 208-215 CCT mode: High CRI 216-223 CCT mode: High Output 224-249 No function Reset all 251-255 No function 11 Channels (HSI Pro Mode) Channel 1 –...
  • Page 39 TCYC-7 Cyclorama Channel 6 – Hue Fine (color variations) (CH1must be set between 1-255, CH3 between 6-255 and CH7 between 1-255 0-255 Gradual adjustment Hue fine from 0-100% Channel 7 – Color saturation (CH1must be set between 1-255 and CH3 between 6-255...
  • Page 40 TCYC-7 Cyclorama 146-148 Chrome orange Lee 179 149-151 Dark lavender Lee 180 152-154 Congo blue Lee 181 155-157 Alice blue Lee 197 158-160 Full CT blue Lee 201 161-163 Half CT blue Lee 202 164-166 Quarter CT Blue Lee 203...

  • Page 41: Channels (Raw Mode)

    TCYC-7 Cyclorama 136-143 PWM speed: 1,5 kHz 144-151 PWM speed: 1,6 kHz 152-159 Calibration disabled 160-167 Calibration enabled 168-175 Fan mode: silent 176-183 Fan mode: auto 184-191 Fan mode: full 192-199 Graphic display: auto off 200-207 Graphic display: on 208-215...
  • Page 42 TCYC-7 Cyclorama Channel 12 – Cyan Dimmer Coarse (CH1must be set between 1-255, CH3 between 6-255 0-255 Gradual adjustment Cyan from 0-100% Channel 13 – Cyan Dimmer Fine (CH2 must be set between 1-255, CH3 between 6-255 0-255 Gradual adjustment Cyan fine from 0-100% Channel 14 –...
  • Page 43 TCYC-7 Cyclorama 107-109 Primary green Lee 139 110-112 Bright blue Lee 141 113-115 Apricot Lee 147 116-118 Bright rose Lee 148 119-121 Pale gold Lee 152 122-124 Pink Lee 157 125-127 Deep orange Lee 158 128-130 Bastard amber Lee 162...
  • Page 44 TCYC-7 Cyclorama 8-15 Dimmer curve 1: Linear 16-23 Dimmer curve 2: Gamma 2.0 24-31 Dimmer curve 3: Gamma 2.2 32-39 Dimmer curve 4: S-curve 40-71 No function 72-79 Simulation source: Tungsten 575W 80-87 Simulation source: Tungsten 750W 88-95 Simulation source: Tungsten 1000W...

  • Page 45: Maintenance

    TCYC-7 Cyclorama Maintenance The Showtec Infinity TCYC-7 Cyclorama requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. The front glass panel will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the light output very quickly.
  • Page 46 Check if power is switched on and fixtures do not cables are plugged in function at all Internal fuse blown ● Return the Infinity to your Infinity dealer Fixtures reset The controller is not connected ● Connect controller correctly, but all 3-pin/5-pin XLR Out of the ●...

  • Page 47: Product Specifications

    TCYC-7 Cyclorama Product Specifications Model: Infinity TCYC-7 Cyclorama Input Voltage: 100-240V AC, 50/60Hz Power consumption: 310W Power factor: 0,96 DMX linking: 30pcs Dimensions: 566 x 195 x 257 mm (LxWxH) excl. bracket Weight: 11,2 kg Operating and Programming: Signal pin OUT:...

  • Page 48: Dimensions

    TCYC-7 Cyclorama Dimensions Ordercode: 200300...

  • Page 49: Notes

    TCYC-7 Cyclorama Notes Ordercode: 200300...
  • Page 50 TCYC-7 Cyclorama Ordercode: 200300...
  • Page 51 TCYC-7 Cyclorama Ordercode: 200300...
  • Page 52 ©2019 Infinity...

This manual is also suitable for:

200300

Table of Contents
