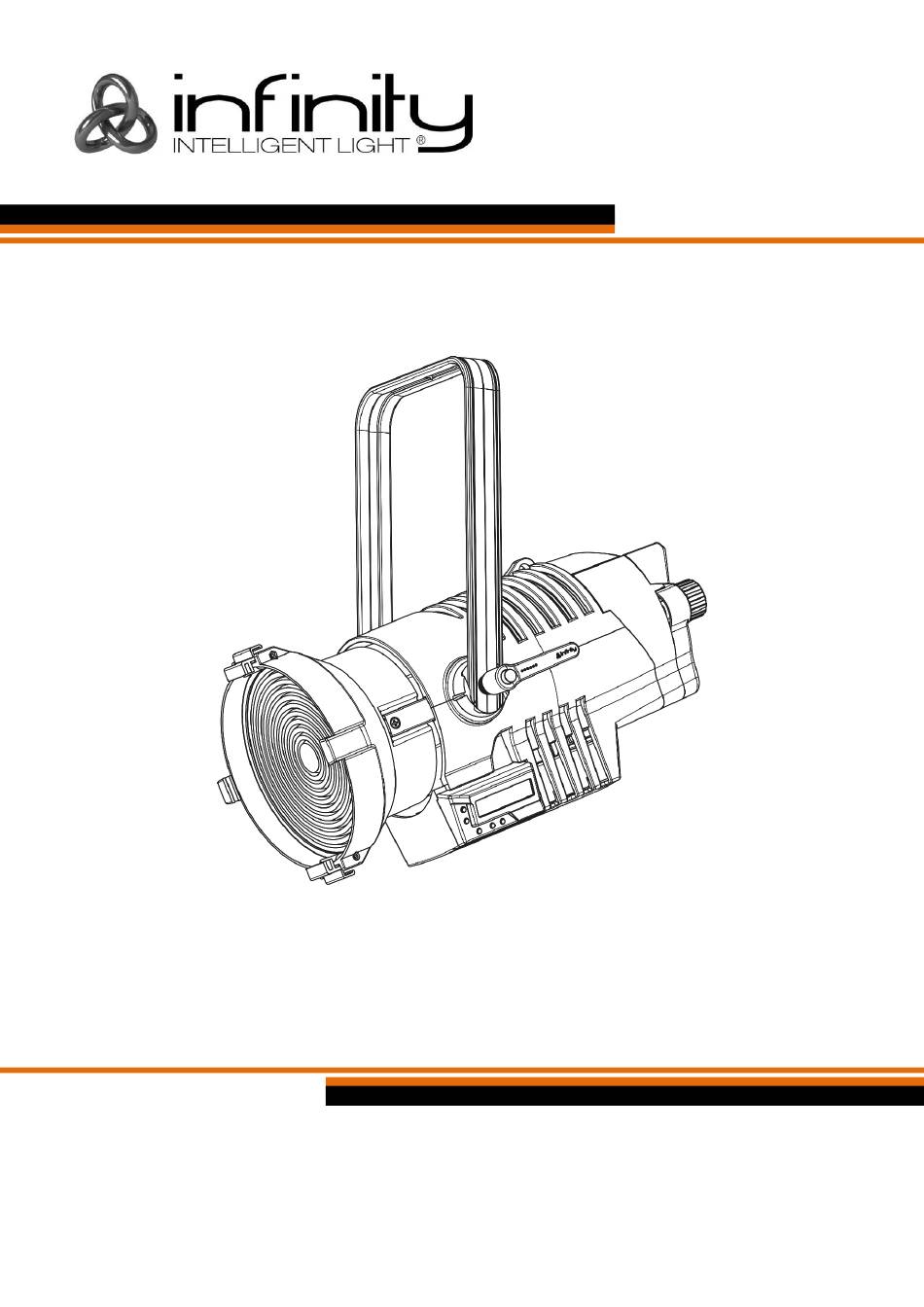

- Page 1 MANUAL ENGLISH Infinity TF-300 Fresnel Ordercode: 200202 Firmware Version 1.04 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
11. Info ..................................22 12. Reset Factory Settings ............................22 DMX Channels ................................23 1 Channel (Dimmer) ..............................23 3 Channels (Basic) ..............................23 5 Channels (Pro) ...............................23 Maintenance ..................................24 Cleaning the Field Lens .............................24 Troubleshooting ................................24 No Light ..................................24 No Response to DMX..............................25 Ordercode: 200202... - Page 3 TF-300 Fresnel Product Specifications ..............................26 Dimensions ..................................27 Notes ....................................28 Ordercode: 200202...
-
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Infinity TF-300 Fresnel ● Neutrik PowerCON to Schuko power cable (1,4 m) ●... - Page 5 If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. Ordercode: 200202...
-
Page 6: Operating Determinations
● If your device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Infinity dealer for service. ● For adult use only. The device must be installed beyond the reach of children. Never leave the unit running unattended. -
Page 7: Connection With The Mains
UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER NULL YELLOW/GREEN GREEN GREEN EARTH Make sure that the device is always connected properly to the earth! Improper installation can cause serious injuries and/or damage of property ! Ordercode: 200202... -
Page 8: Return Procedure
After this period, complaints will not be handled anymore. Complaints will only be considered if the client has so far complied with all parts of the agreement, regardless of the agreement of which the obligation is resulting. Ordercode: 200202... -
Page 9: Description Of The Device
TF-300 Fresnel Description of the device Features The Infinity TF-300 Fresnel a state of the art high-resolution theatrical luminaire with high output. ● Delivers the performance of 1kW Tungsten Halogen unit with a consumption of 300W ● Manual and motorized zoom control ●... -
Page 10: Side
TF-300 Fresnel Side Fig. 01 01) 300W Lumiled White LED 02) Mounting bracket 03) Safety eye 04) Rear handle 05) Manual Focus 06) Adjustment handle 07) Control buttons + LC-display Ordercode: 200202... -
Page 11: Backside
13) Neutrik PowerCON OUT (Gray) 14) Manual Focus Installation Remove all packing materials from the Infinity TF-300 Fresnel. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 12: Installing Filterframe
03) Make sure the upper lever is pulled backwards and insert the filterframe (ordercode: 200250 into the lower spring lever. 04) Release the upper spring lever. 05) Make sure the filterframe is firmly positioned between the upper spring lever and the lower spring lever. Fig. 04 Ordercode: 200202... -
Page 13: Installing Barndoor
03) Make sure the upper lever is pulled backwards and insert the barndoor (ordercode: 200251 in the lower spring lever. 04) Replace the upper spring lever in the start position. 05) Make sure the barndoor is firmly positioned between the upper spring lever and the lower spring lever. Fig. 05 Ordercode: 200202... -
Page 14: Control Modes
Do not supply power before the whole system is set up and connected properly. Multiple Fresnels DMX Set Up Fig. 06 Note: Link all cables before connecting electric power Ordercode: 200202... -
Page 15: Fixture Linking
DAP DMX adapter: 3-pin > 5-pin. Ordercode FLA30. ● DAP DMX Terminator 3-pin. Ordercode FLA42. ● DAP DMX Terminator 5-pin. Ordercode FLA43. The Infinity TF-300 Fresnel can be operated with a controller in control mode or without the controller in stand-alone mode. Ordercode: 200202... -
Page 16: Control Panel
The controller is switched off or defective, the cable or connector is detective, or the signal wires are swapped in the input connector. Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure proper transmission on the DMX data link. Ordercode: 200202... -
Page 17: Menu Overview
TF-300 Fresnel Menu Overview Ordercode: 200202... -
Page 18: Activate Focus Mode
TF-300 Fresnel The Infinity TF-300 will show the Info screen at start-up ! Press the Home button (B) to switch between the Info screen and the current menu mode. Press the Return button (C) to go back to the main menu. -
Page 19: Dmx Configuration
03) Press the UP/DOWN buttons to set the dimmer value. The adjustment range is between 3.2 Zoom 01) Press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the submenu. 03) Press the UP/DOWN buttons to set the zoom. The adjustment range is between Ordercode: 200202... -
Page 20: Dimmer Curves
01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to set the dimmer speed. Choose one of the 4 options 04) Press the ENTER button to confirm. Ordercode: 200202... -
Page 21: Dmx Lost Mode
03) Press the UP/DOWN buttons to choose one of the 3 options: The display will turn off in 60 seconds. The display will be continuously on. The display will be off. 04) Press the ENTER button to confirm your choice Ordercode: 200202... -
Page 22: Zoom Motor
03) Press the UP/DOWN buttons to choose between 04) Press the ENTER button to confirm. 05) If you choose , it will completely turn off the electronical part of the motor, so you can only control the zoom manually. Ordercode: 200202... -
Page 23: Info
04) Press the ENTER button to confirm your choice. 05) If you choose , the device will not reset to its default settings. 06) If you choose , press the ENTER button to confirm. 07) The device will now reset to its default settings. Ordercode: 200202... -
Page 24: Dmx Channels
PWM speed: 1,1 kHz 112-119 PWM speed: 1,2 kHz 120-127 PWM speed: 1,3 kHz 128-135 PWM speed: 1,4 kHz 136-143 PWM speed: 1,5 kHz 144-151 PWM speed: 1,6 kHz 152-159 Calibration disabled 160-167 Calibration enabled 168-175 Fan mode: silent Ordercode: 200202... -
Page 25: Maintenance
No function Maintenance The Showtec Infinity TF-300 Fresnel requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. The front glass panel will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the light output very quickly. -
Page 26: No Response To Dmx
Check if power is switched on and fixtures do not cables are plugged in function at all Internal fuse blown ● Return the Fresnel to your Infinity dealer Fixtures reset The controller is not connected ● Connect controller correctly, but all 3-pin/5-pin XLR Out of the ●... - Page 27 TF-300 Fresnel Product Specifications Model: Infinity TF-300 Fresnel Input Voltage: 100-240V AC, 50/60Hz Power consumption: 300W Power factor: 0,97 DMX linking: 30 pcs Dimensions: 509 x 322 x 450 mm (LxWxH) (incl. bracket) Weight: 8,3 kg Operating and Programming: Signal pin OUT:...
- Page 28 TF-300 Fresnel Dimensions Ordercode: 200202...
- Page 29 TF-300 Fresnel Notes Ordercode: 200202...
- Page 30 TF-300 Fresnel Ordercode: 200202...
- Page 31 TF-300 Fresnel Ordercode: 200202...
- Page 32 ©2019 Infinity...
