DP2000 Digital Projector

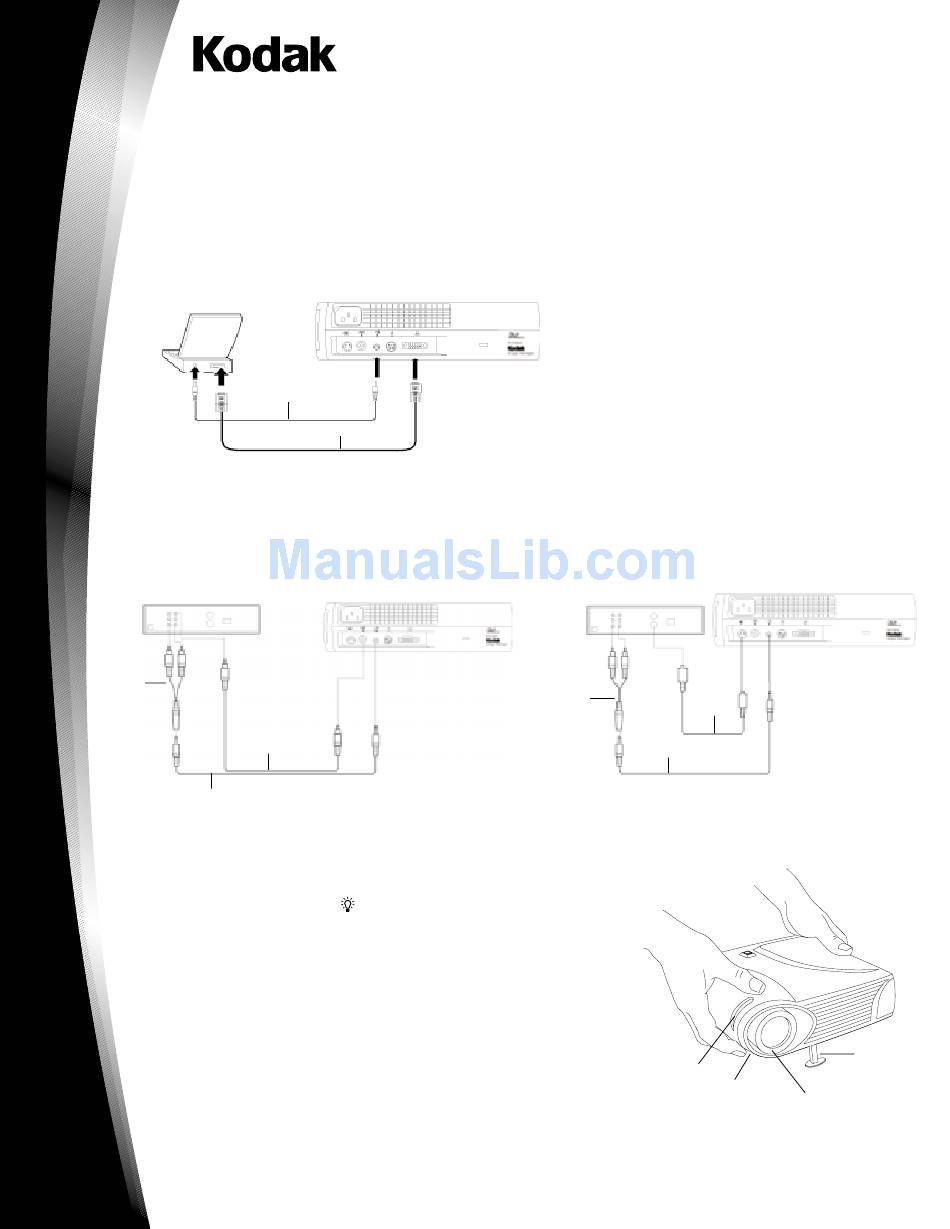

Connecting the Projector
Icons on the projector will aid you when connecting the projector to a computer or video player.
Caution: Turn off the computer, monitor and projector whenever you connect the components.
Connecting to a Computer
Connecting to a Video Player
If your video player uses a round, four-prong S-video connector, you'll need an S-video cable in addition to the audio cable and audio adapter.
Note: The S-video cable is sold separately.
Connecting with Video Cable
Audio
adaptor
Audio cable
Starting the Projector
1. Remove the lens cap.
2. Plug the power cord into the side of the projector, then plug it into your electrical outlet.
3. Turn on the lamp by pressing the
4. Turn on your video source - a video player or a computer.
5. Position the projector and adjust the zoom setting for the image size you want.
• Adjust the zoom ring.
• Focus by rotating focus ring.
• Be sure the projector is at a 90-degree angle to the screen.
• Adjust the height of the projector. Press and hold the elevator button. Raise the projector
to the height you want, then release the button.
P/N 3H7570
009-0469-00
Audio cable
Data cable
Video cable
button on the keypad.
Connecting with S-video Cable
Audio
adaptor
Audio cable
Zoom ring
Q
S
uick
S-video
cable
Elevator foot
Elevator button
Focus ring
G
tart
uide
